Description

Brief Product Description

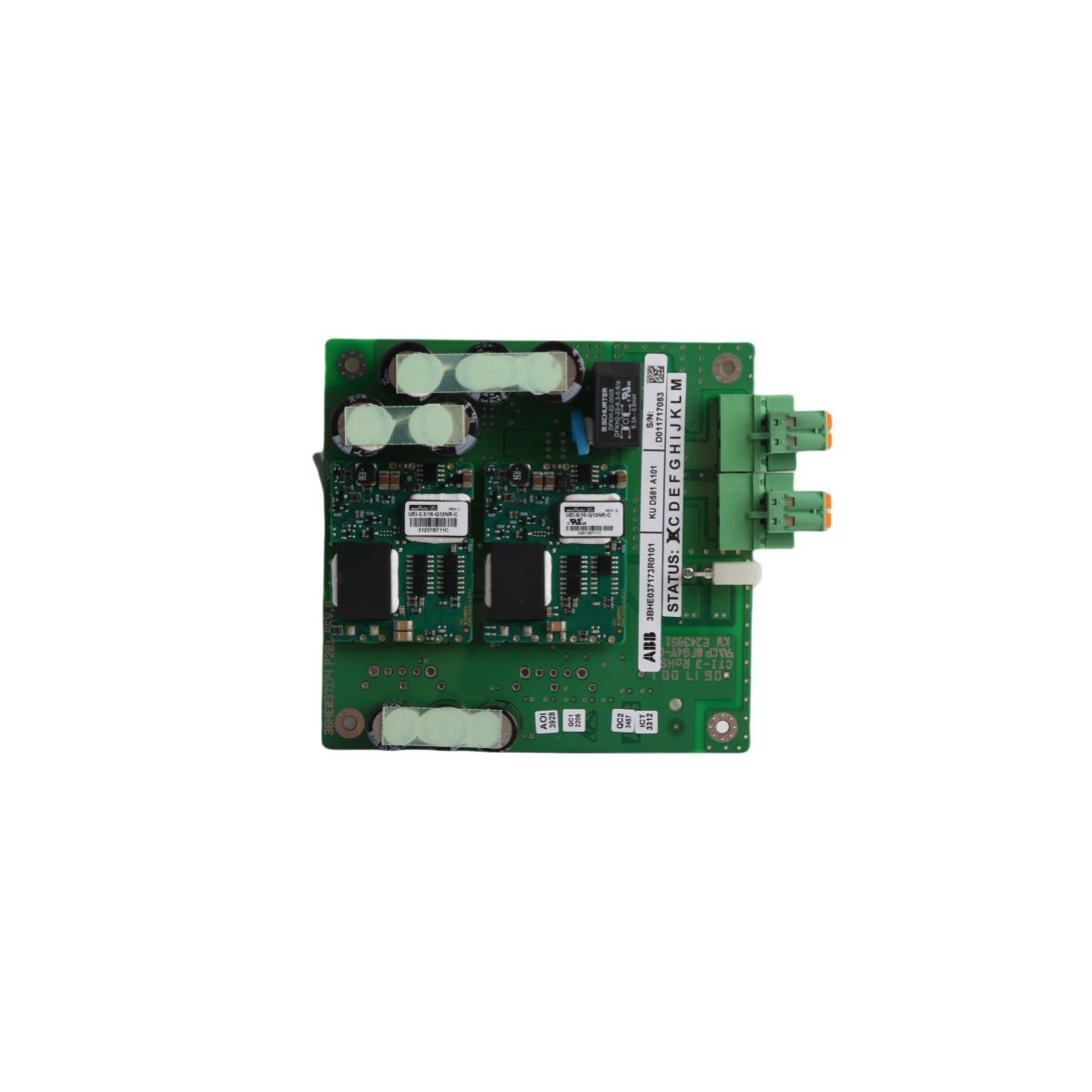

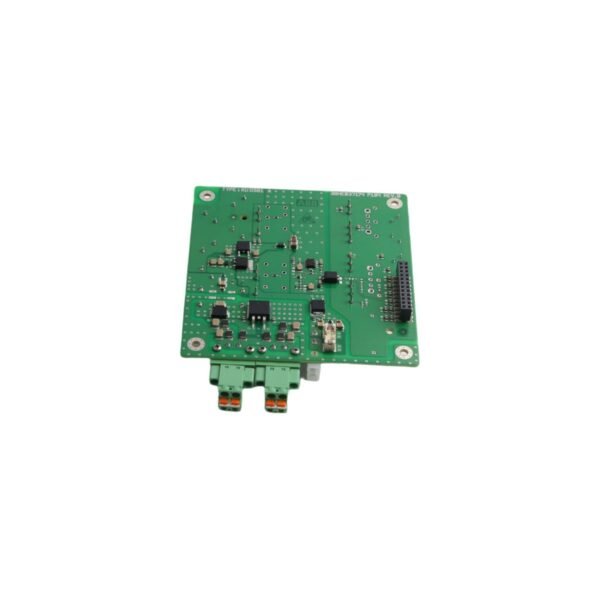

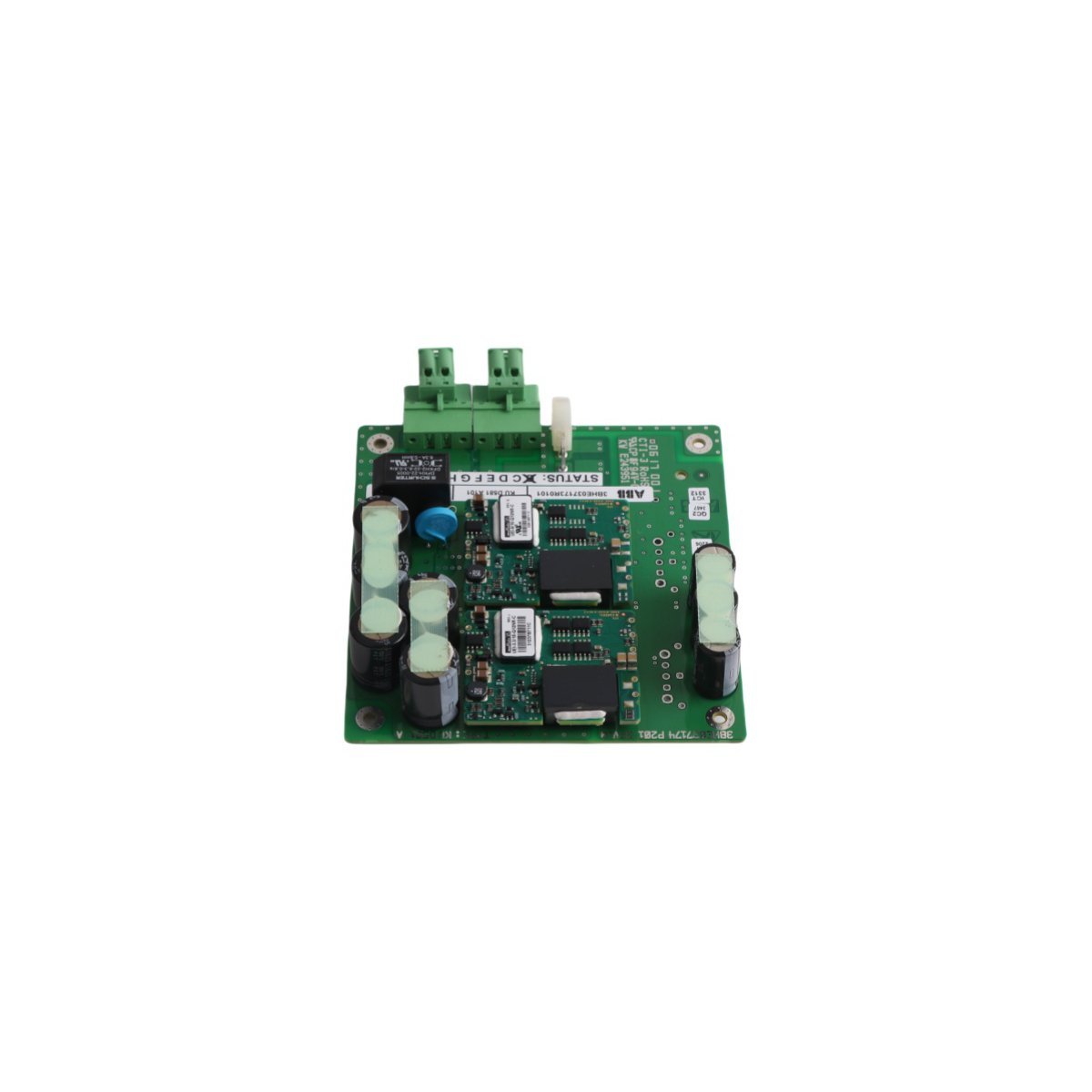

The ABB 3BHE037173R0101 KUD581 A101 is a high-precision digital controller board specifically engineered for the ACS 1000 medium voltage drive system. It manages complex motor control algorithms and system-wide synchronization to ensure peak operational efficiency in heavy industrial power applications.

Core Drive Control and System Logic

The ABB 3BHE037173R0101 (KUD581 A101) serves as the primary processing intelligence for the ACS 1000 medium voltage drive series. This controller board executes advanced motor control routines that regulate speed, torque, and power flow with exceptional accuracy. By utilizing high-speed digital processing, the board maintains optimal drive performance even under fluctuating load conditions. It functions as the central nervous system of the drive unit, translating complex process commands into precise electrical signals for power semiconductor switching.

Networked Integration and Communication

Modern automation requires interconnected reliability, and the KUD581 A101 facilitates this through a suite of robust communication interfaces. The board features dedicated ports for RS-485 and high-speed Ethernet, allowing it to act as a data node within a Distributed Control System (DCS) or an Ethernet-based plant network. These interfaces ensure that real-time telemetry and operational data flow seamlessly to the supervisory level. Consequently, engineers can implement comprehensive networked control solutions that improve visibility across the entire production line.

Engineered for Rigorous Industrial Standards

Reliability in harsh environments is a fundamental characteristic of the 3BHE037173R0101. ABB designed this module to maintain thermal stability and signal integrity across a broad range of environmental stressors. Furthermore, the board adheres to essential safety and compliance benchmarks, including SIL (Safety Integrity Level) standards such as IEC 61508. This certification ensures that the controller supports functional safety requirements in critical infrastructure. The board’s compact form factor also allows for efficient installation in space-restricted drive cabinets without sacrificing processing power or heat dissipation efficiency.

Key Technical Characteristics

• High-Performance Processing: Employs advanced digital technology for the real-time control of medium voltage drive systems.
• ACS 1000 System Compatibility: Designed specifically for native integration with ABB medium voltage drive hardware.
• Extensive Connectivity: Includes Ethernet and RS-485 interfaces for integration into modern DCS and Ethernet router services.
• Functional Safety Compliance: Certified to meet ISO 61508 and IEC 61508 safety integrity standards.
• Environmental Resilience: Engineered for Swedish standards of durability, ensuring stable operation in both extreme cold and high-heat settings.
• Optimized Dimensions: The 11×13.5x3cm profile facilitates easy mounting in high-density electrical control panels.

Technical Specifications
