Description

Brief Product Description

The Emerson KJ3201X1-BA3 is a Series 2 Digital Input module designed for the DeltaV SIS safety system, specifically engineered to process 24V DC dry contact signals. This robust interface ensures high-integrity data transmission and electrical protection for critical process safety applications.

Product Description

High-Integrity Safety Interface

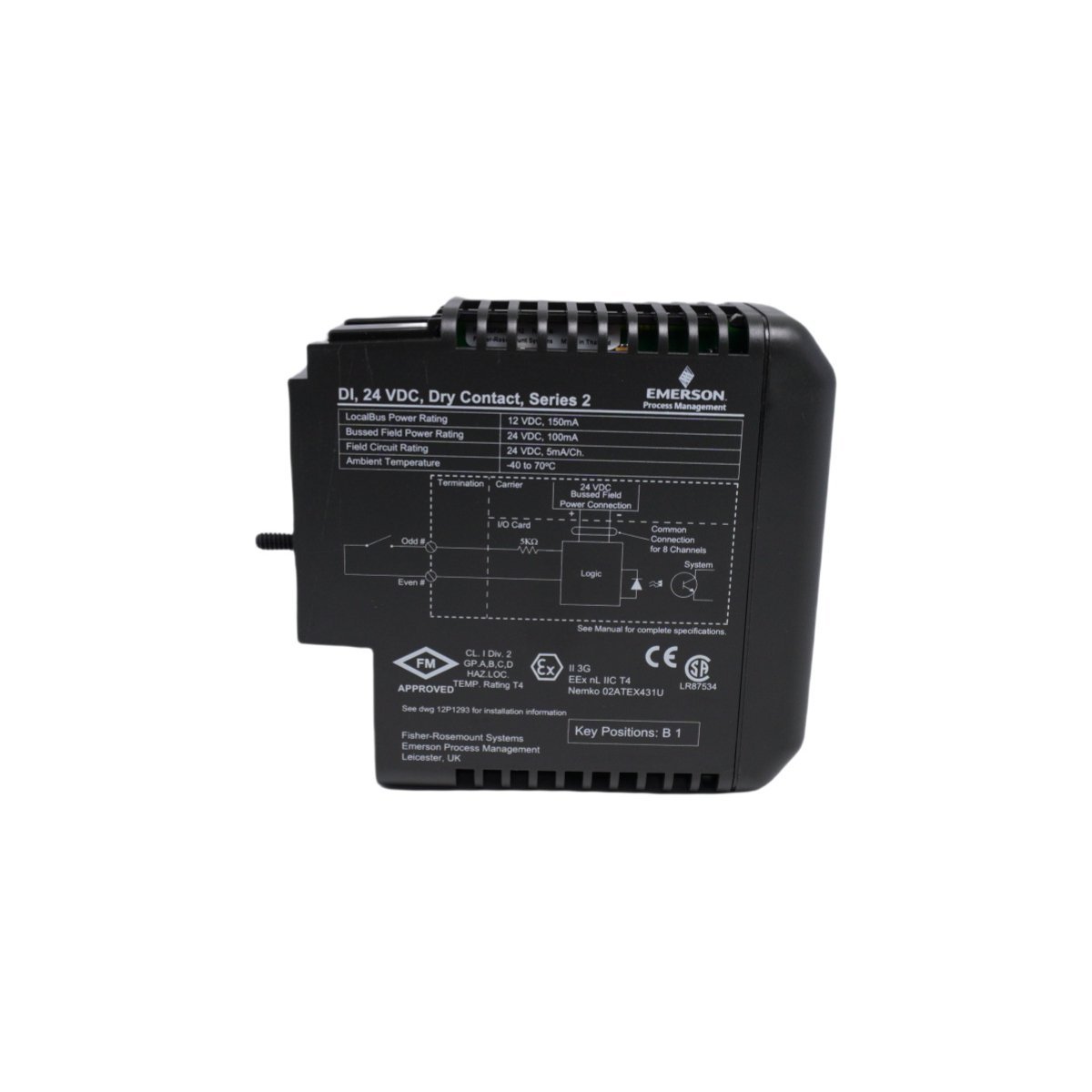

The Emerson KJ3201X1-BA3 functions as a vital bridge between field sensors and the DeltaV SIS safety logic solver. Specifically designed for 24V DC dry contact applications, this module accurately detects state changes from field devices while maintaining electrical isolation from the local bus. To ensure maximum reliability in safety-instrumented functions, the module utilizes a low-current draw of 5mA per channel, which minimizes heat generation and extends the lifespan of the internal components. Consequently, operators can rely on this module for consistent performance in emergency shutdown (ESD) and fire and gas (F&G) systems.

Extreme Environmental Resilience

Engineered for the most demanding industrial settings, the KJ3201X1-BA3 module features a hardened design that thrives in high-vibration and corrosive environments. It carries an ISA-S71.04 G3 rating, which signifies superior protection against airborne contaminants and chemical corrosion often found in refineries or chemical plants. Furthermore, the module operates across a wide temperature range from -40°C to +70°C and withstands physical shocks up to 10g. These characteristics ensure that the safety system remains operational even during mechanical disturbances or extreme weather conditions.

Advanced Diagnostics and Integration

The KJ3201X1-BA3 Emerson module enhances system availability by incorporating real-time diagnostic capabilities. Integrated LED indicators on the front panel provide immediate visual feedback regarding channel status and module health, which significantly accelerates troubleshooting efforts during maintenance cycles. Because the module integrates natively with the DeltaV local bus, it supports rapid data exchange and automatic configuration detection. This seamless integration allows for easy expansion and hot-swapping under power, ensuring that process safety is maintained without requiring total system shutdowns.

Technical Specifications
