Description

Brief Product Description

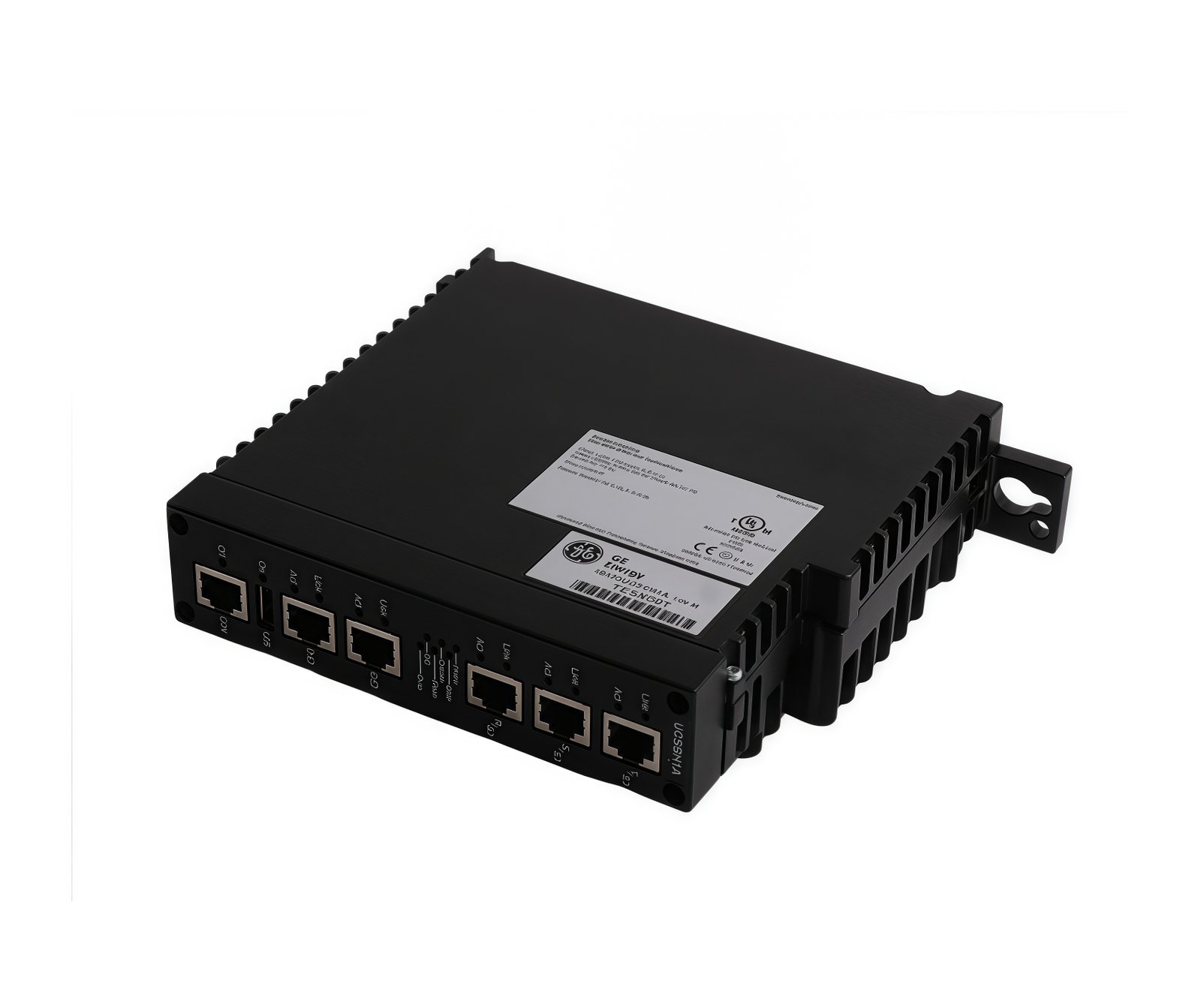

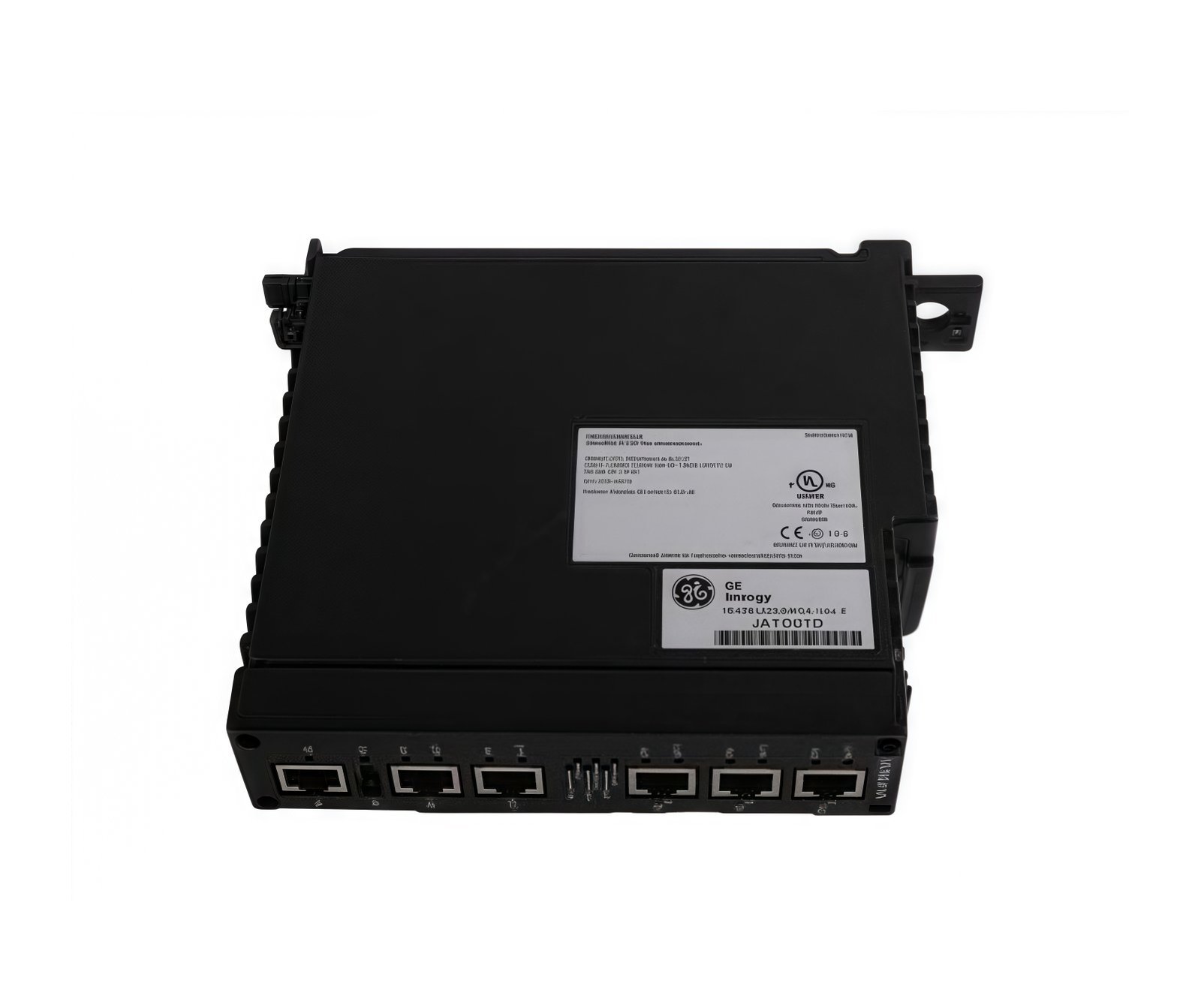

The General Electric IS420UCSBH1A is a high-performance UCSB controller module designed for the Mark VIe and Mark VIeS control platforms. It utilizes a 1066 MHz Intel processor and the QNX Neutrino operating system to execute complex turbine control and safety instrumented functions.

​Product Description

High-Performance Processing Architecture

The General Electric IS420UCSBH1A functions as a standalone computational engine within the Mark VIe Control Safety System. Powered by a 1066 MHz Intel EP80579 microprocessor, this UCSB module delivers the rapid execution speeds necessary for sophisticated gas and steam turbine applications. Because it operates on the QNX Neutrino real-time operating system (RTOS), the controller ensures deterministic performance and high reliability for mission-critical automation. Furthermore, the hardware utilizes flash memory for easy software updates and does not require batteries or physical jumpers, which significantly simplifies long-term maintenance.

Advanced Connectivity and Redundancy

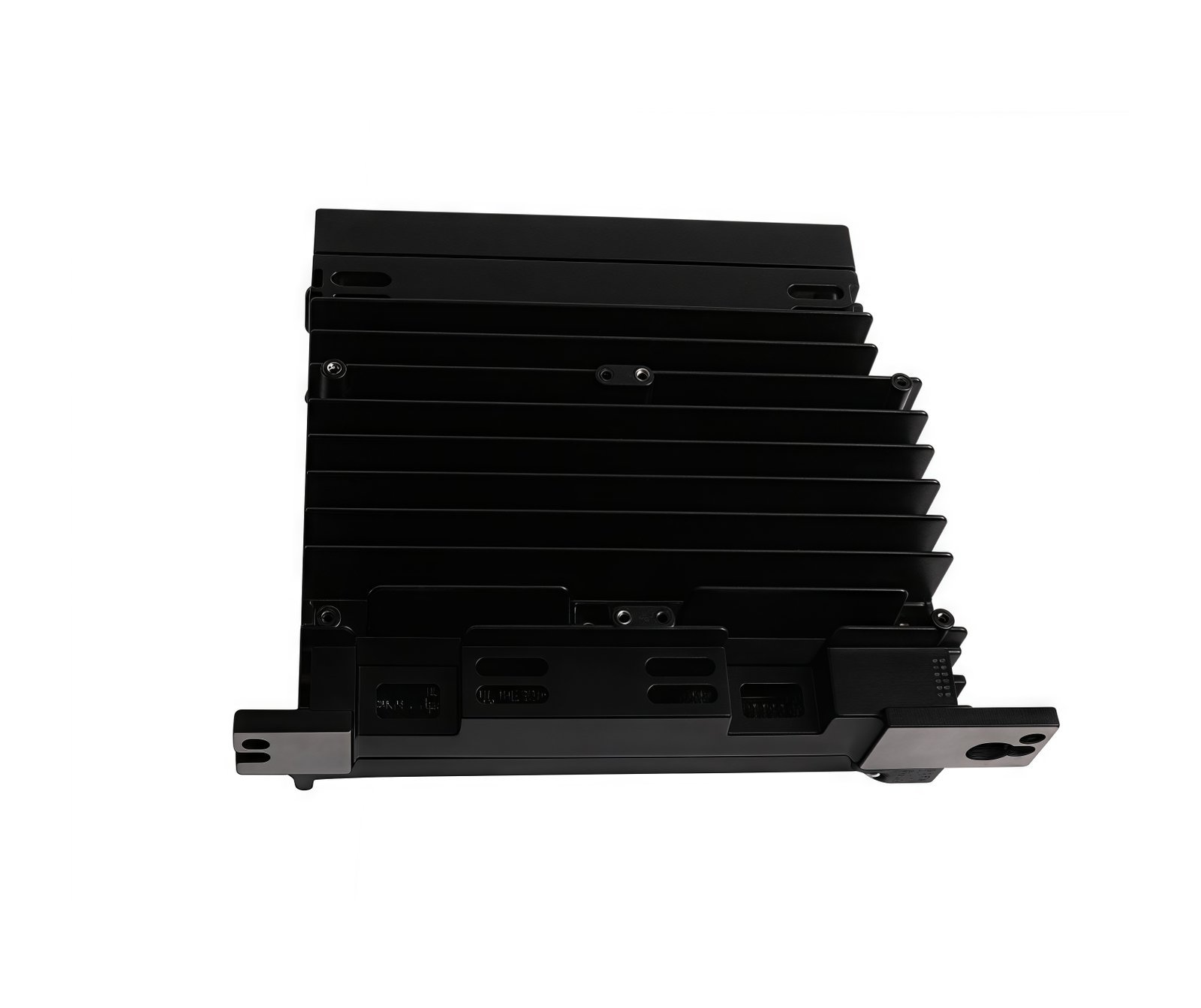

This controller communicates exclusively through IONet, a dedicated 100 MB Ethernet network designed specifically for Mark series devices. Unlike older backplane-based systems, the IS420UCSBH1A accesses all I/O data through this high-speed network, allowing it to support simplex, dual, and triple modular redundant (TMR) architectures. Consequently, the module provides a flexible foundation for SIL 2 and SIL 3 safety loops. For thermal management, the unit incorporates a specialized heatsink design, and select versions feature redundant cooling fans to maintain stable operating temperatures during intensive processing cycles.

Secure Industrial Implementation

Engineers designed the IS420UCSBH1A to meet stringent international safety and environmental standards. The module is certified for use in hazardous locations under ATEX Zone 2 (Group IIC) and carries UL certifications for non-hazardous environments. It accepts a standard 24V DC power input and maintains a low current draw even under full load. By integrating with the ControlST software suite and ToolboxST configuration tools, operators can perform real-time diagnostics and program Safety Instrumented Functions (SIF) with precision. This robust combination of hardware and software makes it a cornerstone for modern power generation and heavy industrial control strategies.

Technical Specification Overview
