Description

Product Overview

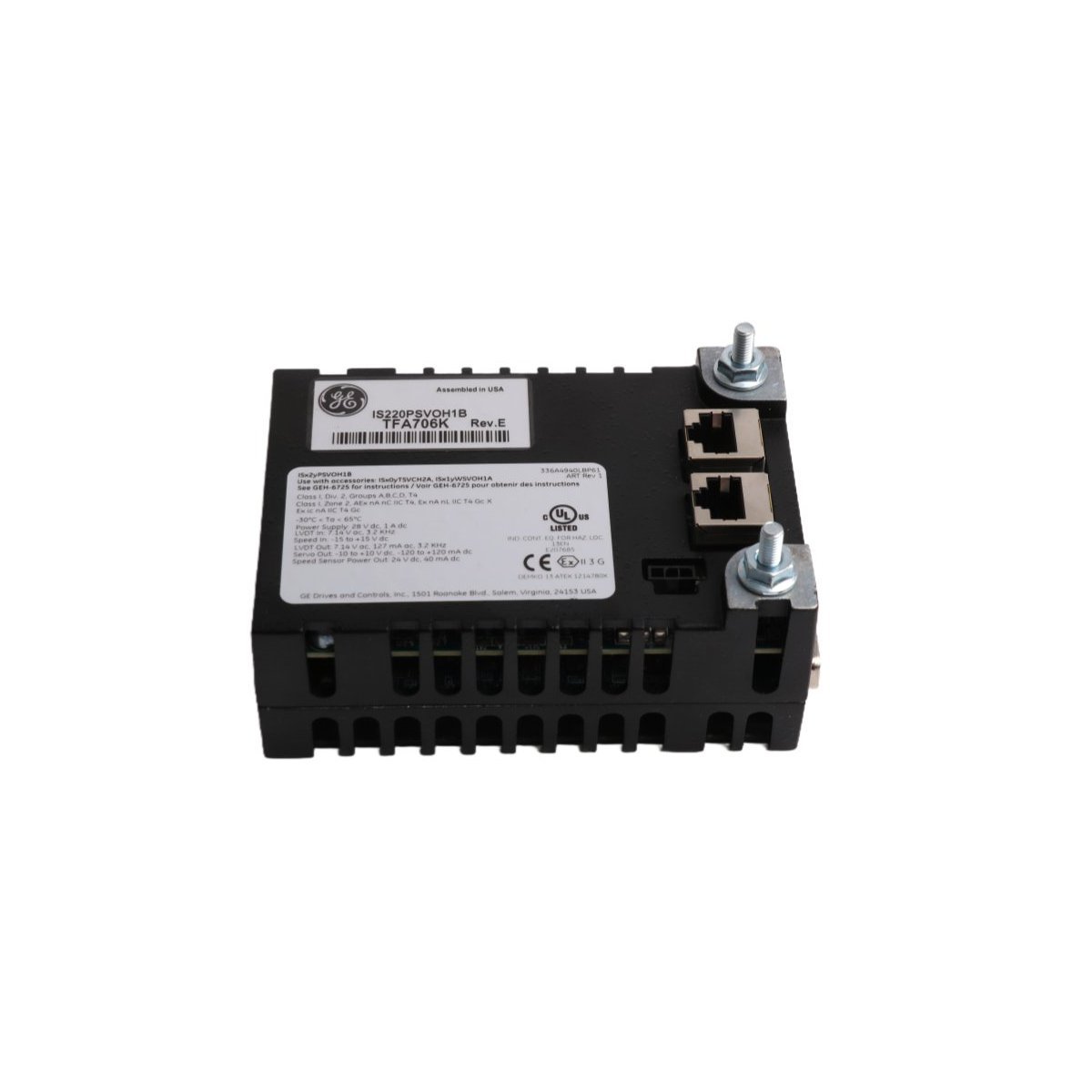

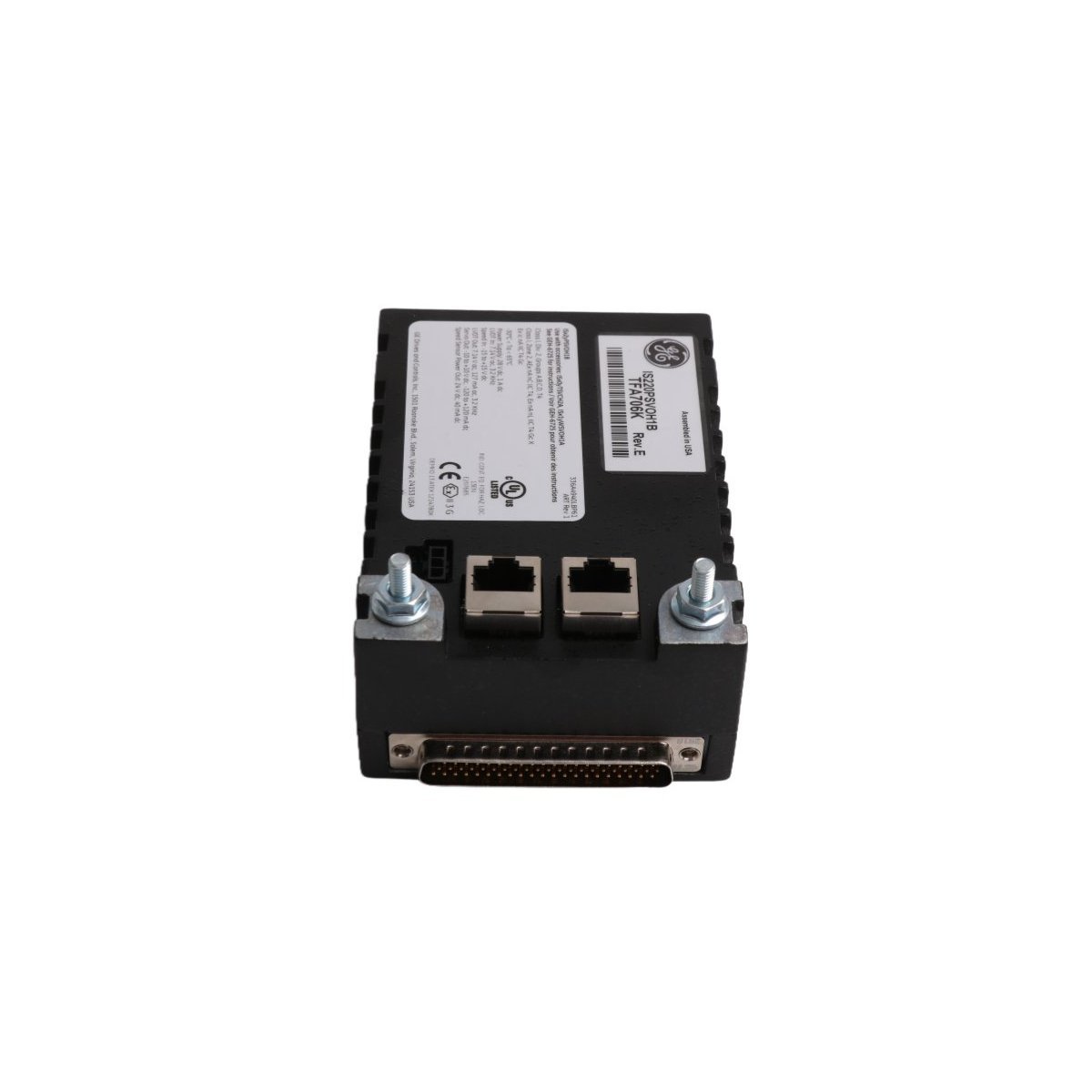

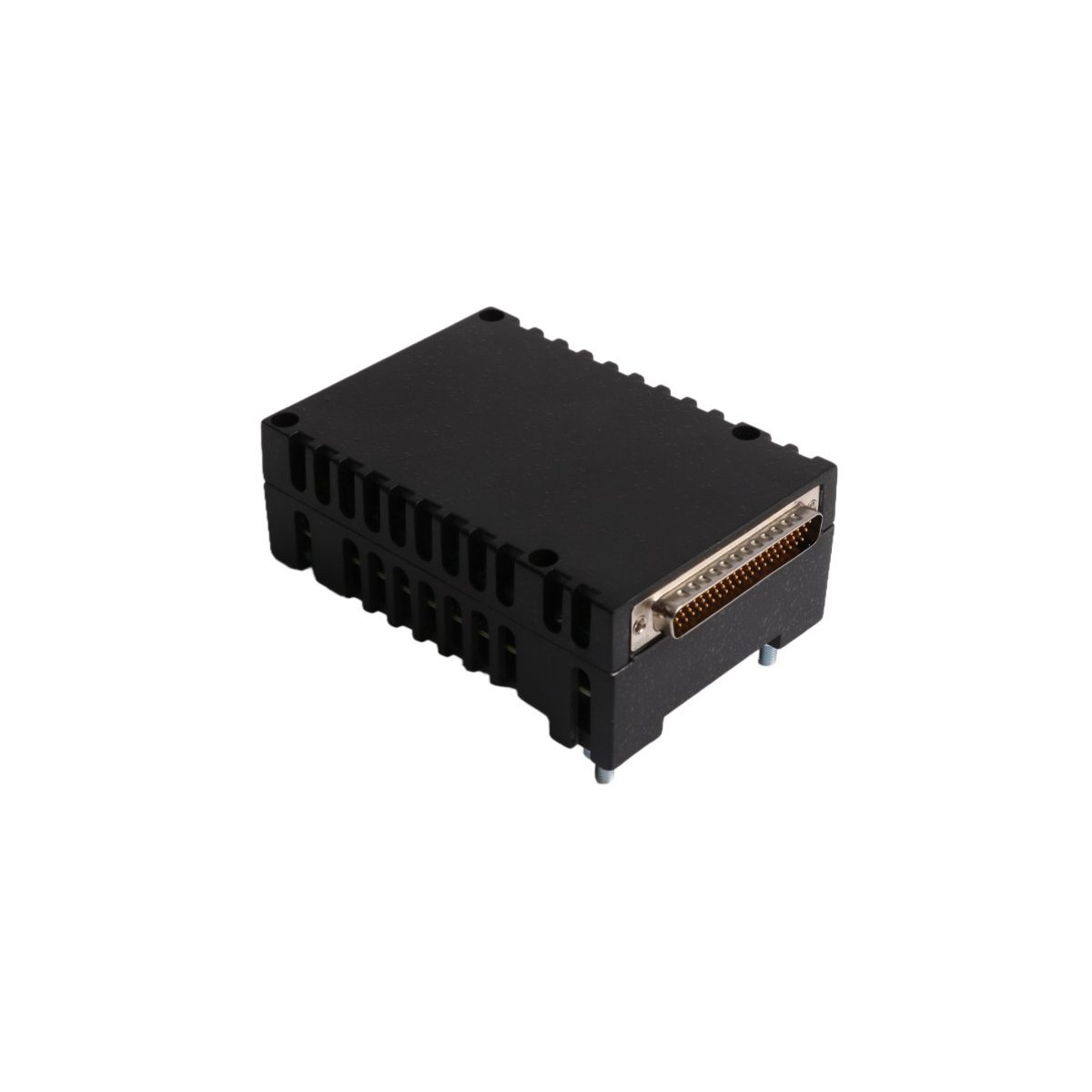

The General Electric IS220PSVOH1B is a high-precision servo interface I/O pack developed for the Mark VIe control platform. This module orchestrates the positioning of servo valves in turbine applications by executing dual-loop control algorithms and interfacing directly with the IONet Ethernet network.

Servo Loop Management and Control Logic

The IS220PSVOH1B functions as the intelligent bridge between the central controller and the hydraulic actuators. It manages two independent servo valve loops, providing the necessary drive currents and feedback processing to ensure exact valve positioning. The module typically docks with a TSVO terminal board, working in tandem with a WSVO driver to translate digital logic into precise mechanical movement. By handling the servo algorithms locally, the processor minimizes network load and ensures instantaneous response times for critical turbine regulation.

Monitoring, Diagnostics, and Architecture

This module features an advanced front-panel diagnostic array that provides real-time visibility into system health. Dedicated LED indicators track the status of dual Ethernet links (ENet1 and ENet2), power stability, and individual loop enablement (ENA1 and ENA2). Internally, the assembly contains a localized power supply, high-speed processing logic, and an integrated temperature sensor to monitor thermal conditions within the enclosure. To protect sensitive components during the initialization phase, the board utilizes soft-start circuitry that prevents electrical stress during hot-plugs or system startups.

Configuration and Maintenance Tools

System engineers configure the IS220PSVOH1B using the GE Control System Toolbox. The module supports seamless auto-reconfiguration, which allows a new pack to inherit settings from the controller automatically upon replacement. Furthermore, the ToolboxST Component Editor enables advanced maintenance tasks, such as actuator stroking and current ramping tests. These built-in diagnostic routines allow for the calibration and verification of valve movement without requiring external test equipment, while the trend recorder captures performance data for long-term reliability analysis.

Technical Characteristics
