Description

Brief Product Description

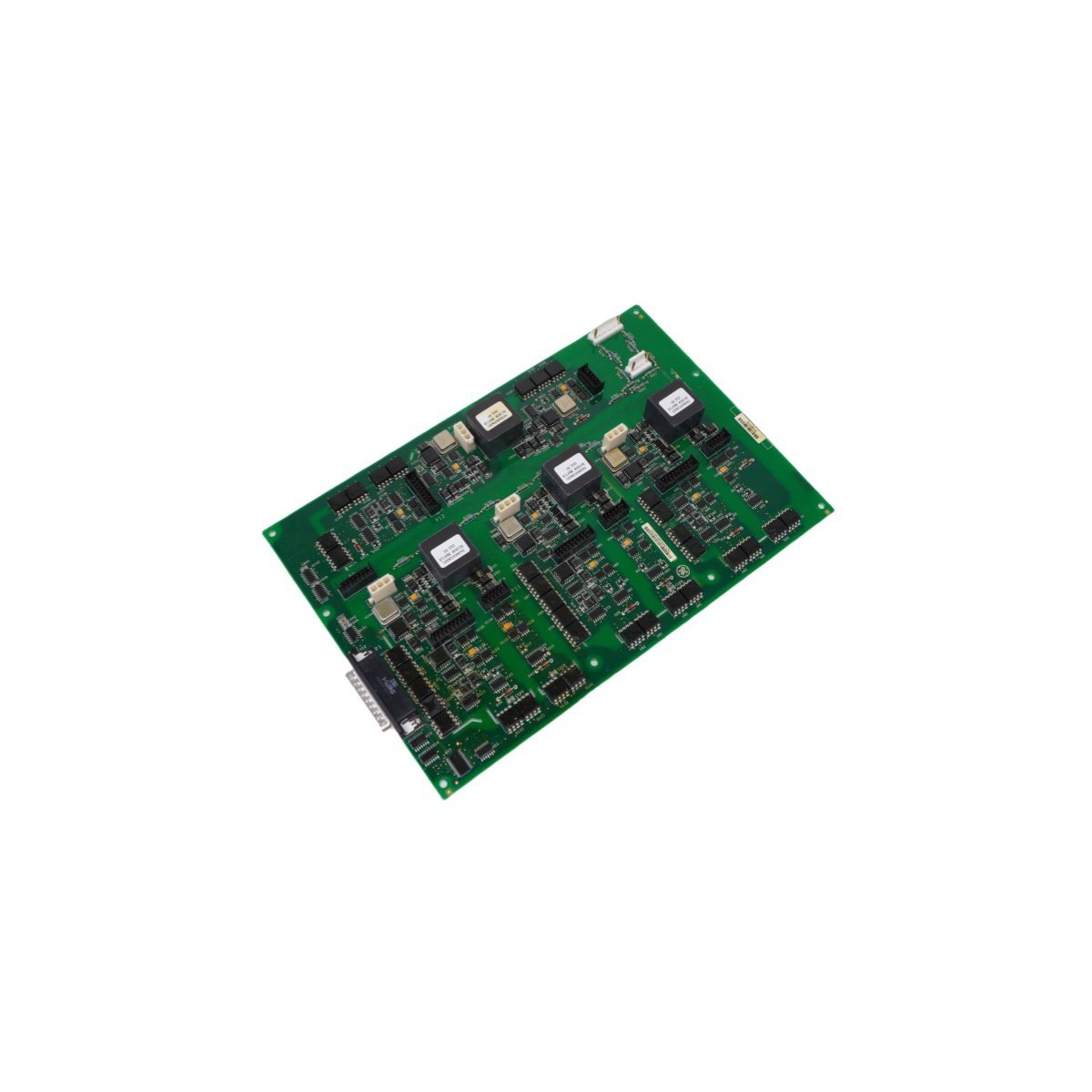

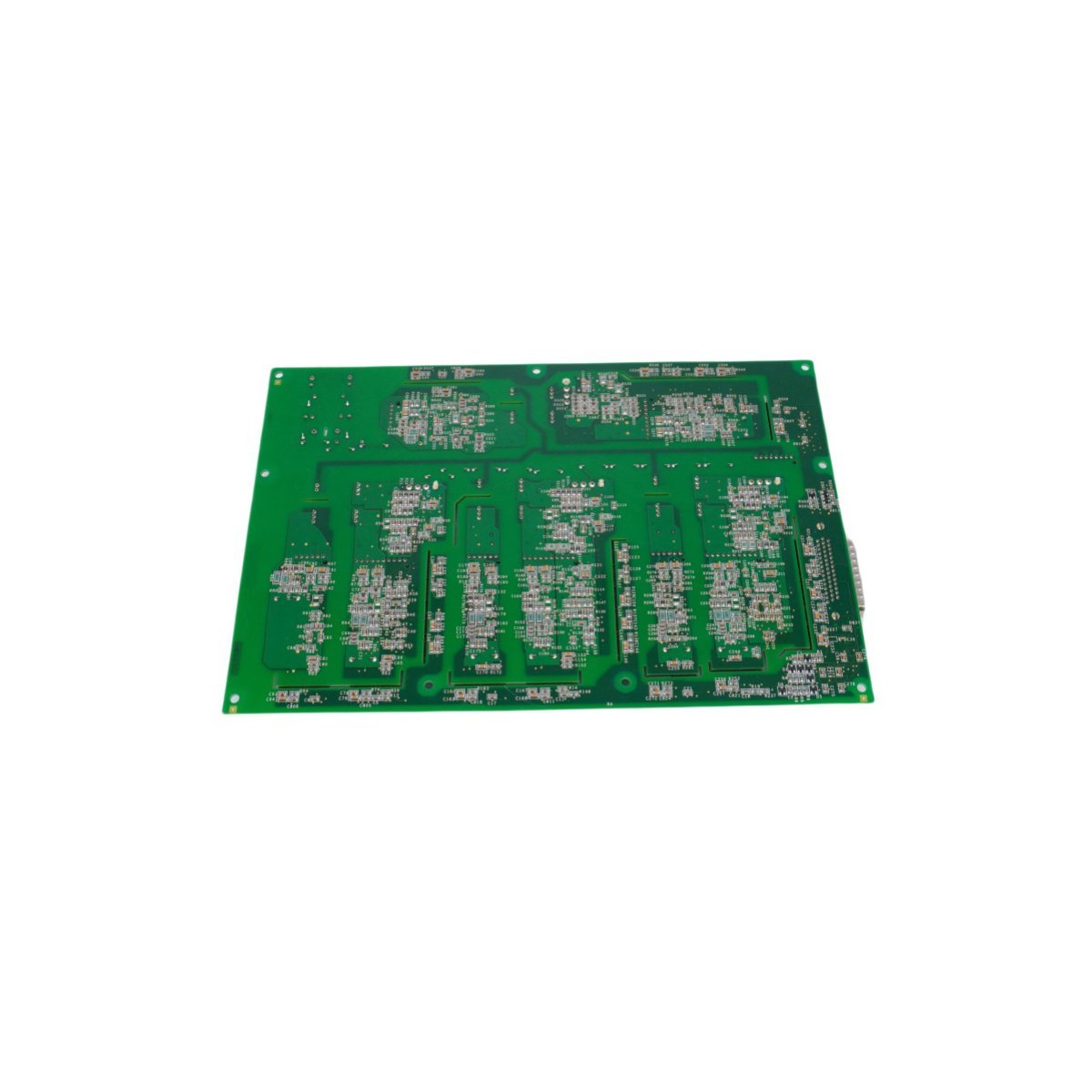

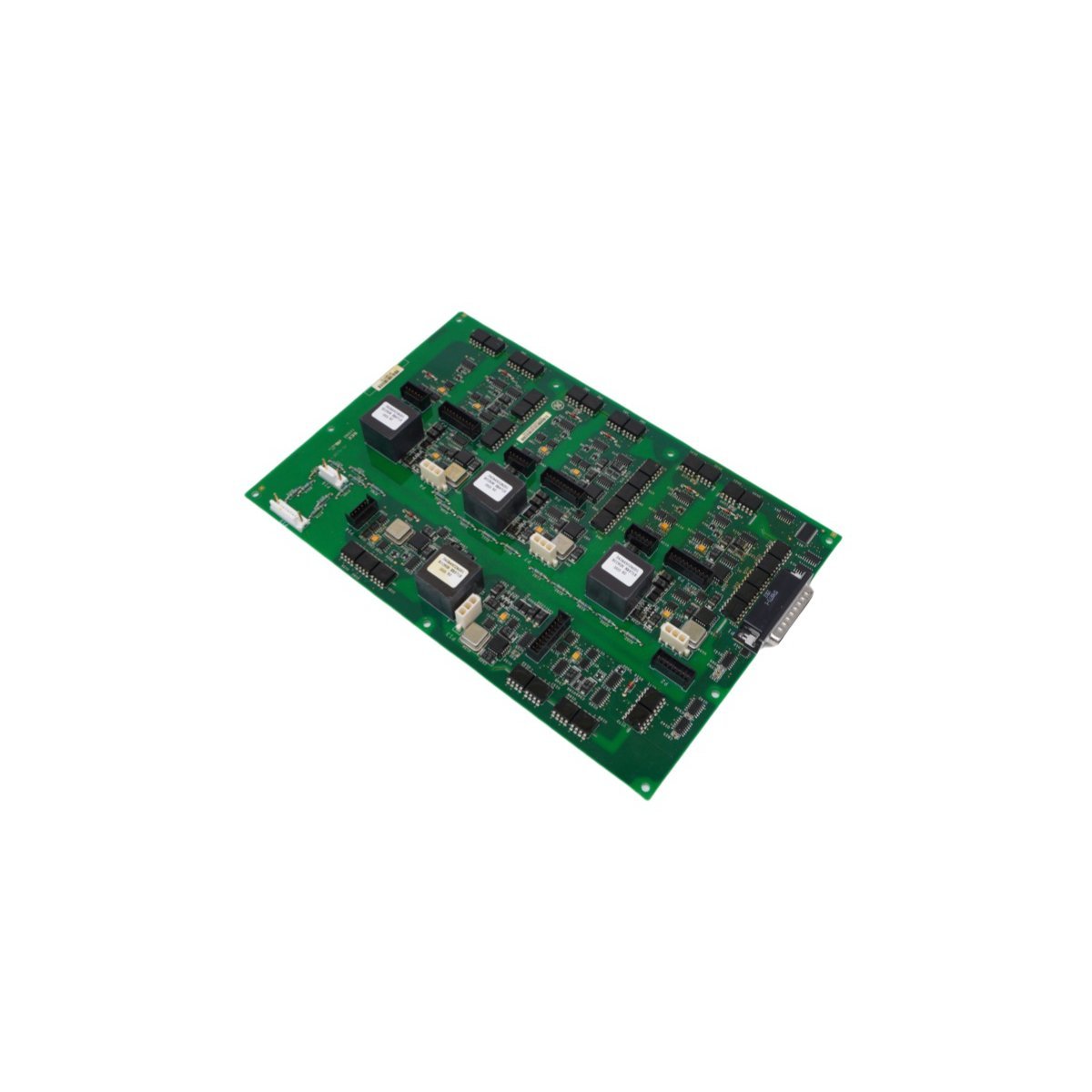

The GE IS210AEDBH4A is a high-density Bridge Interface Board engineered for the Mark VIe Speedtronic control system. It provides critical signal routing and high-voltage isolation for the management of heavy-duty gas and steam turbine operations.

Product Description

High-Voltage Isolation and Signal Processing

The GE IS210AEDBH4A functions as a primary interface between control logic and power bridge hardware within the Mark VIe ecosystem. This board handles complex signal modulation using an onboard array of over 180 integrated circuits, ensuring precise execution of turbine control algorithms. To support high-power environments, the board features specialized transformers with Basic Impulse Level (BIL) ratings between 12kV and 15kV. These components provide the necessary dielectric strength to protect sensitive control electronics from high-voltage transients while supporting switching frequencies from 10kHz up to 500kHz.

Redundancy Support and System Versatility

Engineers designed the IS210AEDBH4A bridge interface to facilitate various control strategies, ranging from simple Simplex configurations to mission-critical Triple Modular Redundancy (TMR) setups. By supporting TMR, the board allows the turbine system to maintain continuous operation even if a single control path fails. This versatility makes it a cornerstone of the Speedtronic series, as it adapts to diverse turbine architectures without requiring hardware redesigns. Furthermore, the board architecture streamlines data flow between the controller and the power conversion bridge, which maintains optimal combustion or steam efficiency.

Industrial Hardening and Connectivity

Operating in power generation environments requires hardware that can withstand harsh atmospheric conditions. Consequently, the GE IS210AEDBH4A features a professional-grade conformal coating that shields delicate traces from moisture, dust, and corrosive contaminants. The board’s physical layout includes multiple high-reliability headers and right-angled cable connectors on the front face to simplify cabinet wiring. These robust interconnects ensure stable low-impedance pathways for control signals, while the standard USA-manufactured form factor allows for direct installation into existing Mark VIe backplanes during system upgrades or maintenance cycles.

Technical Specifications
