Description

Brief Product Description

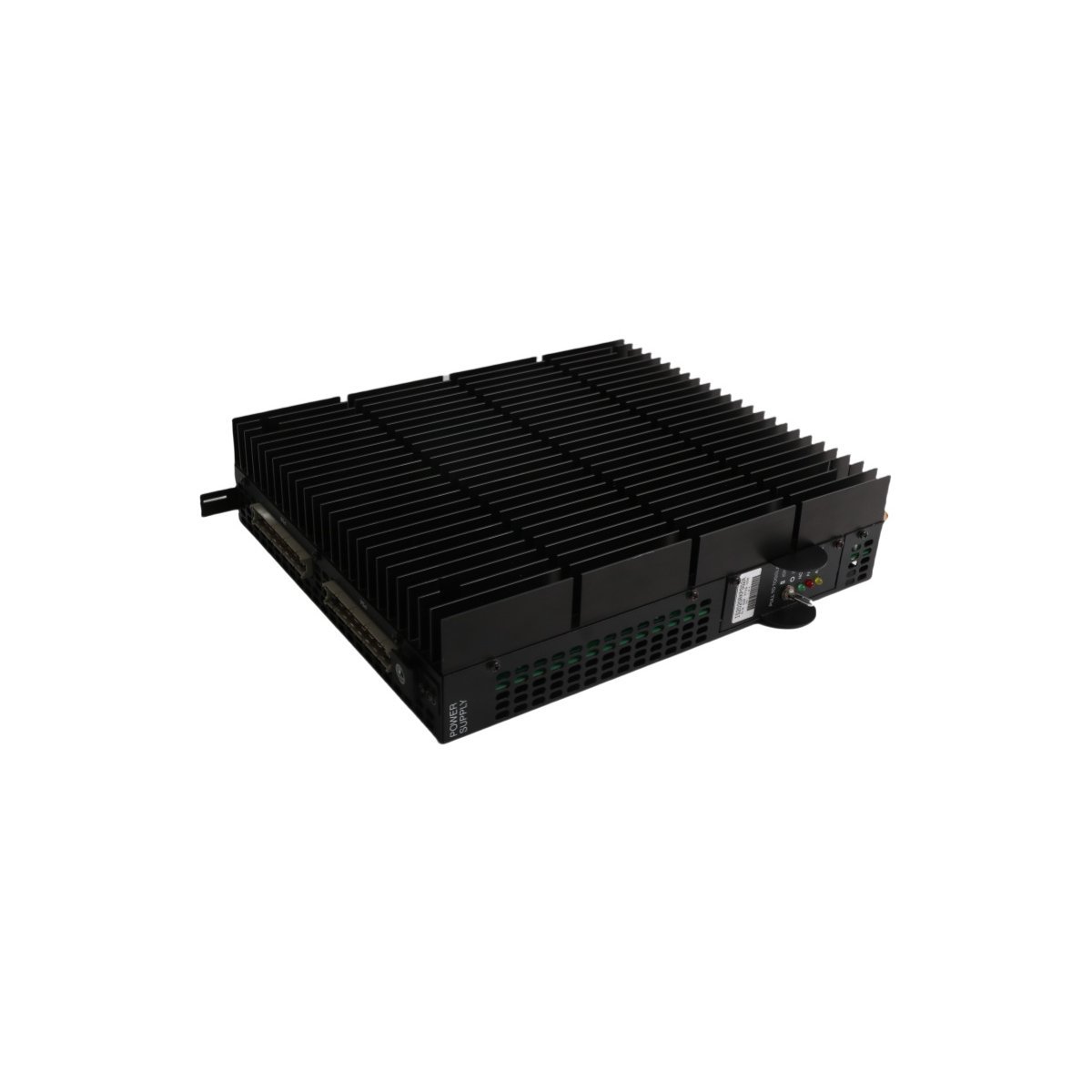

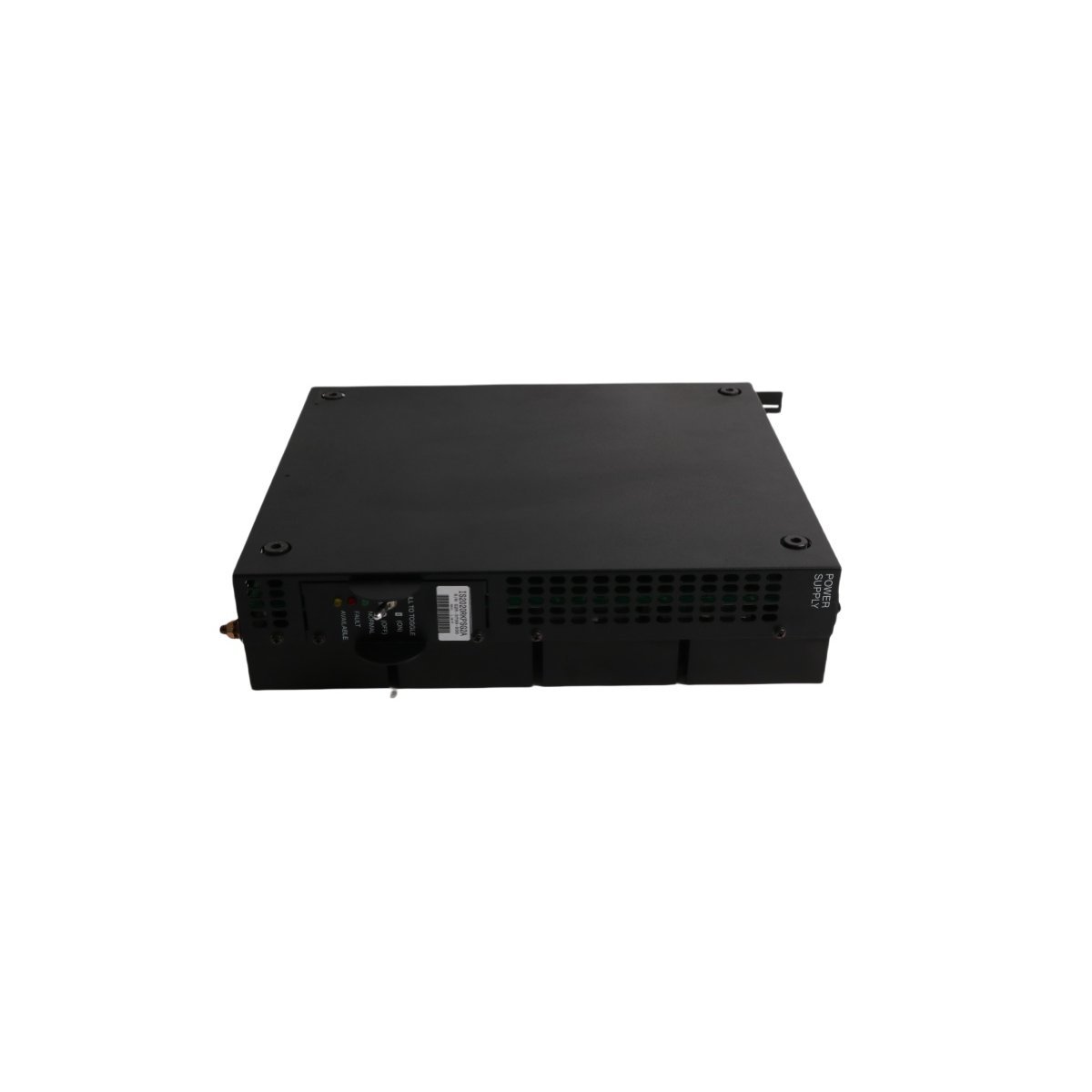

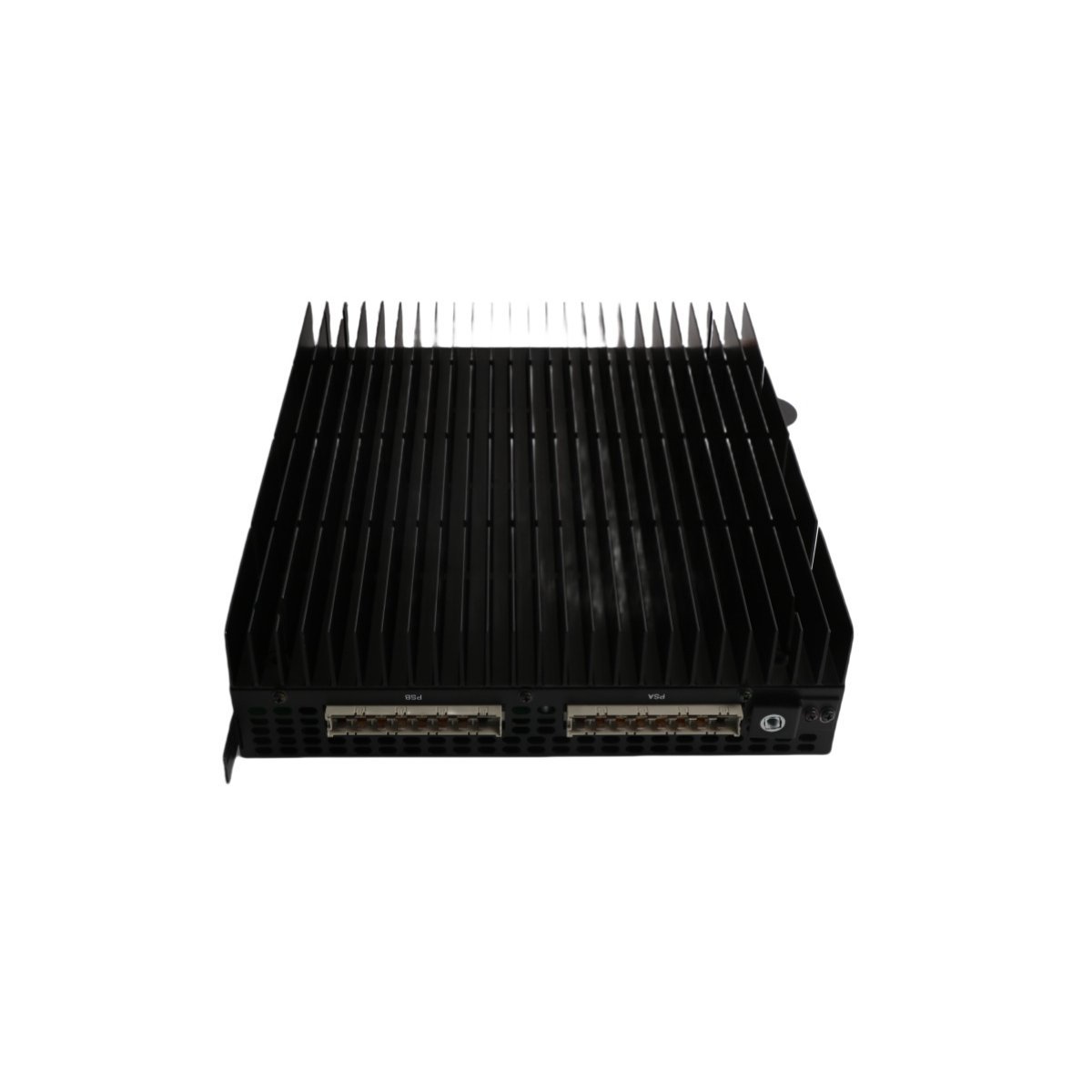

The GE IS2020RKPSG1AK is a high-performance VME rack power supply unit designed specifically for Speedtronic Mark VI turbine control systems. This module provides stabilized multi-voltage outputs and advanced fault diagnostics to maintain continuous operation in mission-critical power generation environments.

Product Description

Multipurpose Power Distribution for Control Racks

The General Electric IS2020RKPSG1AK serves as the primary energy source for VME racks within the Mark VI control architecture. This module converts input power into a stabilized suite of DC voltages, including +5V, ±12V, ±15V, and ±28V, which are essential for various internal rack components. Furthermore, the unit can provide a specialized 335V DC output specifically for powering flame detectors in turbine applications. By accepting either 125V DC or 24V DC inputs, the module offers the flexibility required to adapt to different plant power configurations while maintaining consistent delivery to downstream hardware.

Intelligent Thermal and Energy Management

Efficiency and longevity define the design of the IS2020RKPSG1AK power supply. The module employs a modular architecture featuring five 28V DC power sections (A-F) and supports external peripherals via configurable P28C and PS28 outputs. To optimize energy usage and reduce mechanical wear, the unit incorporates an intelligent cooling system. This system activates the rack-mounted fan only when internal thermal sensors detect a specific temperature threshold. Consequently, this on-demand cooling approach extends the life of the fan and protects the sensitive PCB from thermal stress during heavy load conditions.

Advanced Diagnostic and Protection Logic

Reliability in the GE IS2020RKPSG1AK is reinforced through a sophisticated three-tier fault protection strategy. The module distinguishes between transient shutdowns that allow for automatic recovery, resettable faults that require manual operator intervention, and permanent hardware failures. This tiered logic ensures that minor power fluctuations do not cause unnecessary downtime while simultaneously protecting the system from severe electrical damage. Operators can monitor the real-time health of the unit through a status interface, making this power supply a cornerstone of predictive maintenance in oil, gas, and utility facilities.
