Description

Brief Product Description

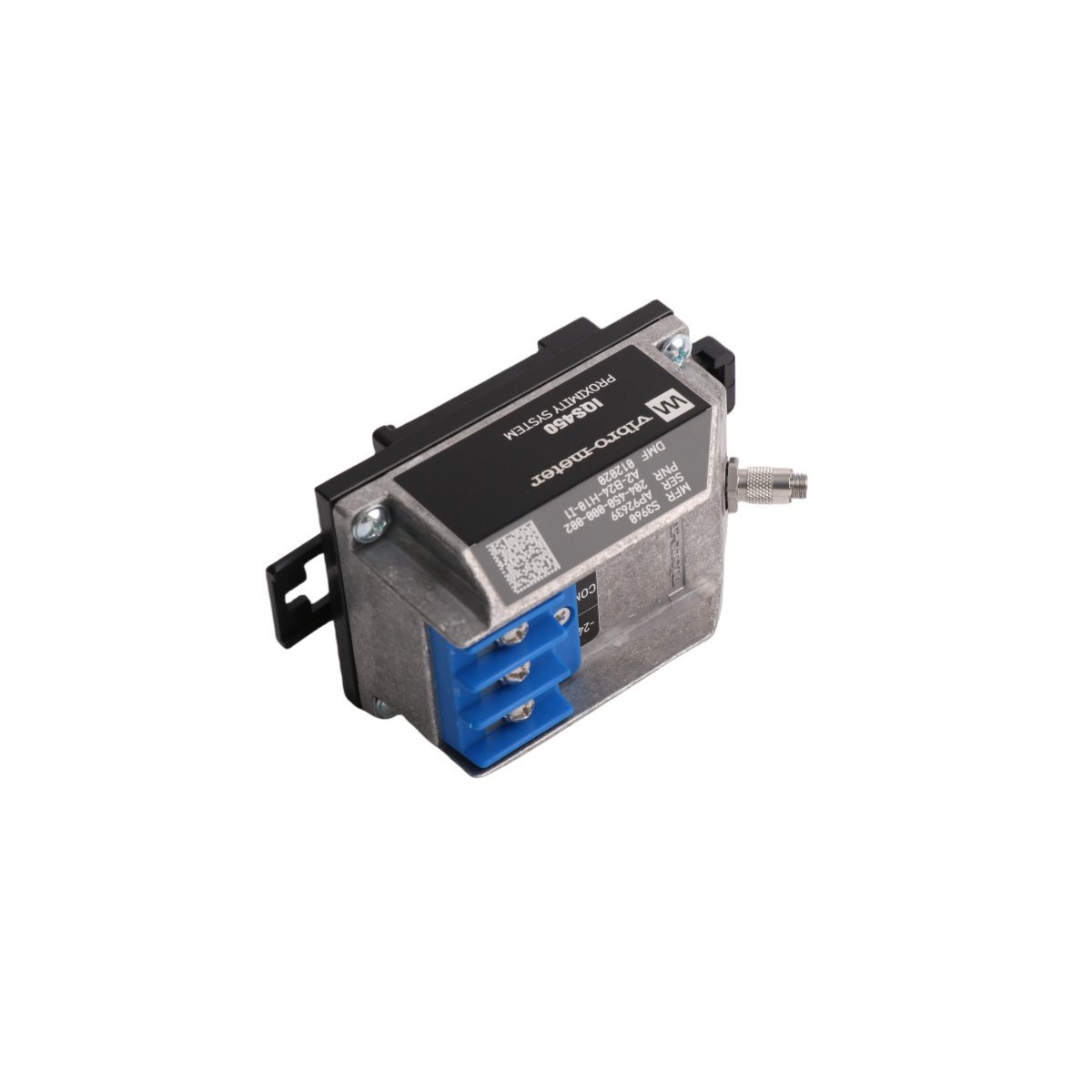

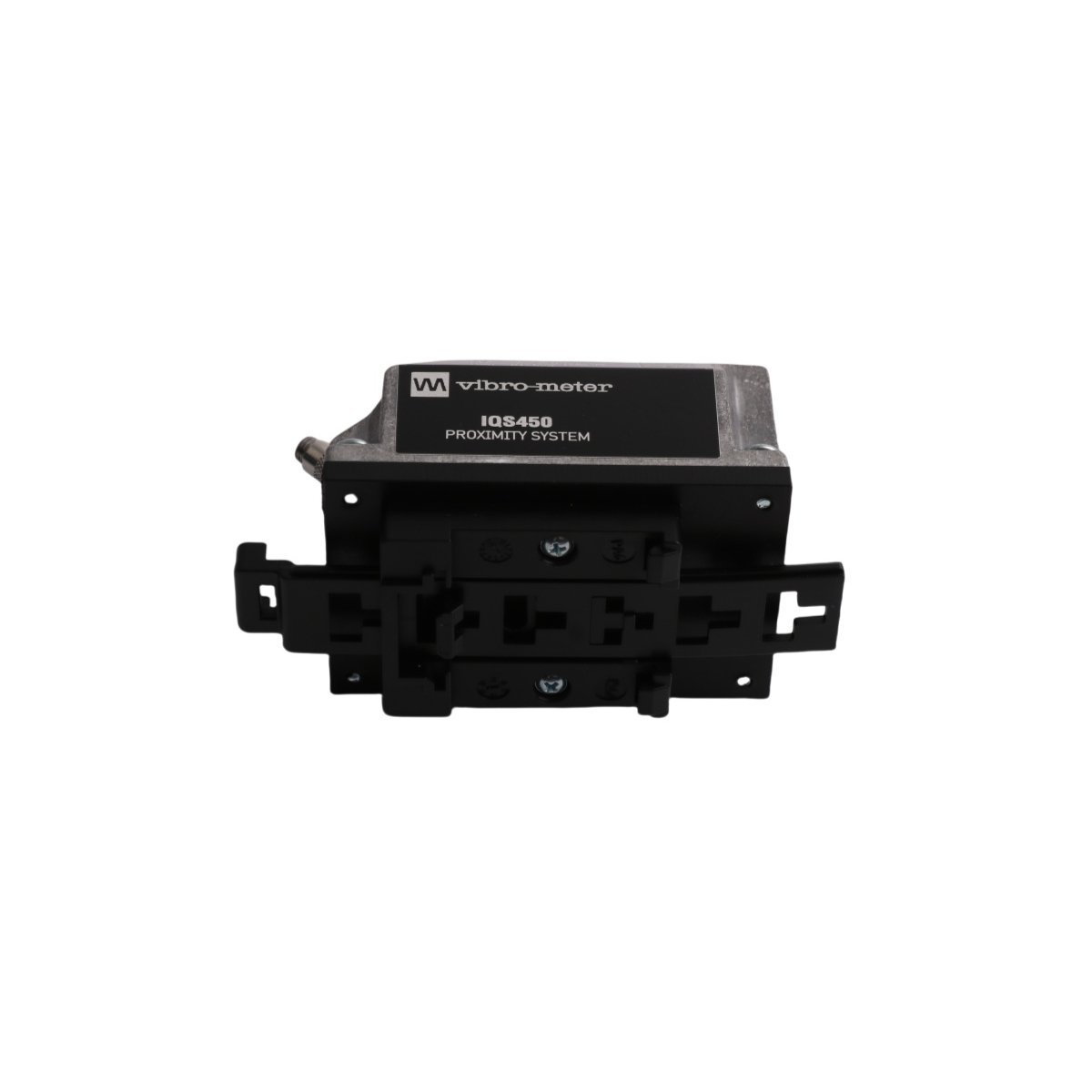

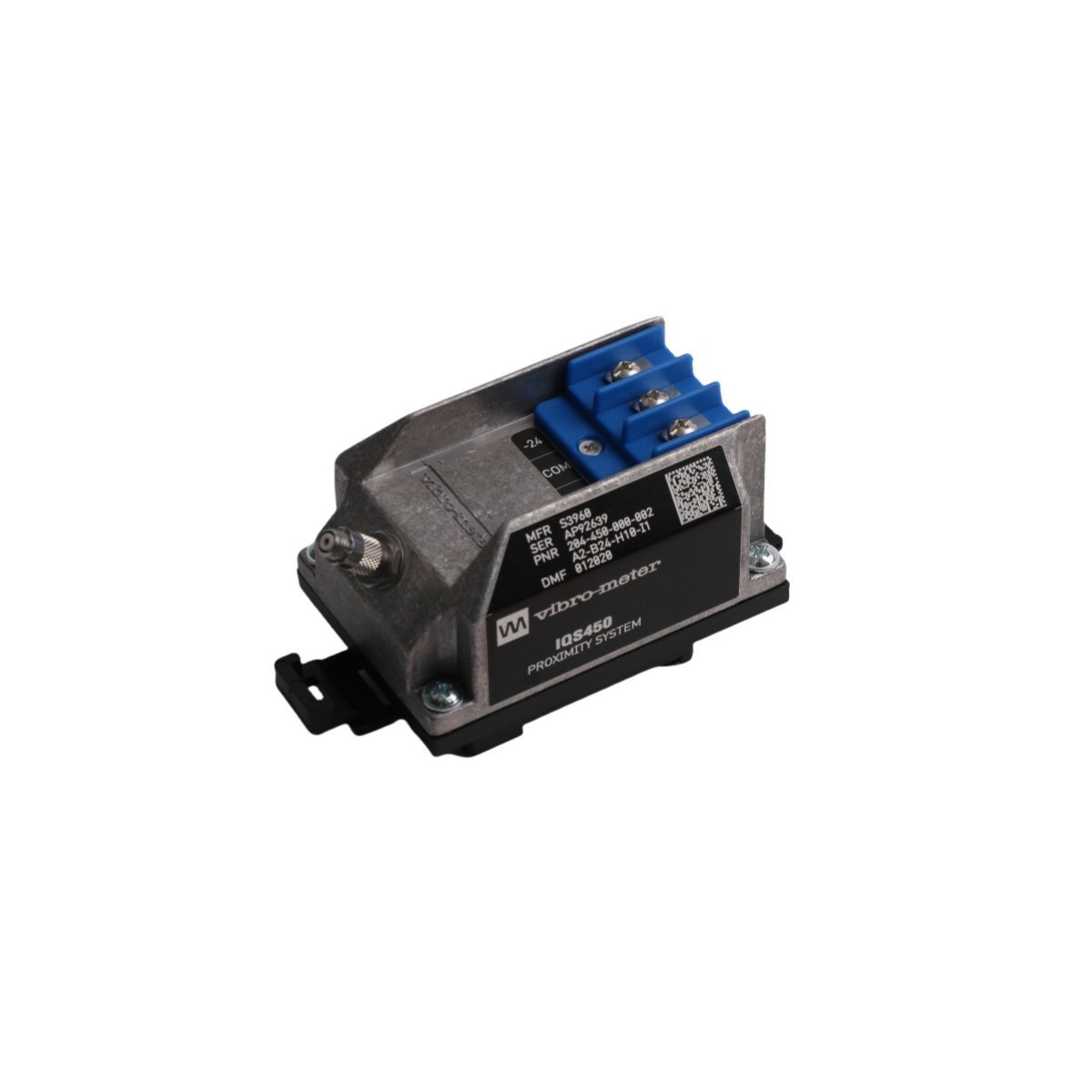

The Vibro-Meter IQS450 S3960 is a high-precision signal conditioner designed for eddy-current proximity measurement systems. It converts raw sensor data into standardized voltage or current signals for critical machinery protection and axial position monitoring.

Precision Signal Conversion for Machine Health

The Vibro-Meter IQS450 S3960 (Part Number 204-450-000-002) functions as the core processing unit for non-contact proximity measurement chains. This module works in tandem with TQ-series sensors to track shaft relative vibration and axial displacement in high-speed rotating equipment. By utilizing advanced eddy-current technology, the IQS450 S3960 provides a wide dynamic range of 16V, ensuring that even minute changes in gap distance are captured with extreme clarity. This level of precision allows plant operators to detect early-stage mechanical faults in turbines, compressors, and industrial pumps before they escalate into catastrophic failures.

Optimized for Harsh Industrial Environments

Vibro-Meter engineered the IQS450 S3960 to maintain operational stability under rigorous field conditions. The unit operates reliably in temperatures ranging from -35 to +85°C, making it suitable for mounting near high-heat machinery. To ensure signal integrity, the conditioner features robust protection against short circuits and electromagnetic interference. Furthermore, the temperature-compensated internal circuitry prevents thermal drift, which guarantees consistent measurement accuracy across varying ambient conditions. This durability ensures that the condition monitoring system provides dependable data for predictive maintenance strategies in oil, gas, and power generation facilities.

System Compatibility and Integration

The IQS450 S3960 integrates seamlessly with Meggitt’s VM600 and VibroSmart monitoring platforms. It adheres to API 670 standards, which simplifies compliance for heavy-duty industrial applications. The module supports flexible output configurations, offering both voltage and current options to match the requirements of various PLC and DCS architectures. Because it connects easily with TQ401 sensors and EA401 extension cables, the IQS450 S3960 serves as a versatile component for comprehensive vibration monitoring networks. This compatibility ensures a streamlined setup for engineers looking to upgrade existing machinery protection systems.

Key Technical Characteristics

• Wide Frequency Response: Supports measurements from DC up to 20kHz for high-speed analysis.
• Dynamic Output Range: Features a 16V dynamic range (-1.6V to -17.6V) for superior gap tracking.
• High Impedance Design: Maintains a 500Ω output impedance with integrated short-circuit protection.
• Environmental Resilience: Rated for extreme temperatures and vibration-prone industrial zones.
• Standards Compliance: Designed in accordance with API 670 recommendations for machinery protection.
• Low Signal Loss: Optimized inductance and capacitance profiles (100µH and 1nF) ensure high-fidelity data transfer.

Technical Specifications
