Description

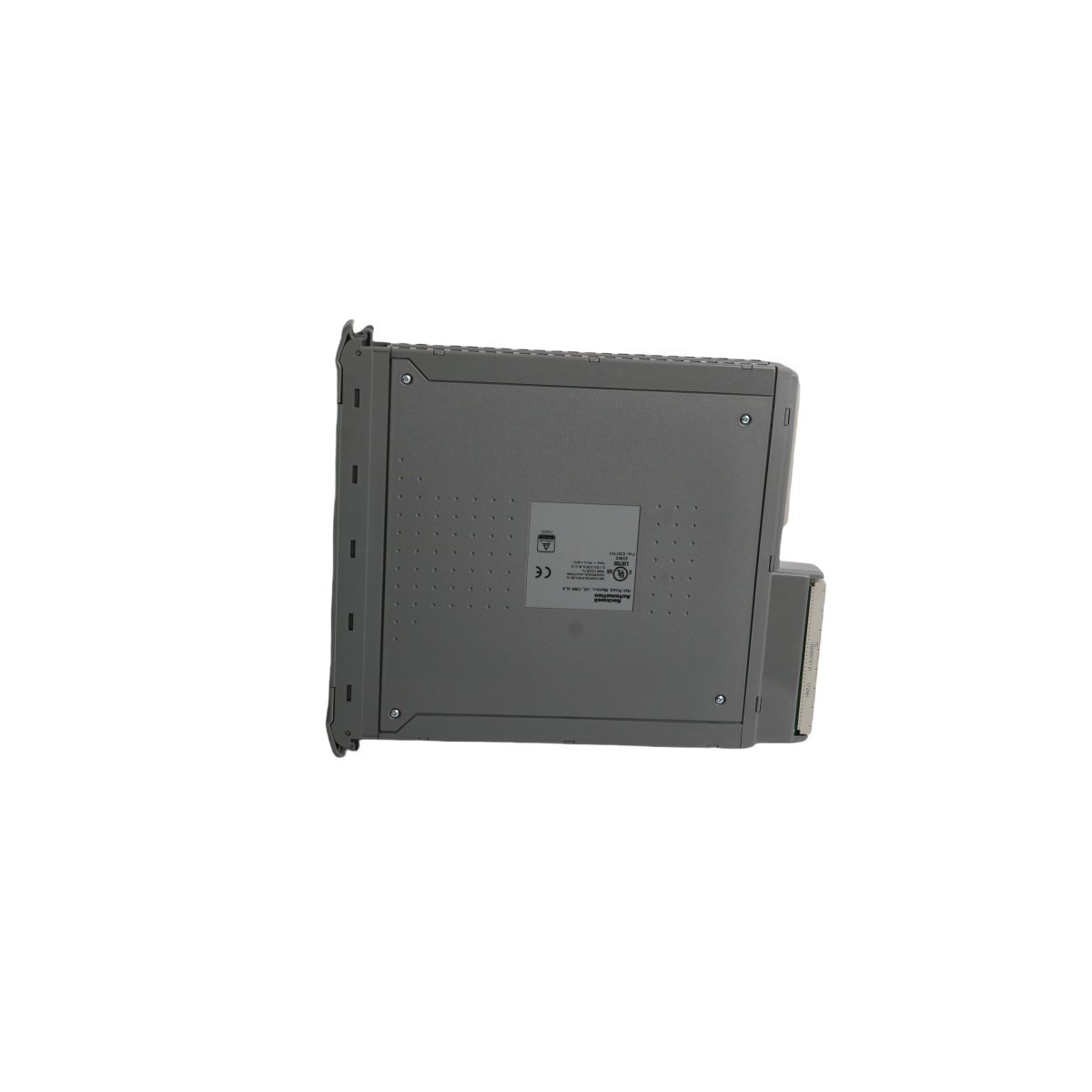

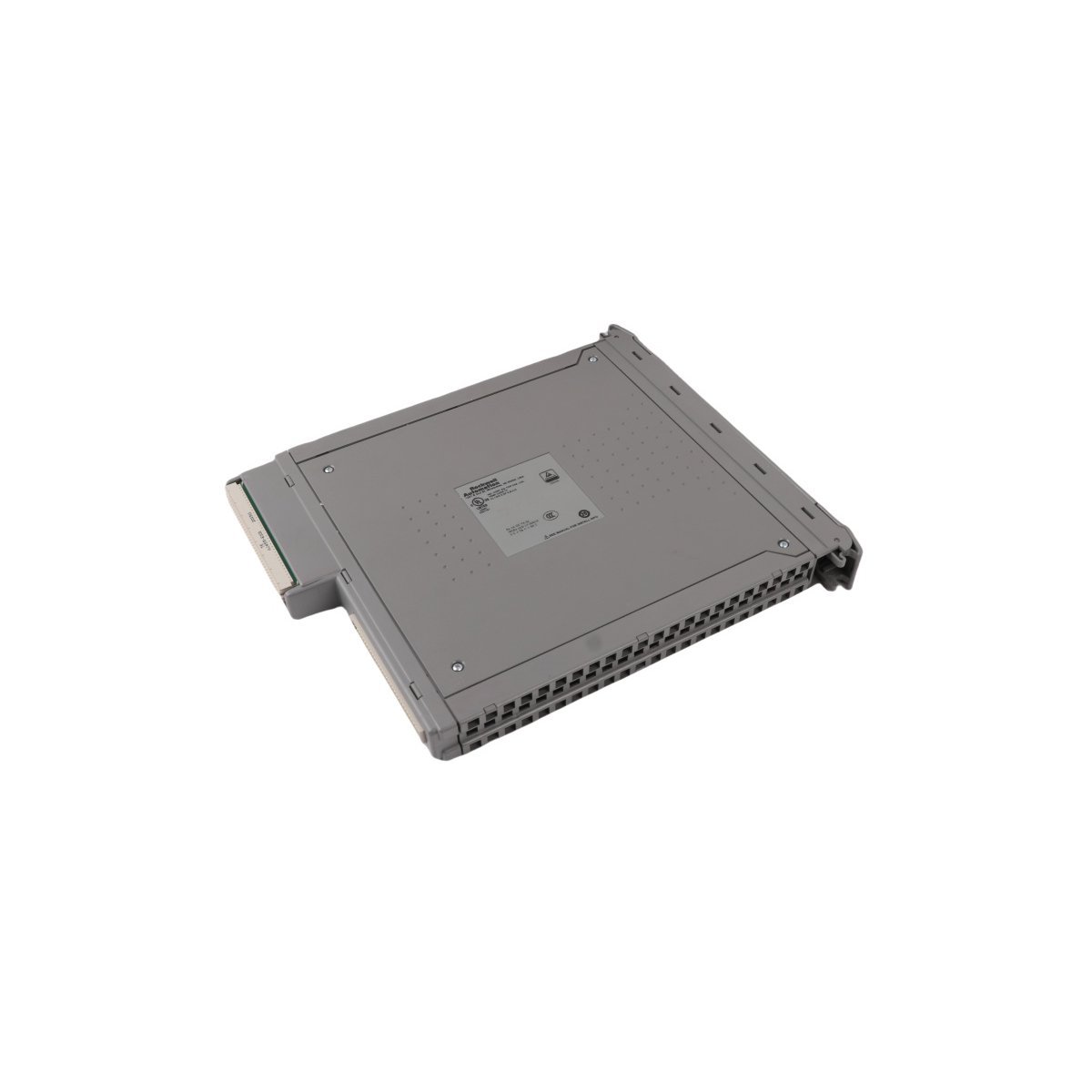

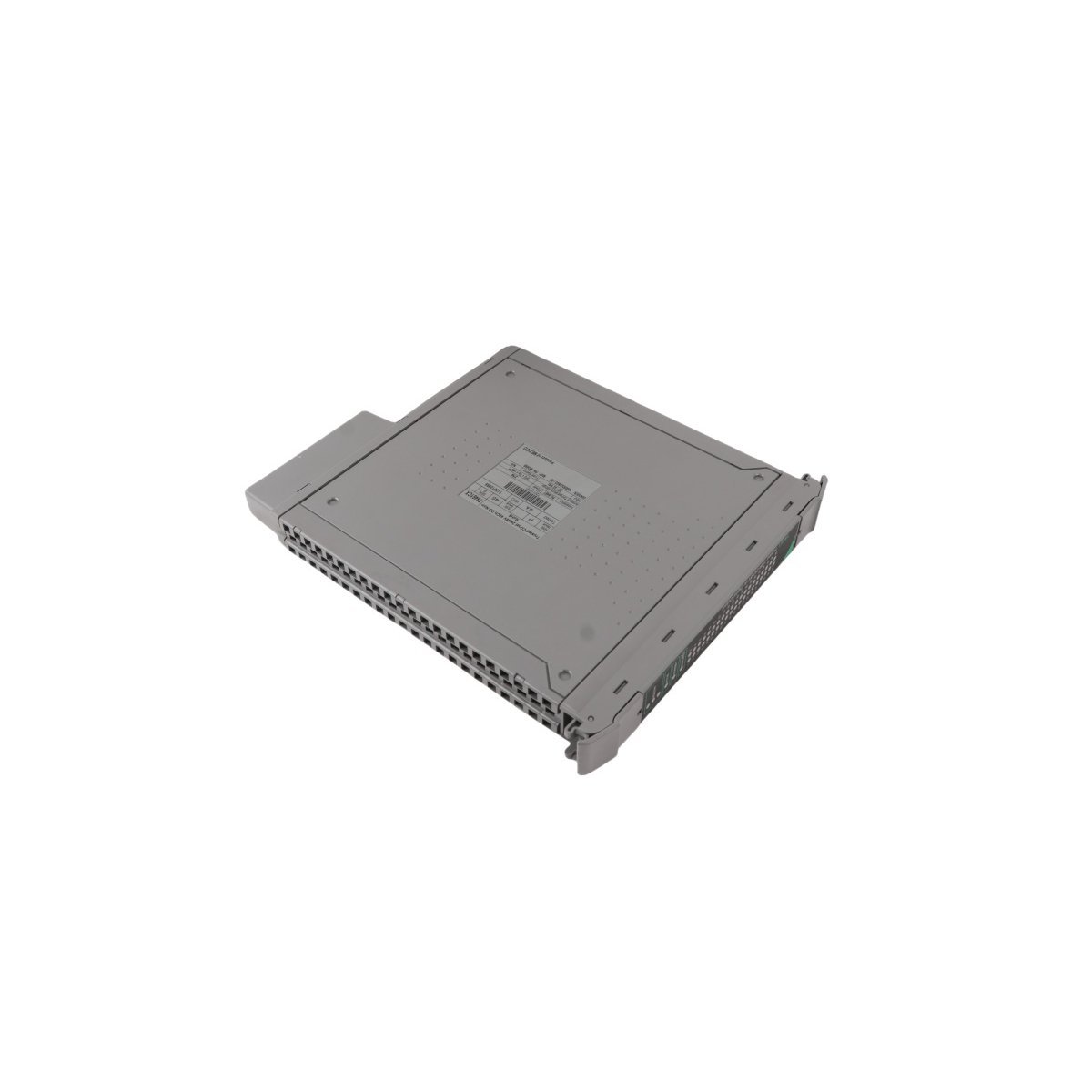

The ICS Triplex T8461C serves as a high-integrity output interface for the Trusted Triple Modular Redundant (TMR) system. This module provides 40 fully monitored output channels for critical industrial control applications. Because it utilizes a fault-tolerant architecture, the T8461C ensures maximum system availability and safety. It effectively manages field devices like solenoids, relays, and motor starters in high-risk environments. The module prioritizes operational continuity by eliminating single points of failure through hardware voting.

Technical Specifications and Hardware Overview

Advanced Operational Capabilities

The T8461C features sophisticated internal diagnostics to monitor the health of every output circuit. It identifies field-side faults such as open circuits or short circuits in real-time. Consequently, operators can detect wiring issues before they impact process safety. The module employs a modular form factor to simplify installation within standard PLC racks.

Furthermore, this hardware performs reliably under extreme thermal stress and corrosive conditions. The TMR architecture cross-references processing paths to validate every output command. Therefore, the system remains stable even if an internal component malfunctions. This level of resilience makes the T8461C a primary choice for Safety Instrumented Systems (SIS).

Industrial Applications and System Integration

The T8461C excels in sectors requiring zero-compromise reliability and rapid response times. Typical deployments include:

• Emergency Shutdown Systems (ESD) in offshore oil platforms
• Fire and Gas (F&G) detection and protection networks
• Burner Management Systems (BMS) for industrial boilers
• Turbine control and protection in power generation plants
• Critical interlock management in chemical processing facilities

Moreover, the module integrates seamlessly with existing industrial networks via standard communication protocols. Its hot-swappable design allows for maintenance without shutting down the entire control system. This capability significantly reduces unplanned downtime and lowers long-term maintenance costs. The T8461C represents a robust solution for protecting high-value industrial assets and ensuring personnel safety.
