Description

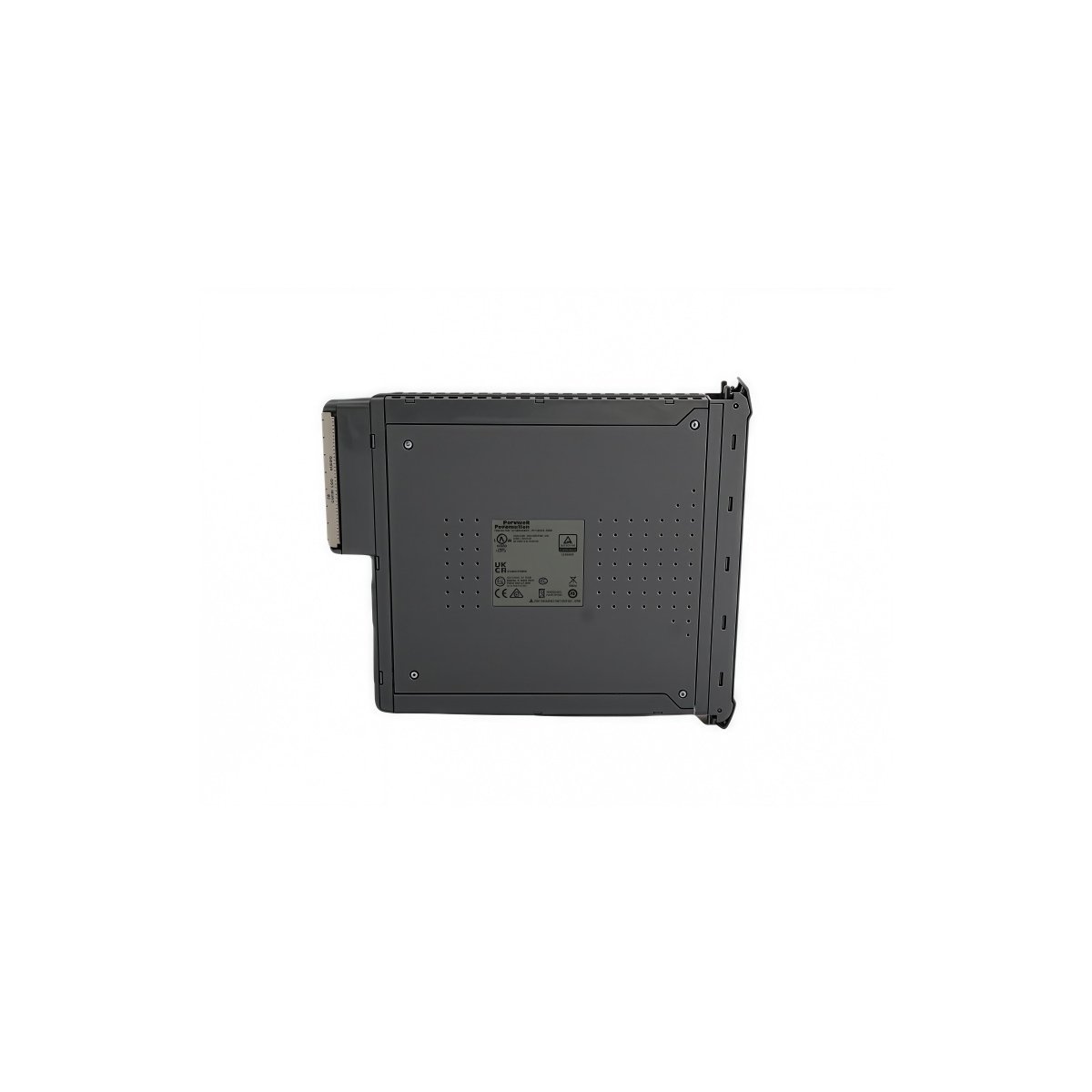

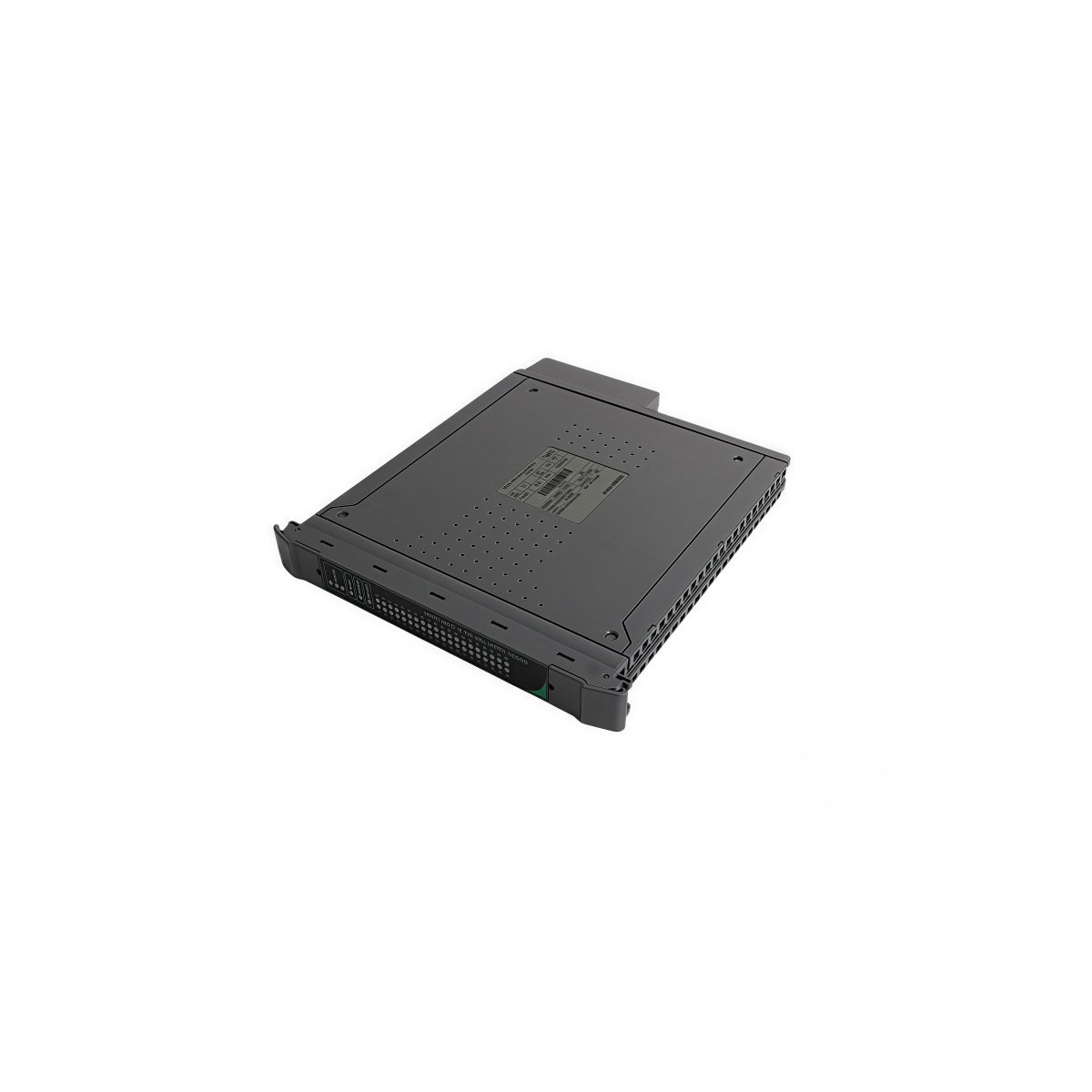

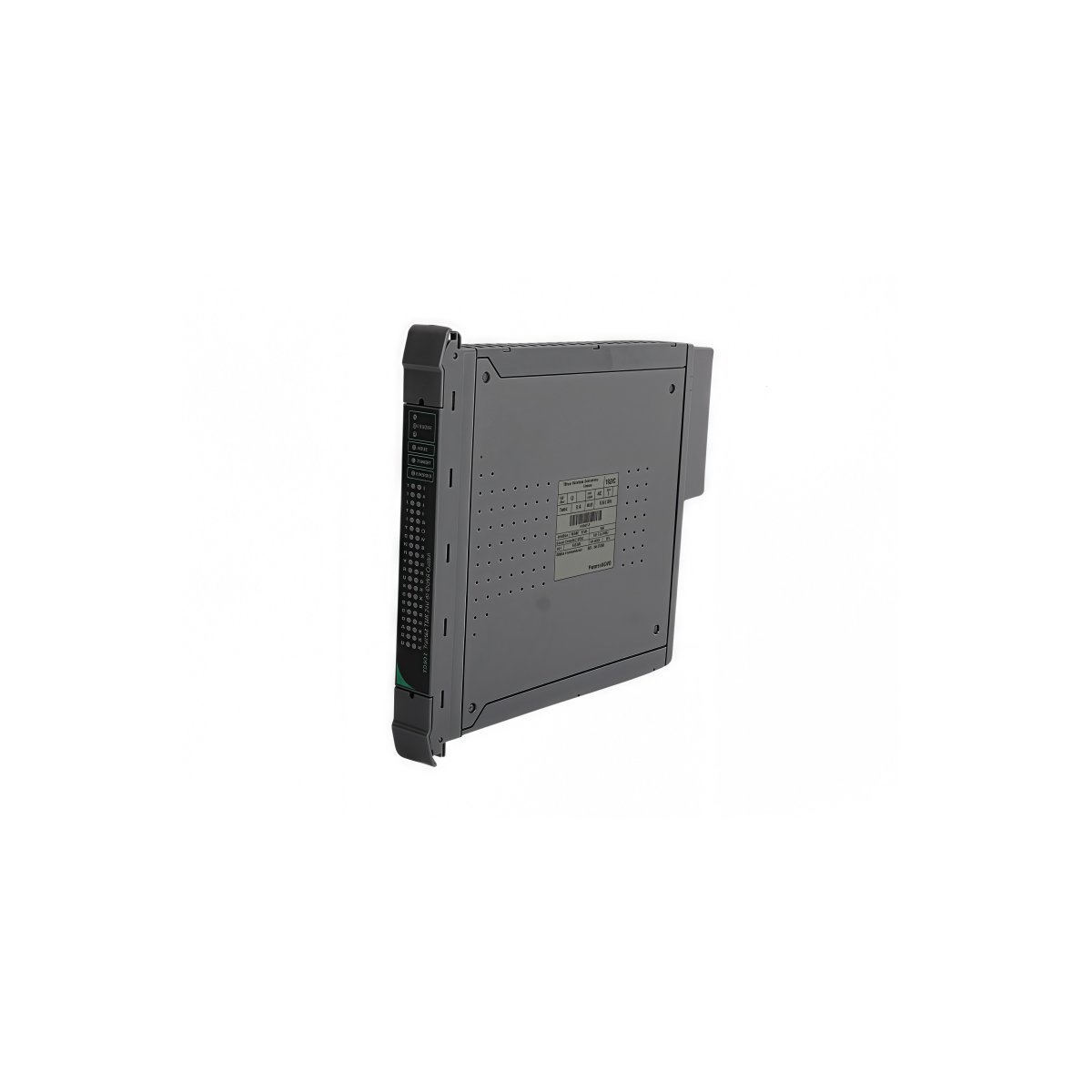

The ICS Triplex T8451 is a high-density, fault-tolerant Digital Output Module engineered for the Trusted® Triple Modular Redundant (TMR) system. This module provides 40 independent output channels, ensuring maximum availability for critical industrial control functions. By utilizing a TMR architecture, the T8451 internal circuitry processes data across three isolated paths. This design allows the system to identify and vote out hardware faults, maintaining uninterrupted operation even during component failure. Consequently, the T8451 remains a primary choice for Safety Instrumented Systems (SIS) and critical Distributed Control System (DCS) applications.

Technical Performance and Signal Monitoring

Each channel on the T8451 includes comprehensive diagnostic capabilities to monitor the health of the field wiring and the load. The module tracks output voltage and current in real-time to detect open circuits or short-circuit conditions. Furthermore, the advanced circuitry supports line fault detection without requiring external monitoring components. This integration simplifies system wiring and reduces the overall footprint of the control cabinet. The hardware also features low power consumption and efficient heat management, which significantly extends the service life of the module in dense installations.

Hardware Specifications

Industrial Sector Reliability

Specifically designed for hazardous and high-stakes environments, the T8451 excels in the petrochemical, nuclear, and power generation sectors. Its robust mechanical construction allows it to withstand significant vibration and electromagnetic interference. Although officially discontinued as of December 2018, this module remains an essential component for maintaining legacy Trusted systems. It provides the necessary fail-safe performance required to protect personnel, equipment, and the environment during process upsets.
