Description

Brief Product Description

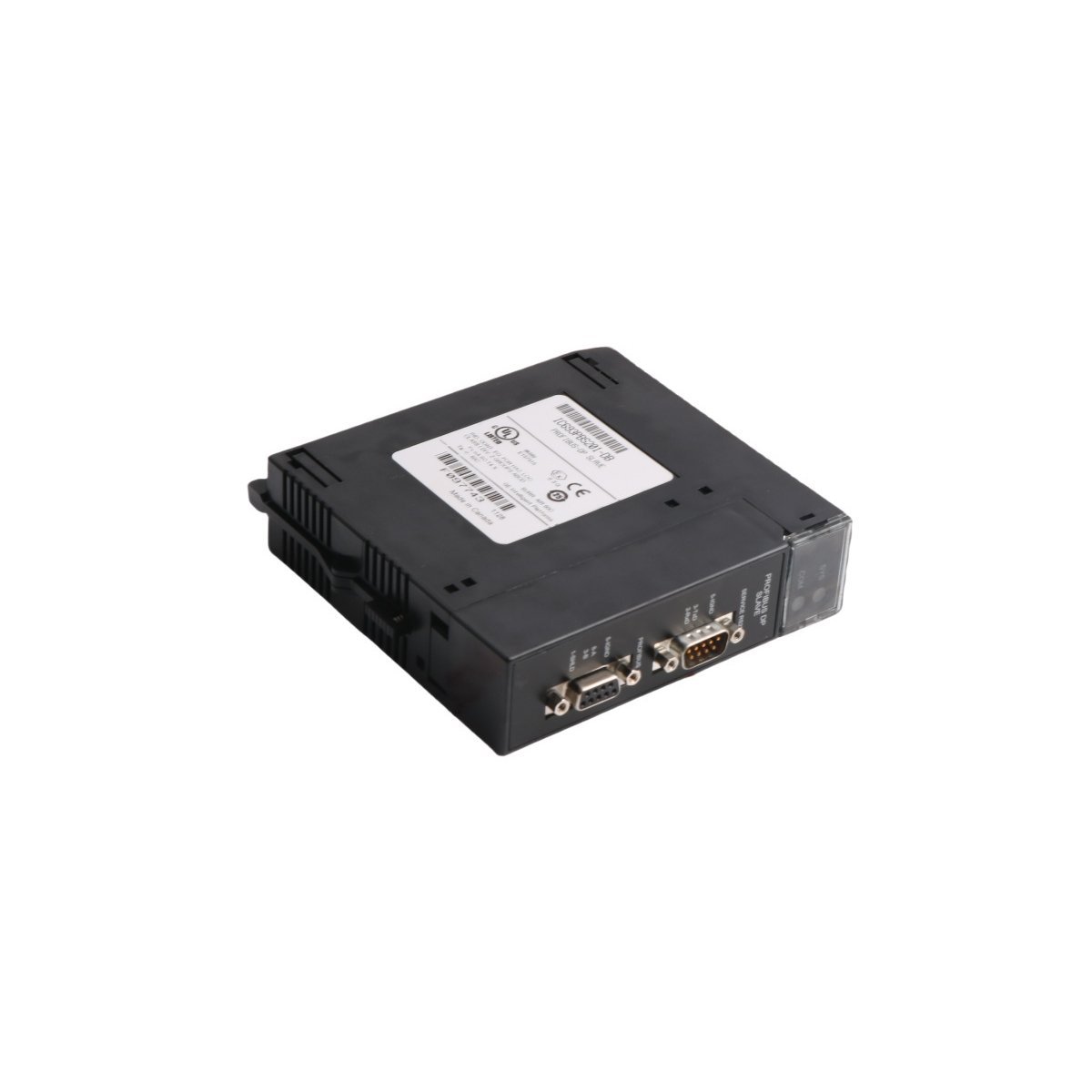

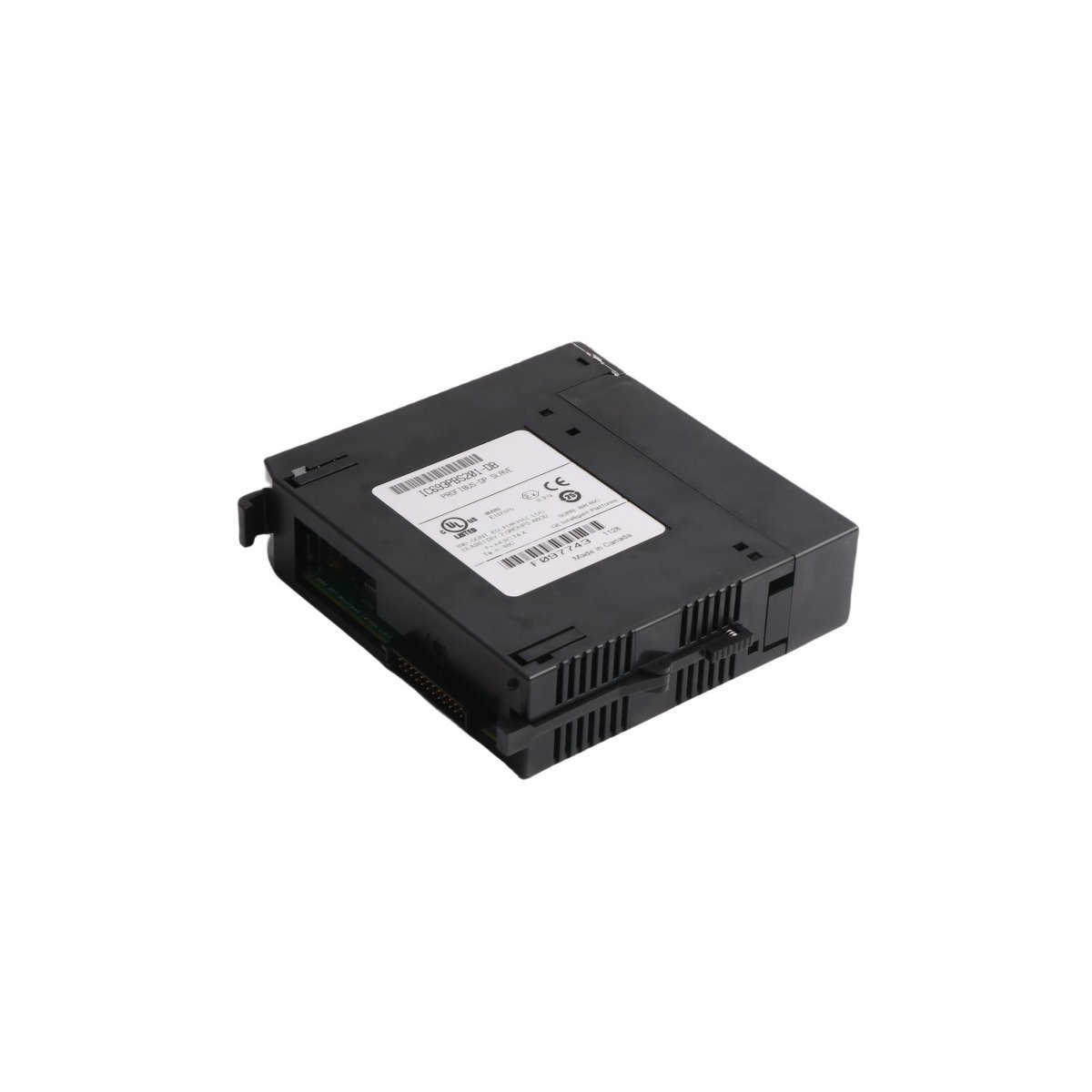

The GE Fanuc IC693PBS105 is a high-performance PROFIBUS-DP Slave module that enables Series 90-30 and PACSystems RX3i PLCs to function as remote nodes on a PROFIBUS network. It supports bidirectional data exchange of up to 244 bytes, providing a seamless link between local I/O baseplates and a central PROFIBUS Master.

Product Description

Seamless PROFIBUS Network Integration

The GE Fanuc IC693PBS105 functions as a dedicated communication gateway, allowing a Series 90-30 or PACSystems RX3i PLC to operate as a slave station within a PROFIBUS-DP network. This module facilitates the transmission of critical field data by acting as a remote adapter for I/O modules installed on the local baseplate. It supports a maximum data telegram of 244 bytes for both input and output directions, ensuring that complex status and control signals reach the network master efficiently. By integrating this module, users can incorporate GE’s versatile I/O hardware into multi-vendor automation environments controlled by any PROFIBUS-compliant Master PLC.

High-Speed Communication and Range Flexibility

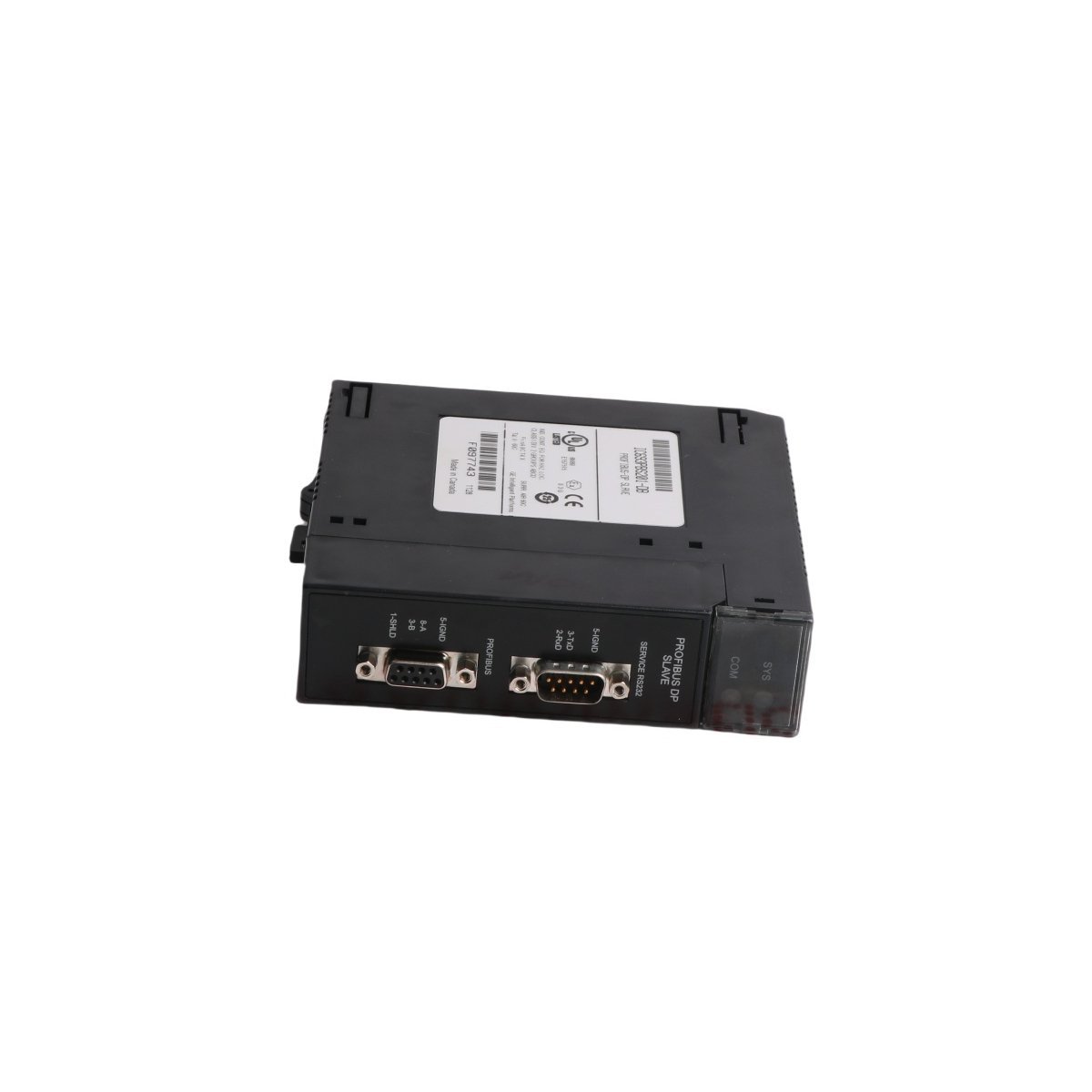

Reliability meets speed with the IC693PBS105, which automatically detects and supports baud rates from 9.6 kbps up to 12 Mbps. This flexibility allows the module to adapt to various network requirements, from long-distance monitoring to high-speed machine control. While standard copper cabling supports distances up to 1200 meters, the module can extend its reach to 6 km when paired with appropriate fiber-optic converters. To ensure easy maintenance and connectivity, the module provides two 9-pin D-shell ports: one dedicated to PROFIBUS-DP network traffic and a second serial port used for local servicing and firmware management.

Installation Requirements and System Compatibility

The IC693PBS105 features a compact design that occupies a single slot on any Series 90-30 or RX3i universal baseplate. It draws 450 mA from the 5V DC backplane, and for successful deployment, the system must utilize CPU Version 8.00 or higher. Configuration requires Proficy Machine Edition Logic Developer (Version 2.6 or later), where users can define the GSD parameters and I/O mapping. Furthermore, the module utilizes a ruggedized housing designed for installation within protective industrial enclosures to maintain peak performance in environments prone to temperature fluctuations or high humidity.

Technical Specifications
