Product Description

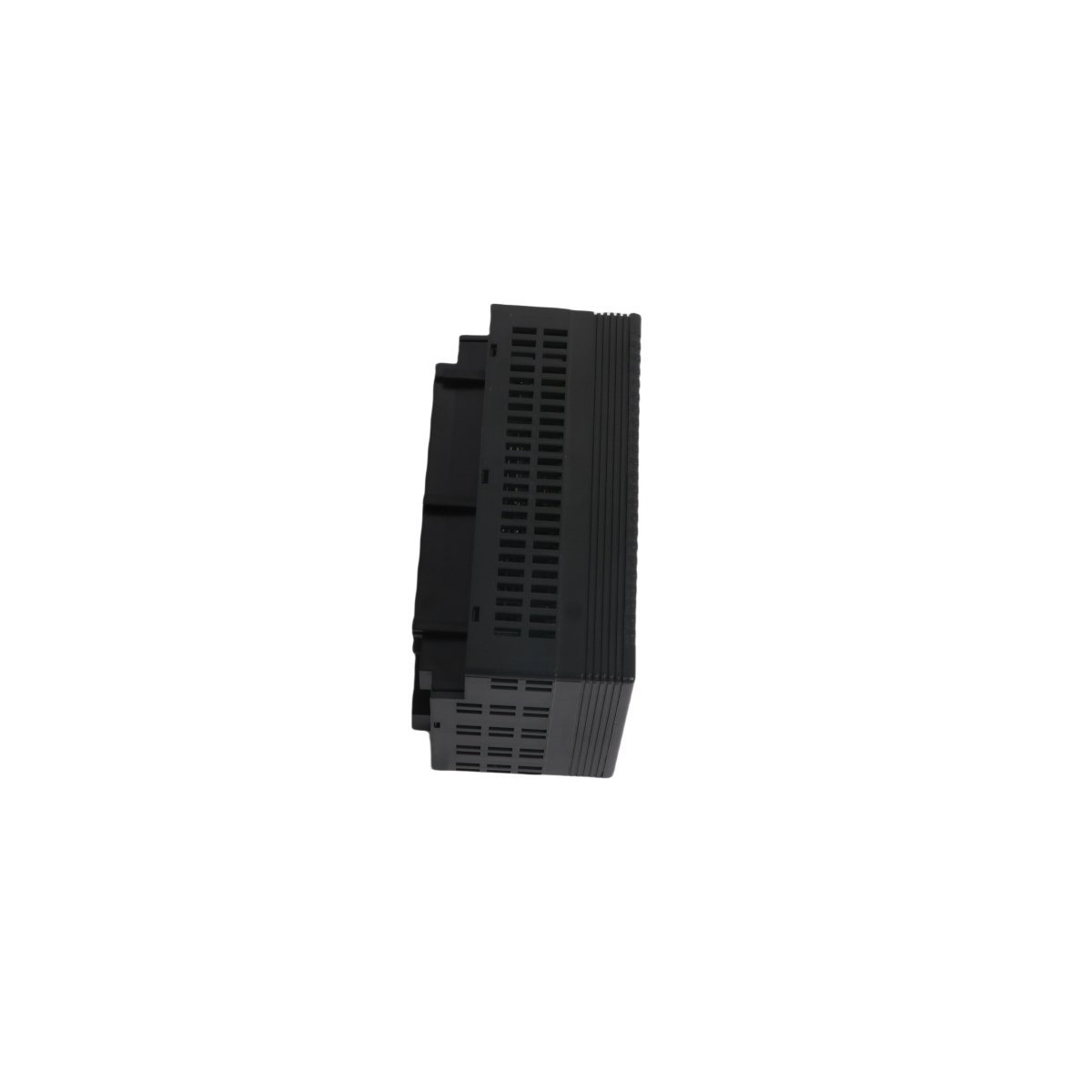

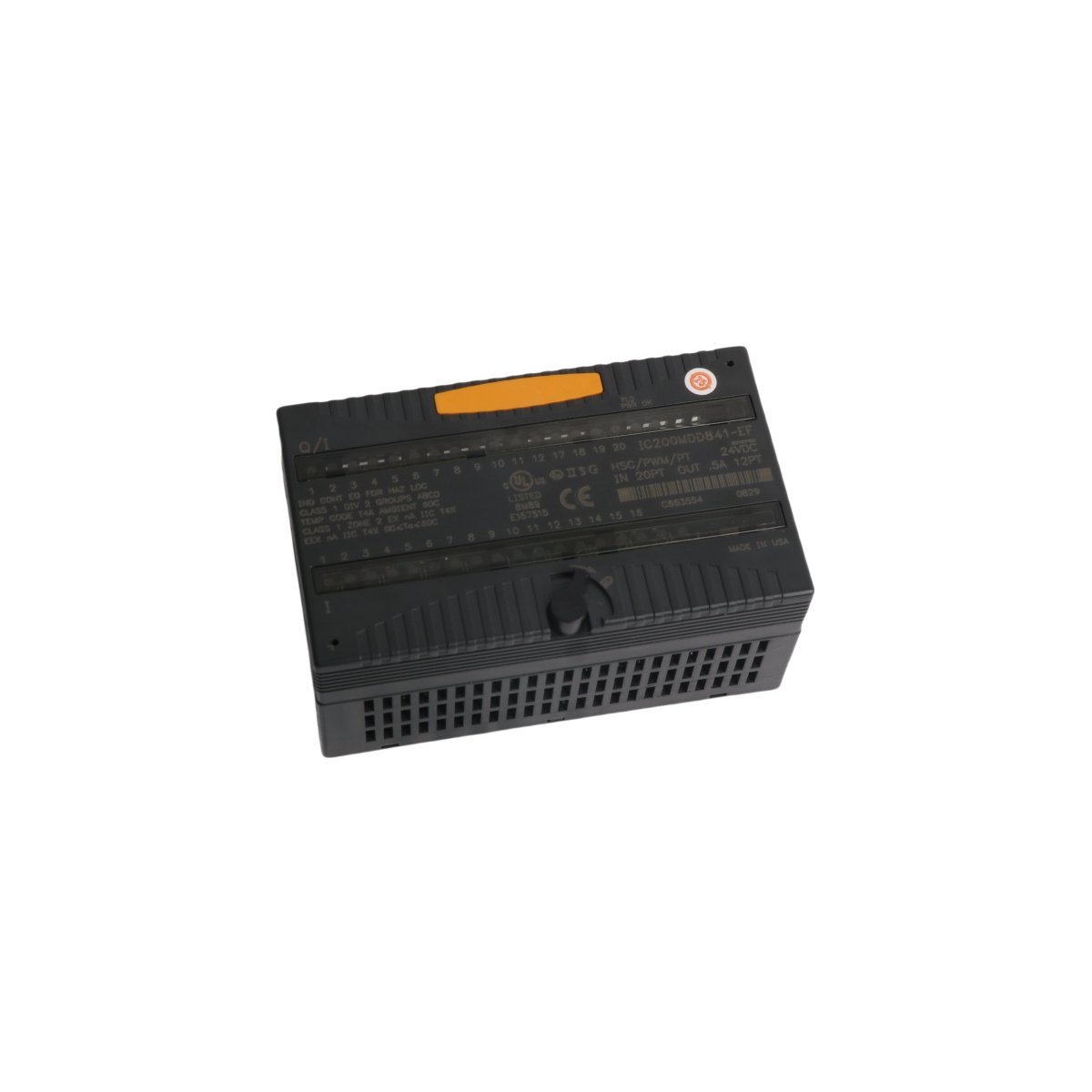

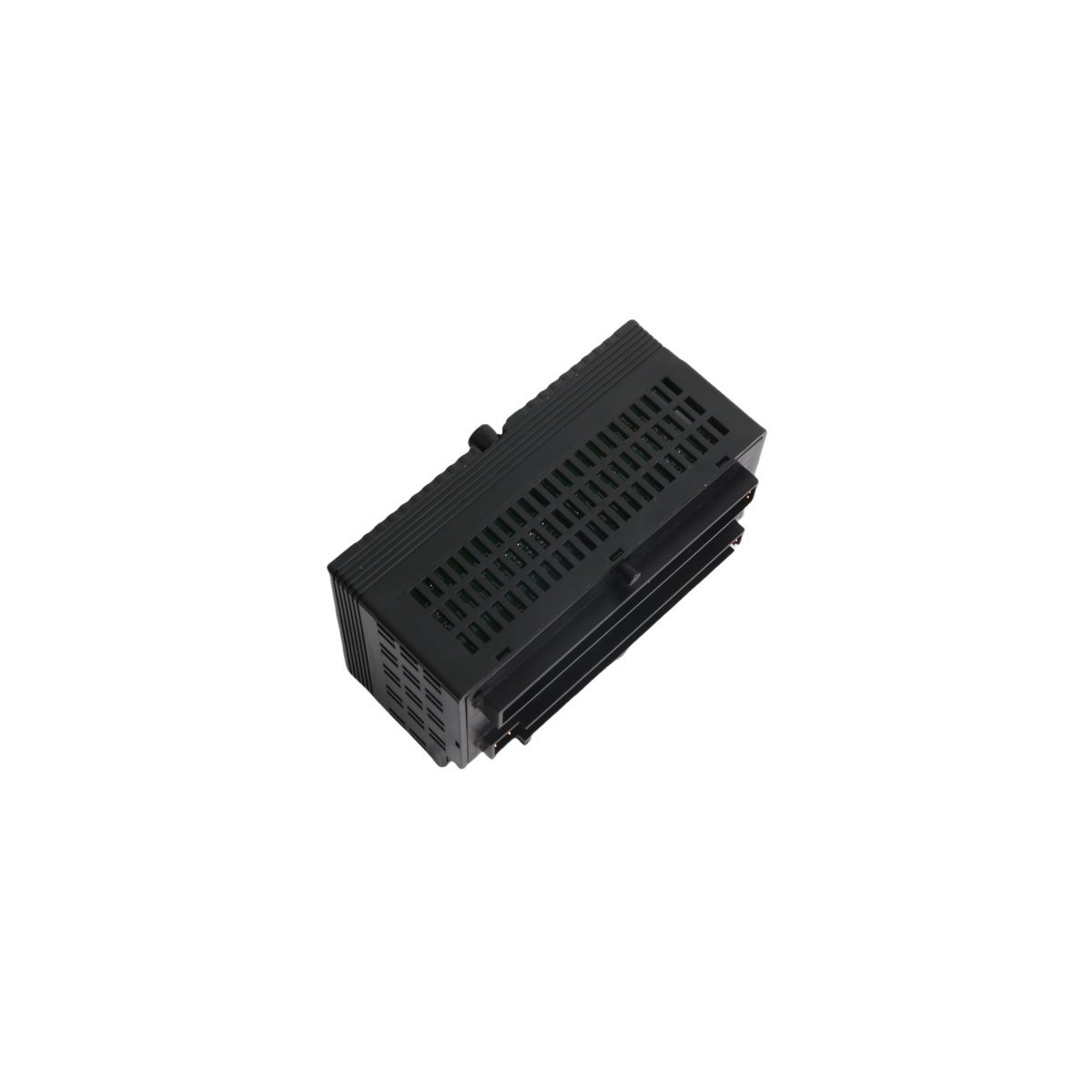

The GE Fanuc IC200MDD843 is a versatile, high-density discrete mixed module from the VersaMax I/O family. This module combines both input and output capabilities into a single compact unit, allowing engineers to optimize rack space while maintaining high-speed digital control over industrial machinery.

Integrated Control and Hardware Interface

This module provides a total of 20 discrete points, specifically configured as 10 inputs and 10 outputs. It serves as an essential bridge between the field devices and the PLC processor, converting 24V DC signals from sensors and switches into actionable logic for the CPU. Because it utilizes the VersaMax modular architecture, the IC200MDD843 supports mounting on various terminal carriers, which simplifies field wiring and reduces installation labor. Furthermore, the hot-swap capability allows technicians to replace the module without disrupting the operation of the remaining I/O stations.

Key Technical Performance

The IC200MDD843 employs a sourcing/sinking input design and sourcing output logic to meet diverse application requirements. Status monitoring is streamlined through front-panel LED indicators that provide real-time visibility for each I/O point and backplane power status.

• Input Specification: 10 points designed for 24V DC (positive logic/sourcing or negative logic/sinking).
• Output Specification: 10 points providing 24V DC sourcing outputs with a current capacity of 0.5A per point.
• Protection: The module features group-to-backplane isolation to protect sensitive controller electronics from field-side electrical noise.
• Diagnostics: Individual LED tracking for all 20 points ensures rapid fault isolation during maintenance.

Typical Applications

The mixed configuration of the IC200MDD843 makes it particularly effective for small-scale automation tasks where a full rack of dedicated modules is unnecessary. It excels in:

• Material handling and conveyor control systems
• Small-to-medium packaging machinery
• Pump and motor starter status monitoring
• Remote I/O stations requiring local digital control loops
