Product Overview

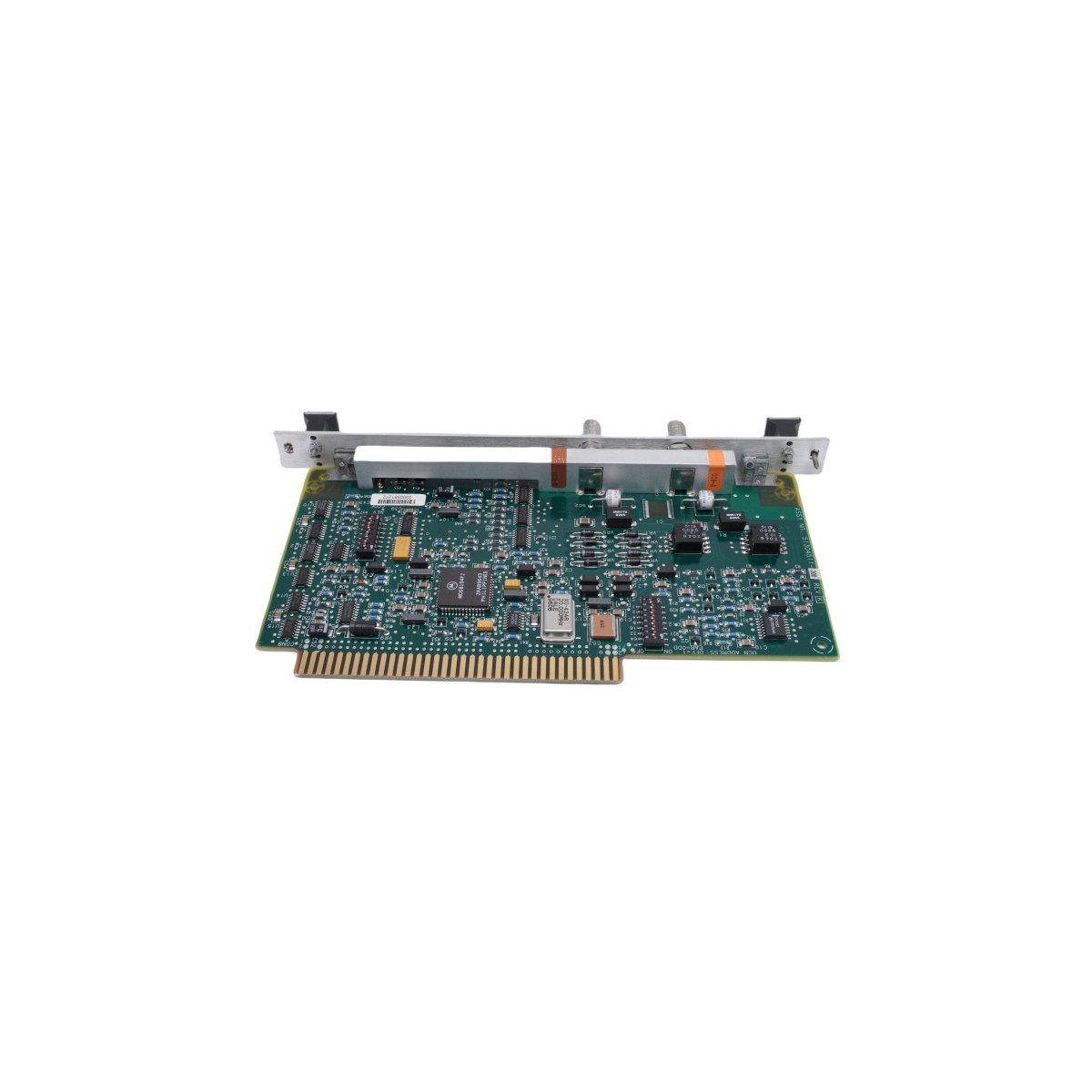

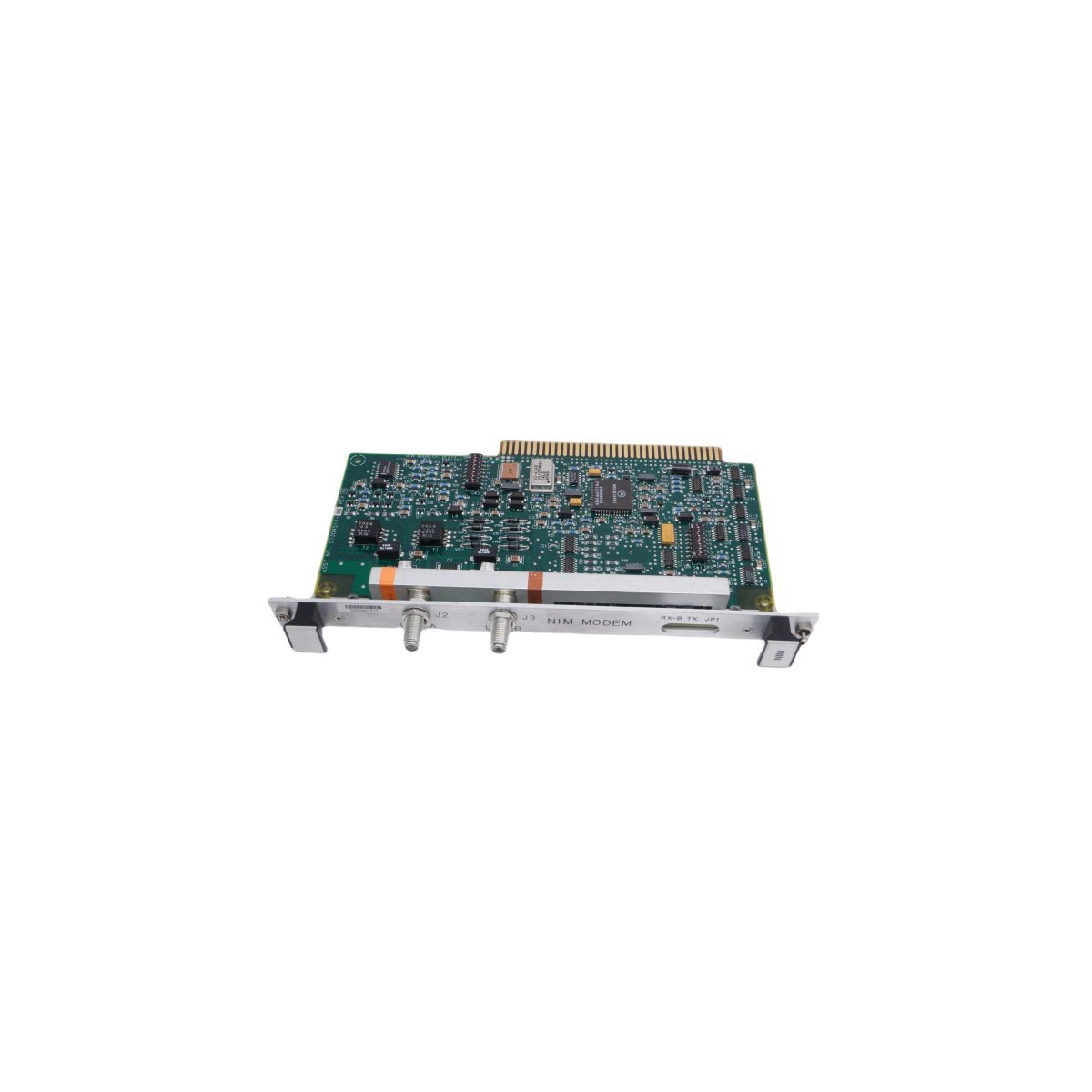

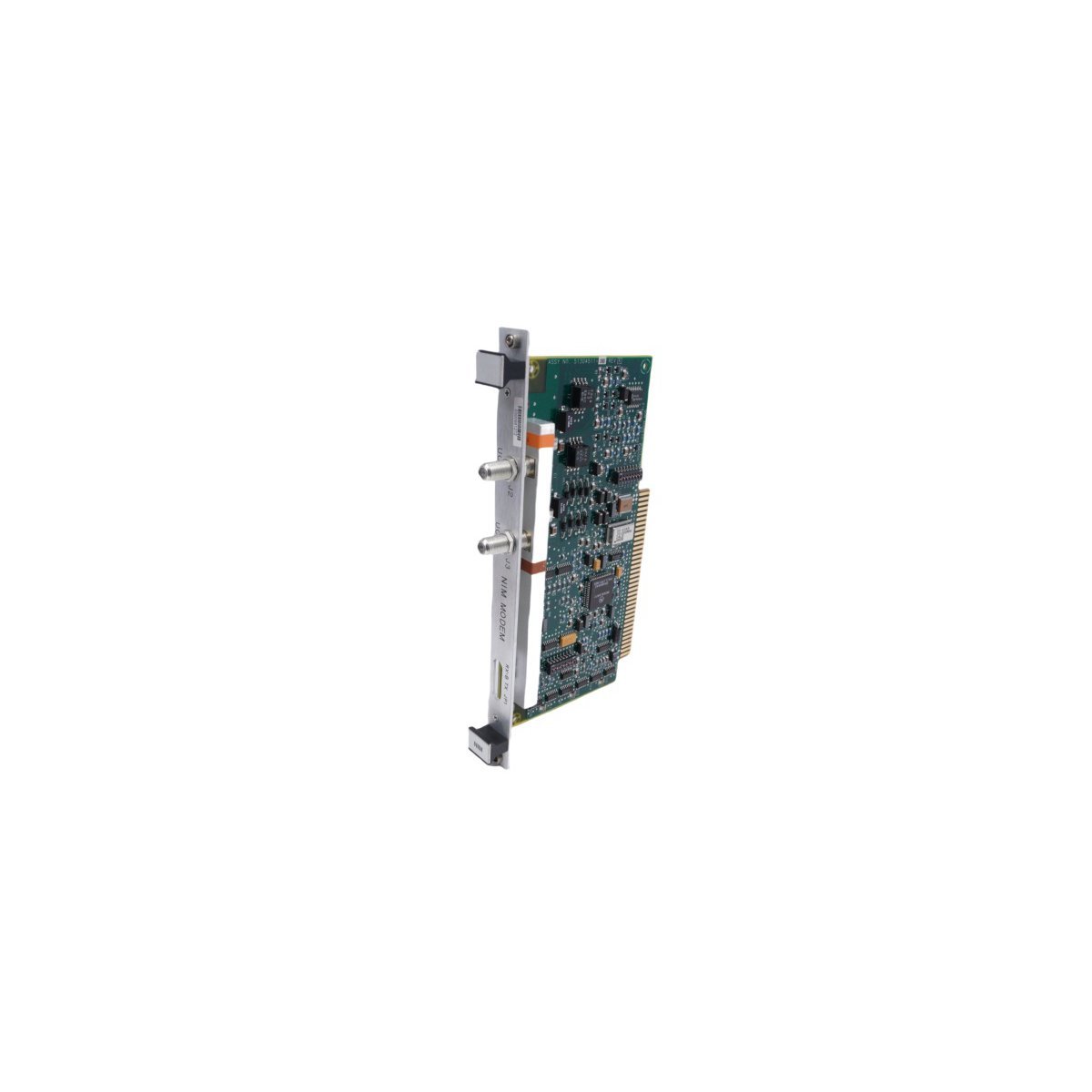

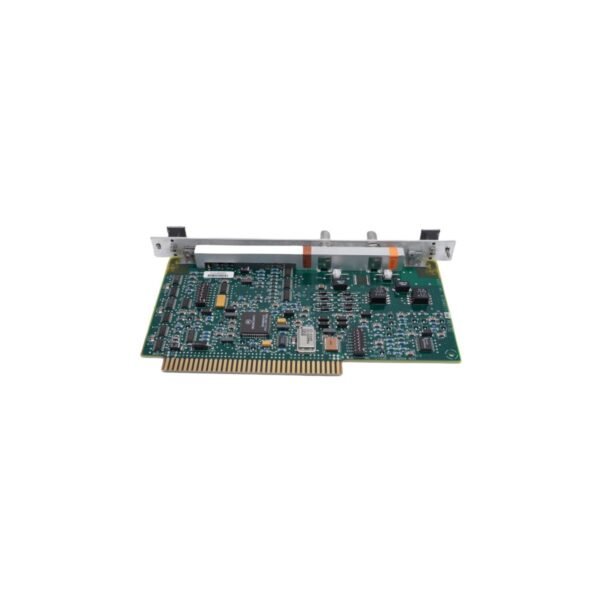

The Honeywell 51304511-200 is a high-performance Network Interface Module (NIM) modem specifically engineered to facilitate seamless data exchange across the Universal Control Network (UCN) within TDC 3000 Distributed Control Systems.² This module ensures the synchronized flow of critical information between process controllers and monitoring stations to maintain industrial automation stability.³

Advanced UCN Communication and Redundancy

The 51304511-200 functions as the primary communication gateway for UCN nodes, managing the complex transmission and reception of data packets in real-time. To safeguard against potential signal loss, the module features dual A and B cable ports that support fully redundant network architectures. This configuration allows the system to switch communication paths instantly if a cable fault occurs, thereby preventing unplanned process shutdowns. By maintaining high signal integrity, the module supports the rigorous timing requirements of high-speed industrial control loops.

Hardware Consolidation and System Efficiency

This modern NIM modem represents a significant advancement in hardware design by consolidating the functions of multiple legacy components, such as older PNM and PNI I/O units, into a single, compact interface.⁴ This integration effectively reduces the physical footprint within the control cabinet while simultaneously lowering the total number of potential failure points. Consequently, maintenance teams can simplify their spare parts inventory and streamline troubleshooting procedures. Furthermore, the 51304511-200 enhances overall system reliability by utilizing modern circuit architecture that minimizes power consumption and thermal output.

Industrial Standards and Backward Compatibility

Honeywell engineered the 51304511-200 with a focus on long-term lifecycle support and global compliance. The module meets strict CE requirements, ensuring it operates safely in diverse international environments ranging from petrochemical refineries to pharmaceutical manufacturing plants. Because Honeywell prioritizes backward compatibility, this modem integrates directly into existing TDC 3000 installations without requiring extensive software overhauls. This capability provides a cost-effective upgrade path for facilities looking to modernize their network interfaces while preserving their original capital investment in DCS infrastructure.
