Description

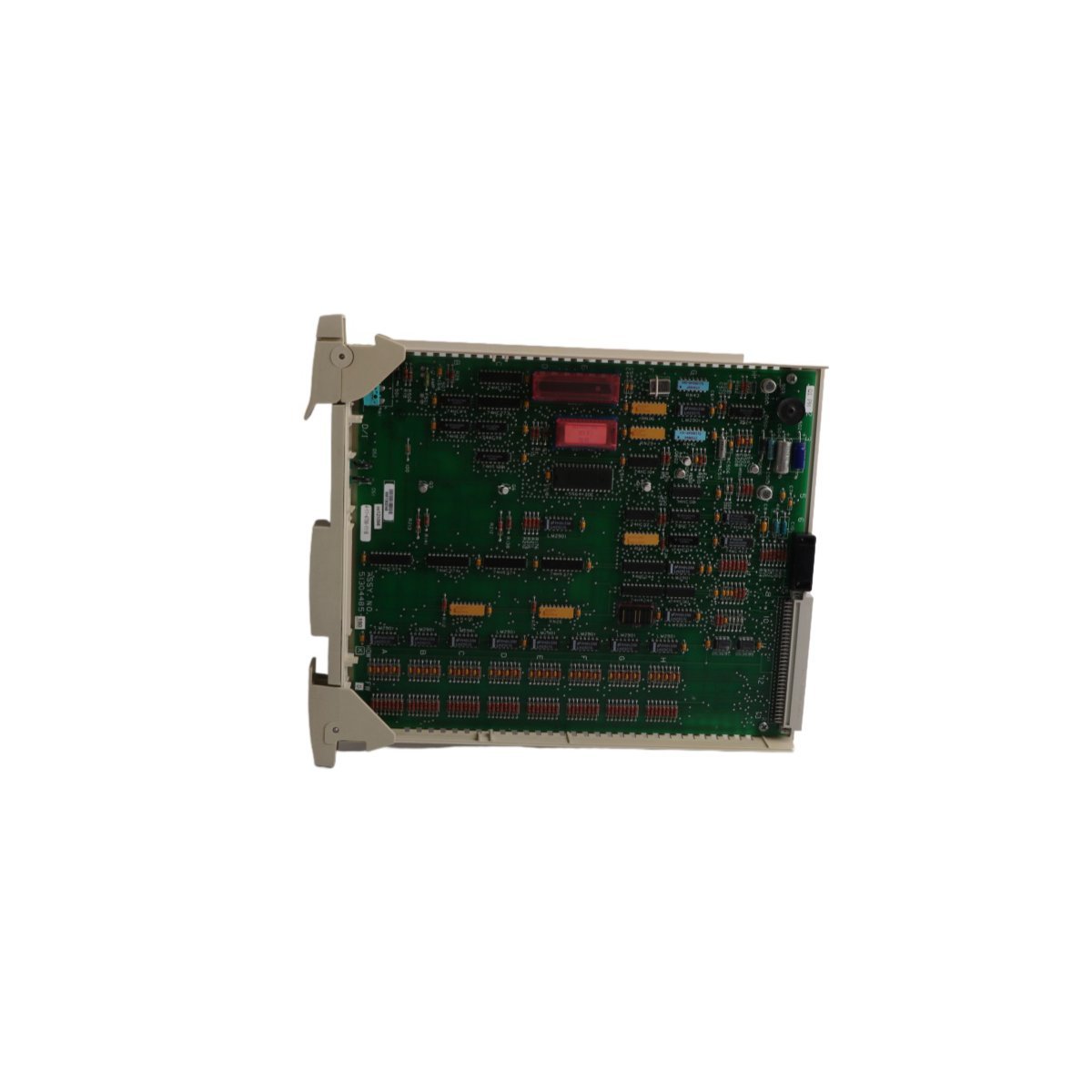

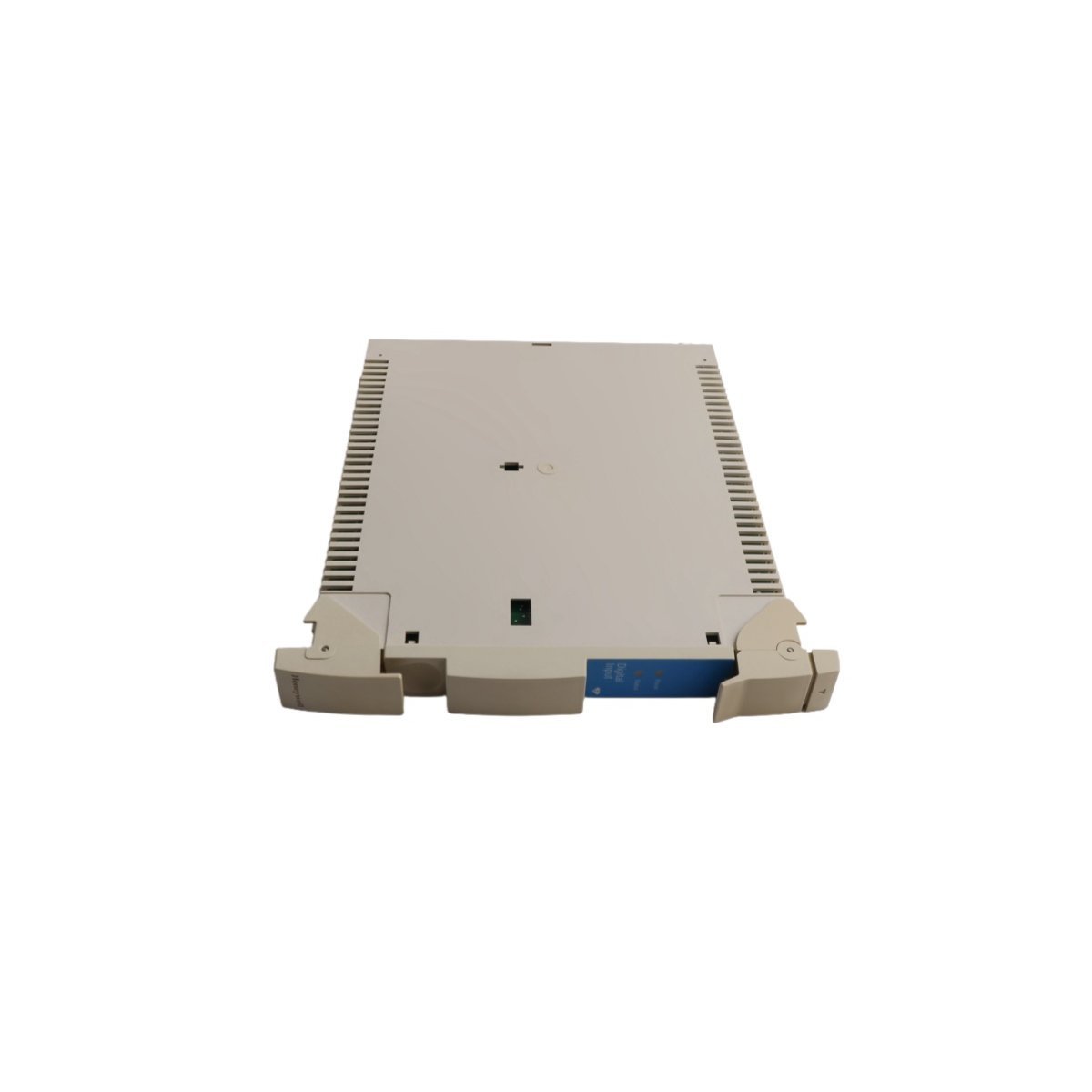

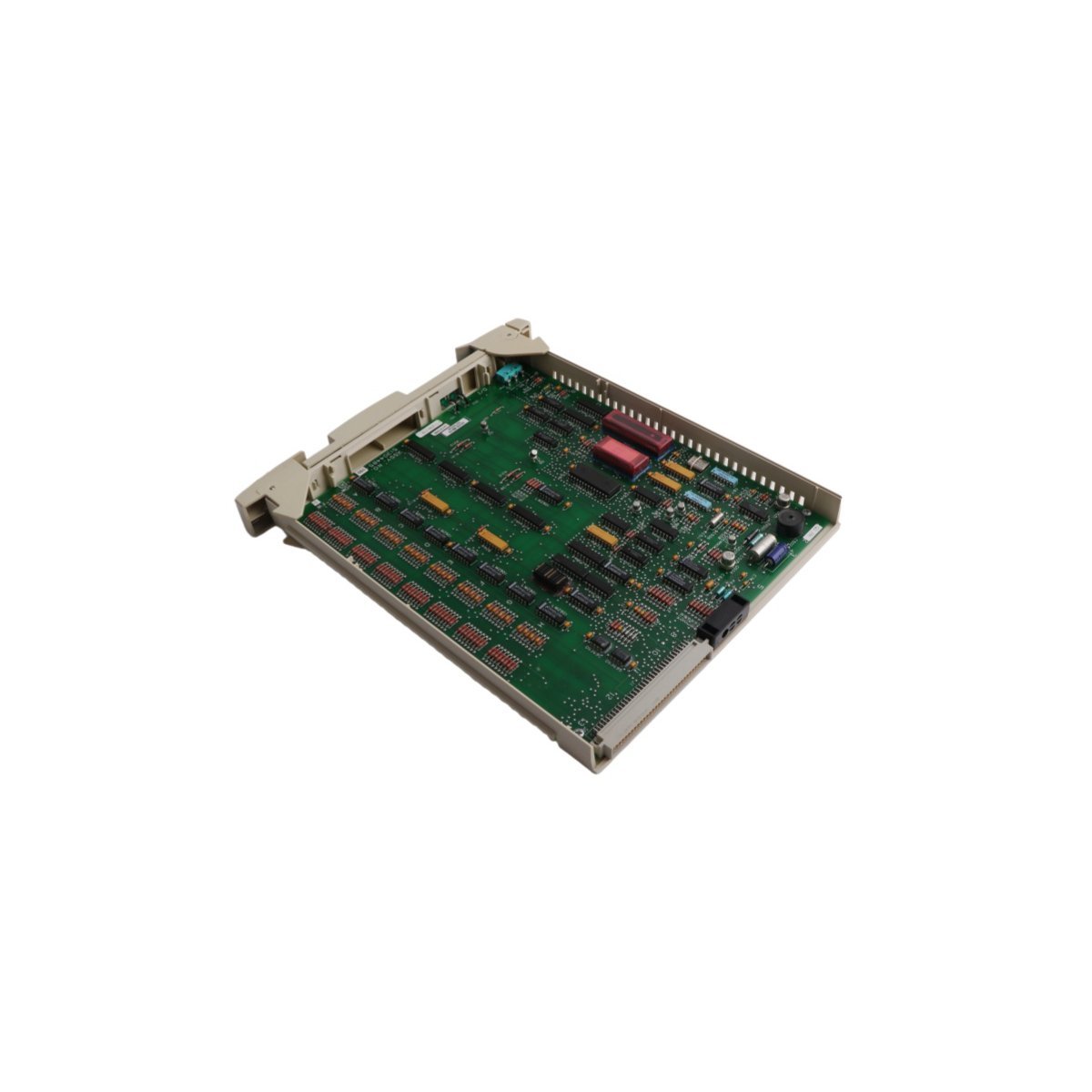

The Honeywell MC-PDIX02 (Part Number 51304485-150) serves as a specialized digital input processor for the TDC 3000 system. This high-reliability module converts discrete field signals into data the control network can interpret. Specifically, it manages signal acquisition for critical machine control and safety monitoring tasks. The internal circuitry utilizes advanced galvanic isolation to shield the system from external electrical disturbances. Consequently, it maintains high operational uptime in volatile process environments.

Technical Performance and Durability

This module features an 8-channel architecture designed for precision and stability. It effectively processes inputs within a 20V to 30V DC range. To ensure longevity, Honeywell applies a conformal coating to the internal components. This protective layer resists damage from moisture, dust, and corrosive chemicals. Furthermore, the unit supports 1500V AC RMS isolation to prevent dangerous voltage spikes. These features make it an essential component for demanding oil, gas, and chemical facilities.

Connectivity and Integration Standards

Integration remains seamless due to the module’s compatibility with standard industrial communication protocols. It supports RS-485 serial connections and utilizes the Modbus RTU interface for data exchange. The hardware configuration allows for easy installation within existing Honeywell DCS cabinets. Moreover, the module complies with CE standards for electromagnetic compatibility. Its rugged design and compact footprint simplify the maintenance of complex automation architectures.

Primary Technical Specifications

• Input Channels: 8-Channel Discrete Inputs
• Voltage Compatibility: 24V DC / 24V AC nominal
• Galvanic Isolation: 1500V AC RMS
• Pick-up Voltage: 20V DC minimum
• Drop-out Voltage: 10V DC maximum
• Sense Current: 4.5 mA (ON state) / 2.8 mA (OFF state)
• Protection: Conformal coating for harsh environments
• Compliance: CE Certified
