Description

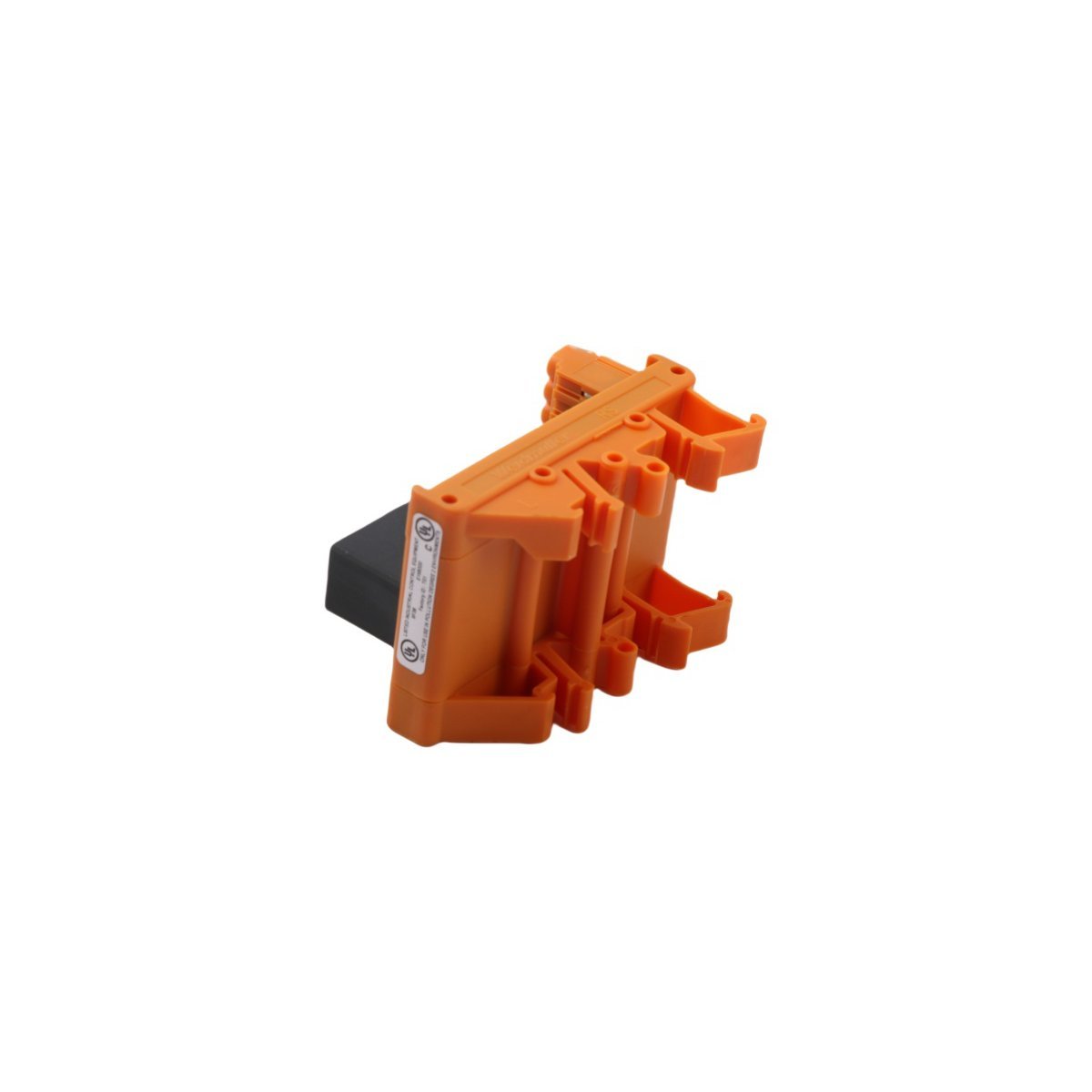

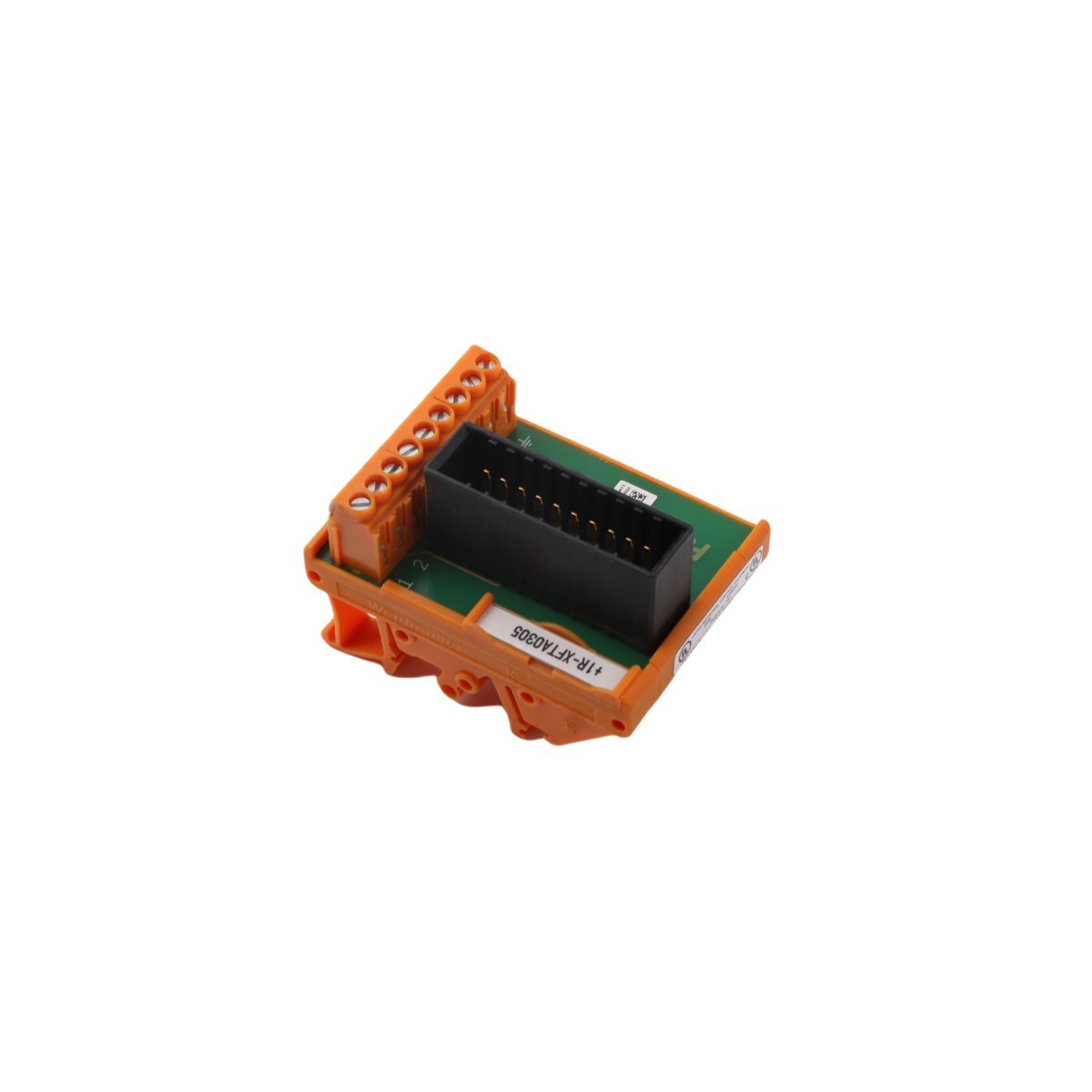

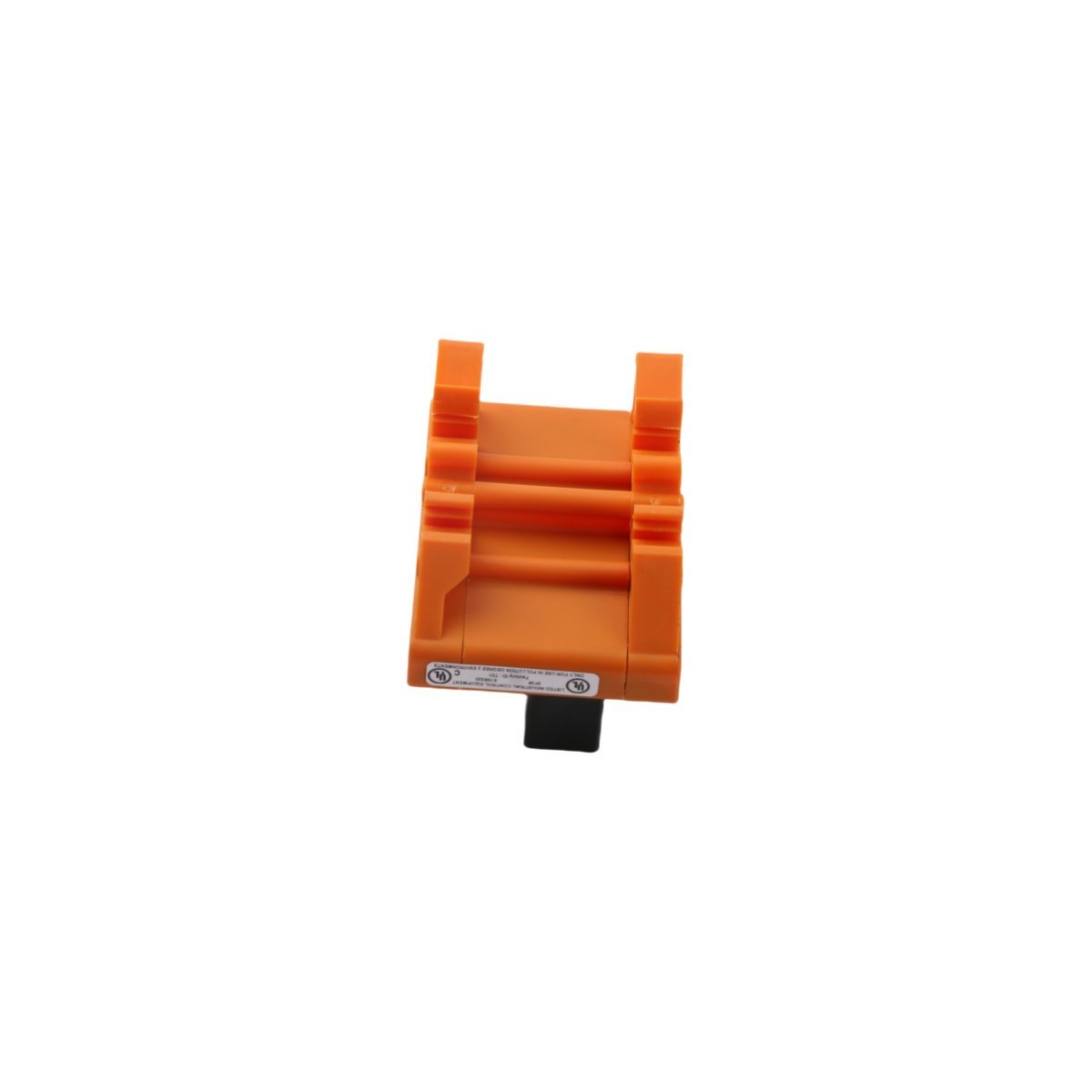

The Honeywell FC-TSAO-0220M functions as a high-integrity analog output interface for Safety Manager systems. This module provides precise current signals to modulate critical field equipment. It primarily drives control valves and actuators in SIL-rated safety loops. While legacy tables might categorize it broadly, the hardware specifically targets analog output requirements. It ensures accurate signal transmission between the safety logic solver and final control elements.

Safety and Operational Integrity

This module utilizes a redundant internal architecture to maintain the highest safety standards. Built-in diagnostic circuits monitor the output current constantly to detect any deviations. Furthermore, the unit identifies open circuits or ground faults in the field wiring instantly. If the hardware detects a failure, it triggers a safe state response. This prevents erratic actuator movement during critical process upsets. Consequently, the module significantly increases the overall safety availability of the plant.

Technical Characteristics

• High Precision: Delivers stable 0-20mA or 4-20mA signals for sensitive process control.
• Safety Certification: Meets stringent SIL standards for use in Safety Instrumented Systems (SIS).
• Fault Monitoring: Advanced onboard diagnostics track channel health and wiring integrity.
• Rugged Construction: The hardware withstands the vibration and thermal stress of industrial environments.
• Efficient Integration: Compact mounting design allows for high-density installation in safety racks.

Product Specifications

Primary Applications

Engineering teams deploy the FC-TSAO-0220M in critical sectors like oil refining and power generation. It manages proportional control in emergency shutdown (ESD) and fire and gas (F&G) systems. Because the module offers fast response times, it handles rapid process changes effectively. It integrates seamlessly into the Honeywell DCS environment through standard safety bus protocols. This ensures a unified approach to process safety and control.
