Description

Product Overview

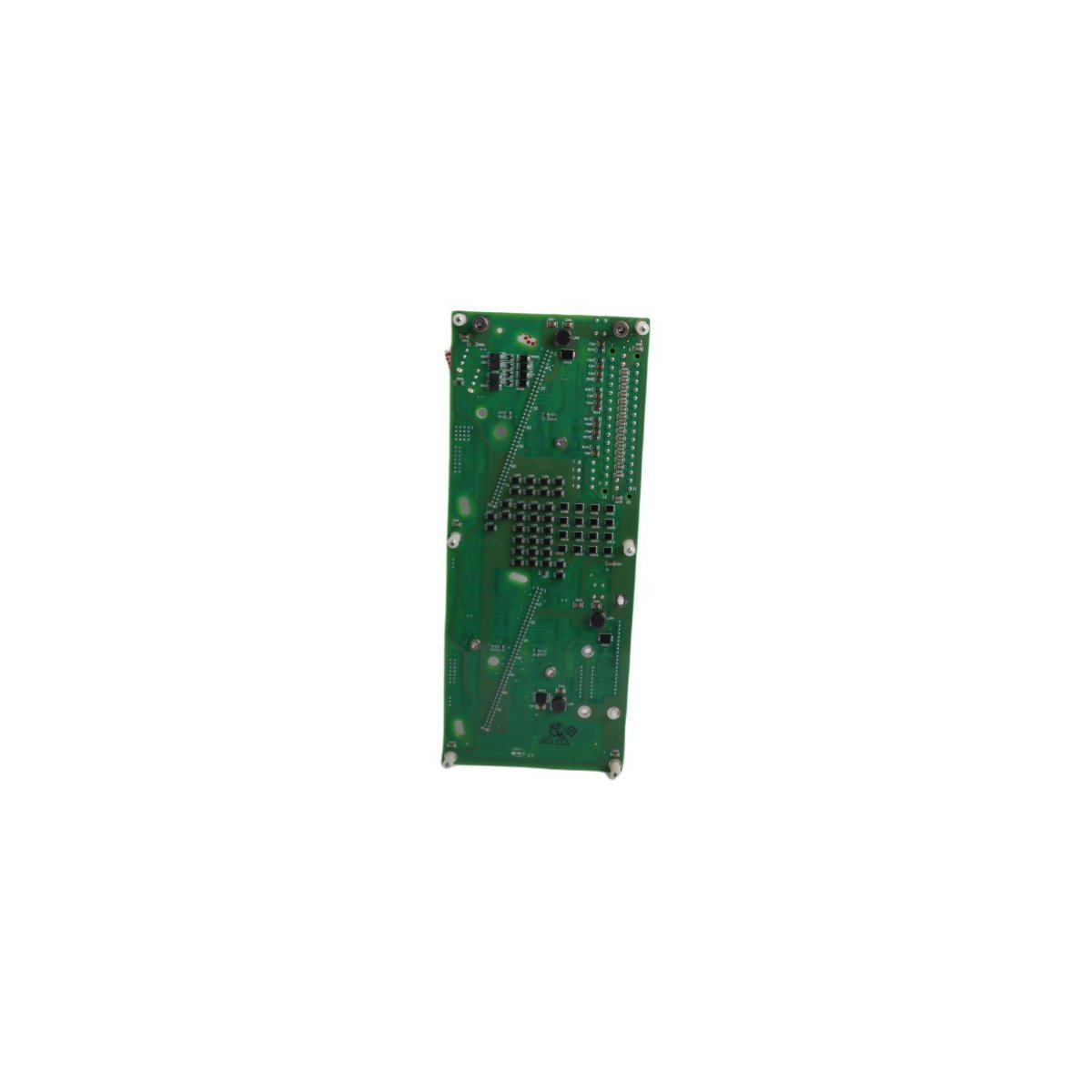

The Honeywell 8C-TAIX61 51306977-175 is a high-density analog input module designed for the Experion PKS Series 8 I/O platform. It provides precise interfacing for field sensors, supporting differential inputs and HART communication to enhance diagnostic capabilities in industrial automation.

Advanced Signal Processing and HART Integration

The 8C-TAIX61 module serves as a critical bridge between analog field instrumentation and the DCS controller. By utilizing high-resolution analog-to-digital conversion, the module ensures that variables such as temperature, pressure, and flow are captured with a remarkable accuracy of ±0.05% of full scale. Furthermore, this module natively supports HART (Highway Addressable Remote Transducer) protocol pass-through. This feature allows maintenance teams to access secondary instrument variables and device health data remotely, which significantly reduces the need for manual field inspections.

Robust Engineering for Industrial Reliability

Honeywell specifically engineered the Series 8 hardware, including the 51306977-175, to operate in the most demanding process environments. The module features a coated circuit board that resists corrosion and moisture, allowing it to function reliably in chemical plants and offshore facilities. Additionally, the vertical “honeycomb” design of the Series 8 housing facilitates natural convection cooling. This thermal management ensures the module maintains its performance specifications even under high-density configurations where heat buildup typically compromises electronic components.

Streamlined Installation and Connectivity

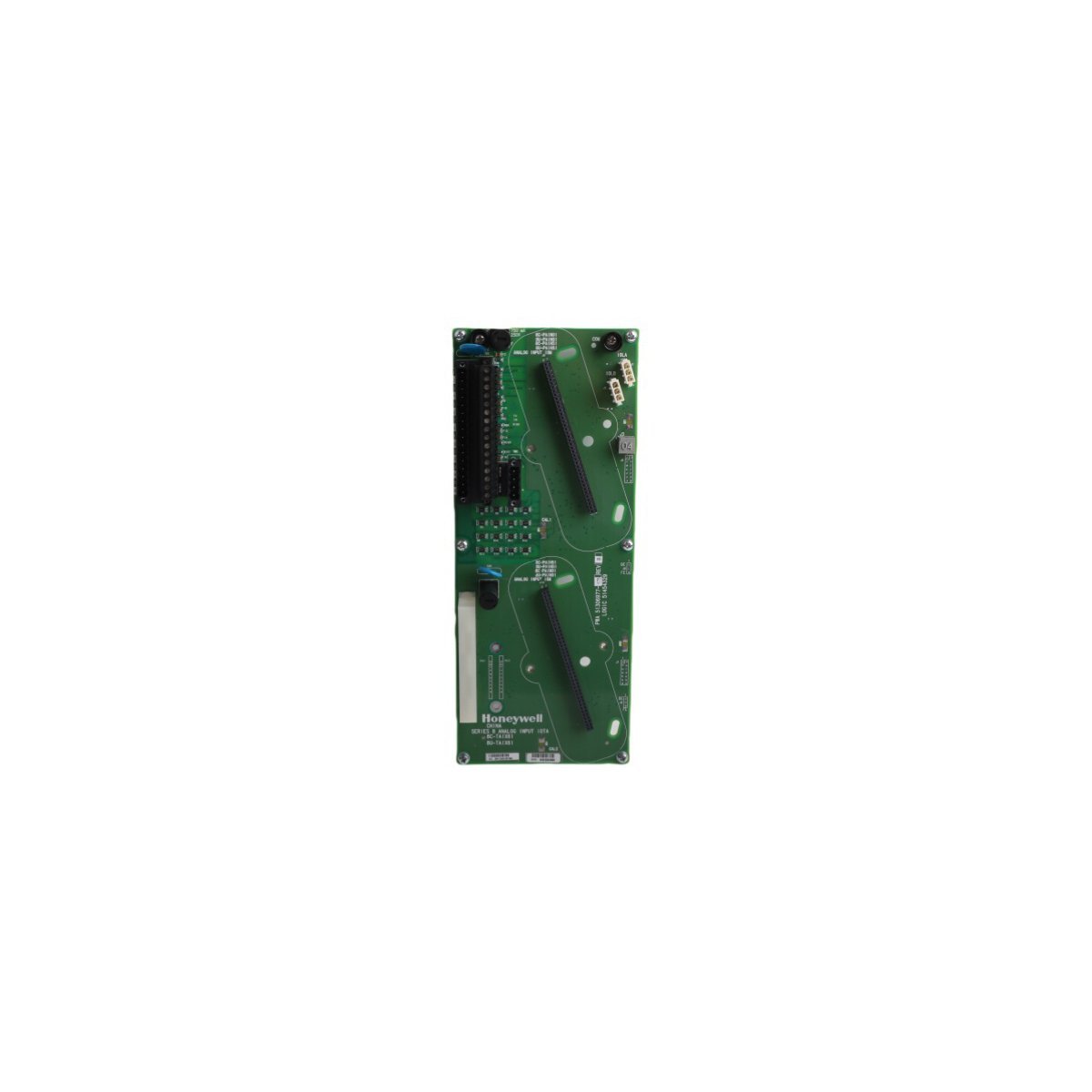

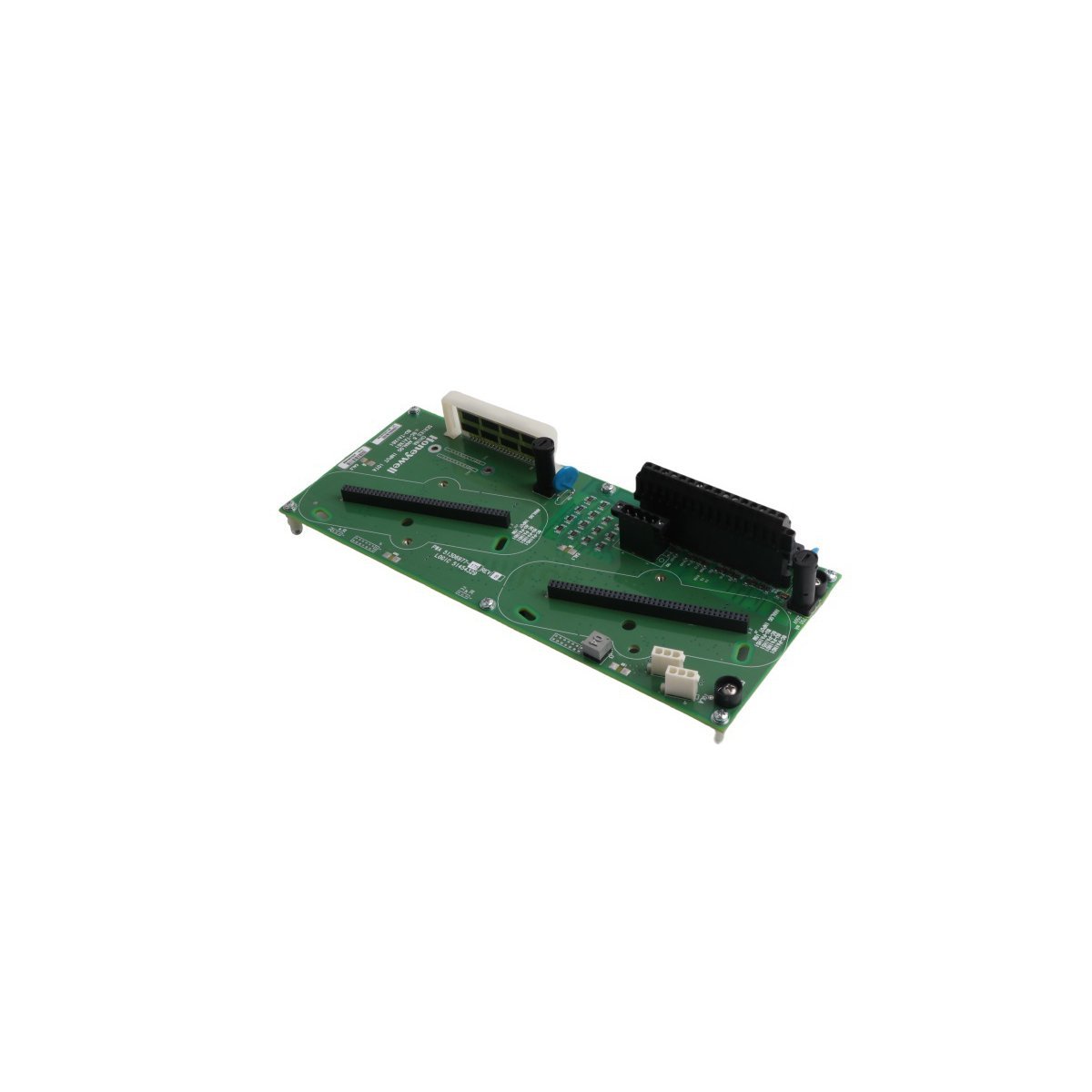

Integration into the Experion environment is straightforward thanks to the modular I/O Termination Assembly (IOTA) design. The 8C-TAIX61 supports hot-swapping, enabling technicians to replace modules without powering down the entire I/O rack or interrupting the control process. This capability minimizes potential downtime during system maintenance. Moreover, the module provides comprehensive onboard diagnostics that immediately notify the operator of open wires, short circuits, or out-of-range signal conditions, thereby facilitating faster troubleshooting and improved process safety.

Technical Characteristics
