Description

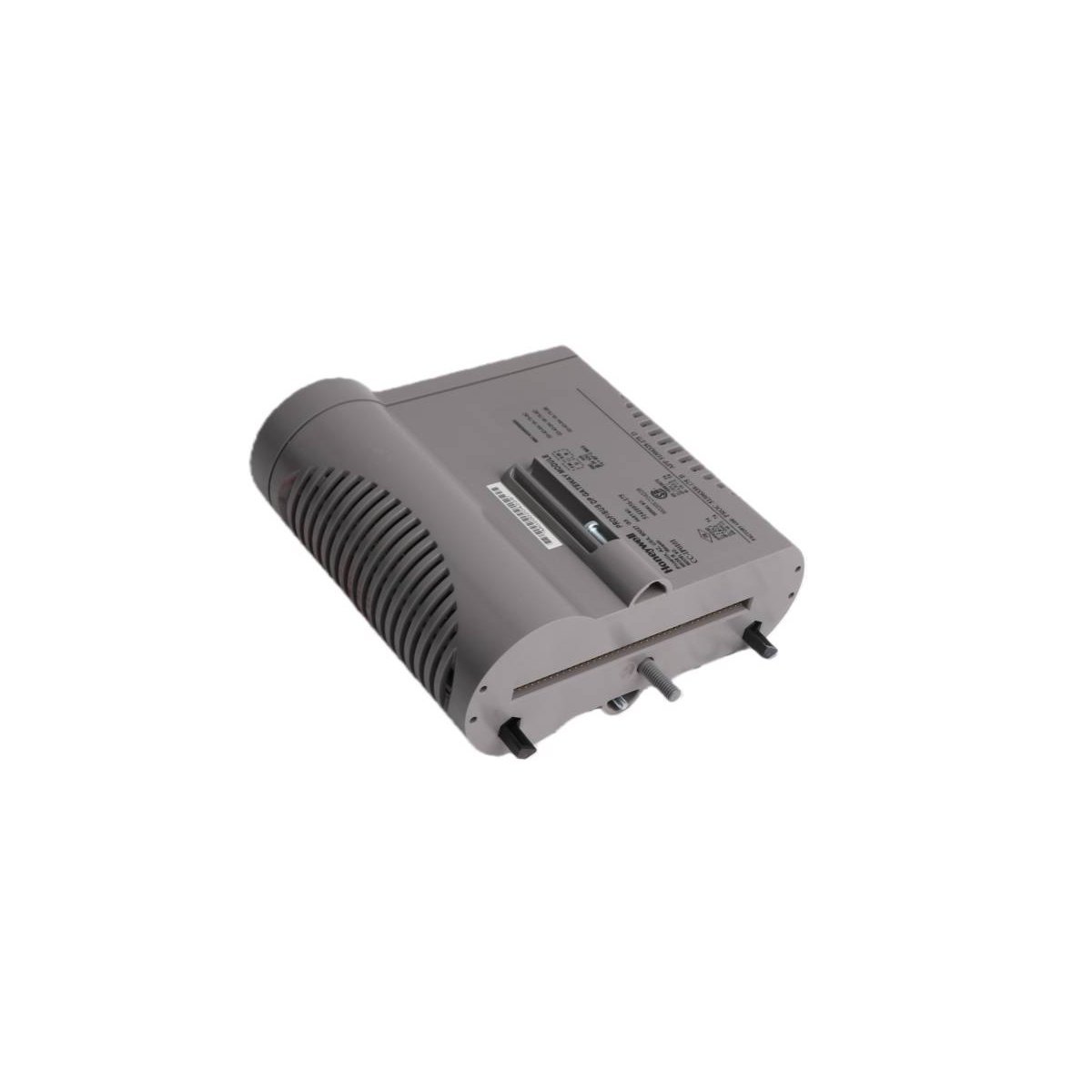

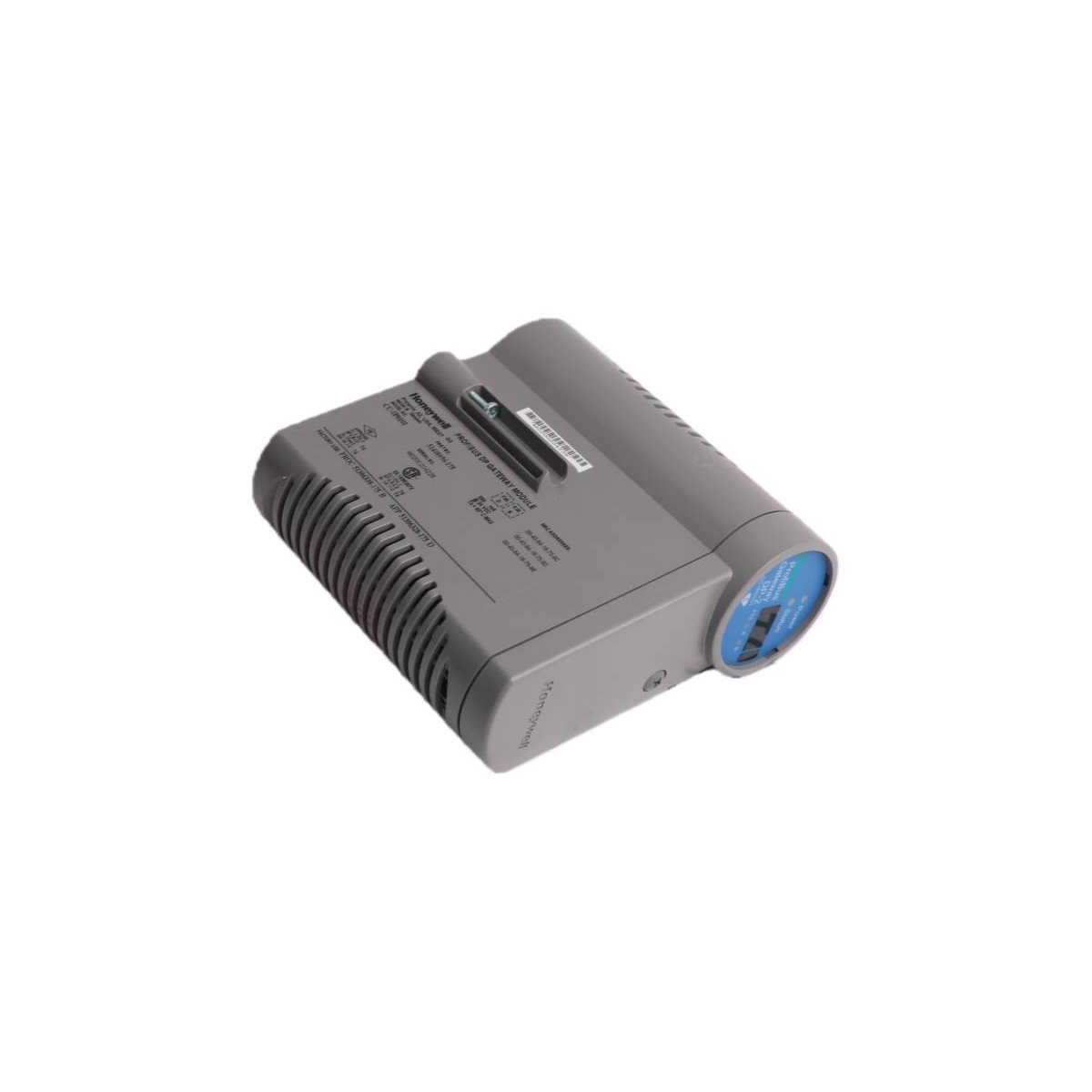

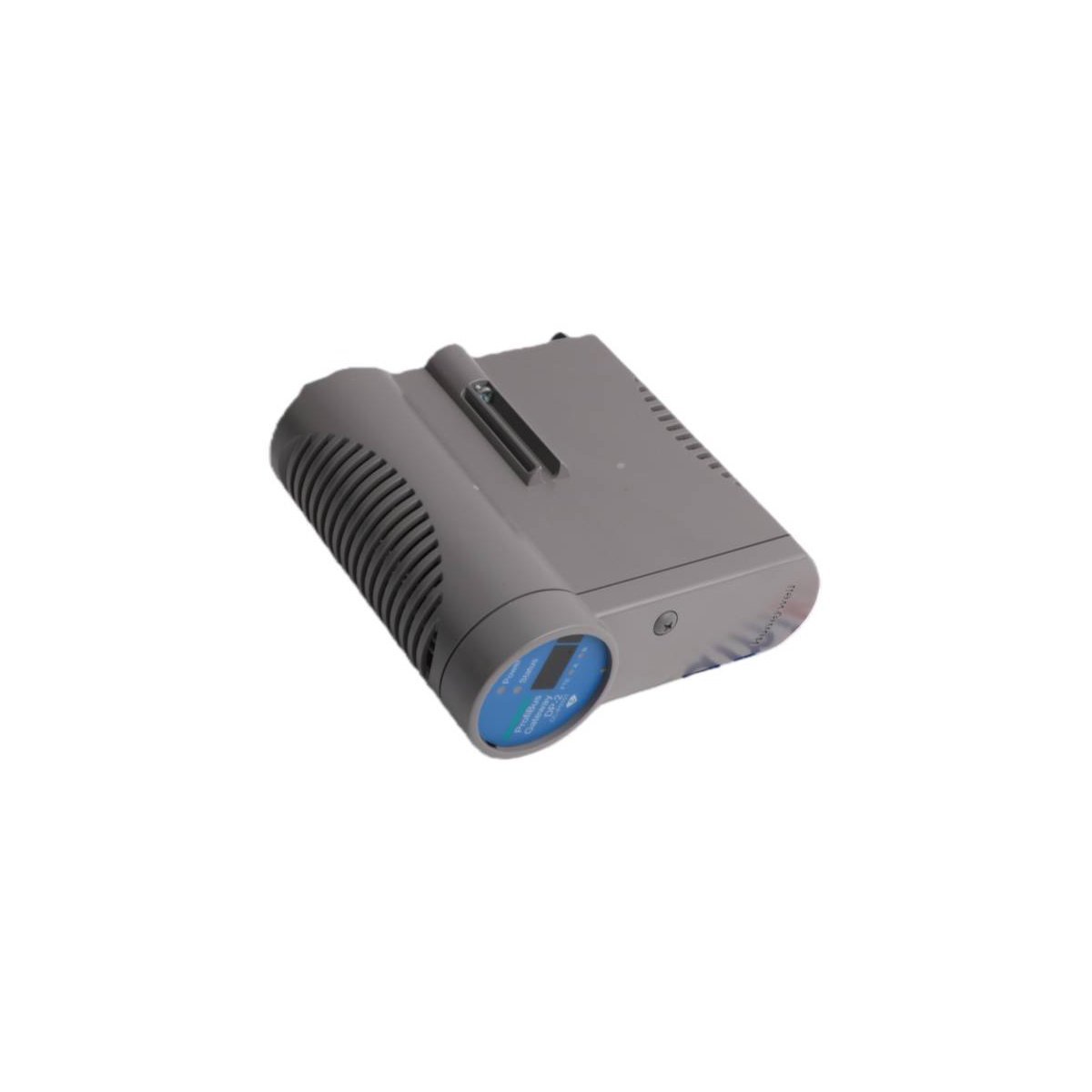

The Honeywell CC-IP0101 serves as a high-performance communication link within the Experion PKS architecture. This module facilitates the exchange of critical data between Profibus DP field devices and the C300 controller. It operates effectively in both Master and Slave roles to provide maximum configuration flexibility. Consequently, this gateway simplifies the integration of third-party hardware into a unified Honeywell automation environment. It ensures that plant operators maintain complete visibility over their distributed field assets.

High-Speed Data Transmission Performance

This gateway supports transmission speeds reaching 12 Mbps for rapid process updates. It manages large-scale industrial networks by supporting up to 125 nodes per segment. Furthermore, the hardware allows for extensive cable runs up to 1,200 meters. These capabilities make the 51410056-175 ideal for sprawling manufacturing facilities and refineries. The module optimizes bandwidth to ensure timely signal delivery for time-critical control loops.

Electrical Protection and Industrial Reliability

Honeywell builds the CC-IP0101 to withstand the rigorous conditions of process industries. The unit operates on a standard 24V DC power supply with wide voltage tolerance. It features 500V AC electrical isolation to prevent damaging ground loops. This protective barrier shields the internal control logic from external electrical noise. Additionally, the compact housing supports DIN rail mounting for efficient cabinet space utilization.

Technical Specifications
