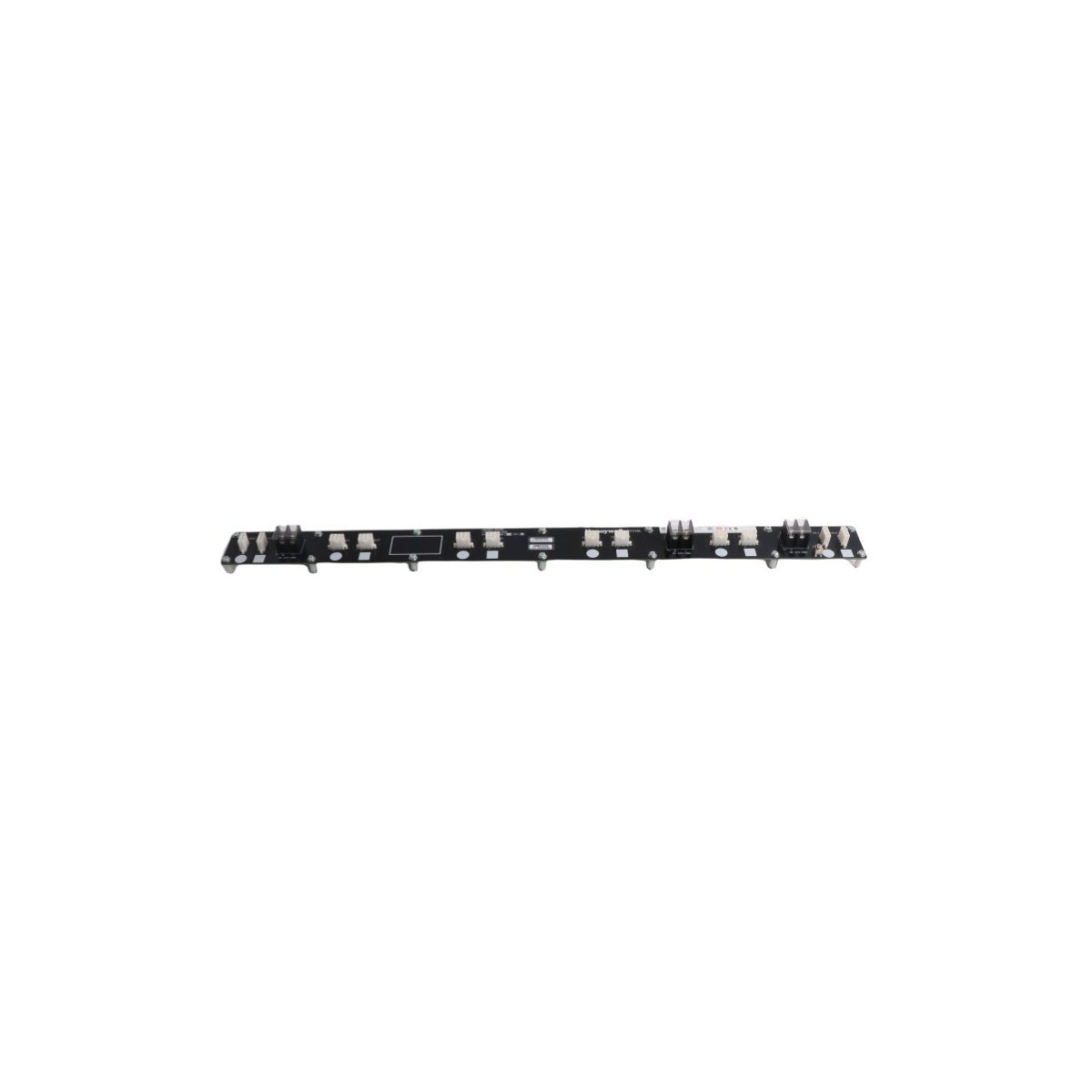

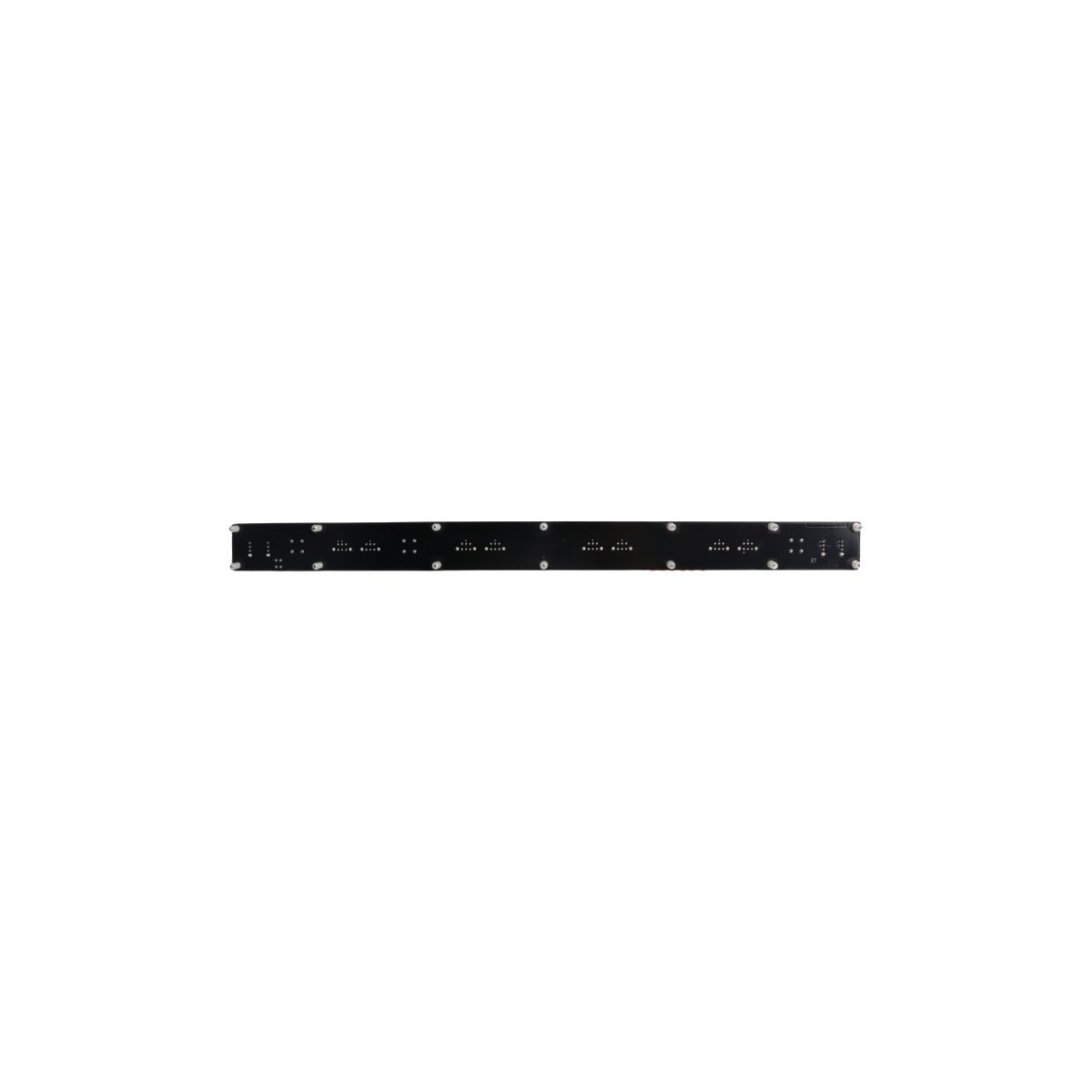

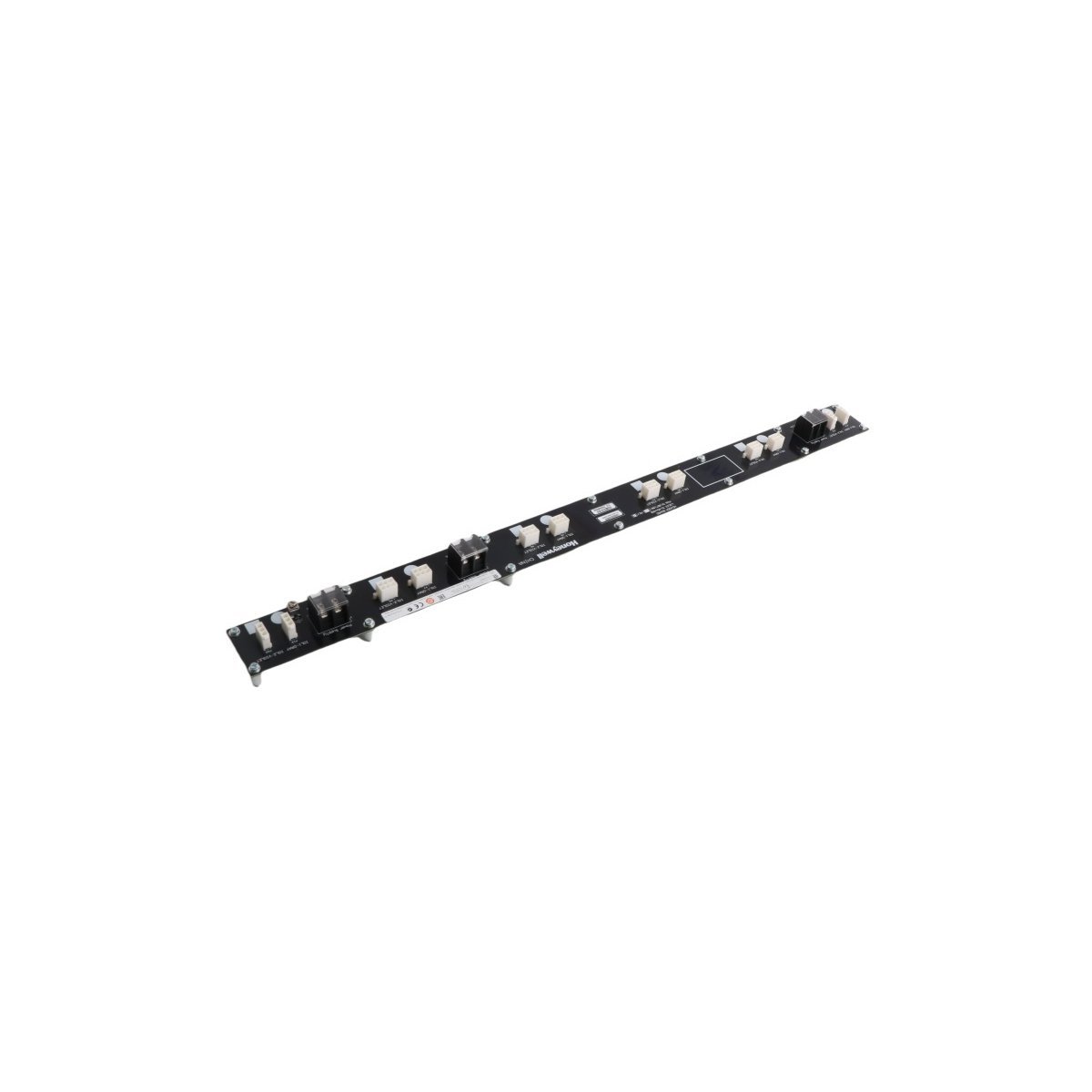

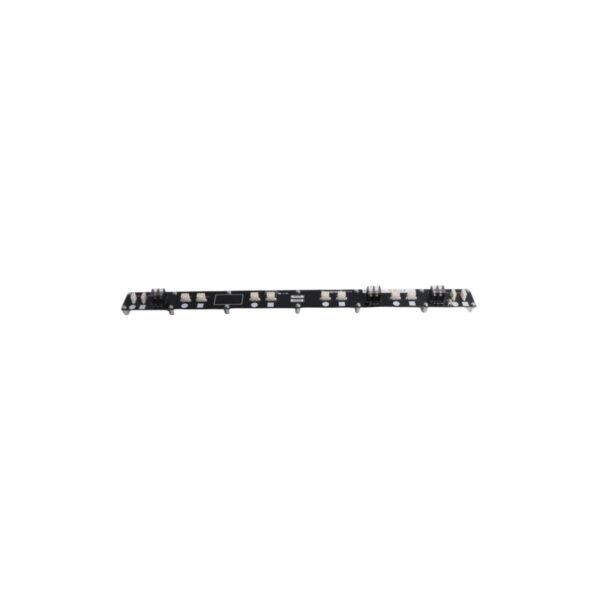

The Honeywell 8C-SHEDA1 51307186-175 is a high-performance Series 8 Digital Input Header Board designed for the Experion PKS environment. It serves as a critical interface for translating field-side discrete signals into actionable data for the Distributed Control System.

​Functional Excellence in Industrial Automation

The Honeywell 8C-SHEDA1 51307186-175 functions as a vital signal conditioning interface within the Series 8 hardware family. This digital input board bridges the gap between field-level sensors and the controller logic, ensuring that binary states—such as motor status or valve positions—are communicated accurately. By utilizing a compact and vertical design, the board optimizes cabinet space while maintaining high signal density for complex industrial operations.

Performance in Rigorous Environments

Industrial facilities demand hardware that operates without interruption, and the 8C-SHEDA1 delivers through a hardened hardware architecture. This board accommodates a broad operational temperature spectrum, allowing for reliable deployment in environments ranging from intense heat to extreme cold. Furthermore, the 51307186-175 incorporates advanced RS-485 communication interfaces to facilitate high-speed data transmission across the automation network. This ensures that the system receives real-time updates, which is essential for maintaining safety and process efficiency in oil, gas, and chemical sectors.

Integration and Connectivity

System engineers benefit from the simplified installation process afforded by the board’s M12 connector system, which provides a mechanically secure and vibration-resistant link. Additionally, the 8C-SHEDA1 supports a versatile power input range of 12V to 36V DC. This flexibility allows the module to adapt to various power supply standards found in modern control rooms. Because the board integrates seamlessly with Honeywell’s Experion PKS, it enables rapid configuration and comprehensive diagnostics, significantly reducing the time required for both commissioning and routine maintenance.

Key Technical Characteristics

• Signal Processing: Advanced discrete input handling for high-speed process monitoring.
• Thermal Resilience: Optimized for consistent performance across a wide range of ambient temperatures.
• Secure Interfacing: Features M12 connectors for stable field connections in high-vibration areas.
• Communication Standard: Utilizes RS-485 protocols for seamless data integration with Series 8 controllers.
• Voltage Adaptability: Operates efficiently on standard industrial DC power supplies (12V–36V).

Technical Specifications
