Description

Brief Product Description

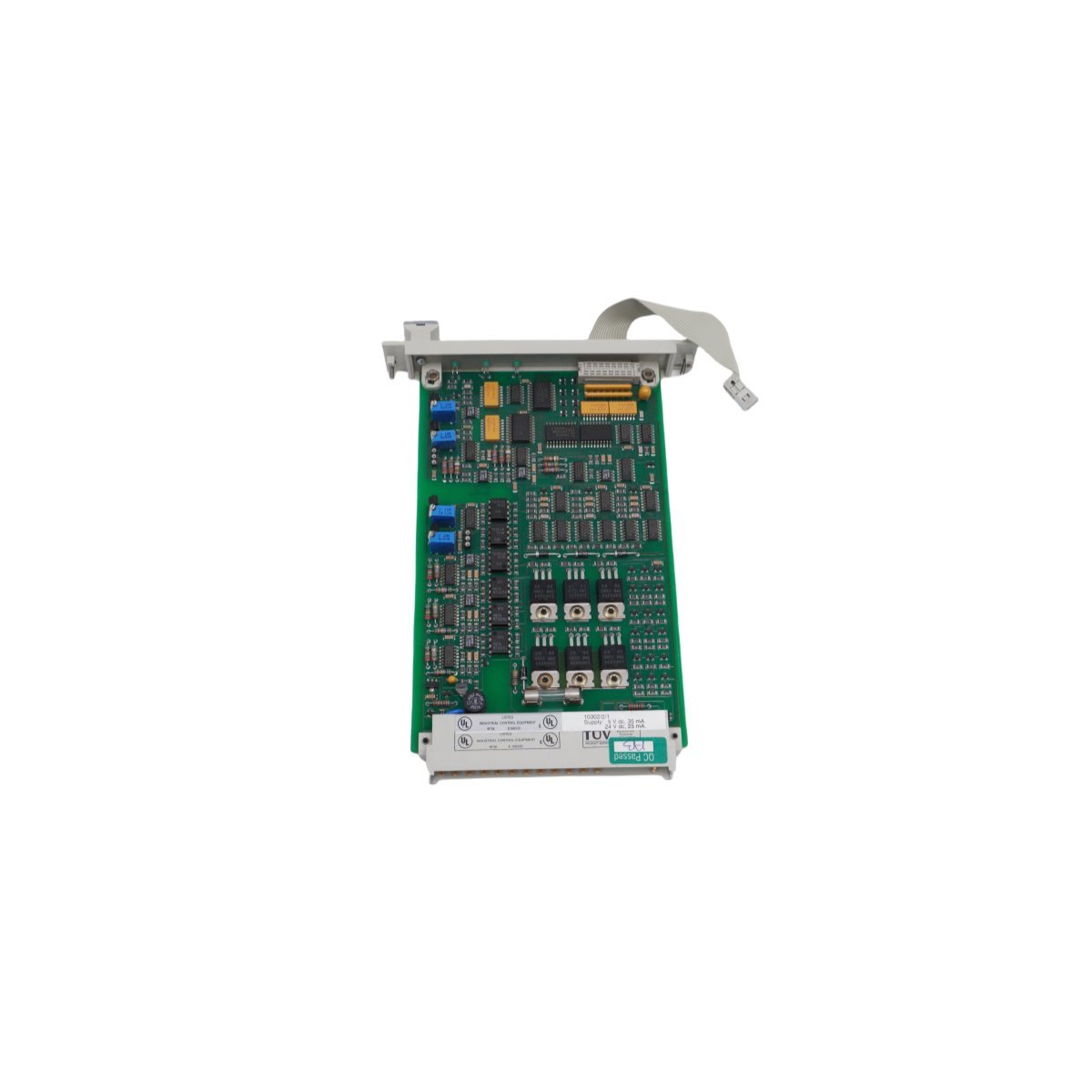

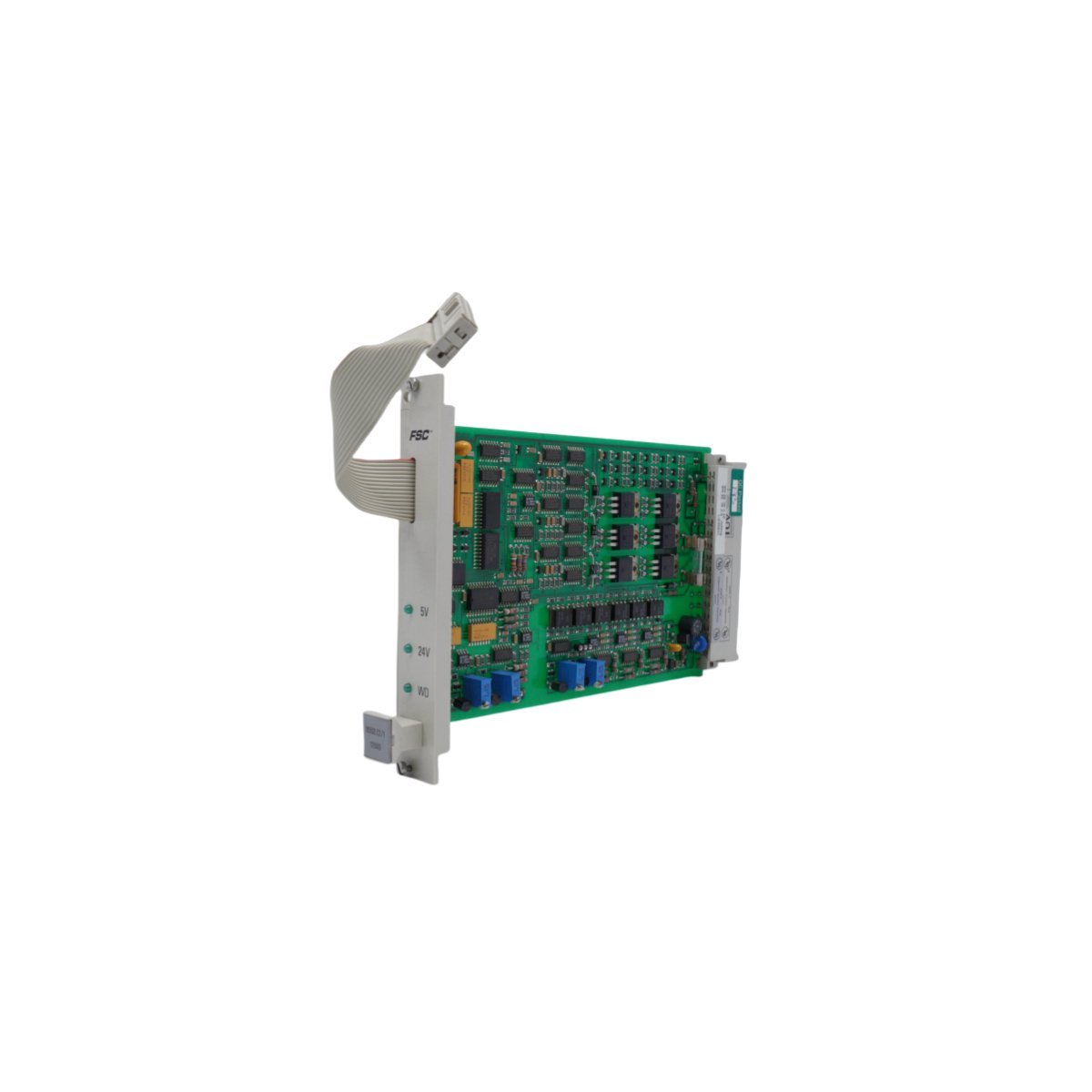

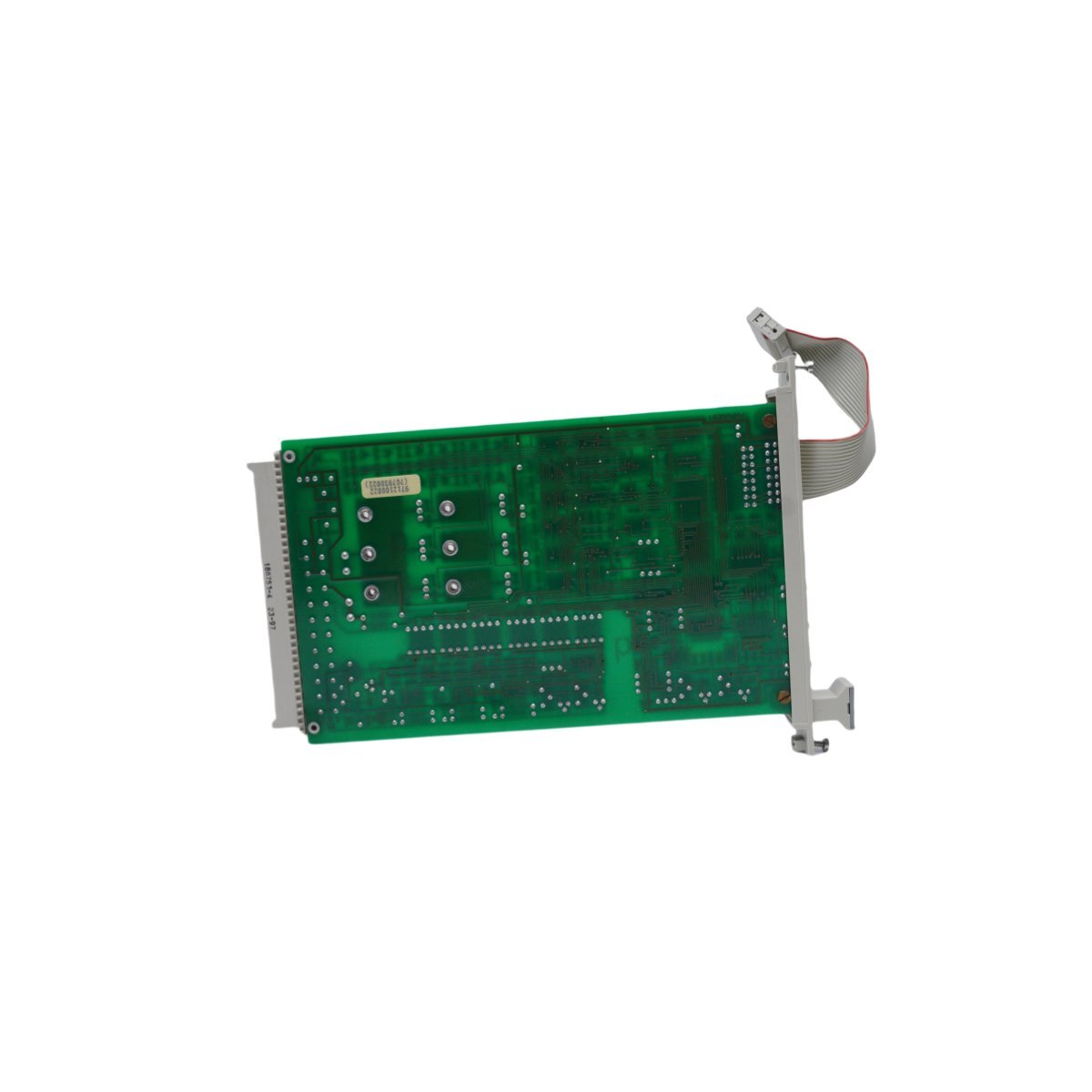

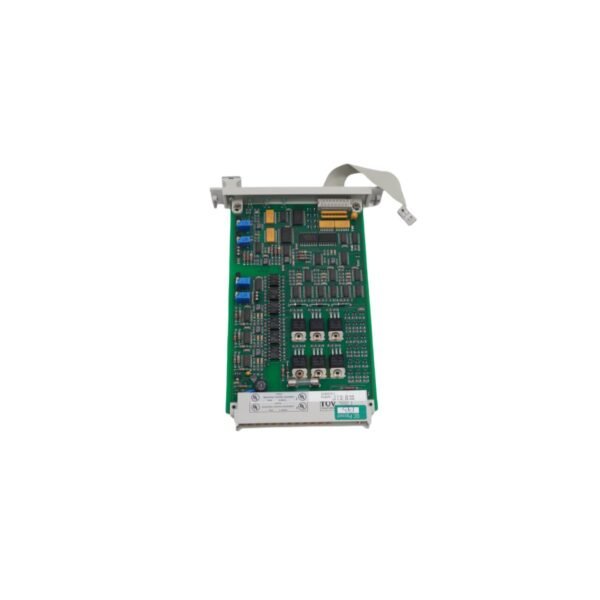

The Honeywell 10302/2/1 is a specialized Watchdog Repeater Module designed for the Fail Safe Control (FSC) system, providing essential signal monitoring and system health verification. It serves as a critical safety link that ensures continuous diagnostic oversight and prevents uncontrolled system states in industrial automation.

System Health Oversight and Signal Integrity

The Honeywell 10302/2/1 acts as a primary guardian for the Fail Safe Control (FSC) architecture by monitoring the “watchdog” pulses generated by the system processors.¹ This module effectively repeats and amplifies these health signals across the control network to ensure that all safety-related components remain synchronized and operational.² By verifying these periodic pulses, the 10302/2/1 can trigger an immediate safe-state response if a processor hang-up or communication failure occurs. Consequently, this prevents erratic machinery behavior and protects both personnel and plant assets.

Real-Time Diagnostics and Safety Integration

Equipped with high-speed signal processing capabilities, the 10302/2/1 module facilitates real-time diagnostics within the Distributed Control System (DCS). It integrates seamlessly with Honeywell’s safety logic solvers to provide instantaneous feedback on the hardware’s integrity. The module’s design allows it to handle complex measurement parameters while maintaining a low-latency path for critical safety data. This ensures that even in the most demanding manufacturing or energy-sector environments, the system maintains a high Safety Integrity Level (SIL) by identifying faults before they lead to catastrophic failure.

Robust Construction for Legacy Support

Although Honeywell officially discontinued the 10302/2/1 on December 31, 2018, it remains a vital component for maintaining the longevity of installed FSC systems. The module features a ruggedized PCB design and high-quality industrial components that resist electrical noise and thermal stress. Its compact form factor (2.5 x 12.7 x 20.3 cm) allows for easy retrofitting into existing racks. By utilizing this repeater card, plant operators can ensure continued reliability and minimize expensive downtime in safety-instrumented systems (SIS) that require a stable watchdog heartbeat for operation.

Key Technical Characteristics

• Fail-Safe Monitoring: Continuously validates the watchdog timer signals to ensure processor health.³
• High-Speed Acquisition: Provides rapid signal repetition to maintain tight safety loop timing.
• Integrated Redundancy: Supports redundant system configurations to enhance overall availability.⁴
• Comprehensive Diagnostics: Features onboard status indicators for immediate local troubleshooting.⁵
• Seamless FSC Integration: Optimized for Honeywell Fail Safe Control system bus communication.
• Industrial Resilience: Built to USA manufacturing standards for use in hazardous and high-stress environments.

Technical Specifications
