Description

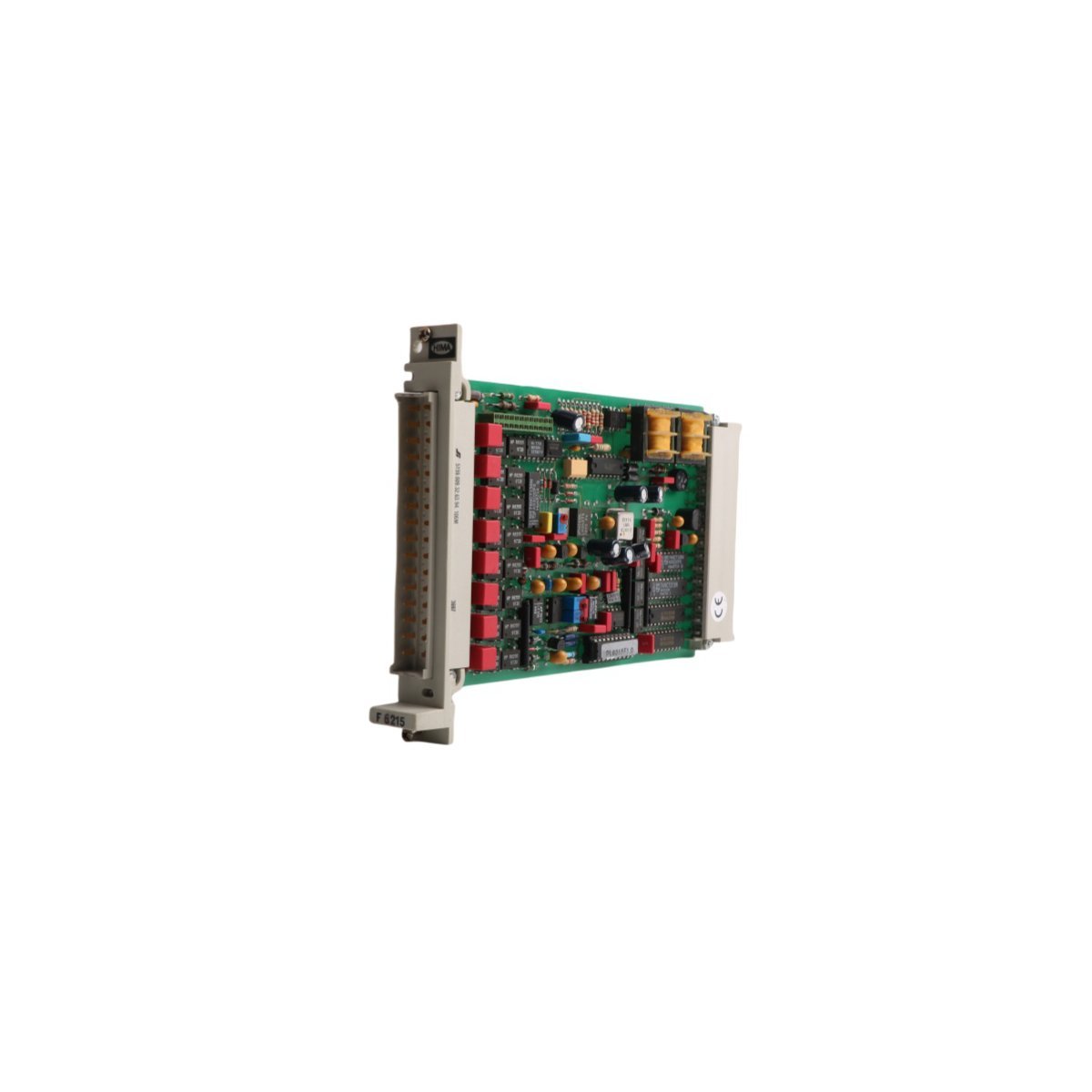

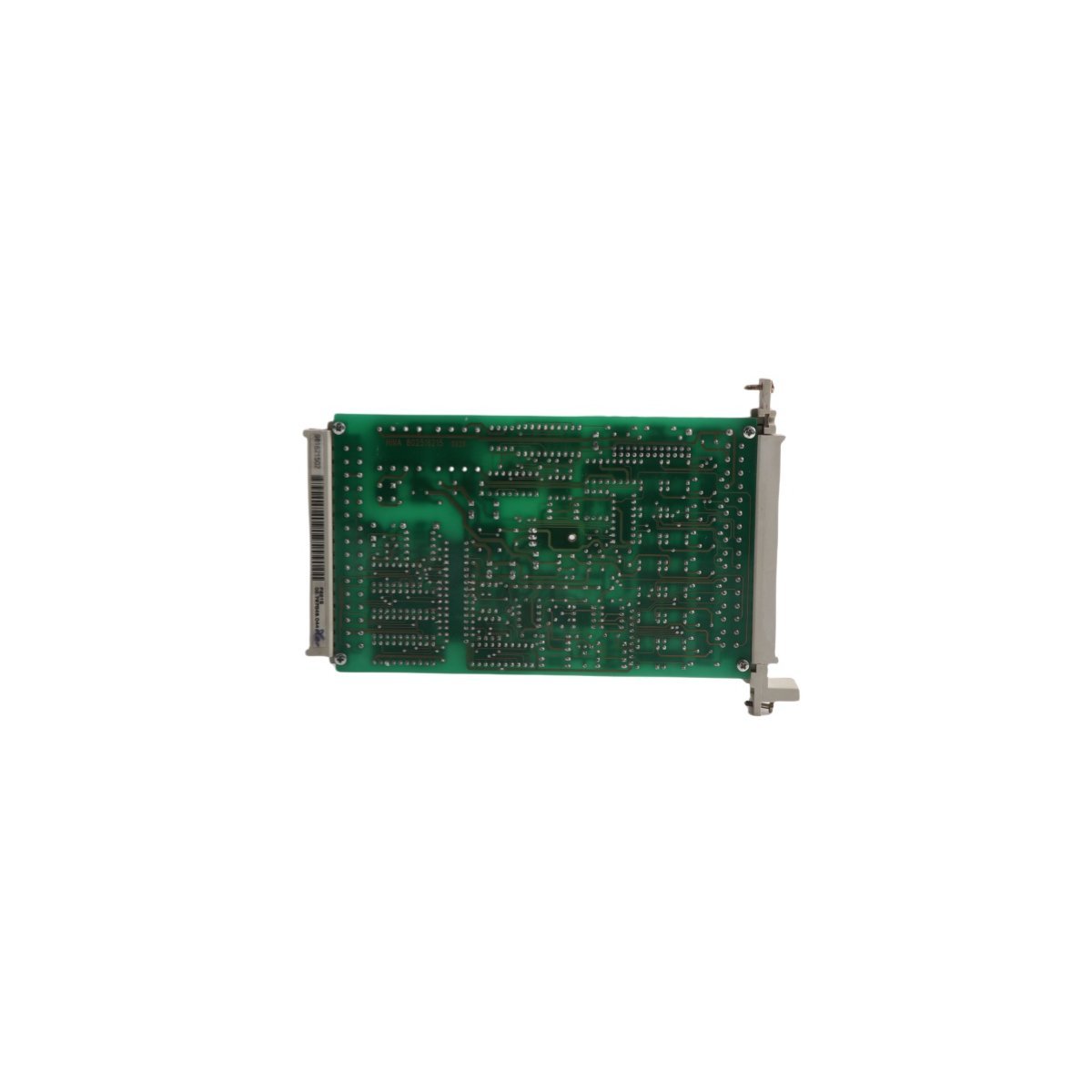

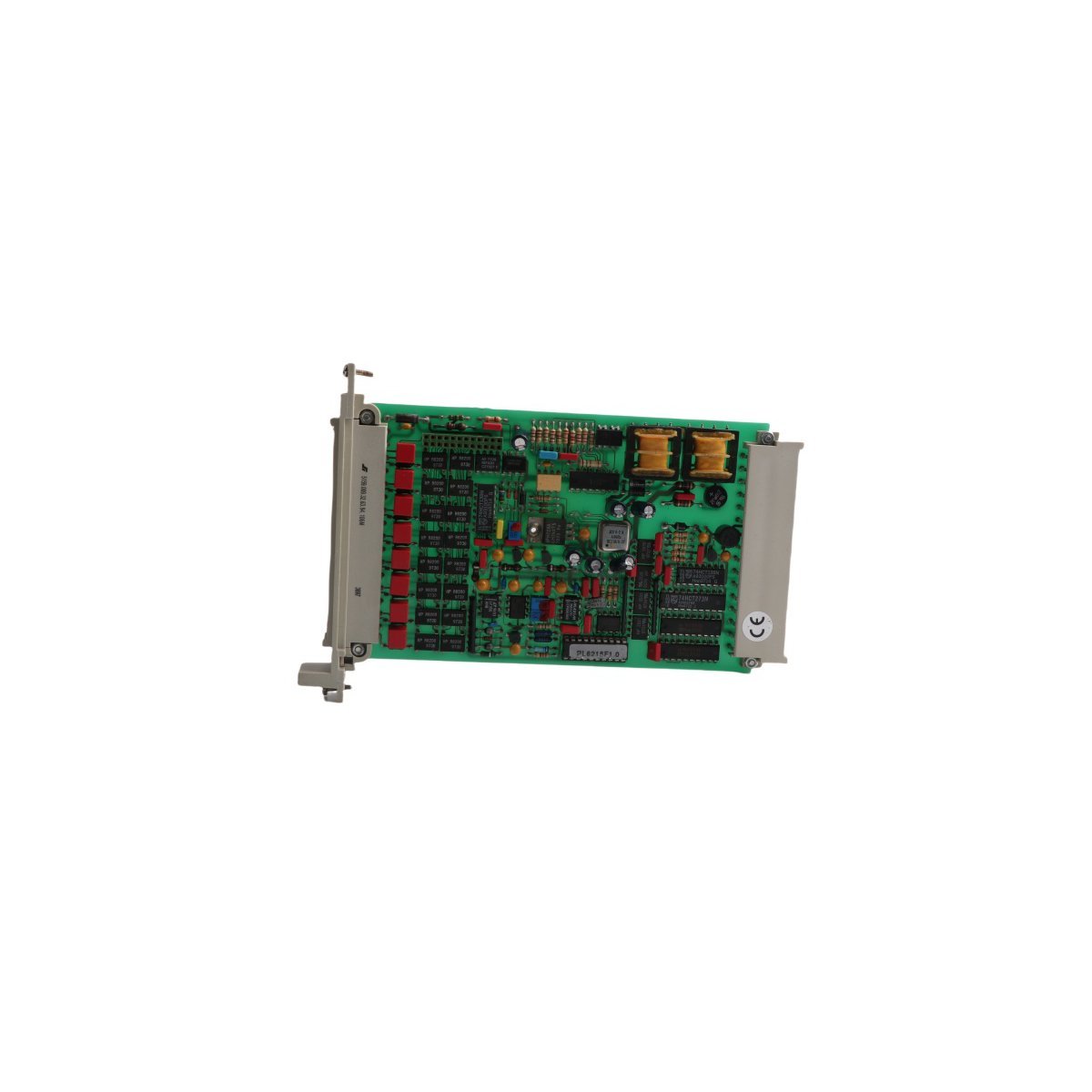

The HIMA F6215 provides high-integrity signal acquisition for specialized industrial safety systems. This module features four independent channels for precise analog-to-digital conversion. Because it belongs to the HIQuad architecture, it ensures maximum reliability in hazardous environments. The hardware captures current signals from various field sensors with 12-bit resolution. Consequently, it delivers the exact data necessary for critical process monitoring and safety shutdowns. This German-engineered module remains a cornerstone for high-availability Distributed Control Systems (DCS).

Technical Specifications and Hardware Profile

Precision Performance and Environmental Durability

The F6215 module excels at converting raw field signals into actionable digital data. Every input channel operates independently to prevent cross-channel interference or common-mode failures. Furthermore, the 12-bit resolution provides the fine granularity required for sensitive instrumentation. This accuracy helps operators detect subtle process shifts before they escalate into safety risks. Such precision remains vital for the integrity of functional safety loops.

Advanced thermal engineering allows the unit to function reliably up to +70°C. This wide temperature range supports deployment in extreme climates or non-ventilated control cabinets. Additionally, the compact 0.2 kg frame facilitates dense installations in standard racks. The rugged internal components resist vibration and moisture common in industrial settings. Therefore, the F6215 offers a durable solution for long-term infrastructure protection.

Integration and Industrial Applications

Deploying the HIMA F6215 is simple due to its modular plug-in design. It interfaces directly with H41q and H51q backplanes via standard system connectors. Moreover, the unit supports seamless diagnostic reporting through the system’s ethernet routing services. This transparency allows maintenance teams to verify signal health remotely. Typical industrial applications include:

• Monitoring pressure transmitters in chemical reactors
• Temperature sensing in high-availability boiler systems
• Flow measurement for emergency shutdown (ESD) loops
• Level monitoring in flammable liquid storage tanks
• Interface for safety-related instrumentation in power plants

The module complies with stringent international safety standards for high-stakes automation. This compliance ensures that the hardware meets the rigorous demands of global safety regulations. By utilizing the F6215, facilities achieve superior measurement stability and asset protection. It represents a reliable link between field instrumentation and the safety logic solver.
