Description

Brief Product Description

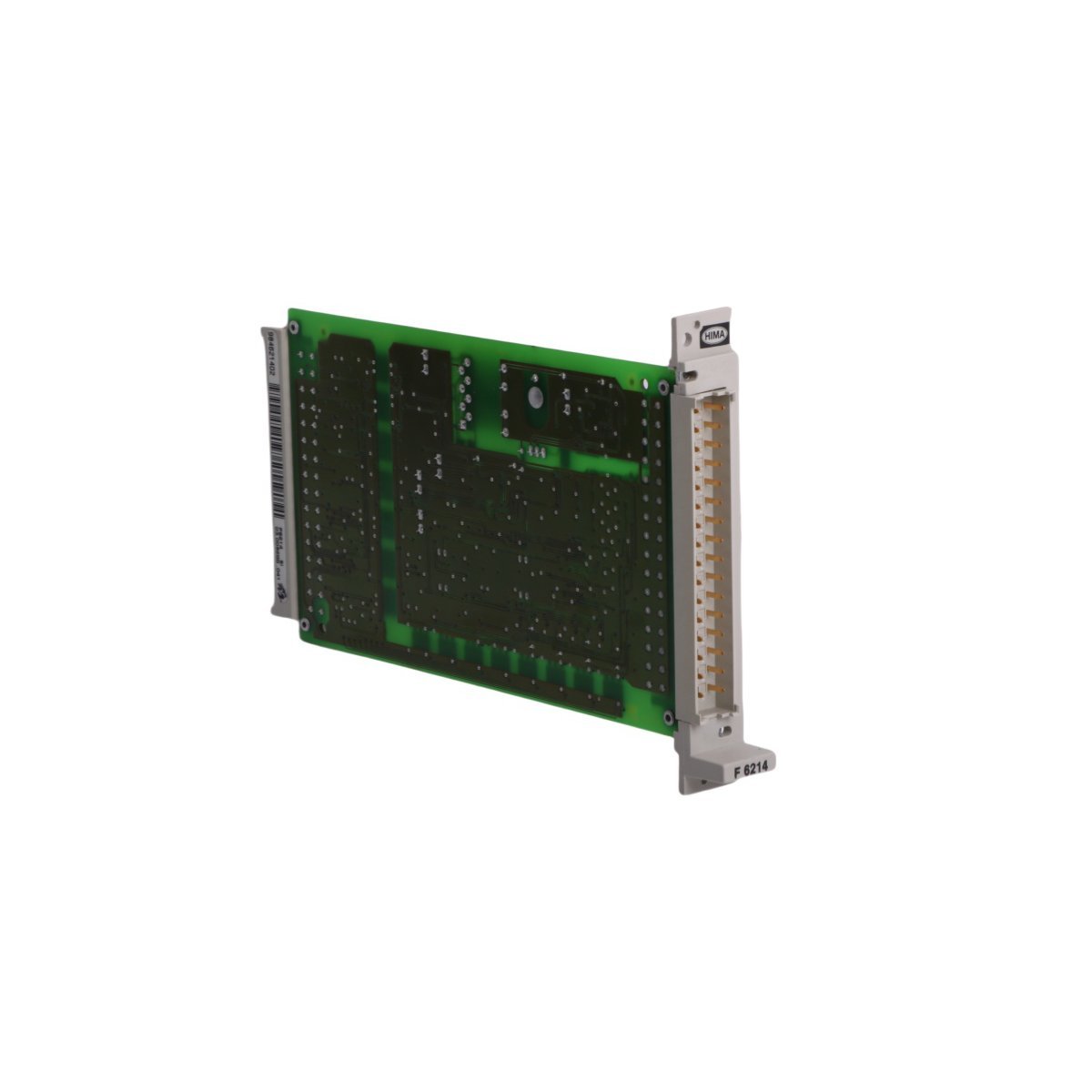

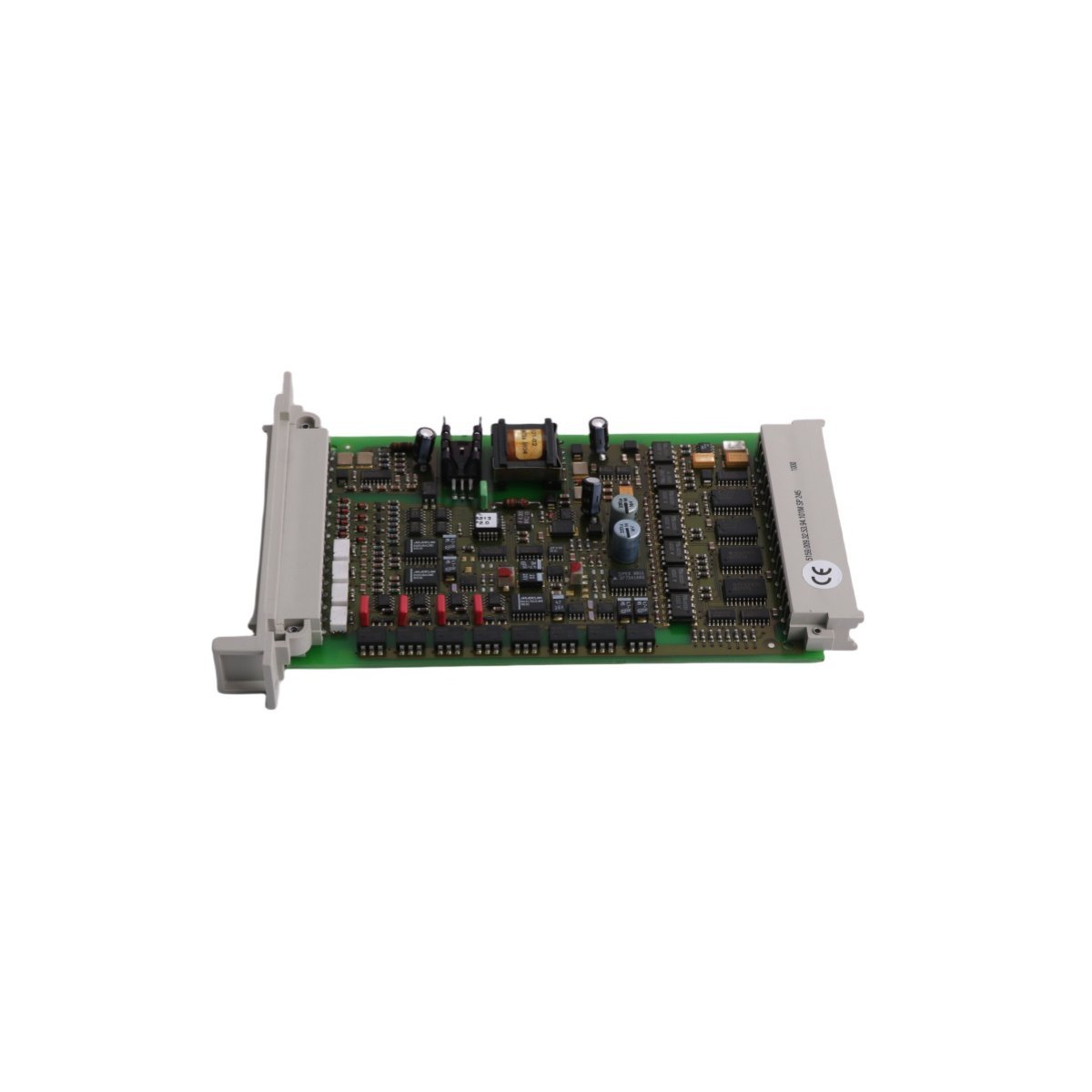

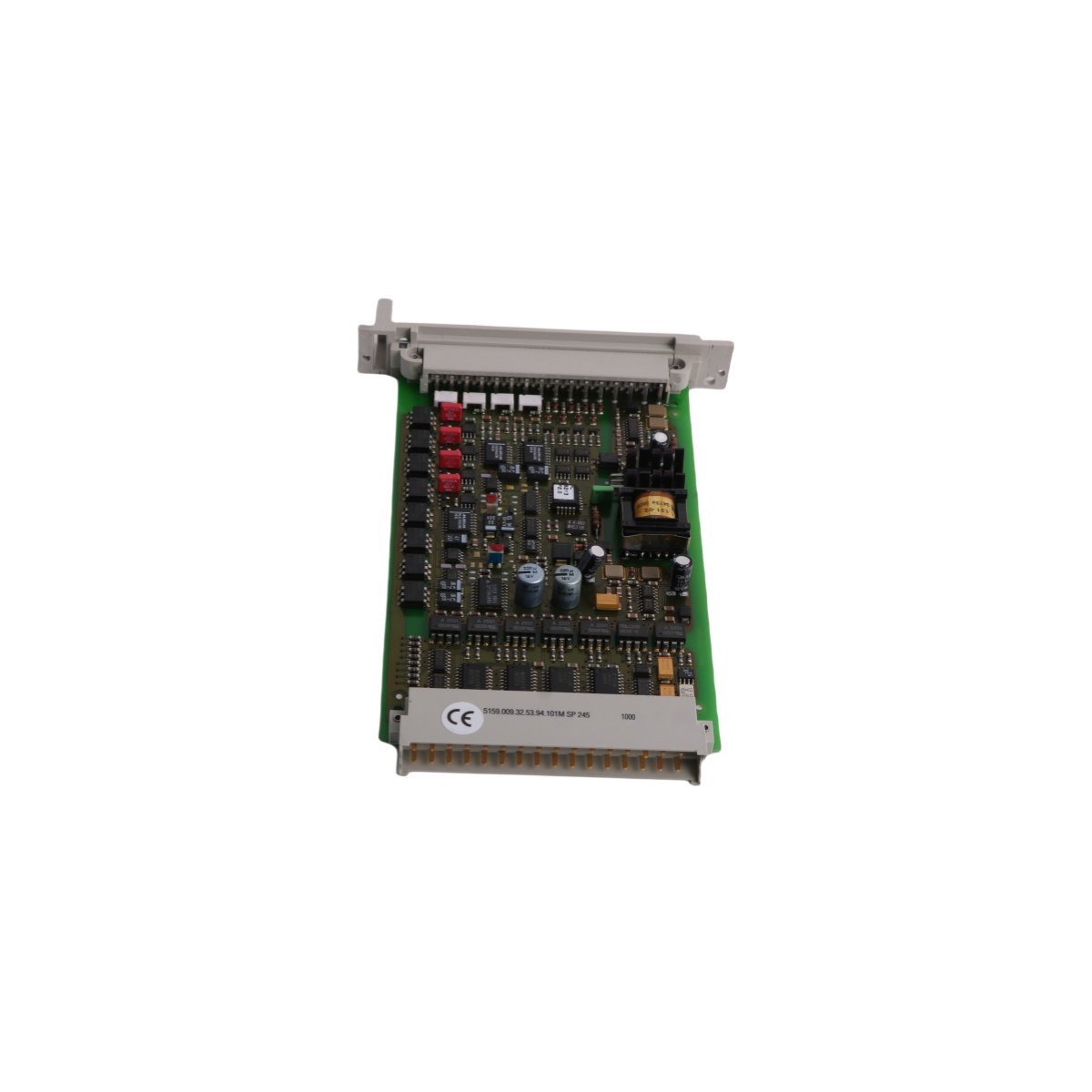

The HIMA F6214 is a high-precision, safety-related analog input module designed for critical industrial monitoring and fail-safe automation. It supports multiple signal types, including 4-20mA and 0-10V, providing 12-bit resolution and safety isolation up to Requirement Class AK 6.

High-Precision Signal Acquisition

The HIMA F6214 serves as a robust interface for safety-critical analog measurements within industrial DCS environments. This module processes a variety of standard signals, including 4…20 mA and 0…20 mA current loops, as well as voltage inputs ranging from 0 to 10 V. By utilizing a 12-bit analog-to-digital converter, the F6214 transforms field variables into precise digital data (0 to 3840 units), facilitating highly accurate process monitoring. To ensure signal stability in electrically noisy environments, the module integrates a 10 ms input filter time constant and maintains a high input resistance of 1 MOhm. These features allow the controller to deliver consistent performance in sensitive measurement applications.

Safety Compliance and Transmitter Protection

HIMA engineered the F6214 to meet the most stringent safety standards, complying with Requirement Classes AK 1 through 6 and supporting SIL 3 certified architectures. The module provides a reliable transmitter power supply, delivering between 20 V and 25 V with a capacity of 22 mA per channel. Furthermore, every input includes comprehensive short-circuit protection limited at 25 mA to prevent field-side faults from damaging the internal electronics. The hardware architecture prioritizes safety isolation, which effectively decouples the field signals from the central logic. This design philosophy ensures that the system remains in a fail-safe state during emergency shutdown (ESD) scenarios.

Industrial Reliability and Diagnostic Efficiency

The F6214 exemplifies German engineering excellence by balancing a compact form factor with superior thermal stability. It features high-accuracy 50 Ohm shunt resistors with a 0.05% tolerance and ultra-low temperature drift of less than 10 ppm/K. Consequently, the module maintains measurement integrity across fluctuating ambient conditions. For rapid system response, the controller executes a full test cycle every 100 ms, allowing for immediate detection of hardware discrepancies. These advanced diagnostic capabilities, combined with its lightweight 0.1 kg design, make the F6214 an essential component for modern industrial safety systems requiring maximum uptime and fault tolerance.

Key Technical Characteristics

• Multipurpose Input Support: Handles 4-20mA, 0-20mA, and 0-1/5/10V signal types on a single platform.
• Advanced Safety Certification: Meets Requirement Classes AK 1-6 and is suitable for SIL 3 safety loops.
• Integrated Transmitter Supply: Features built-in 25V power with short-circuit protection for 2-wire transmitters.
• High-Resolution Conversion: Provides 12-bit resolution for precise mapping of analog field data to digital logic.
• Rapid Diagnostics: Performs internal self-tests every 100 ms to ensure continuous safety-related functionality.
• Superior Component Accuracy: Utilizes 0.05% tolerance shunts and low-drift resistors for high-fidelity measurements.
