Description

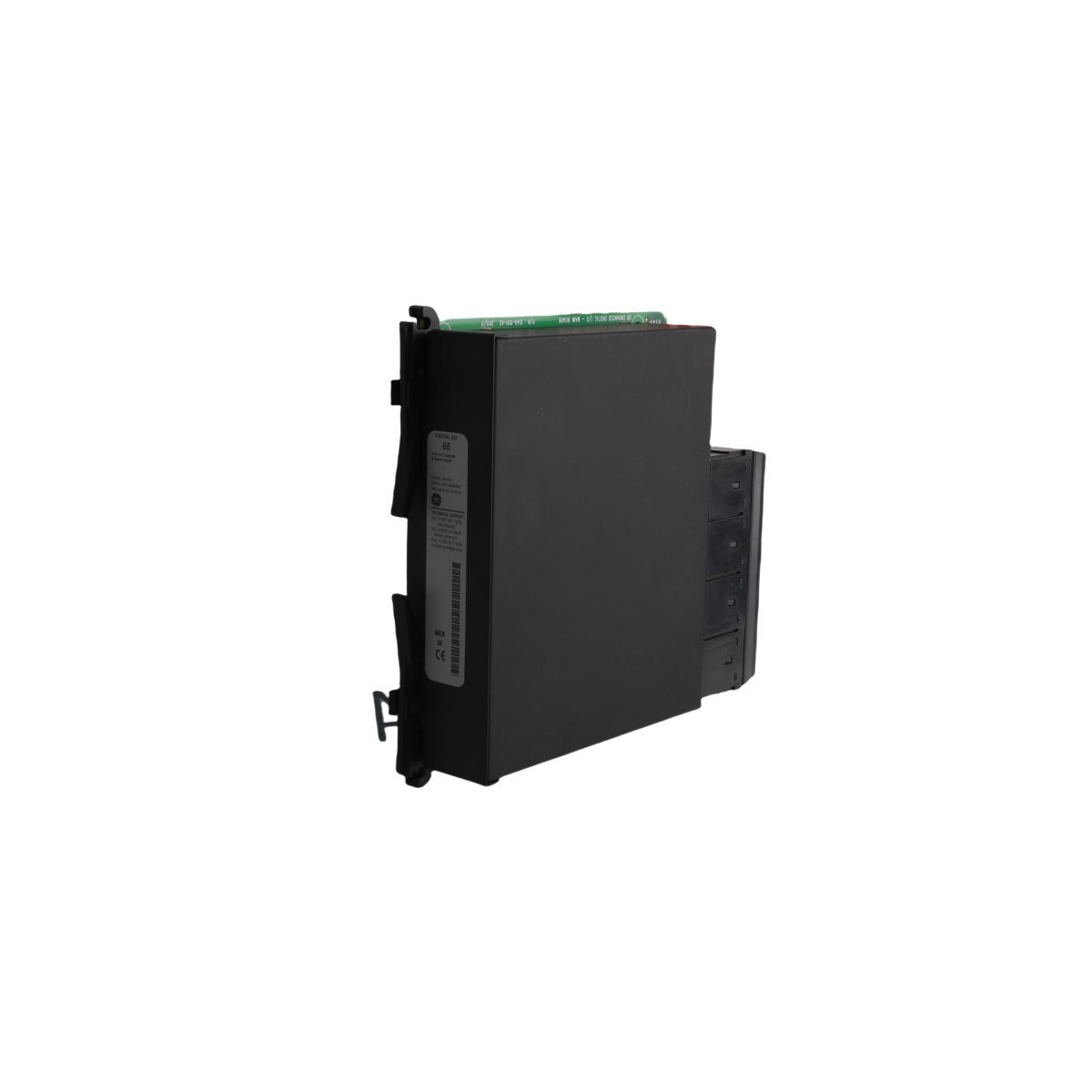

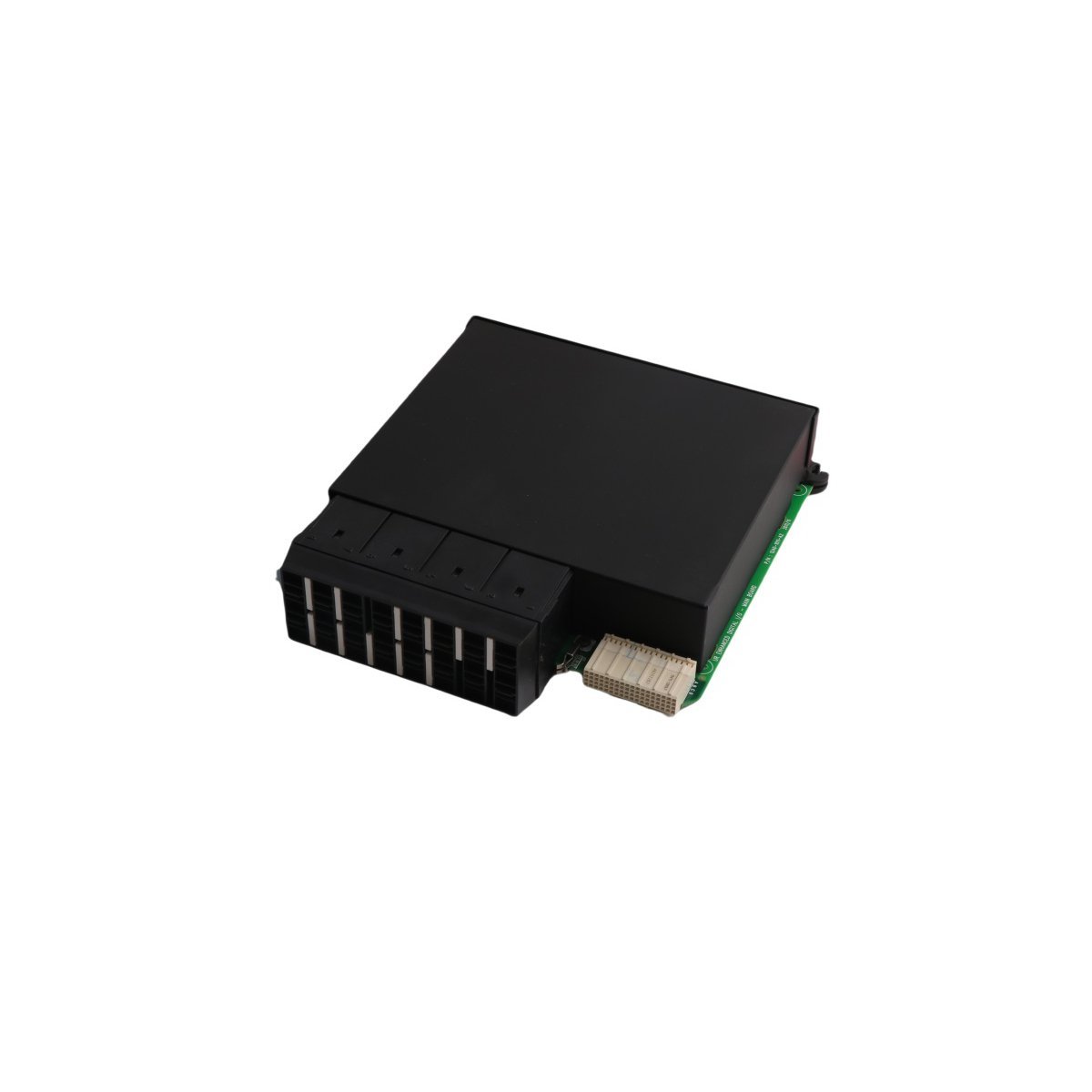

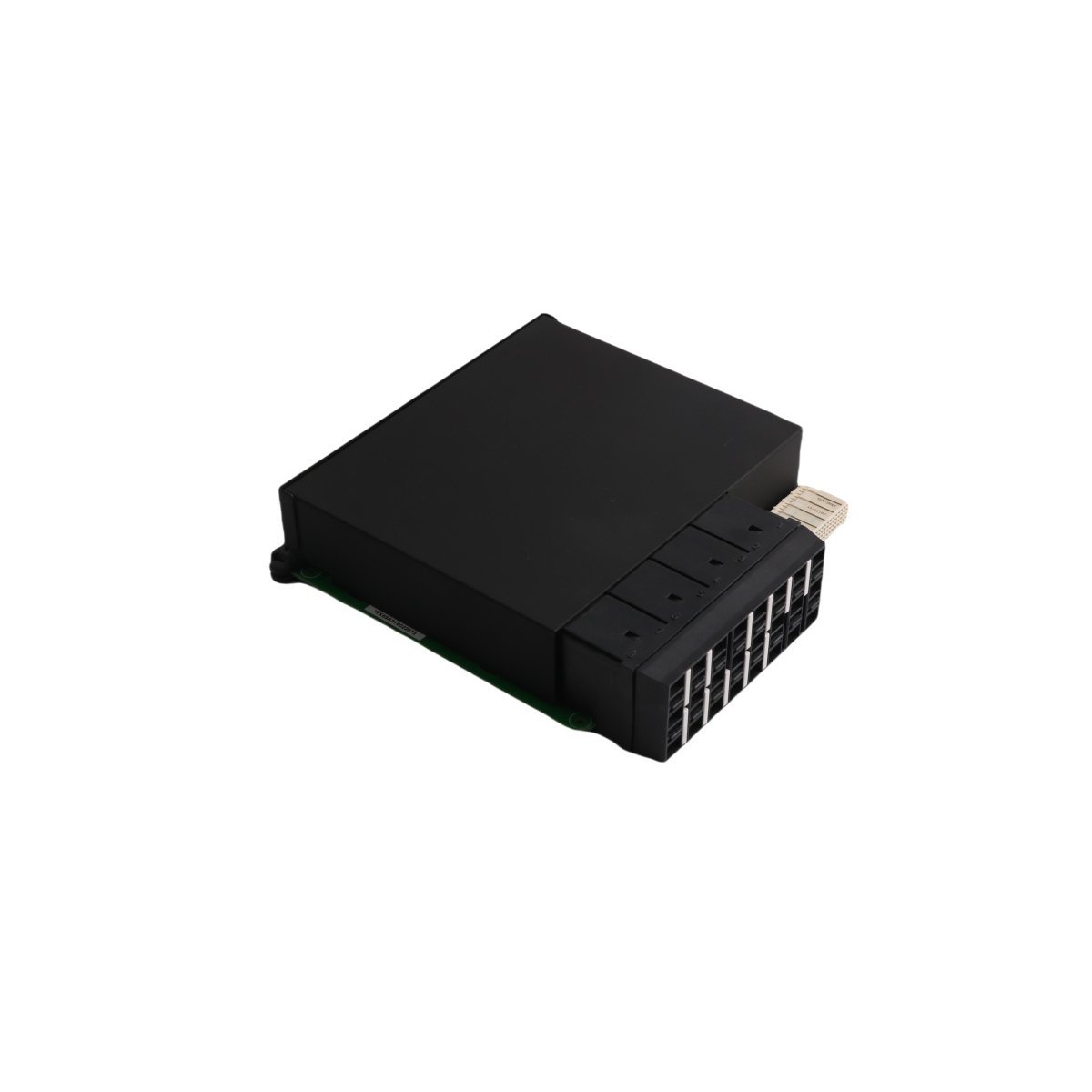

The GE UR6EH functions as a high-performance expansion component for the Universal Relay (UR) series. This module provides the critical interface between primary power equipment and digital control logic. It expands the monitoring capacity of the protective relay system significantly. Engineers use this hardware to capture real-time status data from field devices. Furthermore, the unit facilitates automated command execution through its robust output contacts. This module ensures high-speed signal processing within modern electrical substations. Its architecture prioritizes timing accuracy for complex protection schemes.

Technical Specifications and Hardware Details

Core Functional Characteristics

This module features eight digital inputs that detect voltage states from external sensors. These inputs allow the relay to monitor breaker positions and disconnect switches. Meanwhile, the four Form-C outputs utilize Single Pole-Double Throw (SPDT) contacts. This configuration offers both normally open and normally closed connectivity options. Such flexibility supports diverse interlocking and control requirements in utility grids. The UR6EH design incorporates advanced electrical isolation to protect sensitive CPU circuitry. Each channel operates with high electromagnetic compatibility to prevent false triggering. Consequently, the module maintains superior signal integrity in high-voltage environments.

Industrial Applications and Integration

Substation automation systems rely on the UR6EH for dependable local and remote control. This module integrates directly into the modular chassis of the Multilin UR family. It communicates seamlessly with the central processor module via the internal high-speed bus. Additionally, the rugged construction withstands the harsh conditions found in industrial plants. Maintenance teams benefit from the modular design during system upgrades or repairs. Users should consult the specific UR series wiring diagrams for optimal terminal configuration. This ensures the module performs correctly within the broader protection and control network.
