Description

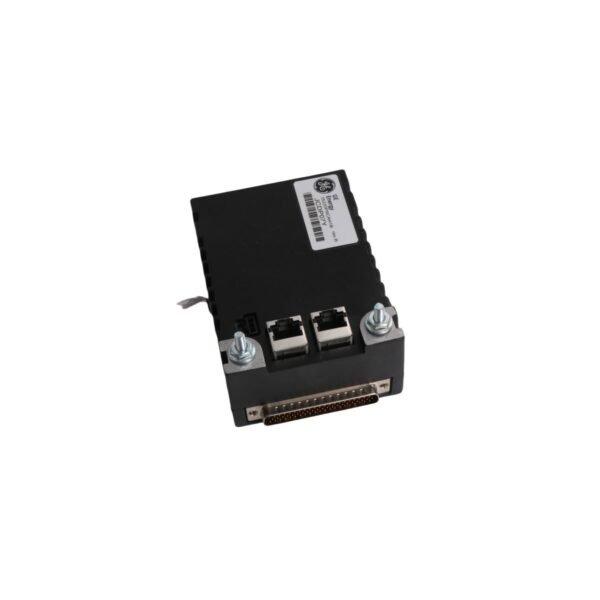

The GE IS220PSCAH1B functions as a high-performance bridge between serial terminal boards and Ethernet control networks. This module belongs to the Mark VIe and EX2100 series for advanced turbine control. It manages data exchange by utilizing a specialized serial board with six versatile transceiver channels. These channels support industrial standards including RS-232, RS-422, and RS-485 protocols. Consequently, the pack enables seamless integration of legacy serial devices into modern DCS architectures. The unit provides reliable communication for pressure transducers and automated drive assemblies. Its robust design ensures stable data flow in high-interference power generation environments.

Technical Specifications and Hardware Data

Data Processing and Network Redundancy

The IS220PSCAH1B categorizes data into fixed I/O and Modbus I/O streams for efficiency. Fixed I/O handles high-speed signals like pressure data within every control frame. Meanwhile, the module processes larger Modbus data packets at optimized secondary rates. This dual-speed approach prevents network congestion during complex operations. Furthermore, the dual Ethernet ports allow for redundant network configurations. If one path fails, the second port maintains the link to the Mark VIe controller. The internal hardware watchdog timer provides an additional layer of system security. Therefore, the module guarantees high availability for mission-critical turbine monitoring.

Installation and Intelligent Configuration

Mounting the IS220PSCAH1B involves a direct mechanical attachment to the serial terminal board. Threaded inserts secure the pack to ensure resistance against industrial vibrations. The module includes a soft-start feature to manage initial current inrush safely. Engineers use the ToolboxST application for all software-based configuration tasks. Additionally, the pack supports an Auto-Reconfiguration feature for rapid maintenance. This function automatically pushes the correct settings to a new module during replacement. Status LEDs on the front panel provide immediate visual feedback for network health. Consequently, these features reduce manual errors and simplify long-term field maintenance.
