Description

The GE IS220PPRFH1A operates as a dedicated PROFIBUS DPV0 Class 1 master gateway for Mark VIe systems. This pack establishes a critical bridge between field-level slave devices and the primary turbine controller. It transmits data over a high-speed I/O Ethernet network to ensure real-time process visibility. By integrating a specialized Hilscher GmbH COM-C module, the hardware achieves precise communication timing. Consequently, it supports the complex automation requirements of modern power generation facilities.

Performance Capacity and Redundancy Options

This gateway supports a broad range of baud rates starting from 9.6 KBaud up to 12 MBaud. A single IS220PPRFH1A can manage up to 125 PROFIBUS slaves simultaneously. Furthermore, each connected slave device can handle 244 bytes of input and output data. The system provides flexible reliability through dual Ethernet ports and hot-backup capabilities. Users can deploy two packs in a primary-standby configuration to prevent communication loss. This redundancy ensures continuous operation during critical turbine control cycles.

Mechanical Design and Installation Efficiency

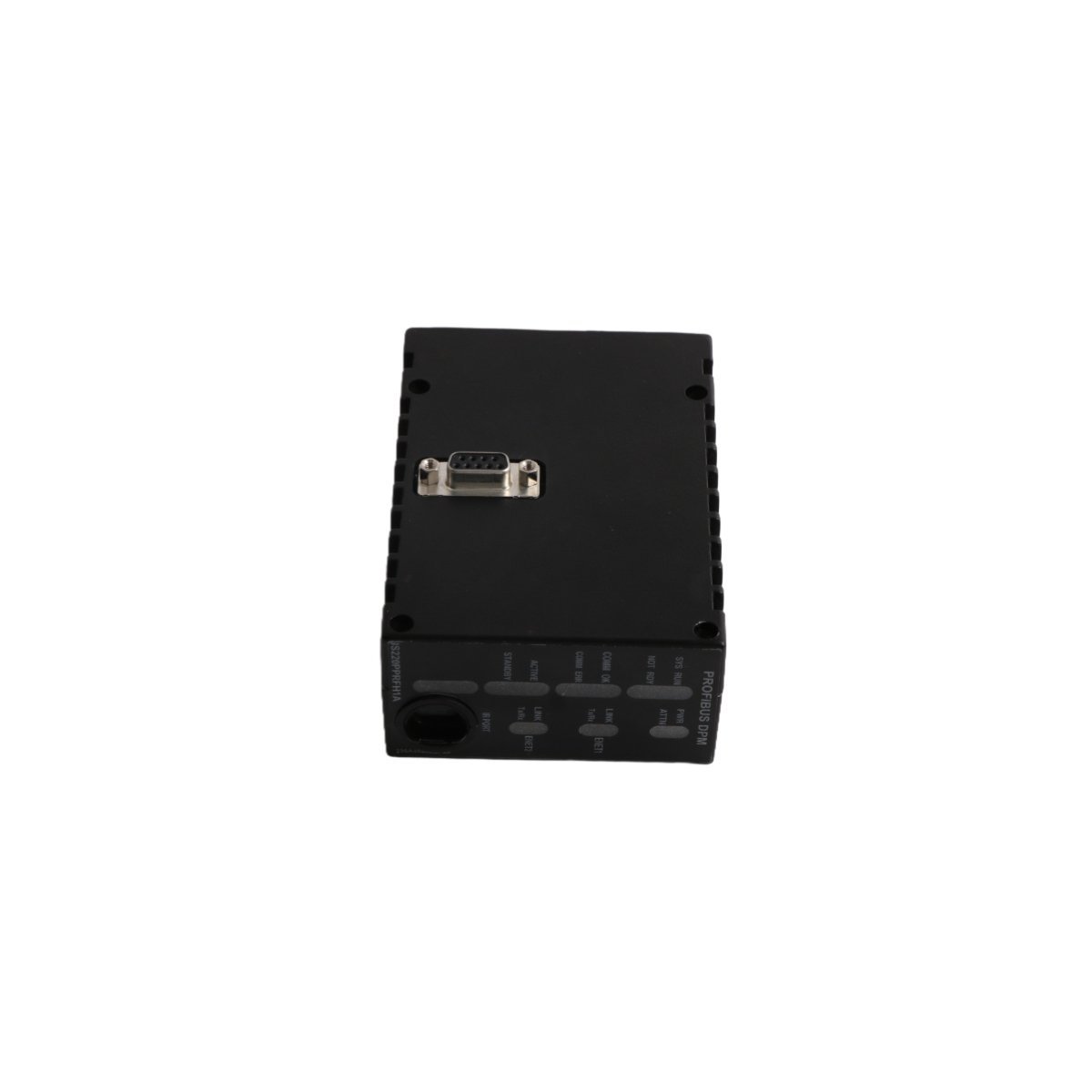

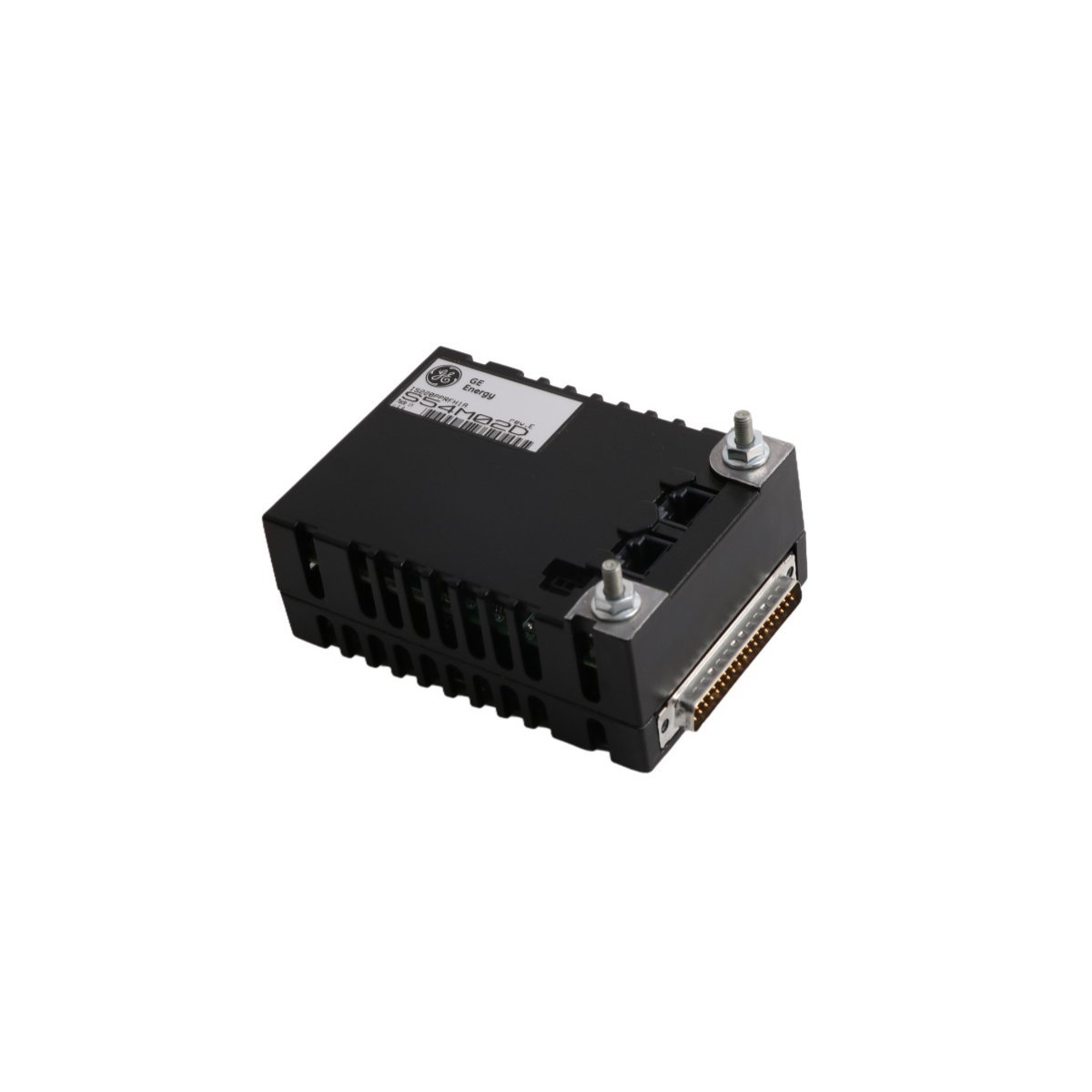

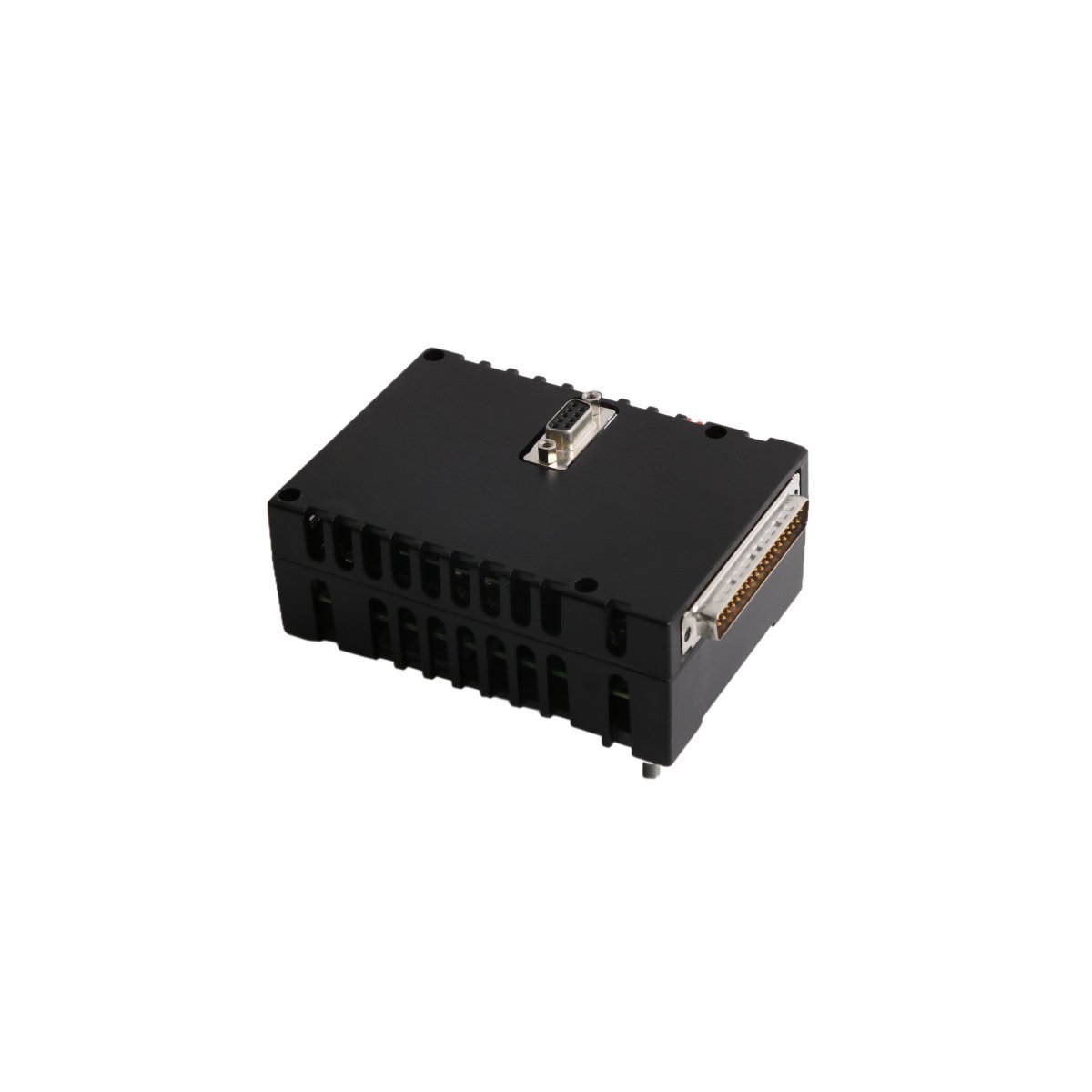

Technicians mount the IS220PPRFH1A directly onto the SPIDG1A terminal board for electronic identification. The hardware features a DE-9 D-sub connector to provide a standard RS-485 interface. During installation, the design protects the DC-37 pin connector from mechanical stress. The unit also includes a soft-start feature to control inrush current during power-up. This intelligent power management extends the lifespan of the internal electronic components.

Technical Specifications
