The GE IS220PIOAH1A is a high-performance ARCNET interface module designed for the Mark VIe control series, providing critical excitation control and communication bridging for turbine systems. It facilitates seamless data exchange between terminal boards and the control network using a dedicated processor and redundant Ethernet connectivity.

Product Description

High-Speed Control and ARCNET Integration

The GE IS220PIOAH1A serves as a vital communication bridge within the Mark VIe and Mark VI turbine control platforms. This Interface I/O Module actively manages excitation control data, utilizing a specialized ARCNET controller chip and CPLD logic to ensure high-speed processing. By building upon the long-standing Speedtronic legacy, this module provides the computational power necessary to handle complex automation tasks in modern power generation environments. Consequently, it maintains the precise regulation required for stable turbine operation and system synchronization.

Secure Connectivity and Hardware Architecture

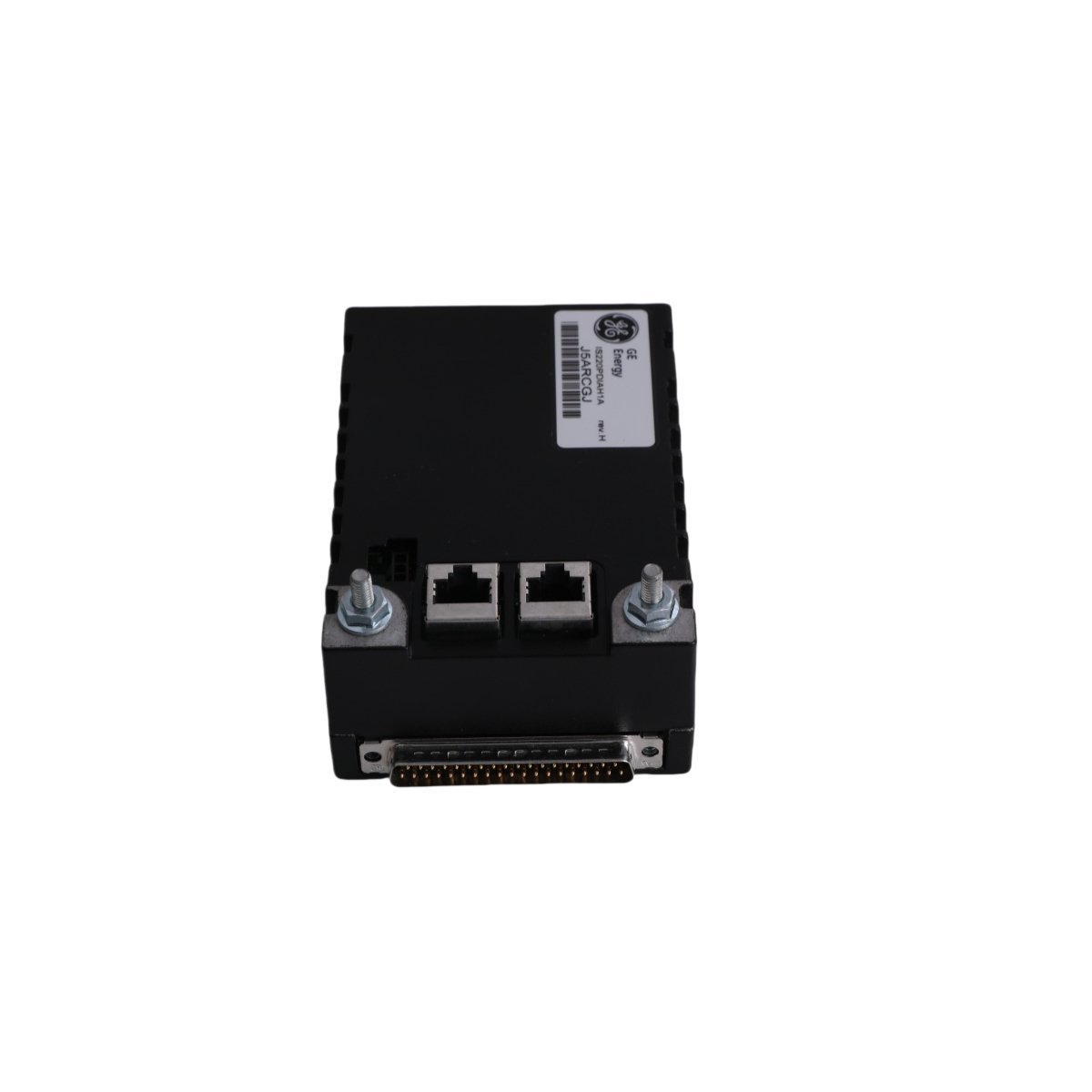

Installation of the IS220PIOAH1A is both efficient and secure, as the module mounts directly to a JPDV terminal board through a rugged 37-pin D-type connector. For network communication, the module features dual RJ-45 Ethernet ports that support both simplex and redundant configurations. This redundancy ensures that the control system remains online even if a single network path fails. Furthermore, the internal hardware comprises a powerful processor equipped with flash memory and RAM, which allows the unit to perform comprehensive self-checks and identity verification upon startup.

Advanced Power Management and Diagnostics

Safety and reliability define the operational profile of the General Electric IS220PIOAH1A. The module incorporates a soft-start power management system that protects the 28V DC power supply from current inrush during activation. To assist maintenance personnel, a dedicated array of status LEDs provides real-time visual diagnostics, indicating the health of the processor and the status of the network links. While the board includes an infrared port for specialized factory testing, standard operations rely on the robust Ethernet backbone to deliver dependable performance in demanding gas and steam turbine applications.
