Product Overview

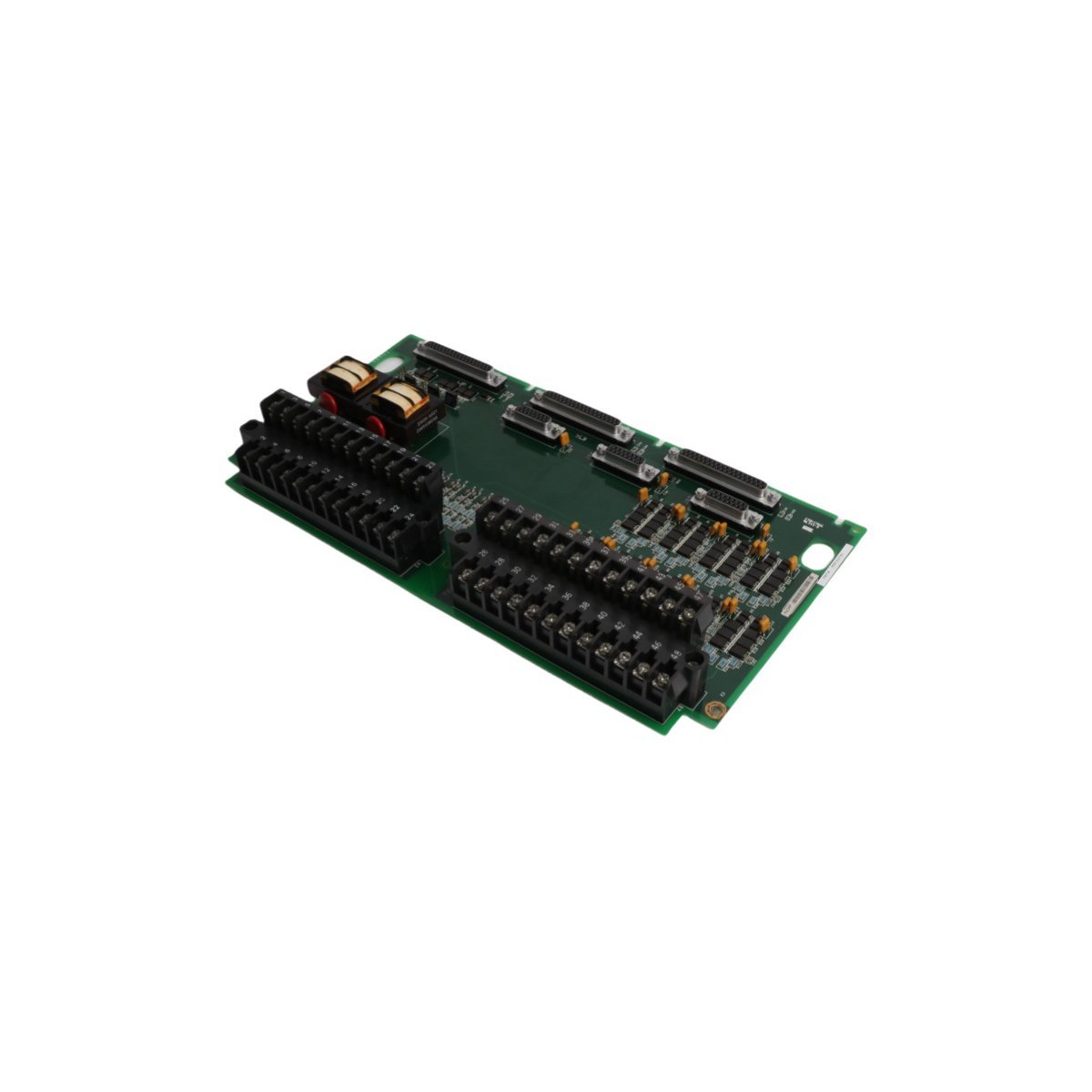

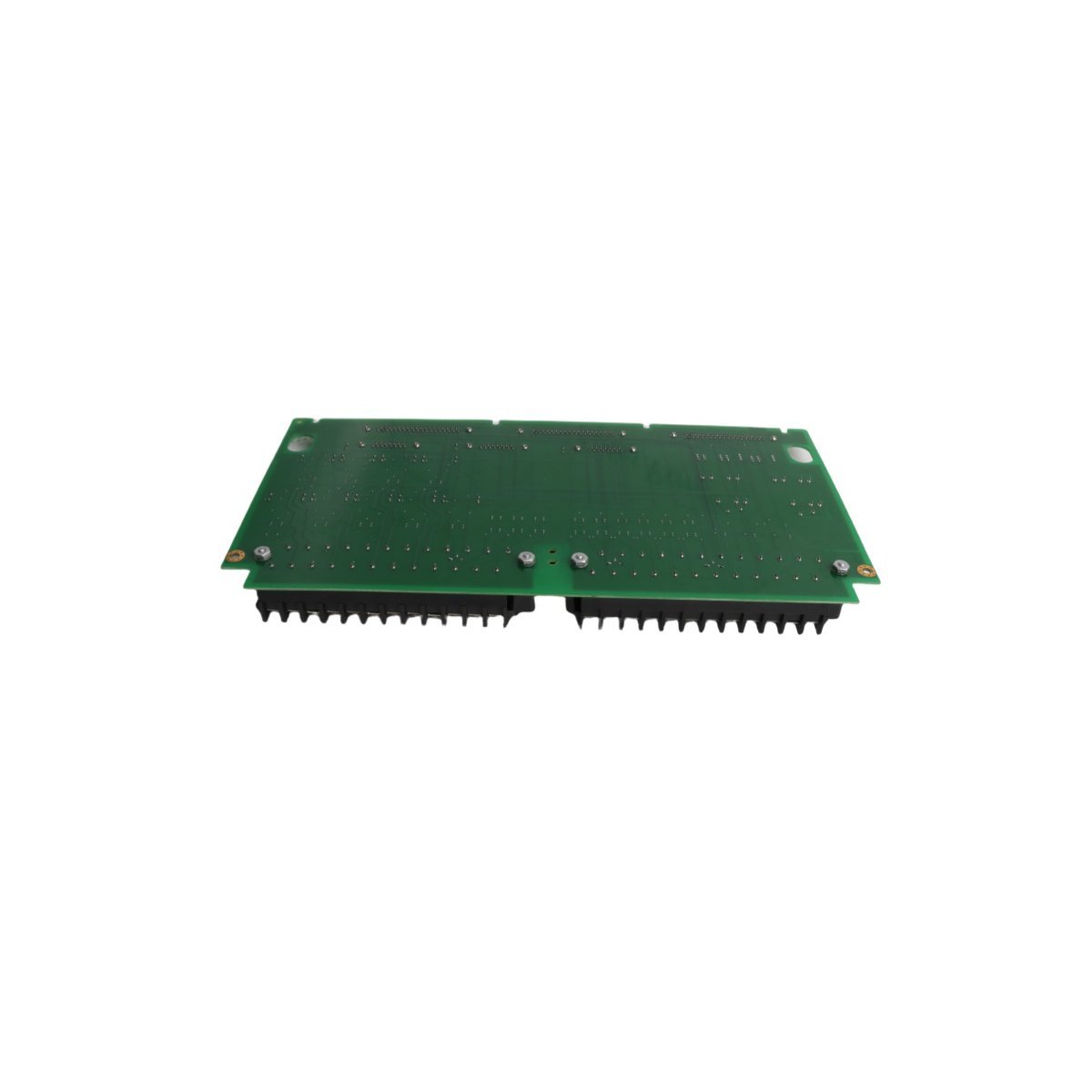

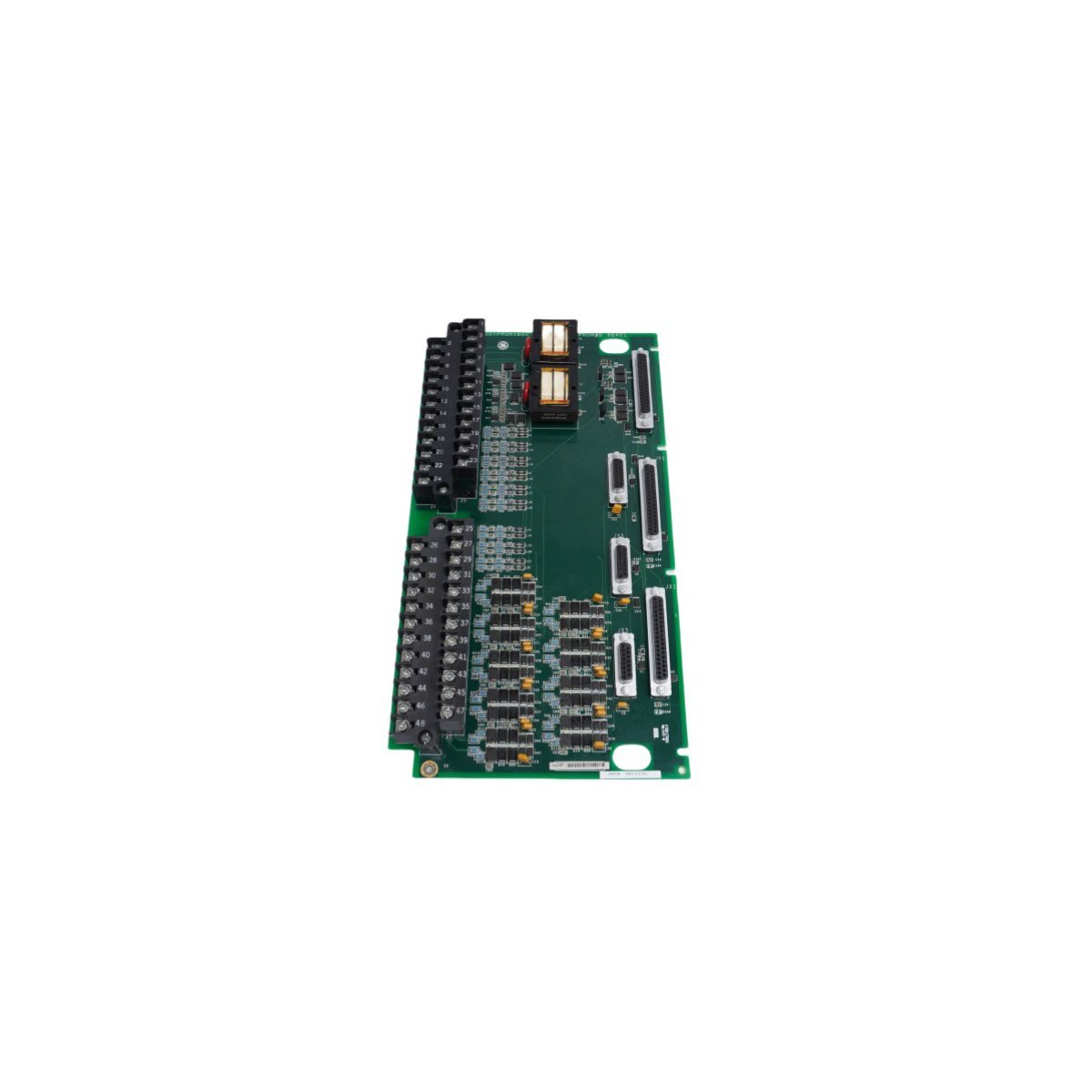

The General Electric IS200TPROH1B is a high-integrity protective termination board designed for the Speedtronic Mark VIe turbine control system.³ It provides the essential physical interface for emergency trip circuits and critical safety monitoring for both gas and steam turbine assets.

Critical Safety Interfacing and Termination

The IS200TPROH1B serves as a specialized hardware layer that manages the transition between field-level safety devices and the digital control environment. Equipped with two massive terminal blocks containing 48 total heavy-duty connection points, the board ensures secure wiring for high-vibration turbine decks. These terminals utilize silver and gold-plated contact surfaces to maintain signal continuity and resist the corrosive effects of industrial atmospheres. Consequently, the board provides a reliable pathway for trip signals that must remain operational for years without maintenance intervention.

Advanced Signal Isolation and Transient Suppression

To ensure the integrity of the turbine’s protection logic, the IS200TPROH1B incorporates a sophisticated array of electrical isolation components. The board features dual vertically-mounted transformers that provide galvanic isolation between sensitive control electronics and the field power circuits.⁴ Furthermore, the integrated Metal Oxide Varistors (MOVs) provide instantaneous suppression of voltage transients and surges that could otherwise trigger nuisance trips or damage the I/O packs.⁵ This hardware-based protection ensures that the turbine remains shielded from electrical noise originating in the power plant’s switching gear or lightning events.

Seamless System Integration and Diagnostics

The IS200TPROH1B facilitates complex system topologies through its dedicated JX, JY, and JZ connector sets.⁶ This specific labeling aligns with the Triple Modular Redundant (TMR) architecture of the Mark VIe system, allowing the board to feed critical data to three independent control processors simultaneously. Moreover, the board utilizes a series of inductors and filtering capacitors for EMI mitigation, ensuring clean signal transmission for auxiliary functions. This logical layout, combined with industrial-grade components, allows for rapid system commissioning and simplifies the troubleshooting process during scheduled turbine outages.
