Description

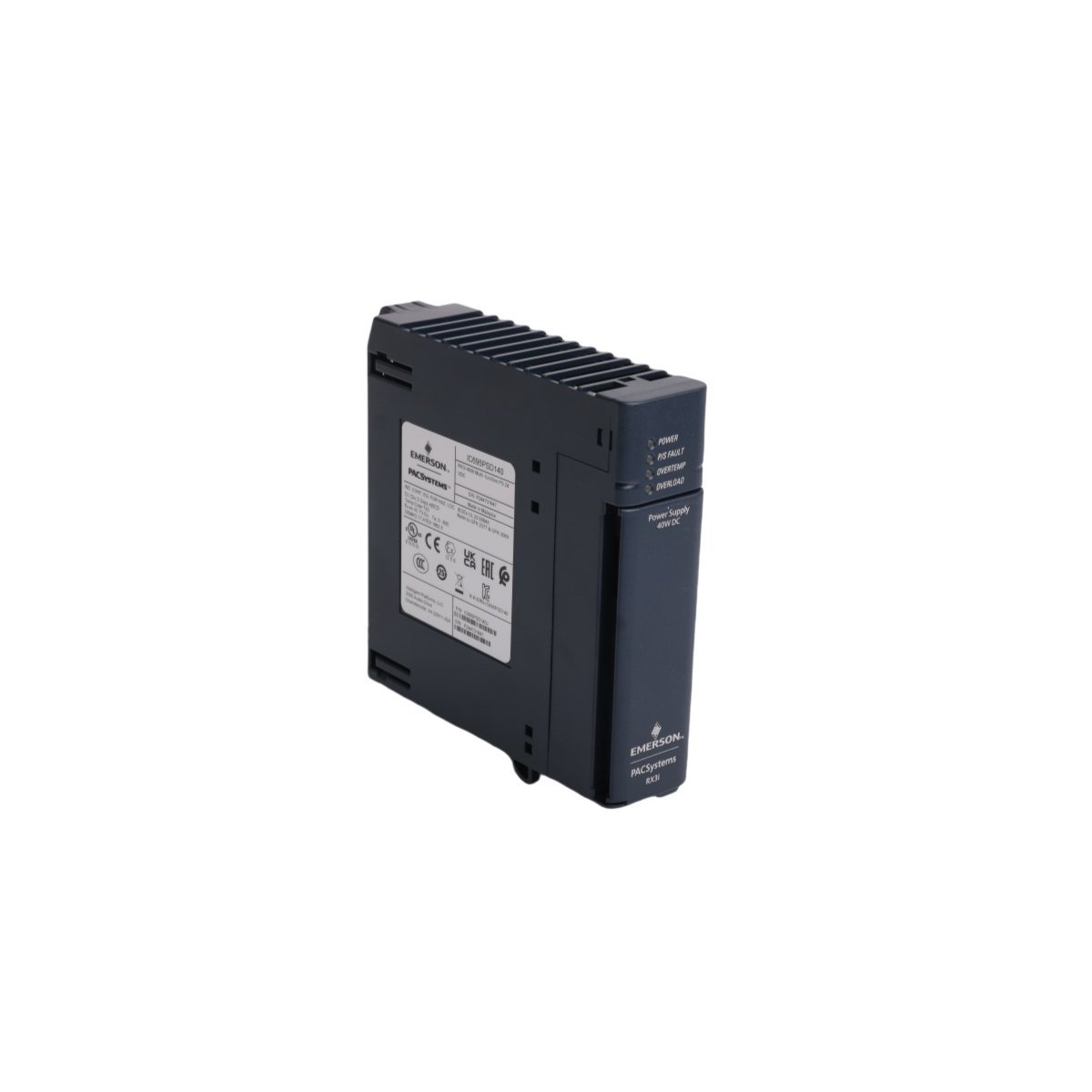

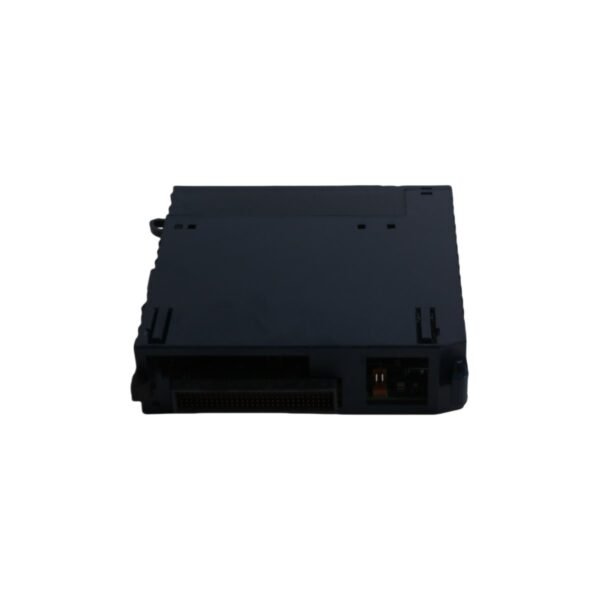

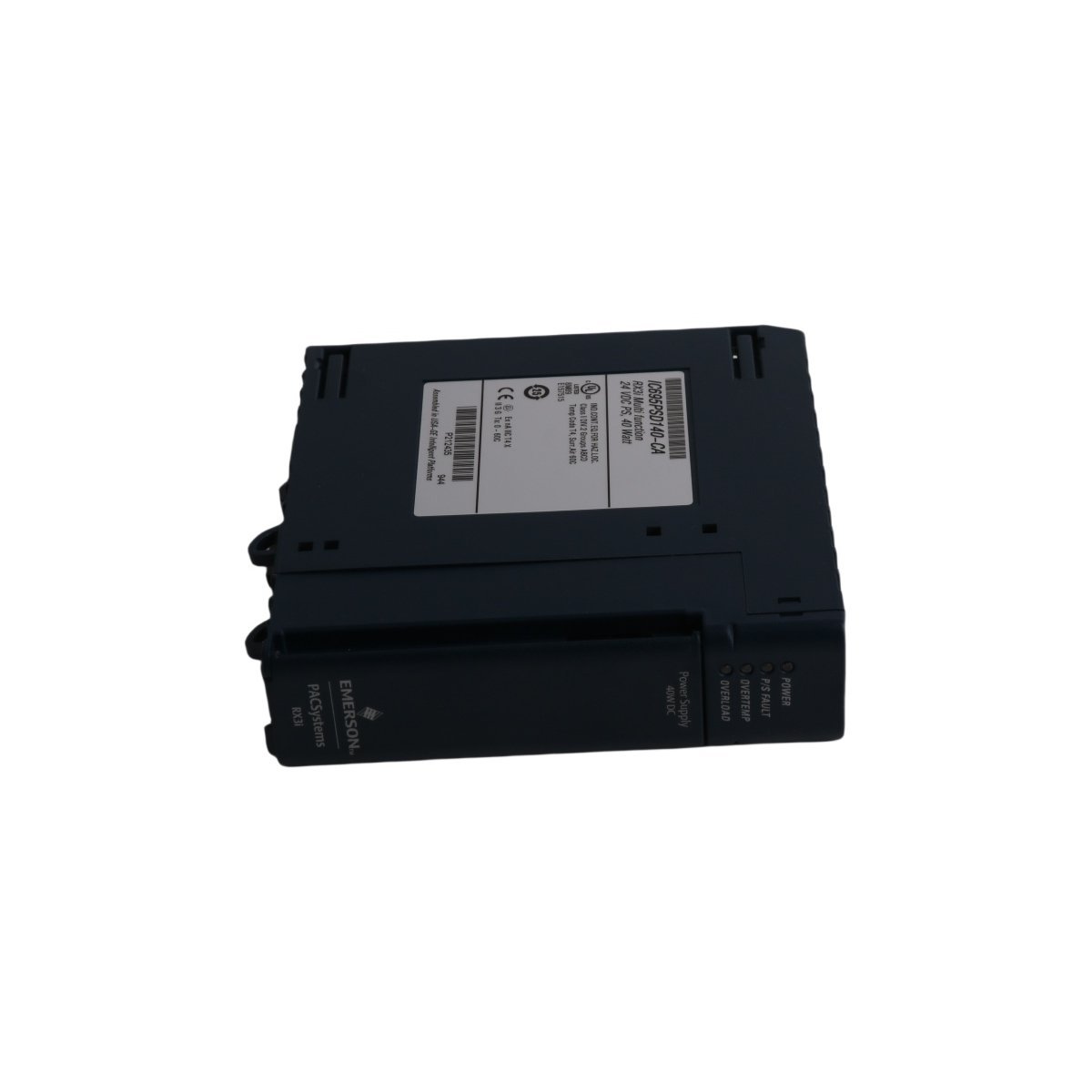

The GE IC695PSD140 provides essential power distribution for PACSystems RX3i universal backplanes. This 40-Watt multipurpose module converts 24VDC input into three distinct voltage rails. It powers internal logic circuits, relay modules, and advanced RX3i processing units simultaneously. Because of its modular design, the unit integrates seamlessly into the RX3i chassis. It serves as a reliable energy source for modern industrial automation platforms. This power supply ensures consistent performance for both small and large-scale control architectures.

High-Performance Technical Specifications

The IC695PSD140 offers versatile output capacities to support a wide range of hardware modules. These specifications highlight its electrical capabilities.

• Input Voltage Range: 18VDC to 30VDC
• Total Output Power: 40 Watts maximum
• Logic Voltage Output: +5.1VDC
• Relay Voltage Output: +24VDC
• Internal Module Power: +3.3VDC
• Form Factor: Occupies one expansion slot
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Unit Weight: 0.25 kg
• Standard Dimensions: 3.5 x 13.5 x 13.5 cm

Redundancy and Load-Sharing Capabilities

This power supply supports advanced redundant configurations for mission-critical systems. Users can install up to four units in a single universal backplane. These units use load-sharing logic to distribute the electrical demand evenly. If one module fails, the remaining supplies take over the full load instantly. Consequently, this feature prevents unscheduled downtime in continuous production lines. This redundancy makes the IC695PSD140 ideal for high-availability process control systems. It provides the fault tolerance required for modern power and energy facilities.

Built-in Protection and Reliability

The GE IC695PSD140 includes several industrial-grade safety features to protect sensitive components. Internal circuitry guards against overloads, short circuits, and dangerous voltage surges. Furthermore, the robust thermal management system dissipates heat efficiently during heavy operation. This protective design ensures a long service life in demanding factory environments. An integrated LED status display provides immediate visual feedback on power health. This helps maintenance teams identify and resolve supply issues quickly. The module also resists industrial vibrations common in heavy manufacturing sectors.
