Description

The GE DS3800NPSE1E1G functions as a primary power regulation module for the Speedtronic Mark IV turbine control system. This specialized board provides the stable electrical foundation necessary for complex automation and safety logic. It manages power distribution to ensure that critical sensors and processors operate without interruption. By maintaining precise voltage levels, the module prevents system fluctuations that could lead to unexpected turbine trips. Consequently, it serves as a vital safeguard for industrial power generation assets.

Hardware Architecture and Connectivity

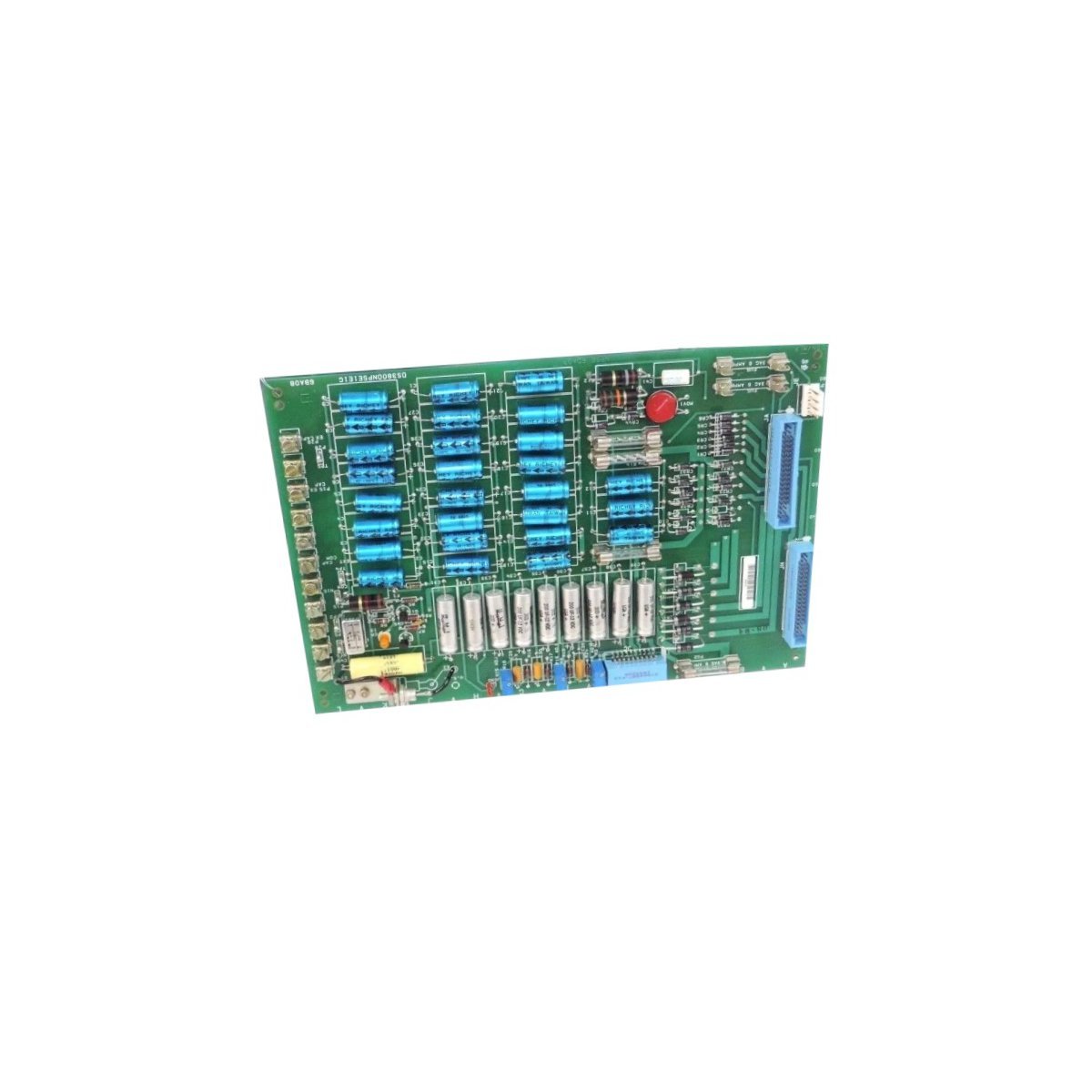

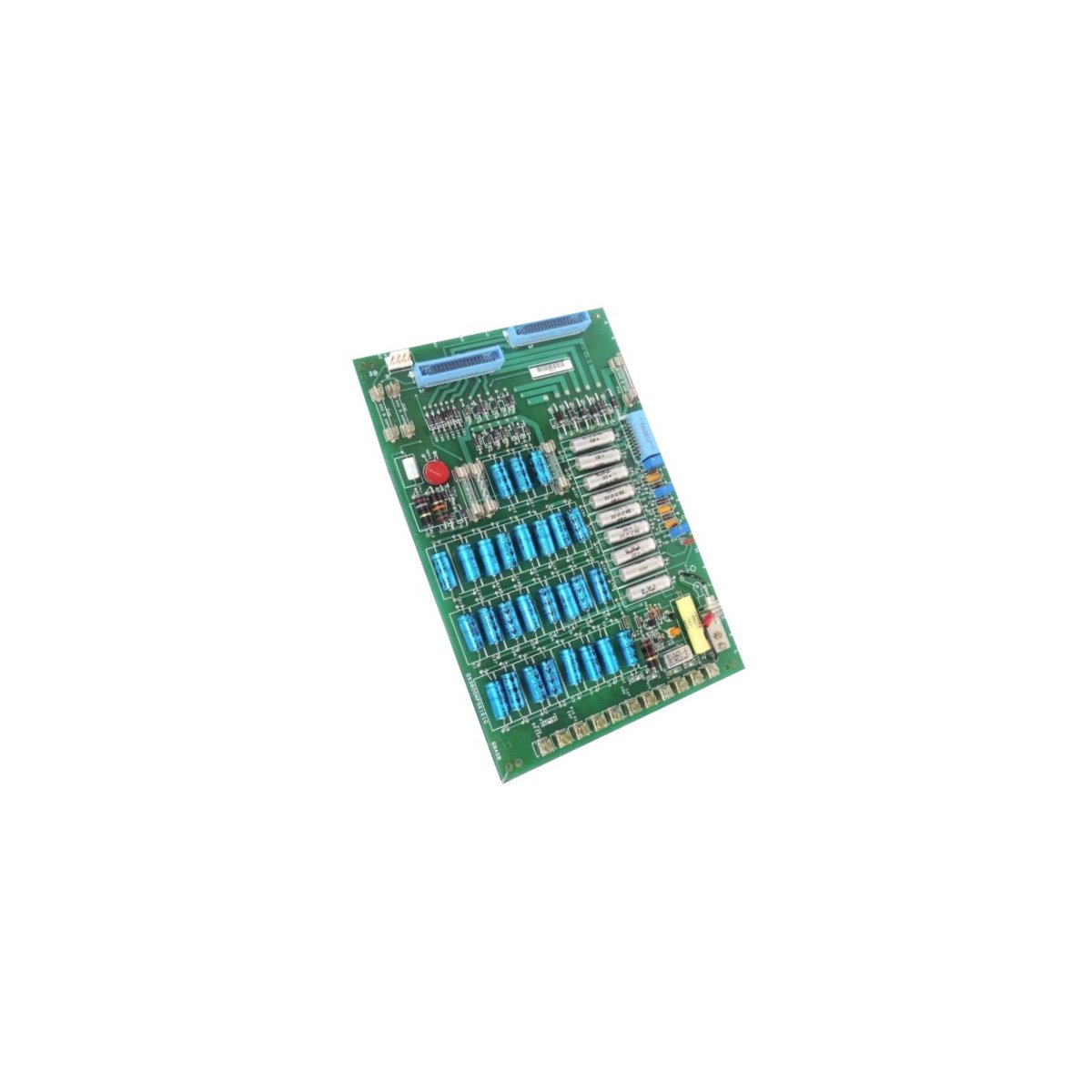

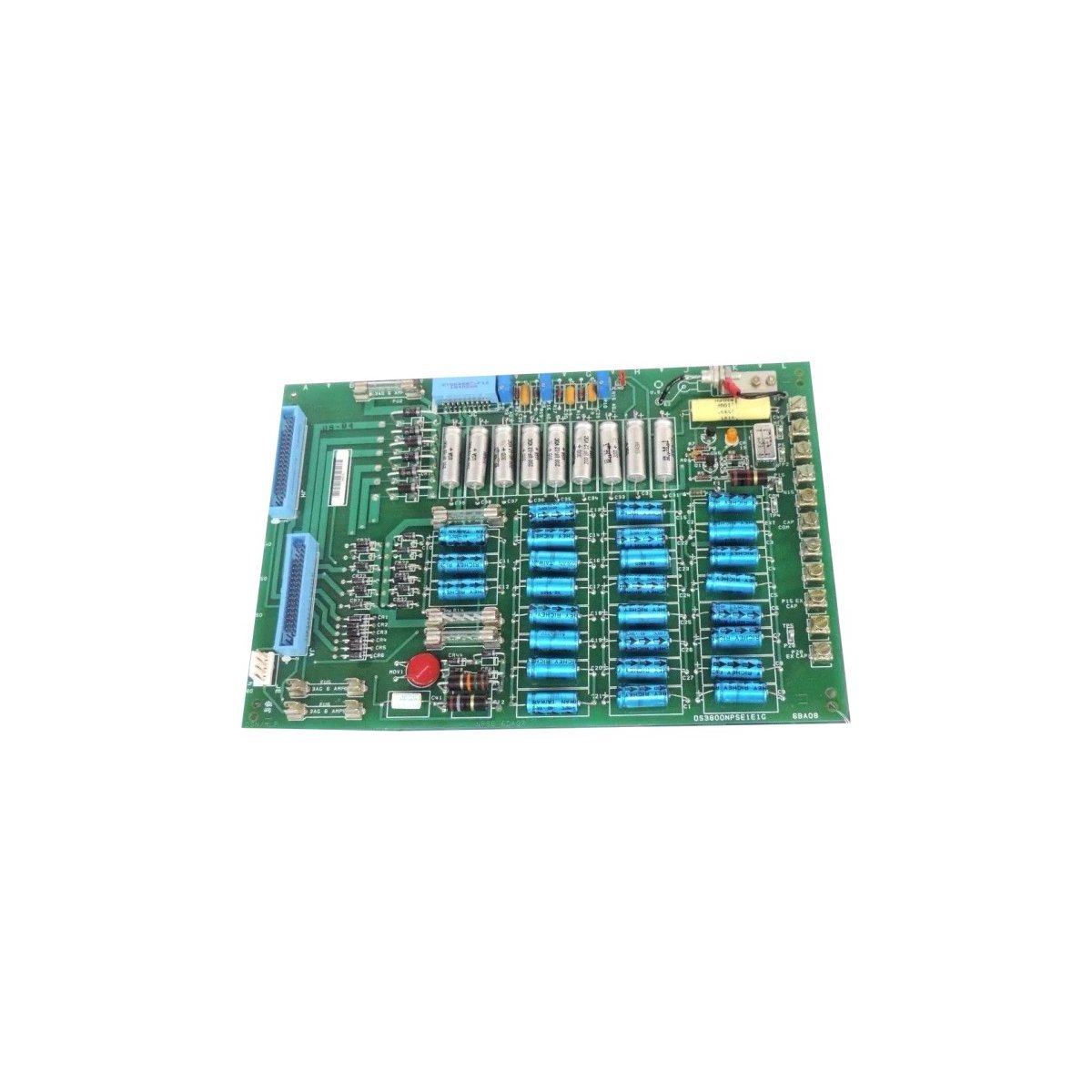

This power supply board utilizes a high-density component layout to maximize efficiency in a compact footprint. Three light blue male connector ports facilitate secure data and power interfacing with the Mark IV backplane. Two ports occupy the left edge, while a smaller third port sits at the top. The board features an extensive capacitor array for effective signal filtering and energy storage. This includes twenty-seven medium blue capacitors (C1-C27) and nine horizontal silver capacitors (C31-C39). These elements work together to smooth output ripples and suppress electrical noise.

System Protection and Calibration Features

Reliability remains a priority in the design of the DS3800NPSE1E1G. The board includes four active fuses with dedicated space for two additional protective units. These fuses prevent overcurrent conditions from damaging the broader control network. Furthermore, a metal oxide varistor (MOV) near the bottom edge provides robust surge protection against voltage spikes. For localized calibration, technicians use three top-mounted potentiometers to adjust resistance levels. A series of twenty-four diodes also ensures unidirectional current flow across the circuit.

Installation and Environmental Stability

The DS3800NPSE1E1G board adheres to rigorous industrial standards for heat and vibration resistance. Proper installation requires alignment with the standardized Mark IV rack system to ensure solid electrical ground. Because it utilizes high-grade diodes and capacitors, the module maintains performance in high-temperature environments. It provides the durability needed for continuous operation in power plants and mechanical drive facilities. Operators can rely on this hardware for long-term stability and simplified maintenance routines.

Technical Specifications
