Description

Brief Product Description

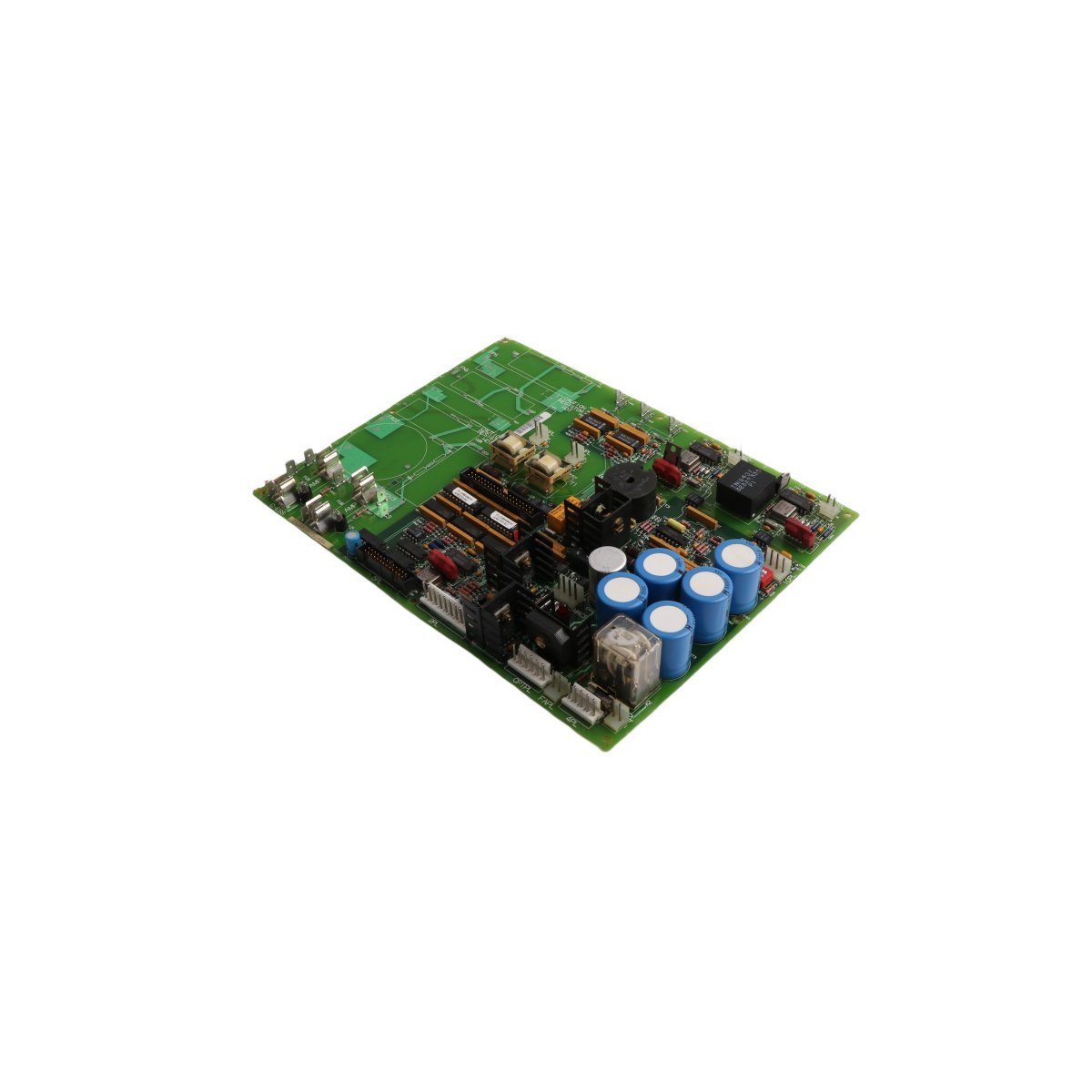

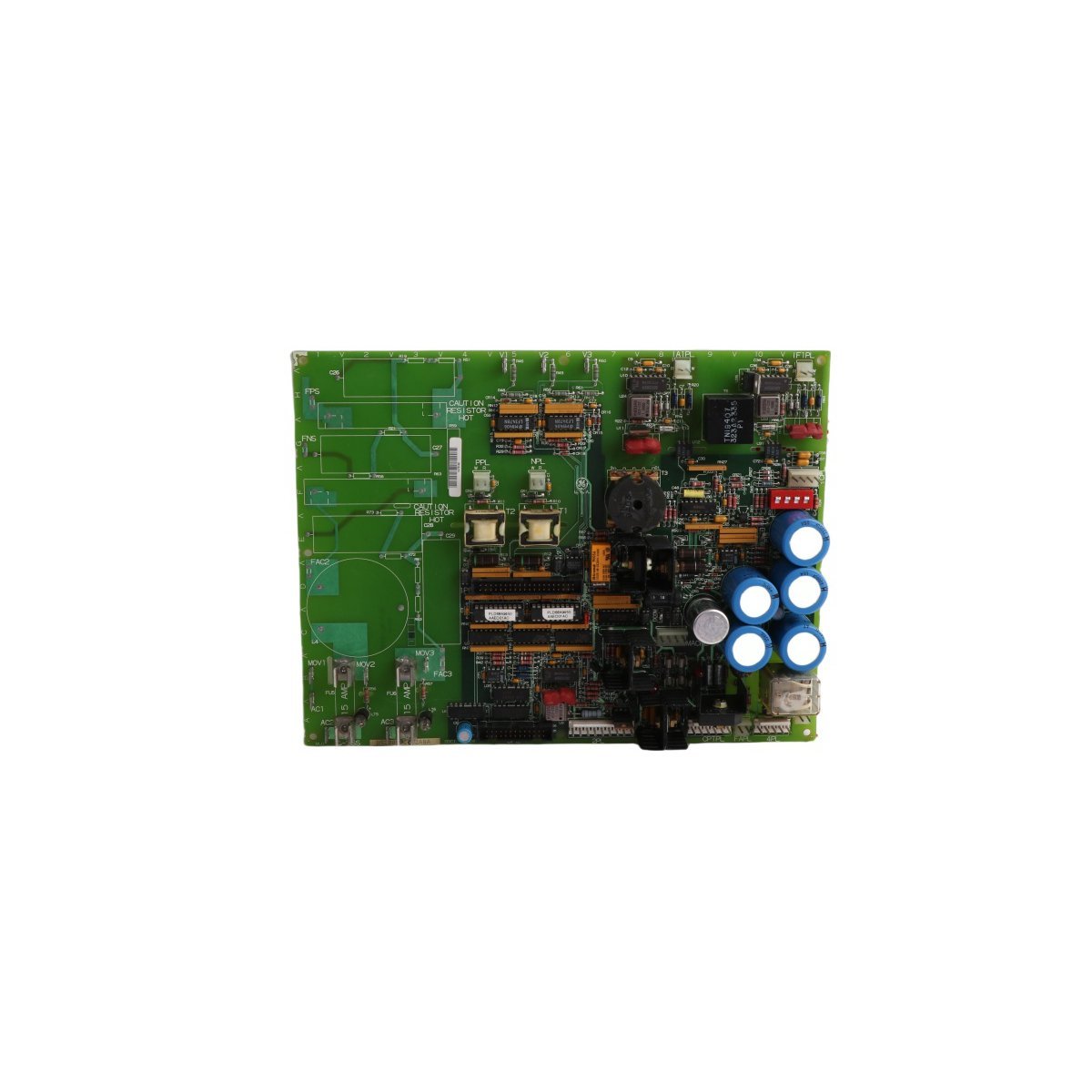

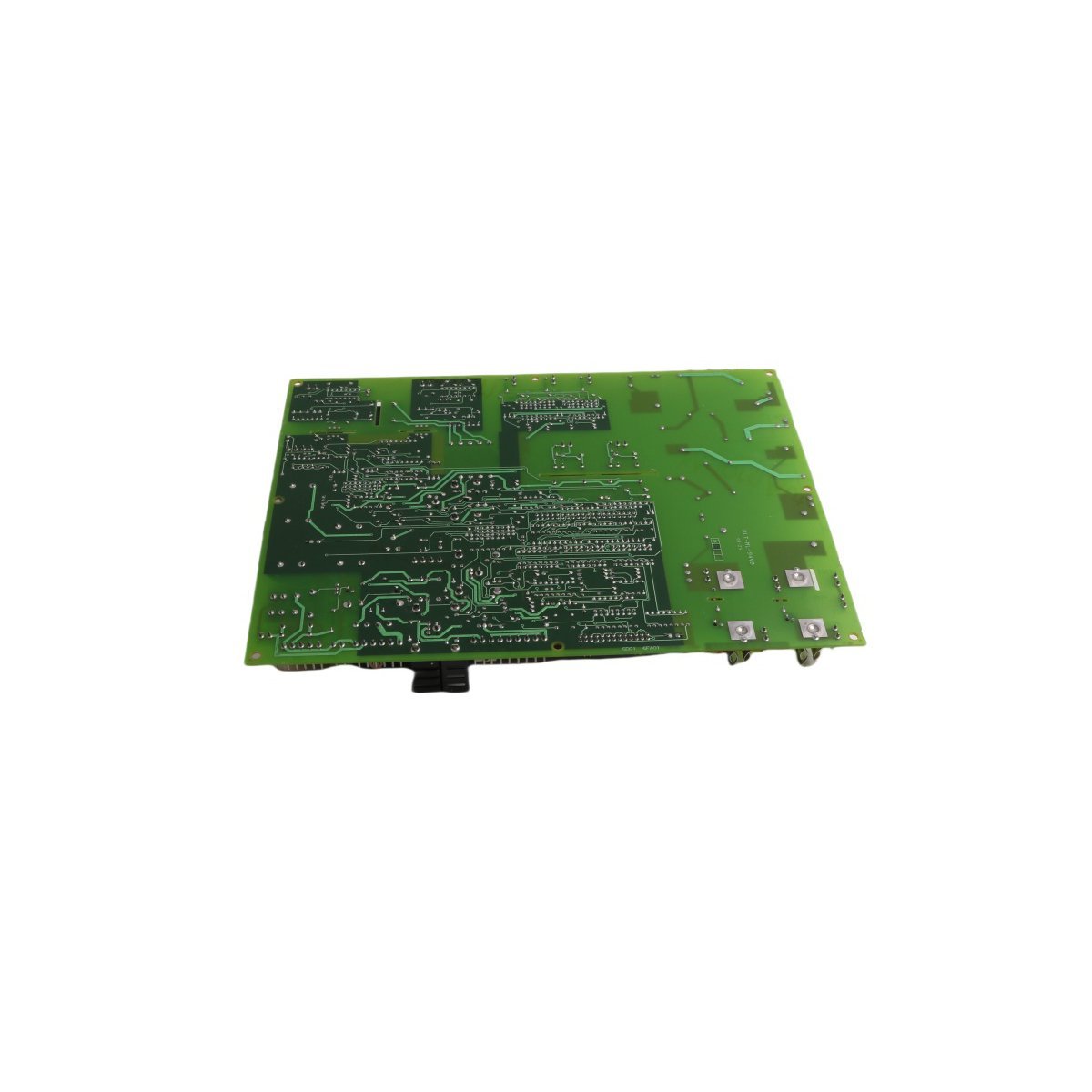

The General Electric DS200SDCIG2ABA is a multi-functional SDCI board that provides essential DC power distribution and instrumentation for the Mark V Drive Control System. This high-voltage interface module handles SCR excitation and critical signal feedback to ensure stable turbine and drive operations.

Product Description

Critical Power and Instrumentation Functionality

The GE DS200SDCIG2ABA, frequently referred to as the SDCI board, serves as a primary power supply and instrumentation hub within the Mark V Series drive systems. This module converts and distributes electrical energy to various peripheral devices while simultaneously monitoring high-voltage feedback. By integrating both power delivery and signal acquisition on a single PCB, the board simplifies the system architecture and reduces the need for external wiring. This design choice ensures that the drive control logic receives real-time, accurate data regarding the electrical state of the system, which is vital for maintaining synchronization in large-scale industrial motor and turbine applications.

Diagnostic Indicators and User Configuration

To enhance system reliability and simplify troubleshooting, the DS200SDCIG2ABA incorporates a comprehensive array of protective components and visual aids. The board contains six specialized fuses, labeled FU1 through FU6, to shield the circuitry from overcurrent conditions. Each fuse features a dedicated LED indicator that illuminates immediately upon failure, allowing technicians to identify power faults at a glance. Furthermore, the board offers hardware-level flexibility through Berg-type jumpers (JP1 and JP2) and a specialized switch (SW1). These components allow operators to select specific test modes or adjust the board’s operational parameters to meet unique site requirements.

Installation and High-Voltage Safety

Proper integration of the DS200SDCIG2ABA requires strict adherence to high-voltage safety protocols. The board typically mounts directly behind the SDCC (Drive Control Card) using detachable plastic snaps, creating a compact and secure assembly. During installation, technicians must carefully manage the ribbon and pull-tab cables to ensure signal integrity across the interface. Given its role as an SCR High Voltage Interface, the module operates under significant electrical stress; therefore, verifying all cable connections and jumper positions prior to energization is mandatory. This meticulous design ensures the legacy Mark V systems continue to operate with the precision and safety required for modern industrial standards.

Technical Specifications
