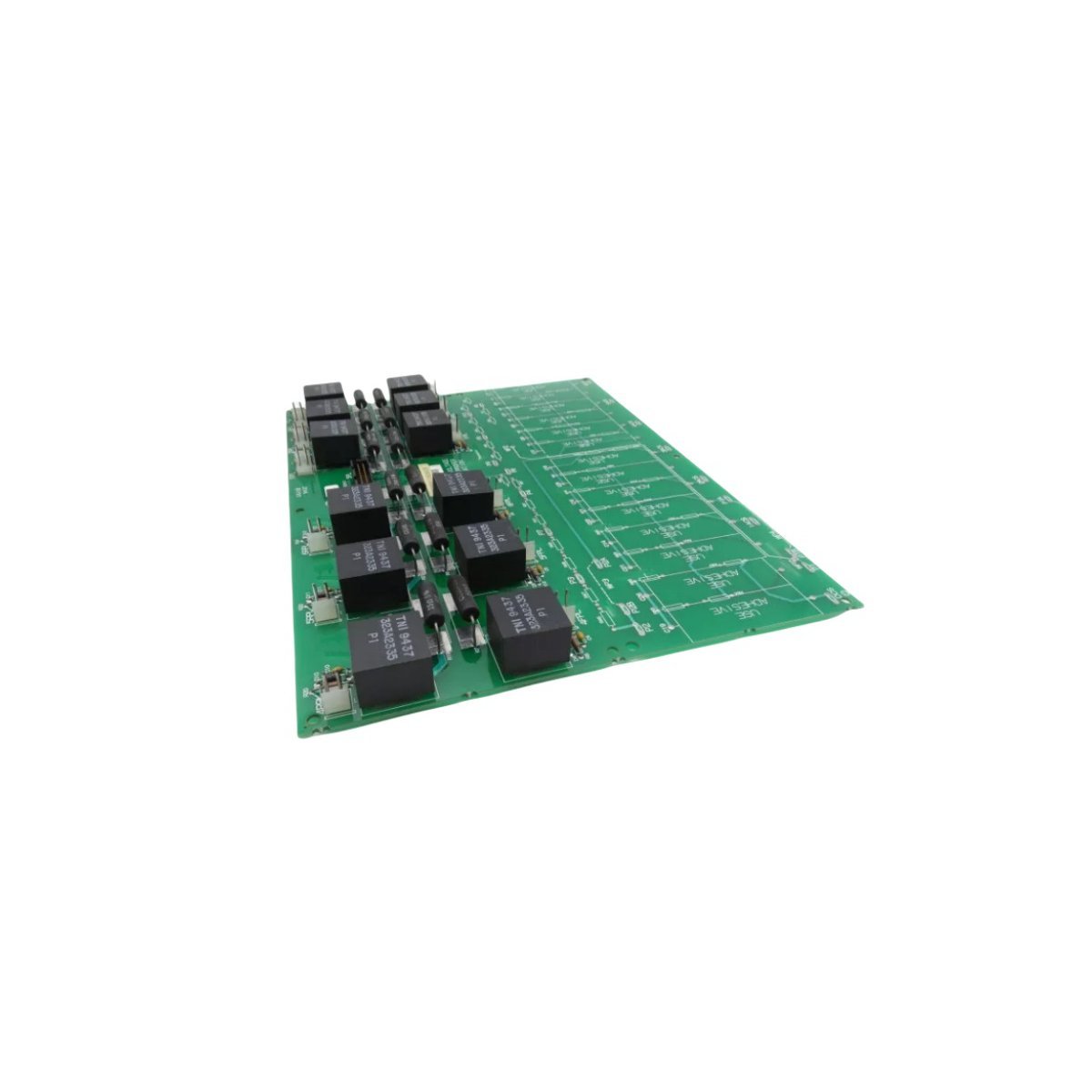

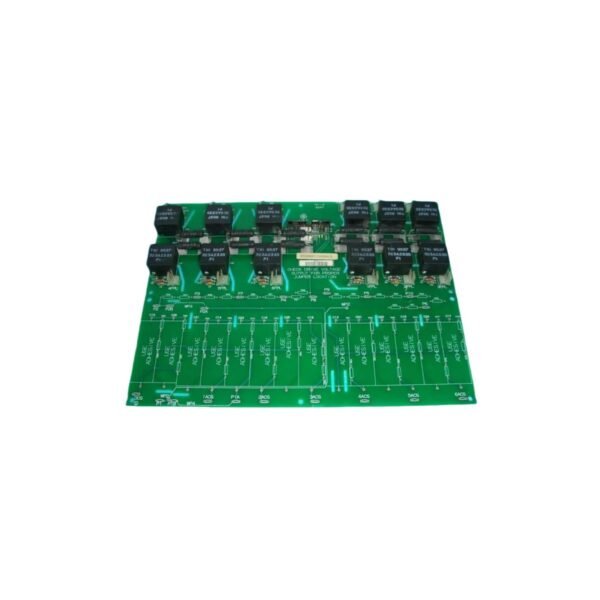

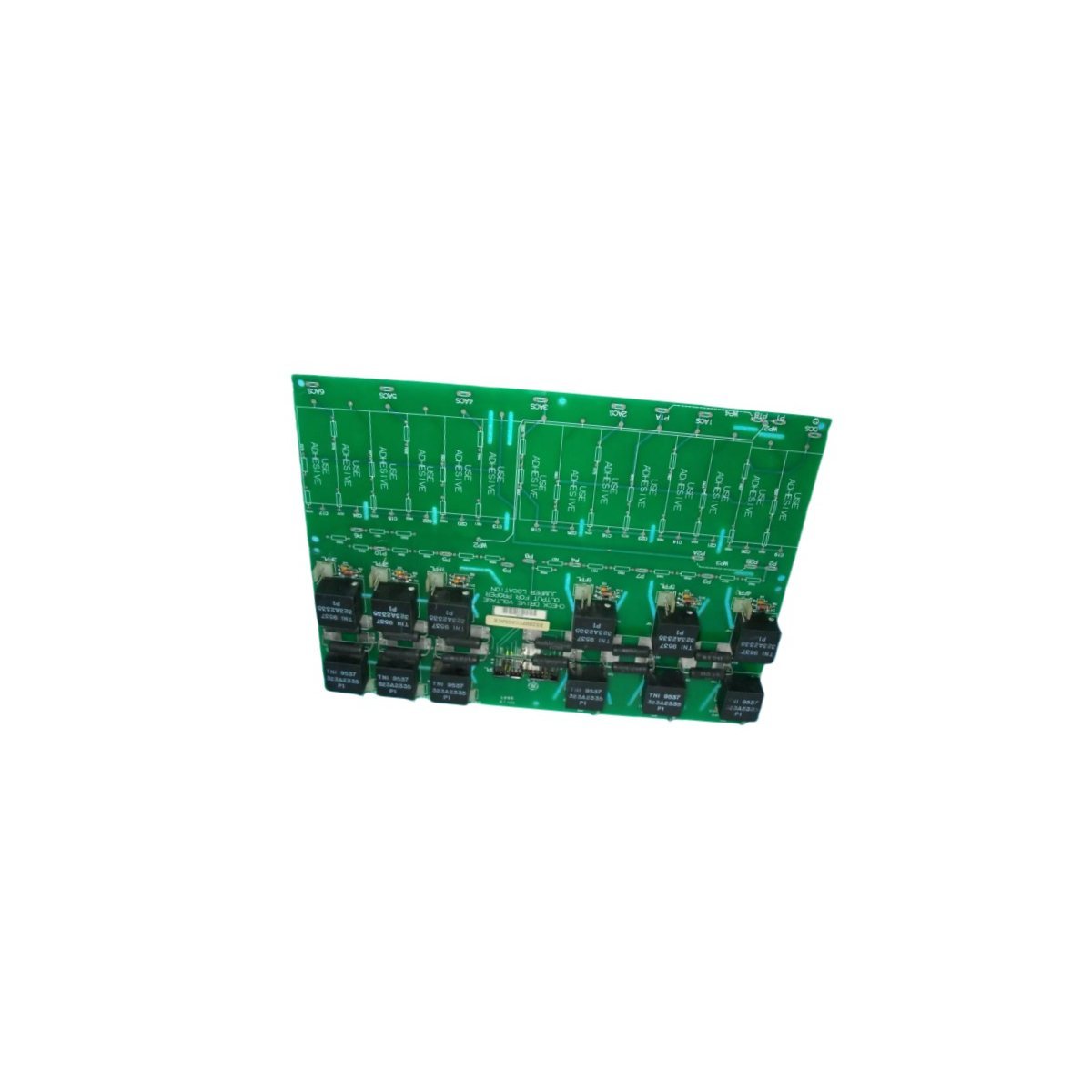

The GE DS200PCCAG5ACB is a high-horsepower Power Connect Card (PCCA) designed for the Mark V Speedtronic system, facilitating the interface between SCR power bridges and drive control circuits. This board utilizes advanced pulse transformers to manage gate drive signals for J, K, and M-style frames in turbine control applications.

High-Power Interface and Signal Management

The GE DS200PCCAG5ACB serves as a critical bridge within the Mark V Speedtronic Turbine Control series, specifically engineered to link the Silicon Controlled Rectifier (SCR) power bridge with the drive’s control logic. This Power Connect Card (PCCA) utilizes specialized pulse transformers to transmit gate drive signals, ensuring precise timing and firing of the power bridge. By relocating snubbers and attenuation strings to other system components, this board maintains a streamlined architecture optimized for high-horsepower drives. The module features 12 plug connectors that facilitate seamless data and signal transmission between the gate pulse circuitry and the accompanying DCFB power supply board.

Enhanced Functional Revisions and Hardware Compatibility

This specific iteration, the DS200PCCAG5ACB, incorporates three major functional revisions—designated by the “ACB” suffix—that improve performance over the original G5 baseline. These updates ensure the board operates reliably within complex exciter bridge interfaces and gas turbine control systems. The hardware is fully compatible with J, K, and M-style frames, making it a versatile replacement part for a wide range of GE legacy drives. Furthermore, the board integrates essential leg reactors, fuses, and transformers directly into its layout, providing a comprehensive solution for power signal conditioning and circuit protection.

Installation Standards and Mechanical Design

Because the DS200PCCAG5ACB contains highly sensitive CMOS components, maintenance teams must follow strict anti-static protocols during handling to prevent surface voltage damage. The mechanical design features factory-drilled, insulated mounting holes to ensure electrical isolation from the chassis. Six plastic standoffs secure the PCB to its board carrier, providing vibration resistance during high-load turbine operations. Despite being a legacy component no longer produced by the original manufacturer, this B-rated functional revision remains a vital asset for maintaining the longevity and reliability of existing Speedtronic control systems.

Key Technical Characteristics

• Advanced Pulse Transformers: Provides isolated and precise gate drive signal management for the SCR bridge.
• Functional Revision “ACB”: Represents the most updated version with three significant performance and compatibility enhancements.
• 12-Pin Connector Interface: Enables robust communication with power supply boards and gate pulse modules.
• Frame Style Support: Engineered specifically for integration with GE Mark V J, K, and M-style frame drives.
• Integrated Protective Components: Houses onboard fuses and leg reactors to streamline the system-wide power circuit.
• Optimized Signal Path: Eliminates onboard snubber strings to reduce heat generation and improve signal clarity.
