Description

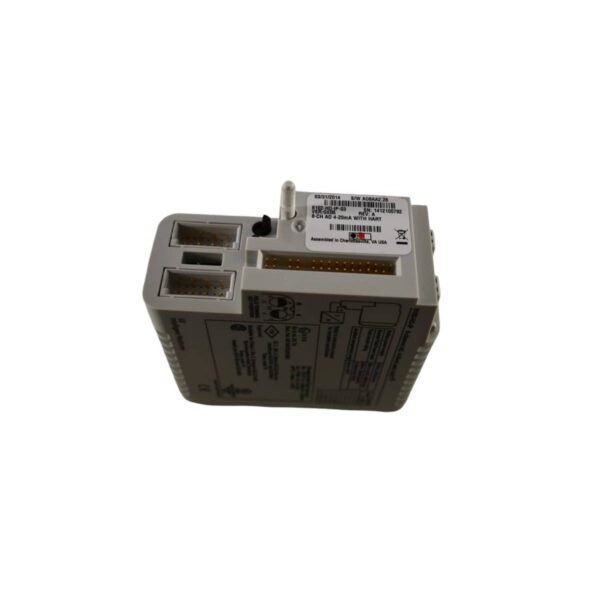

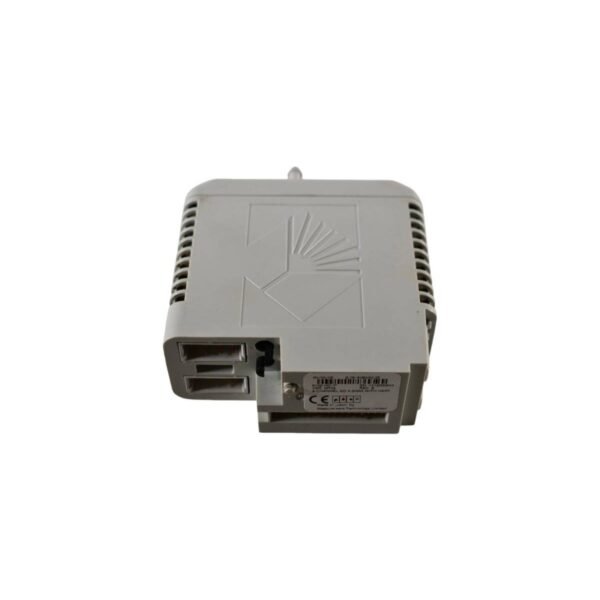

The GE 8102-HO-IP functions as a high-performance 8-channel analog output module for the 8000 Series I/O platform. This hardware delivers accurate 4-20 mA current signals to field devices like control valves and actuators. It maintains a strict ±0.25% accuracy rating to ensure process consistency. Furthermore, the module utilizes 12-bit resolution for fine-grained control over industrial equipment. These features make the 8102-HO-IP a reliable choice for critical loops in power and chemical plants.

Advanced HART Connectivity and Diagnostics

Integrated HART protocol support allows this module to communicate with smart field instruments. The 8102-HO-IP features HART pass-through, which enables remote device configuration and health monitoring. While processing these complex data packets, the unit still provides a fast 25ms response time. Each channel also includes automatic open-circuit detection to alert operators of wiring failures. This combination of speed and intelligence enhances overall system uptime in automated environments.

Hazardous Area Safety and Integration

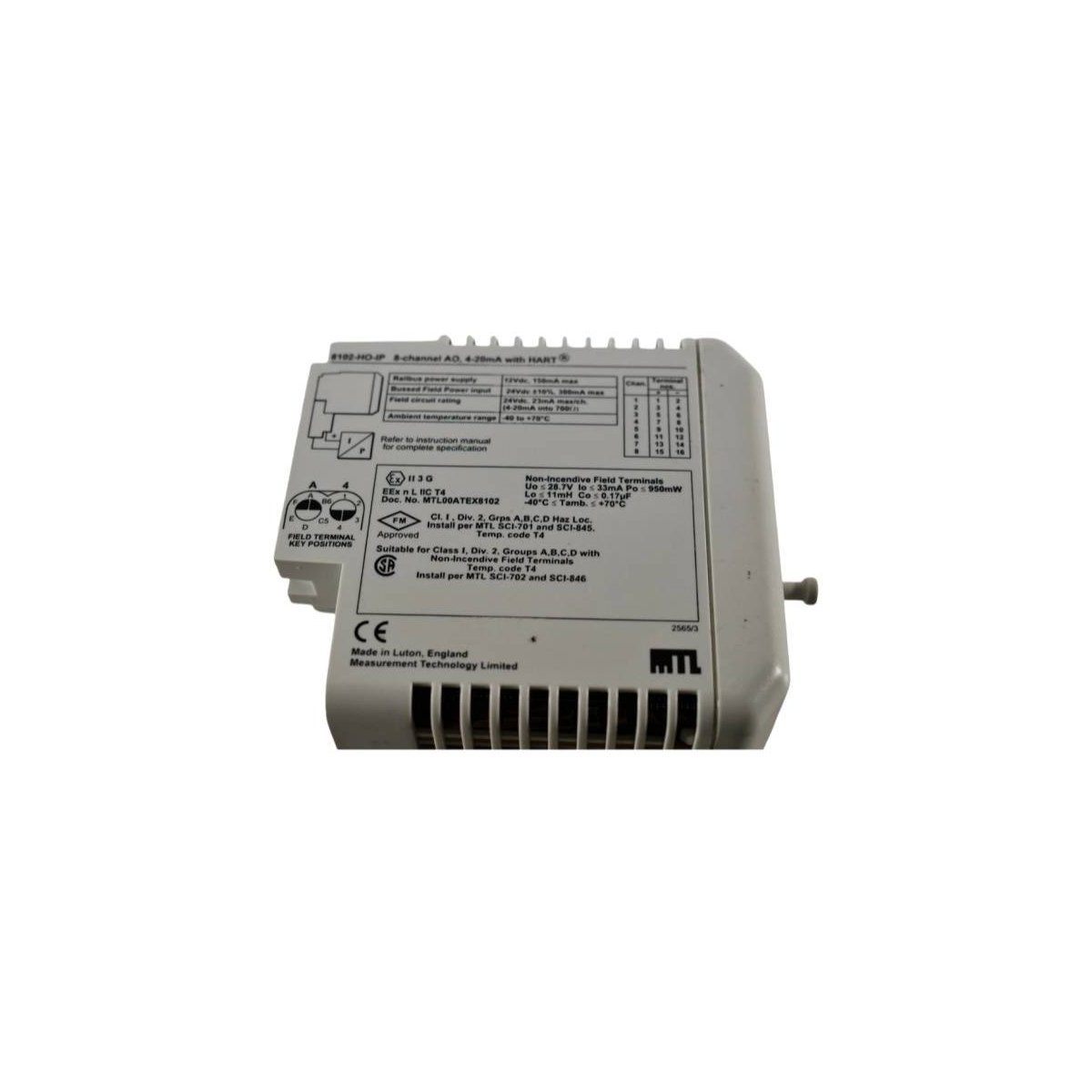

Safety remains a core focus with the FM non-incendive certification for hazardous locations. The electrical design limits maximum output parameters to 28.7V Voc and 33mA Isc for safety. For installation, the module uses a compact 42mm form factor to save cabinet space. It connects via the standard Railbus and uses a bussed 24V DC field power supply. Consequently, engineers can integrate this module into existing Mark VIe or Fanuc control systems with ease.

Technical Specifications

Industrial Application and Reliability

Modern Distributed Control Systems (DCS) rely on the 8102-HO-IP for precise analog modulation. It operates effectively in high-vibration and space-constrained control panels. The module provides electrical isolation between the field circuits and the internal communication bus. This architecture prevents external electrical faults from impacting the central controller logic. Because of its robust USA-made construction, the module excels in the most demanding industrial automation sectors.
