Description

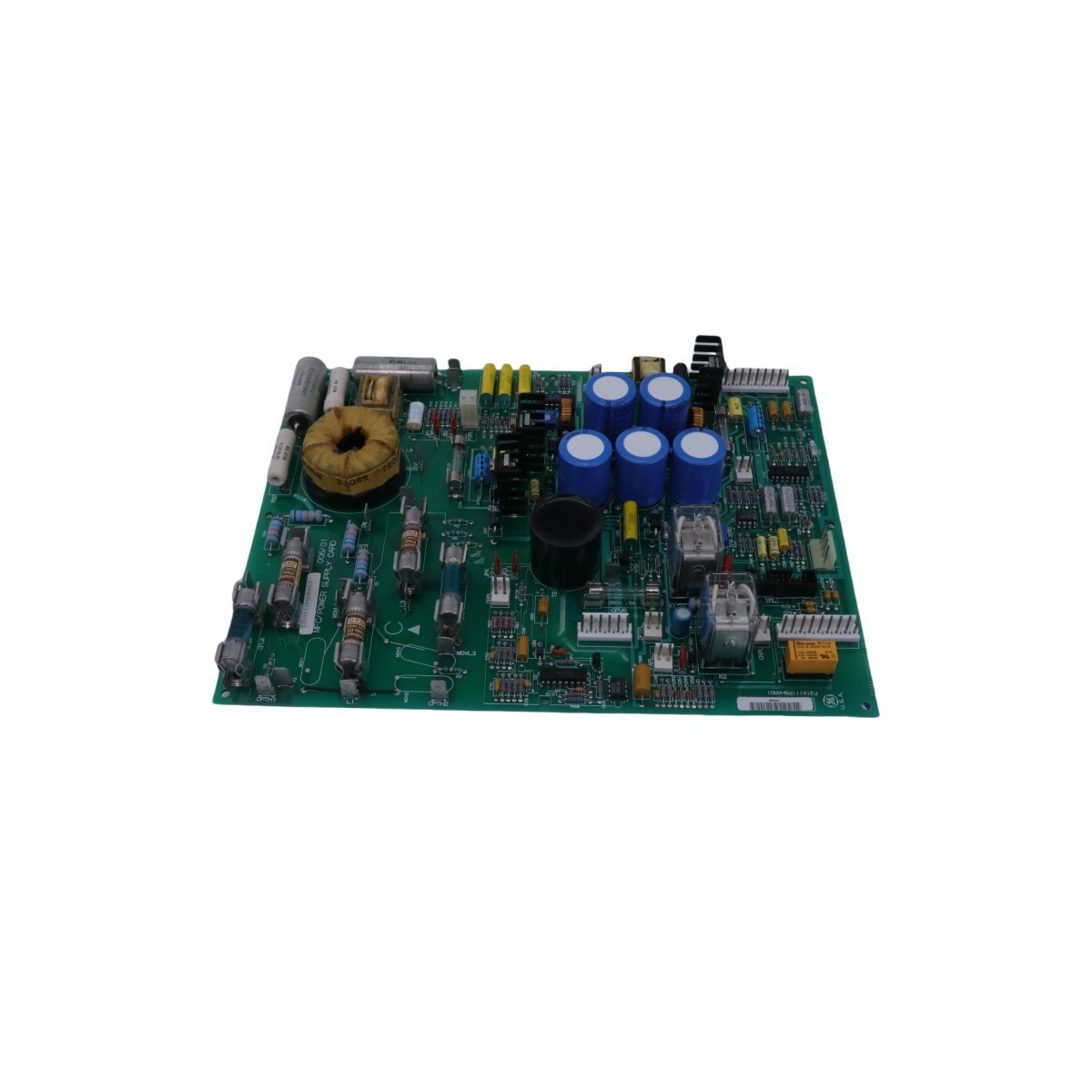

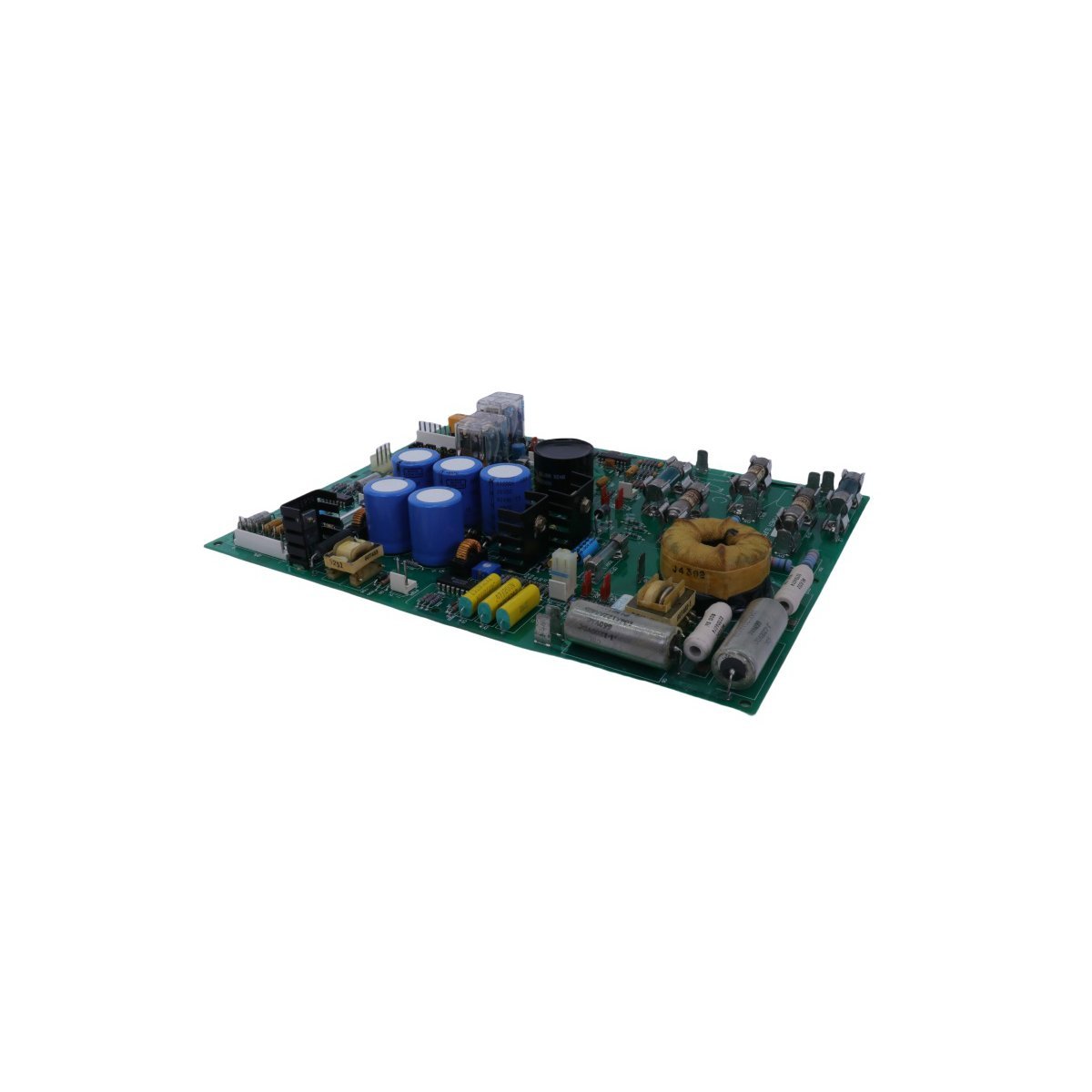

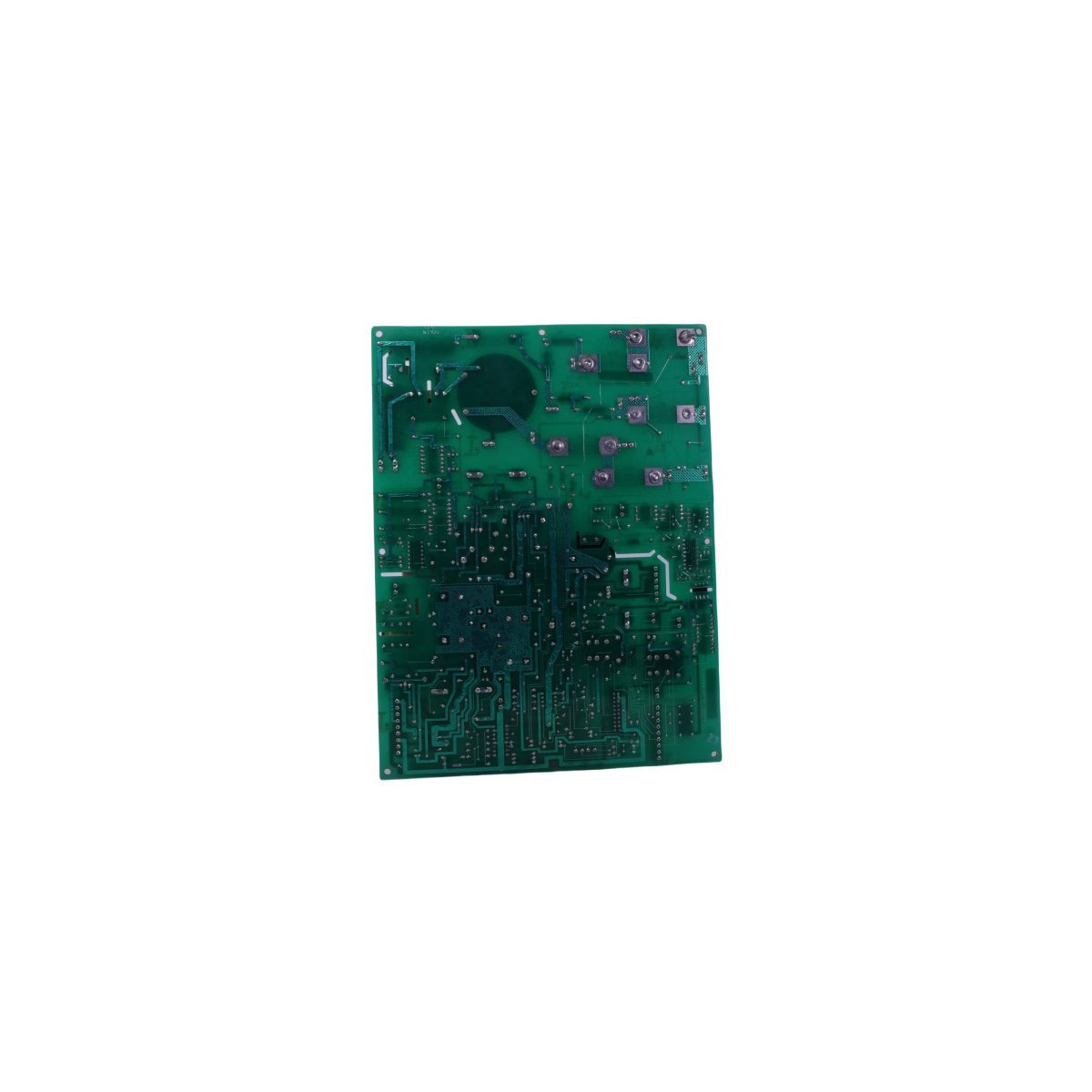

The GE 531X111PSHARG3 functions as a specialized power distribution hub for industrial drive systems. This board generates three essential DC voltage outputs to support auxiliary electronics. Specifically, it provides regulated 5 VDC, 15 VDC, and 24 VDC supplies. These power rails ensure that exciters and control circuits receive consistent energy. Because of its reliable output, this module remains a core component in GE motor field control strategies.

Motor Field Drive and Pulse Processing

An integrated pulse transformer defines the primary architecture of the 531X111PSHARG3 board. This component delivers isolated power directly to the motor field circuitry. Consequently, the drive system achieves higher responsiveness during operation. The board also manages current feedback through a series of onboard acquisition circuits. This design optimizes the performance of both DC drives and synchronous motor exciters. It serves as an effective bridge between the control logic and the high-power field winding.

Calibration and Relay Management

This power connect card features three precision potentiometers for localized system calibration. Operators use P1 to scale the field current effectively. Potentiometers P2 and P3 allow for zeroing and adjusting the Current Feedback (CFB) signals. Furthermore, the board integrates three functional relays for status monitoring. Relay K1 indicates a RUN state, K2 signals MAX output, and K3 reports FAULT conditions. These hardware features enable site technicians to maintain tight control over motor parameters.

Enhanced Durability and Hardware Protection

As a G3 version module, the 531X111PSHARG3 incorporates external Metal Oxide Varistors (MOVs). These components mount on the AC line to suppress electrical surges. This protective layer significantly extends the lifespan of the board in harsh industrial zones. Additionally, the compact form factor allows for installation in narrow control cabinets. The board integrates seamlessly into existing GE drive racks for immediate system restoration. It remains a vital spare part for maintaining legacy turbine and motor control infrastructure.
