Description

Brief Product Description

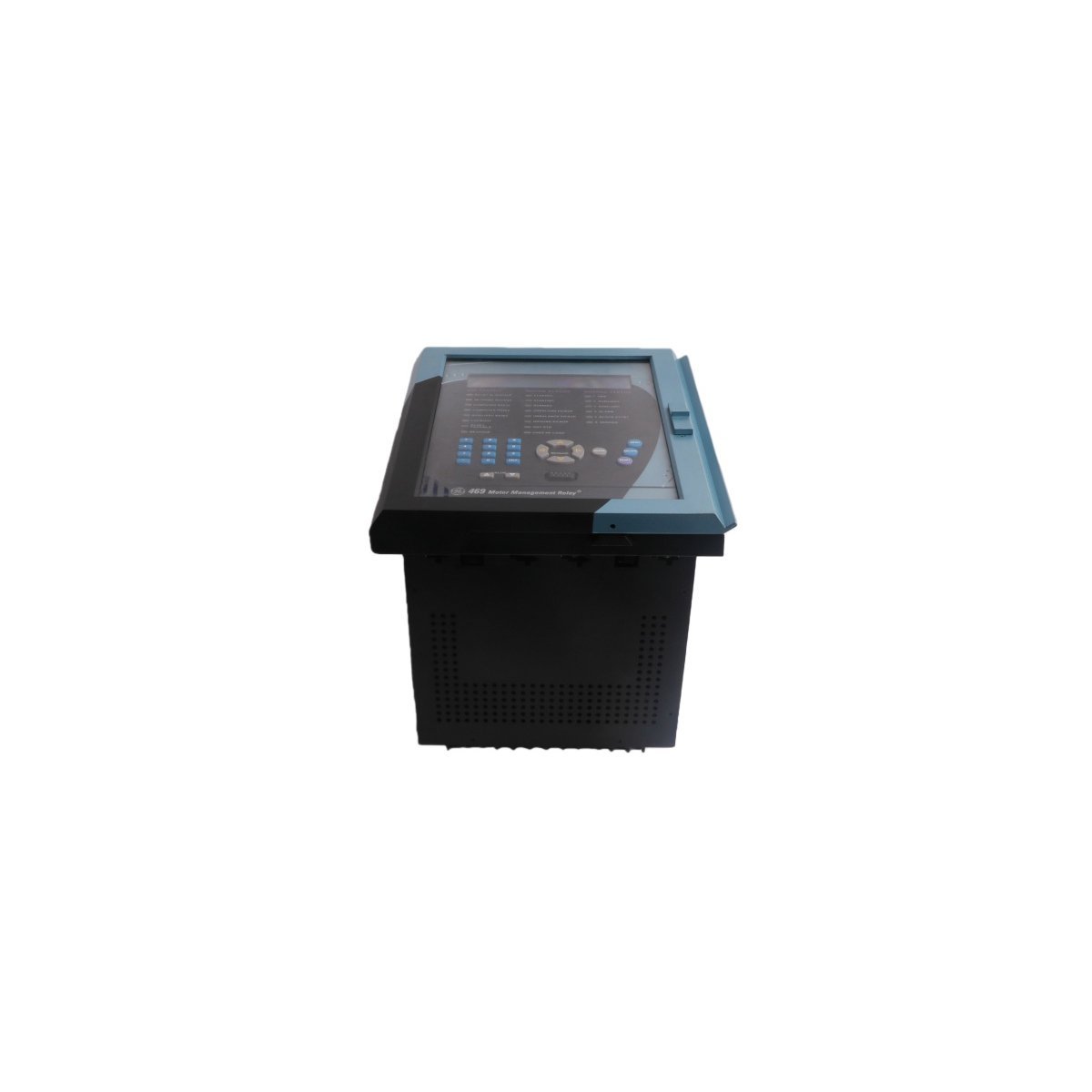

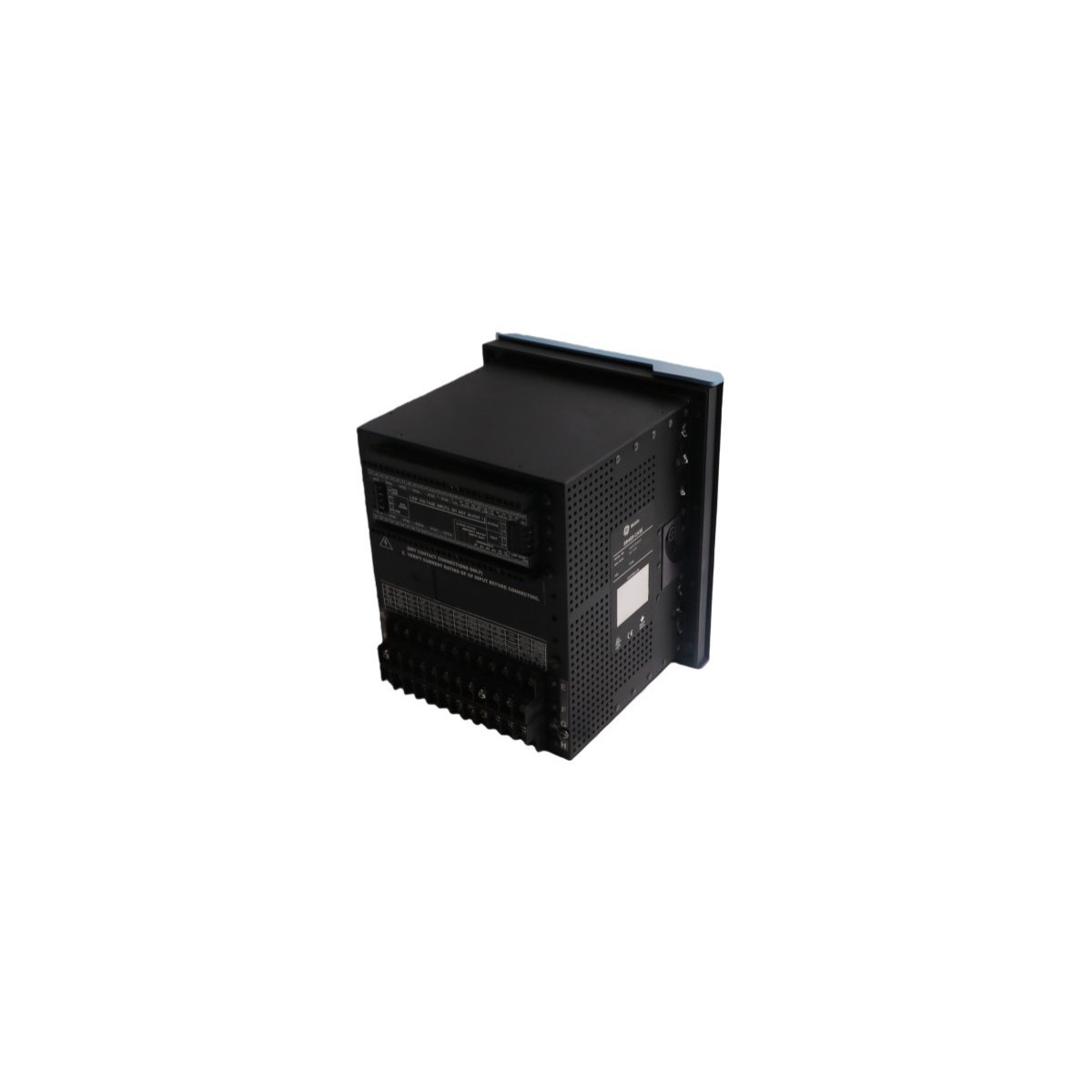

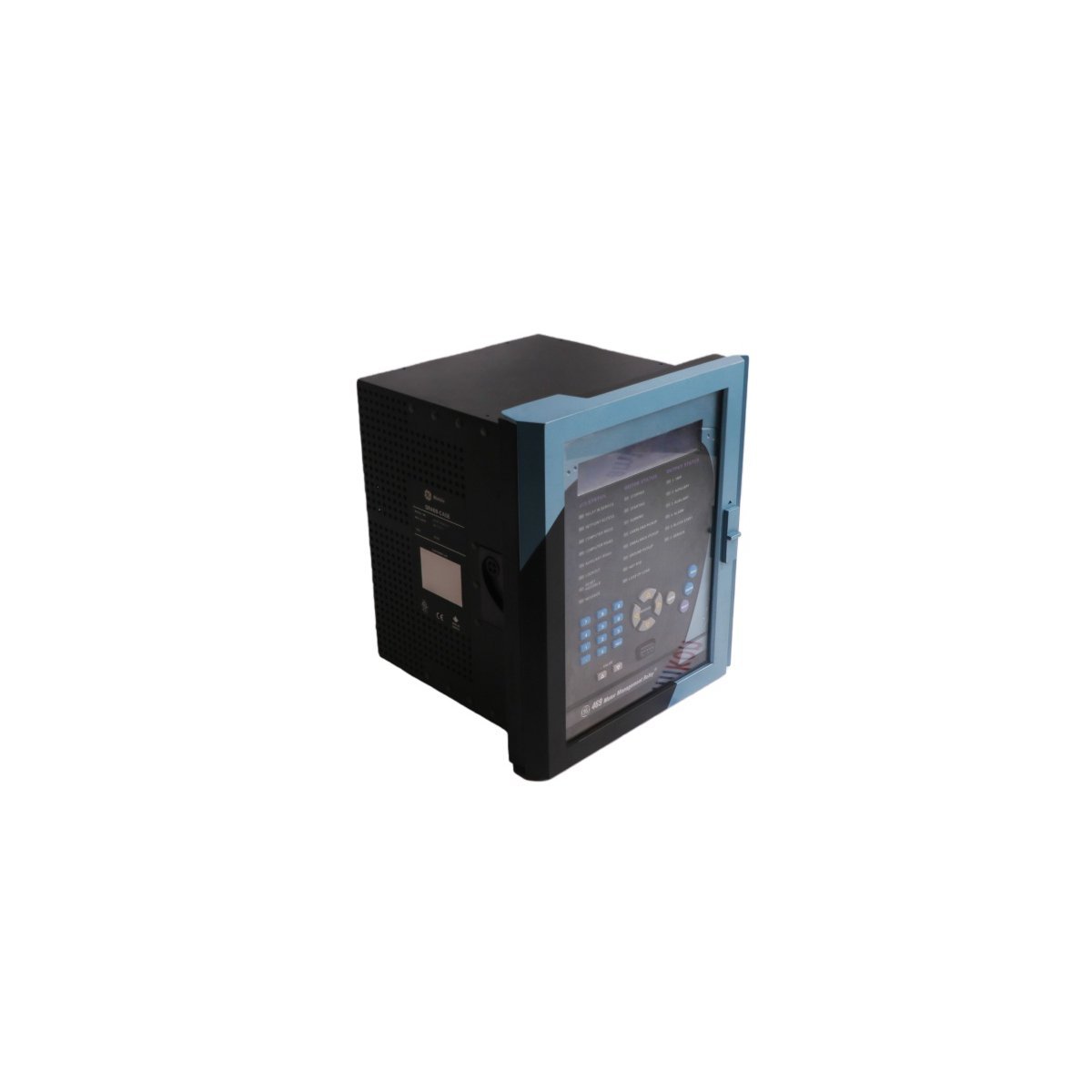

The GE Multilin 469-P5-HI-A20-E is a comprehensive motor management relay designed to protect and manage medium-to-large horsepower motors. It combines advanced thermal modeling with high-speed digital processing to provide total motor protection, including stator and rotor diagnostics.

Product Description

Integrated Motor Protection and Thermal Modeling

The GE Multilin 469-P5-HI-A20-E operates as a central intelligence hub for critical motor assets. This SR469 series relay utilizes a sophisticated thermal model that incorporates multiple RTD inputs to calculate stator temperature precisely. By constantly analyzing current and temperature data, the relay prevents motor overheating and premature insulation failure. Furthermore, the system manages complex starting sequences, protecting the rotor against stall conditions and excessive acceleration times. This proactive approach significantly extends the operational lifespan of high-value industrial motors.

Versatile Power and Connectivity Options

The 469-P5-HI-A20-E relay features a high-range power supply capable of handling 70–265VAC or 90–300VDC. This flexibility ensures stable operation across diverse global power standards. To support modern industrial internet of things (IIoT) requirements, the module integrates seamlessly with various networking architectures. It supports multiple physical layers including RS485, RS232, and Ethernet, alongside protocols such as Modbus and DeviceNet. Consequently, operators can remotely monitor motor health, adjust setpoints, and retrieve diagnostic data without accessing the physical motor control center (MCC).

Diagnostic Reliability and Field Maintenance

GE designed the 469-P5-HI-A20-E with a focus on maximum system uptime and simplified maintenance. The relay utilizes a unique draw-out construction, which allows technicians to replace or test the unit without disturbing the primary wiring. Additionally, the system includes internal data logging, event recording, and waveform capture to provide a forensic look at motor faults. These diagnostic tools allow engineering teams to identify the root cause of trips quickly, thereby reducing the time spent on troubleshooting. With its rugged USA-made construction, the relay provides dependable protection for mission-critical operations in the most demanding manufacturing environments.

Technical Specifications
