Description

Brief Product Description

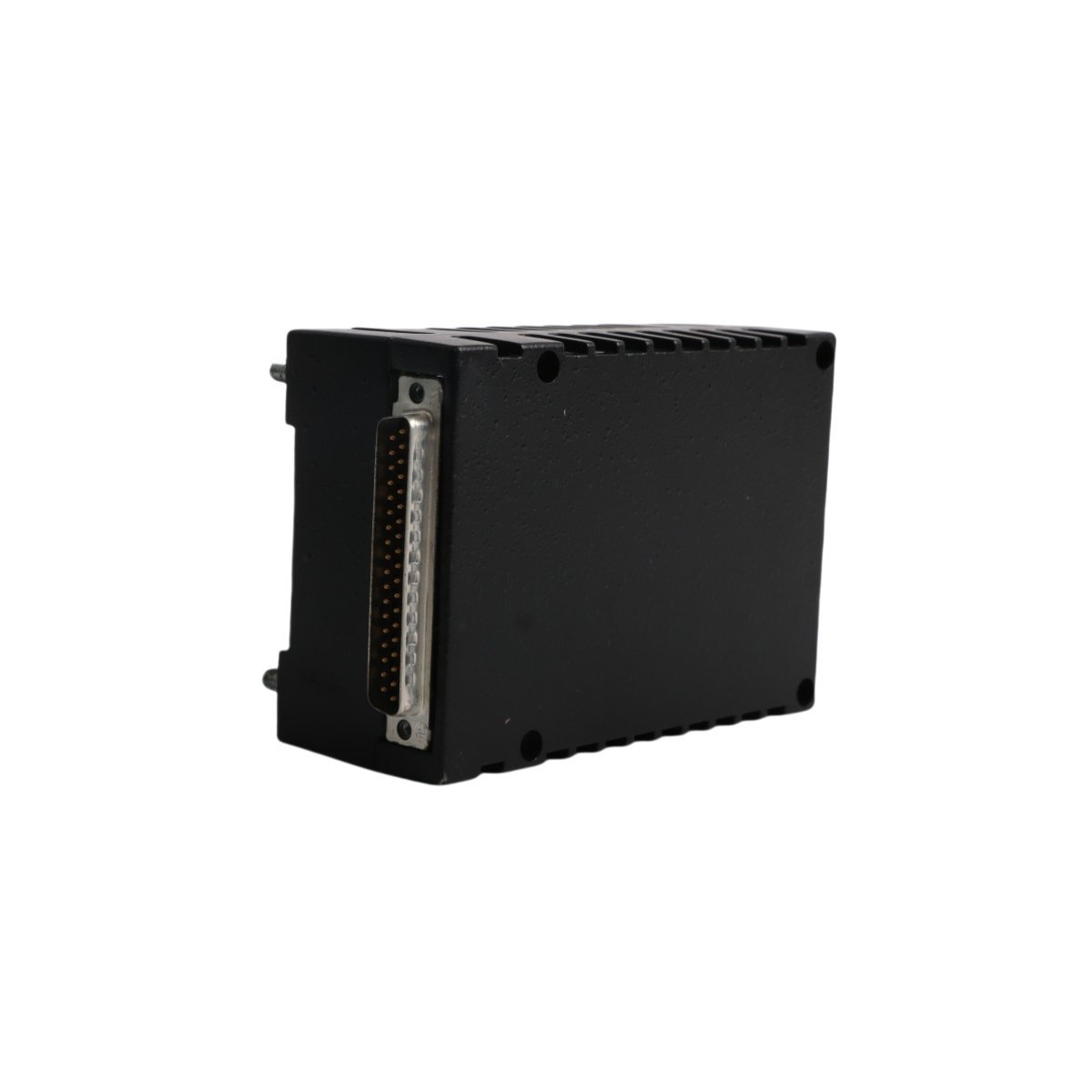

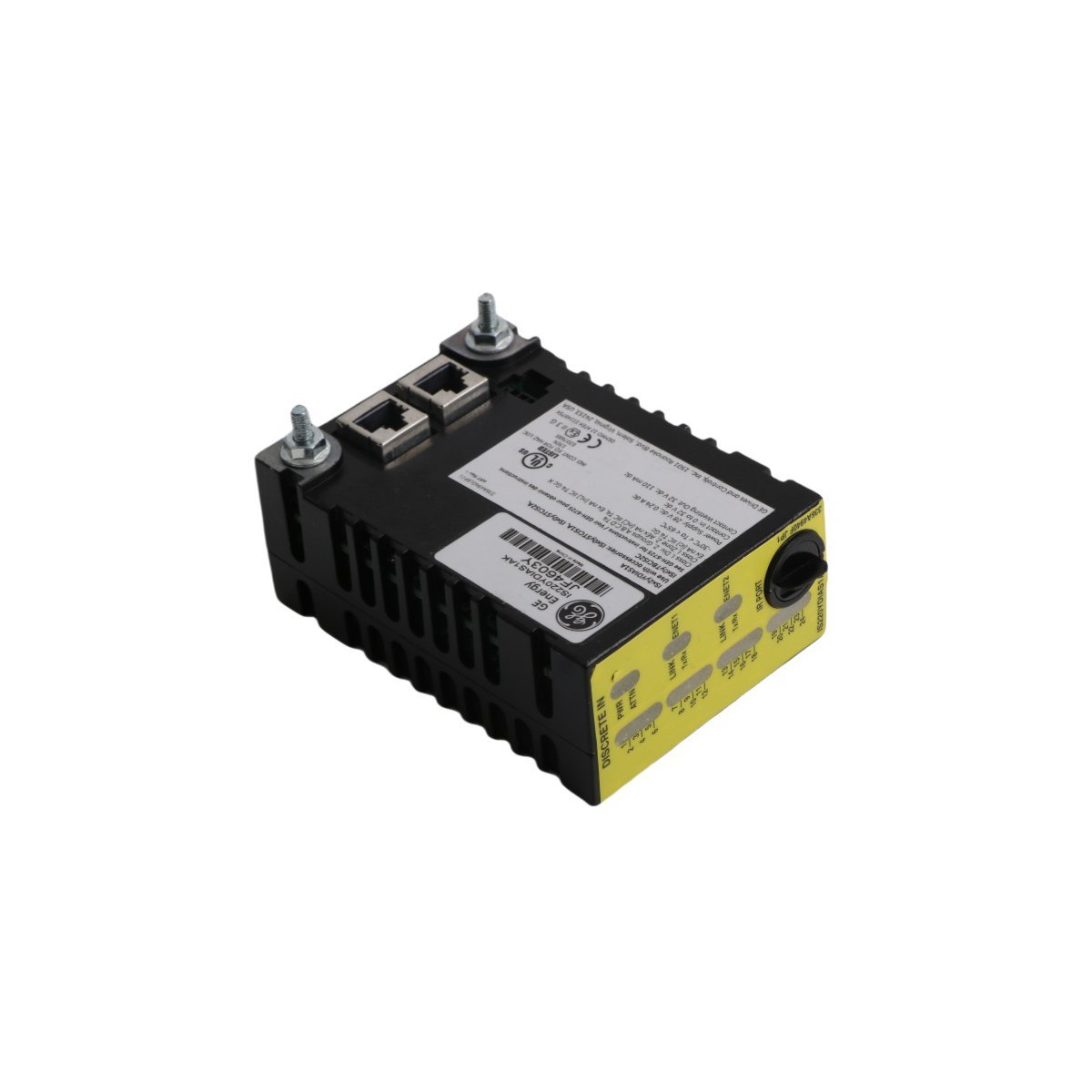

The GE IS220YPROS1A is a specialized Backup Protection I/O module designed for Speedtronic Mark VIe control systems to ensure emergency turbine safety.² It provides high-precision analog monitoring and redundant communication to prevent turbine overspeed and other critical failure states.

Product Description

Emergency Turbine Safety and Protection

The General Electric IS220YPROS1A serves as a vital safety layer within the Mark VIe Speedtronic control architecture. This Backup Protection I/O module specifically monitors critical turbine parameters to provide a fail-safe response during primary control failure. By managing emergency trip functions and overspeed protection, the module safeguards gas and steam turbines from catastrophic mechanical damage. Its design prioritizes high availability, ensuring that the safety hardware remains ready to intervene even if the broader DCS network experiences disturbances.

High-Precision Analog and Logic Integration

Engineered for technical excellence, the IS220YPROS1A utilizes a 16-bit resolution analog-to-digital converter to maintain ±0.1% measurement accuracy.³ This precision allows the module to interpret complex signals across 0-250mV or ±10V ranges based on software parameters. Furthermore, the unit features 1500VAC galvanic isolation, which effectively separates field-side interference from the sensitive logic circuits. To protect against electrical stress during startup, integrated soft-start circuitry manages the 24VDC power intake, preventing internal component damage from sudden inrush currents.

Robust Hardware for Extreme Environments

The GE IS220YPROS1A pack is built to endure the rigorous thermal and mechanical demands of power generation facilities. Its conformal-coated PCB resists humidity and corrosive contaminants, while the hardware maintains operational integrity in temperatures ranging from -40°C to +70°C. Connectivity is managed through a secure DC-37 pin interface and dual Ethernet ports, supporting the IONet redundant network topology.⁴ Consequently, these features allow the module to provide continuous diagnostics and real-time status updates via onboard LEDs, ensuring operators can verify system health at a glance.
