Description

Brief Product Description

The General Electric IS200TRLYH1BGE serves as a high-reliability relay output terminal board for the Mark VIe control platform. This module manages 12 relay outputs and utilizes integrated Metal Oxide Varistor (MOV) protection to secure the interface between the control system and industrial field devices.

Product Description

Driving Industrial Switching and Signal Distribution

The General Electric IS200TRLYH1BGE acts as the primary termination point for digital output signals within the Mark VIe Distributed Control System (DCS). This board establishes the physical link between the I/O processor and critical field equipment, including solenoid valves, motor starters, and auxiliary indicators. By executing switching through heavy-duty mechanical relays, the module effectively isolates sensitive control electronics from high-voltage field currents. This proactive isolation enhances overall system safety and eliminates electrical noise that could otherwise disrupt central processing logic.

Advancing Circuit Protection and Layout Efficiency

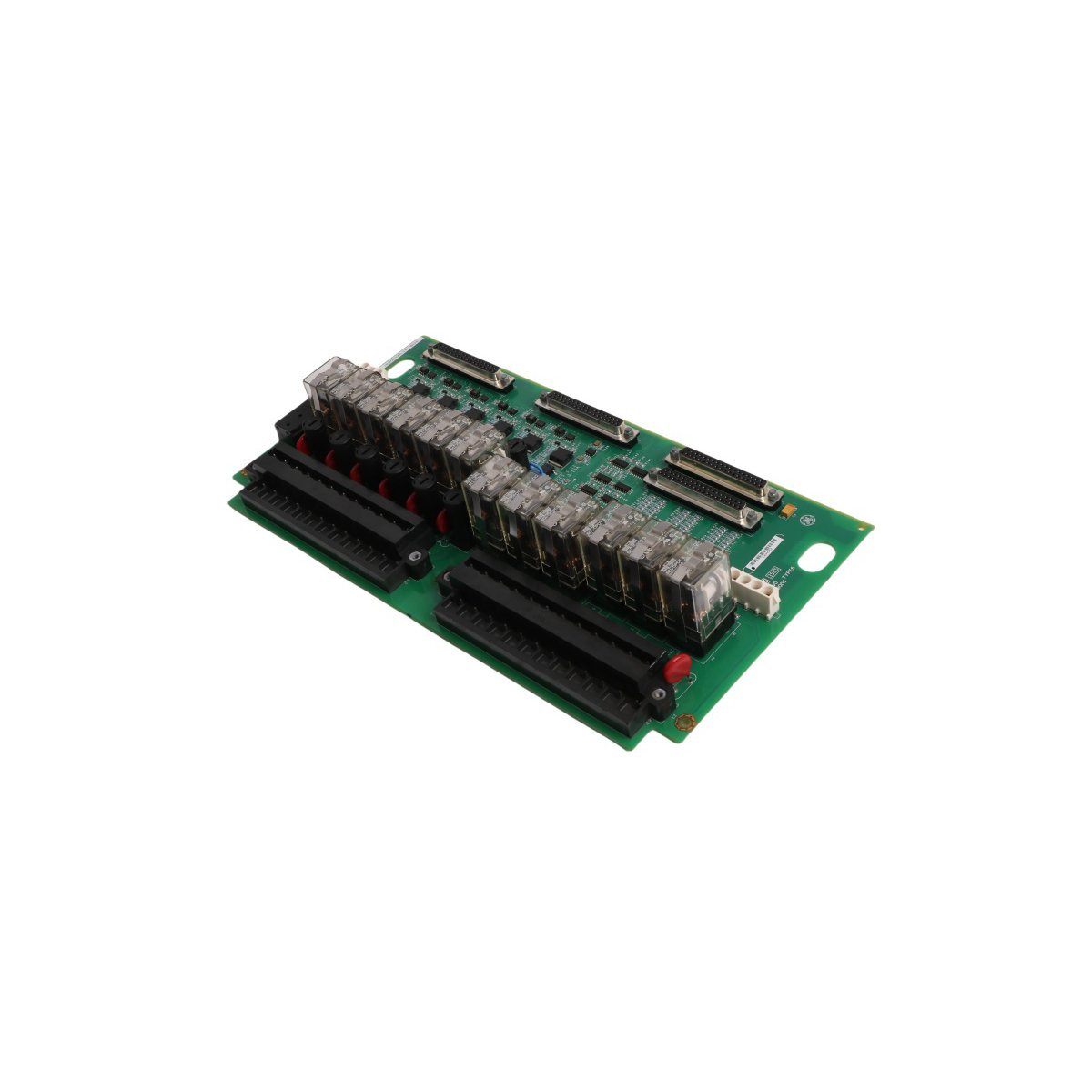

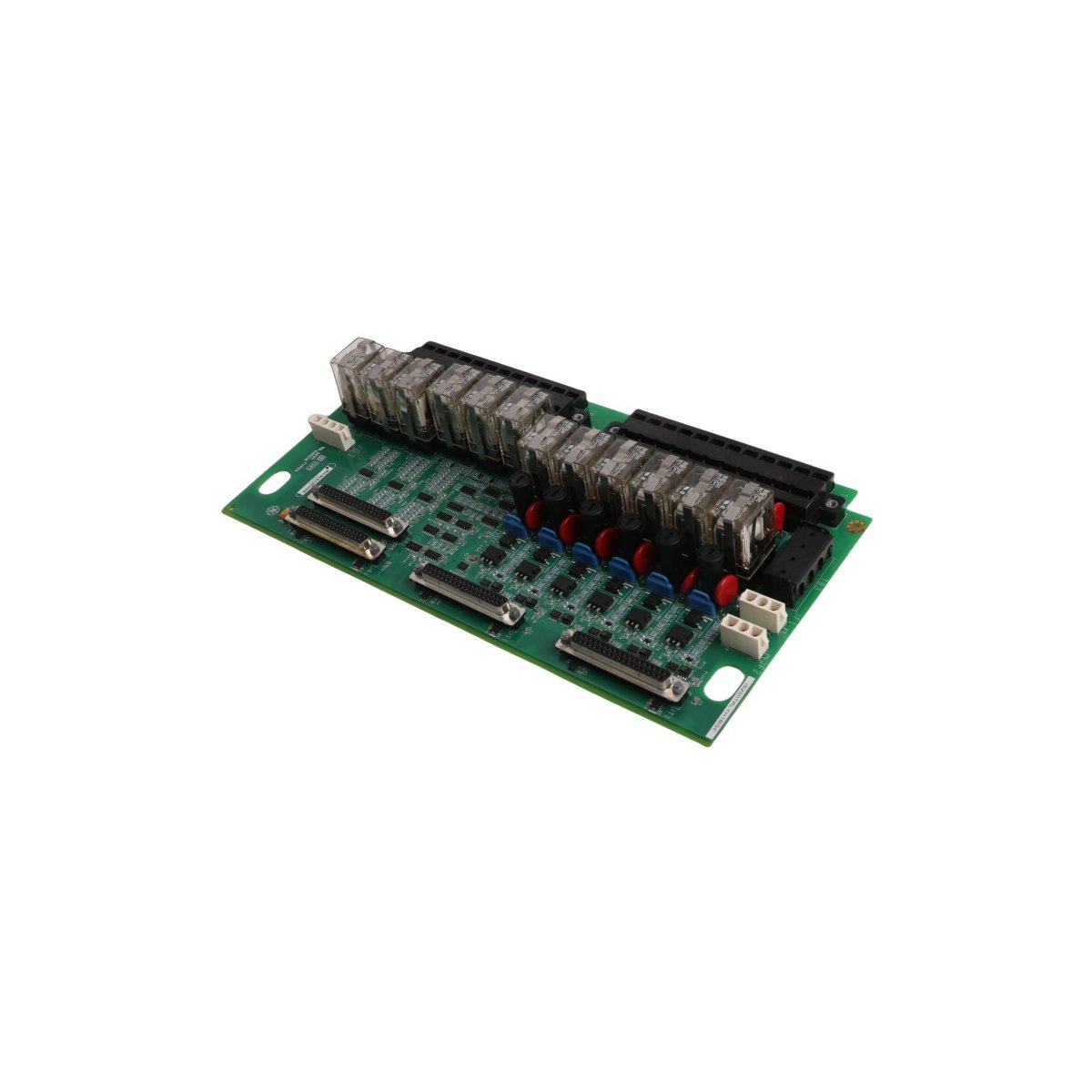

To maintain peak performance in volatile electrical environments, the IS200TRLYH1BGE module employs specialized protective circuitry. Every relay channel features a dedicated red Metal Oxide Varistor (MOV) that actively clamps voltage spikes and shields relay contacts from inductive kickback damage. The physical architecture provides two high-density terminal blocks on the left edge, offering 48 silver-plated connection points for secure field wiring. Furthermore, the board integrates four D-type connector ports on the right side to facilitate redundant cabling, ensuring that the system maintains continuous operation even during a single cable path failure.

Optimizing Hardware Architecture for Reliability

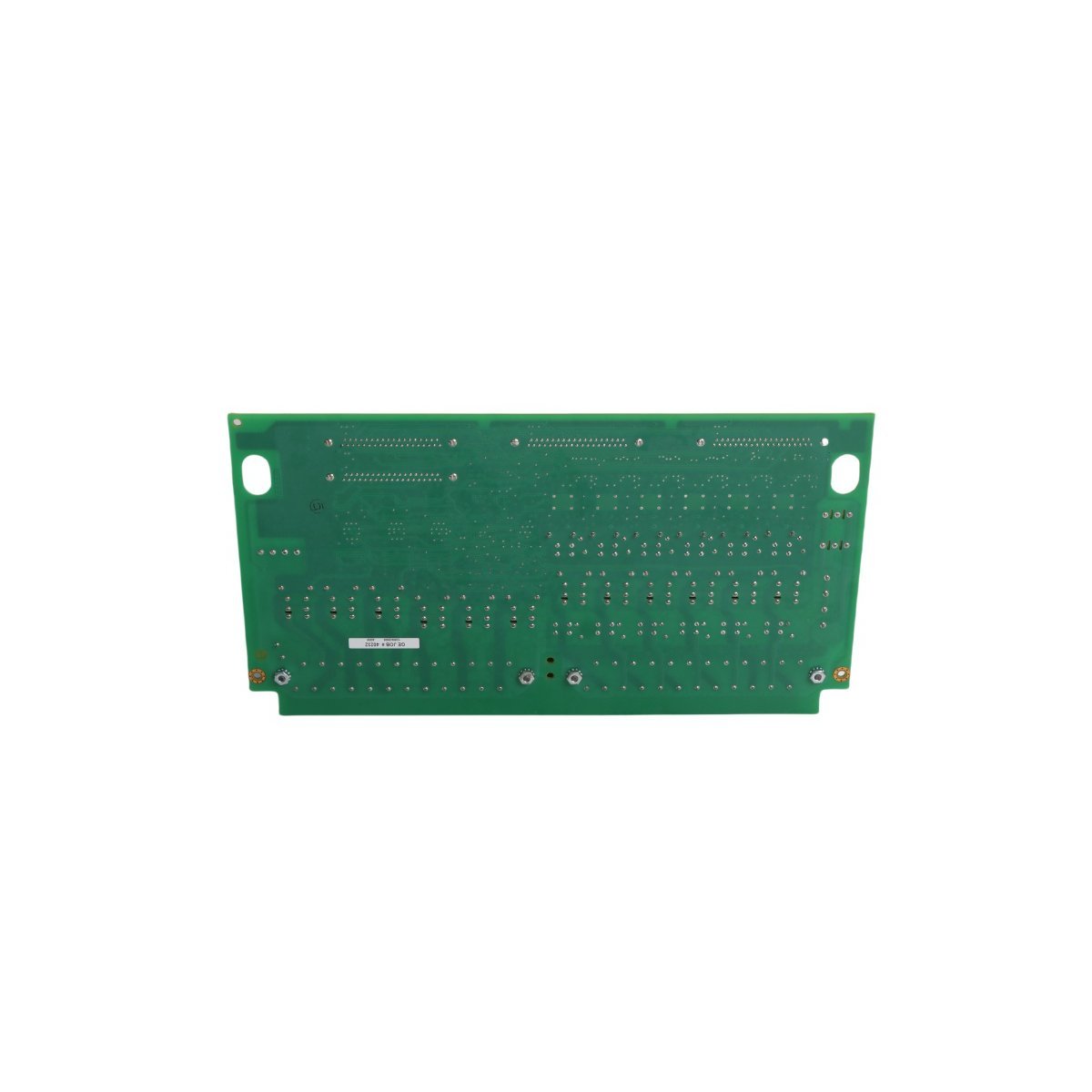

The GE IS200TRLYH1BGE utilizes a structured PCB layout that prioritizes thermal management and simplifies visual inspections during maintenance routines. Ten primary relays, organized into two vertical groups of five, rely on circular black transistors to drive precise switching actuation. Because GE designed this board for long-term deployment in power plants and heavy industrial facilities, it features durable lead-free soldering and high-grade wiring throughout. This meticulous construction supports mission-critical applications where reliable switching prevents costly operational downtime.
