Brief Product Description

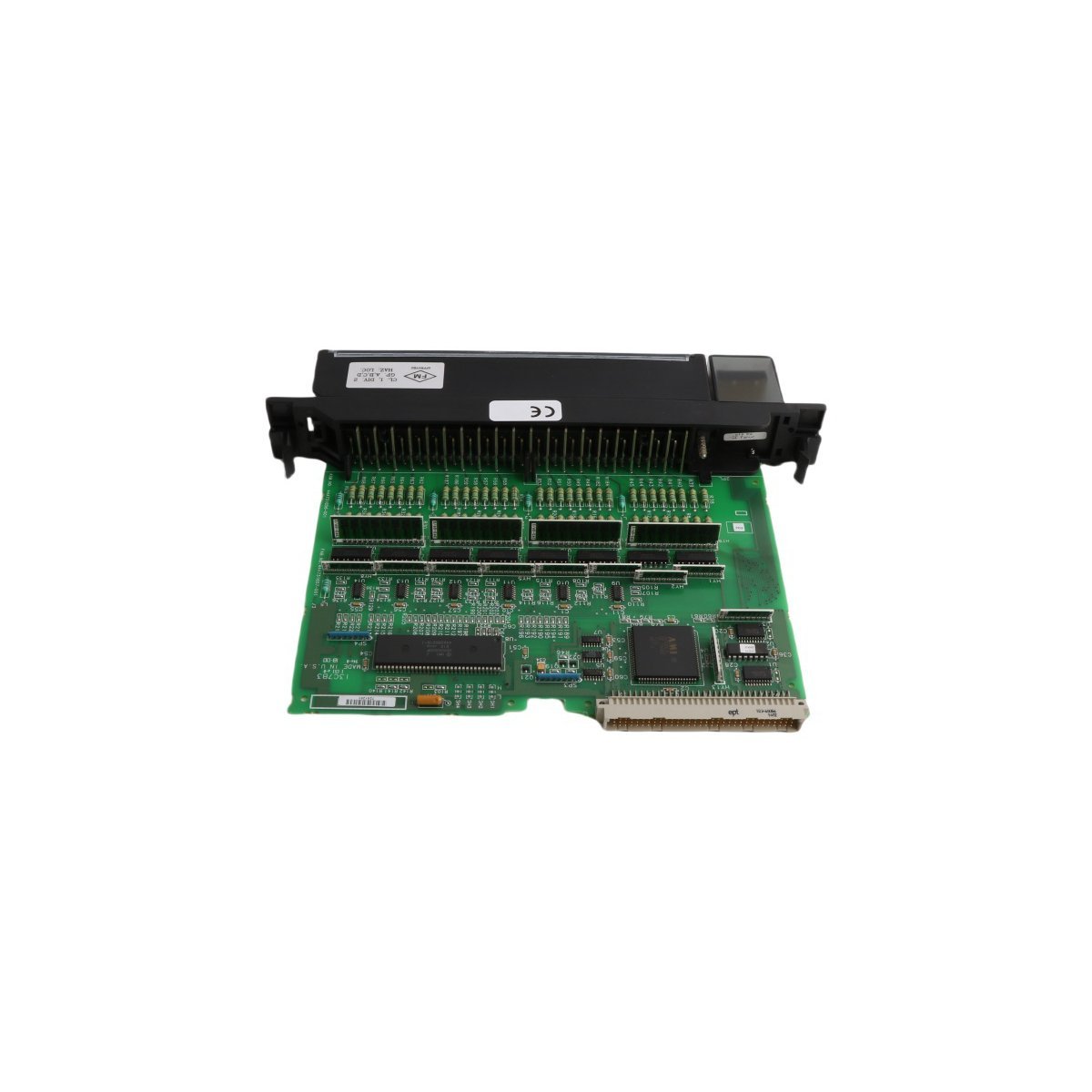

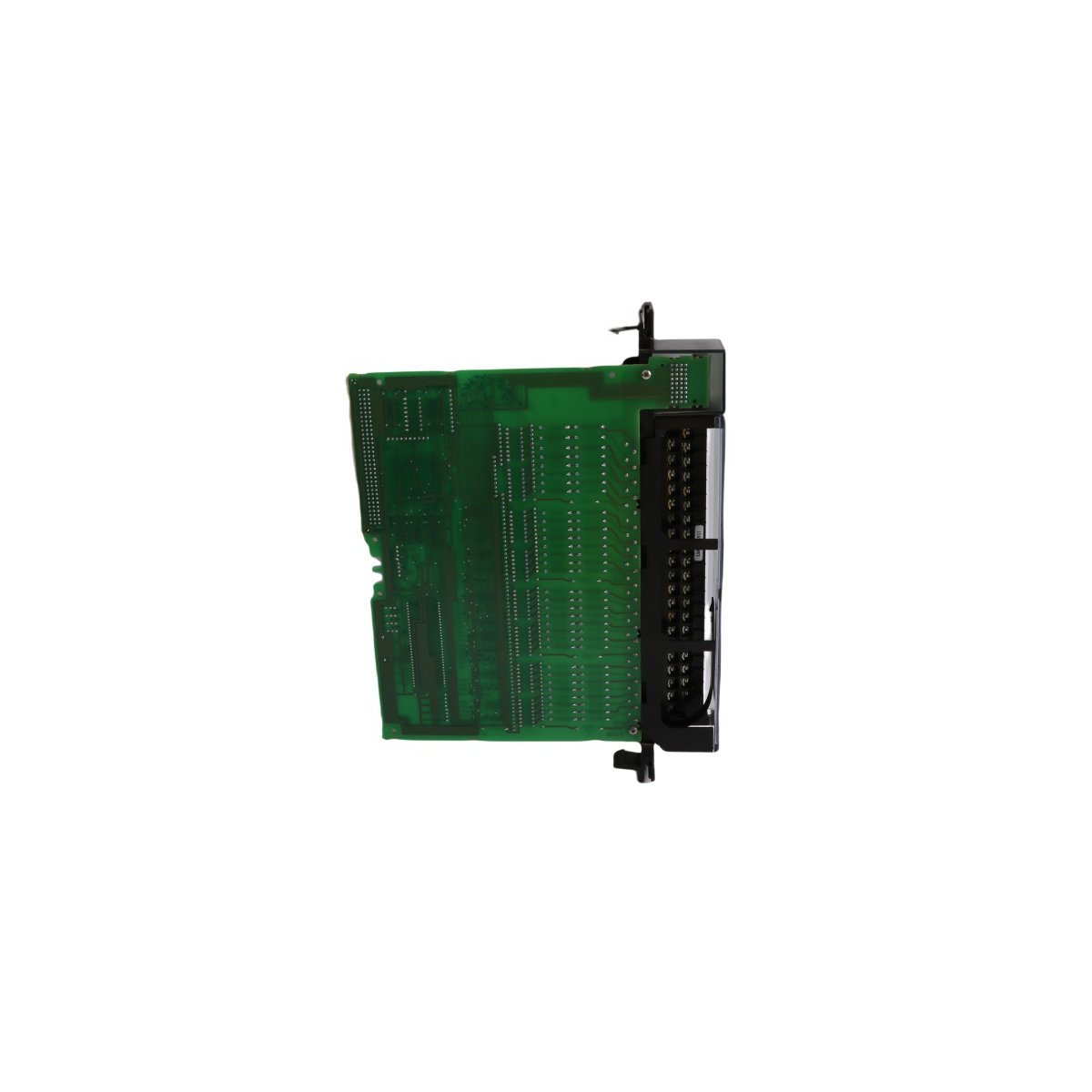

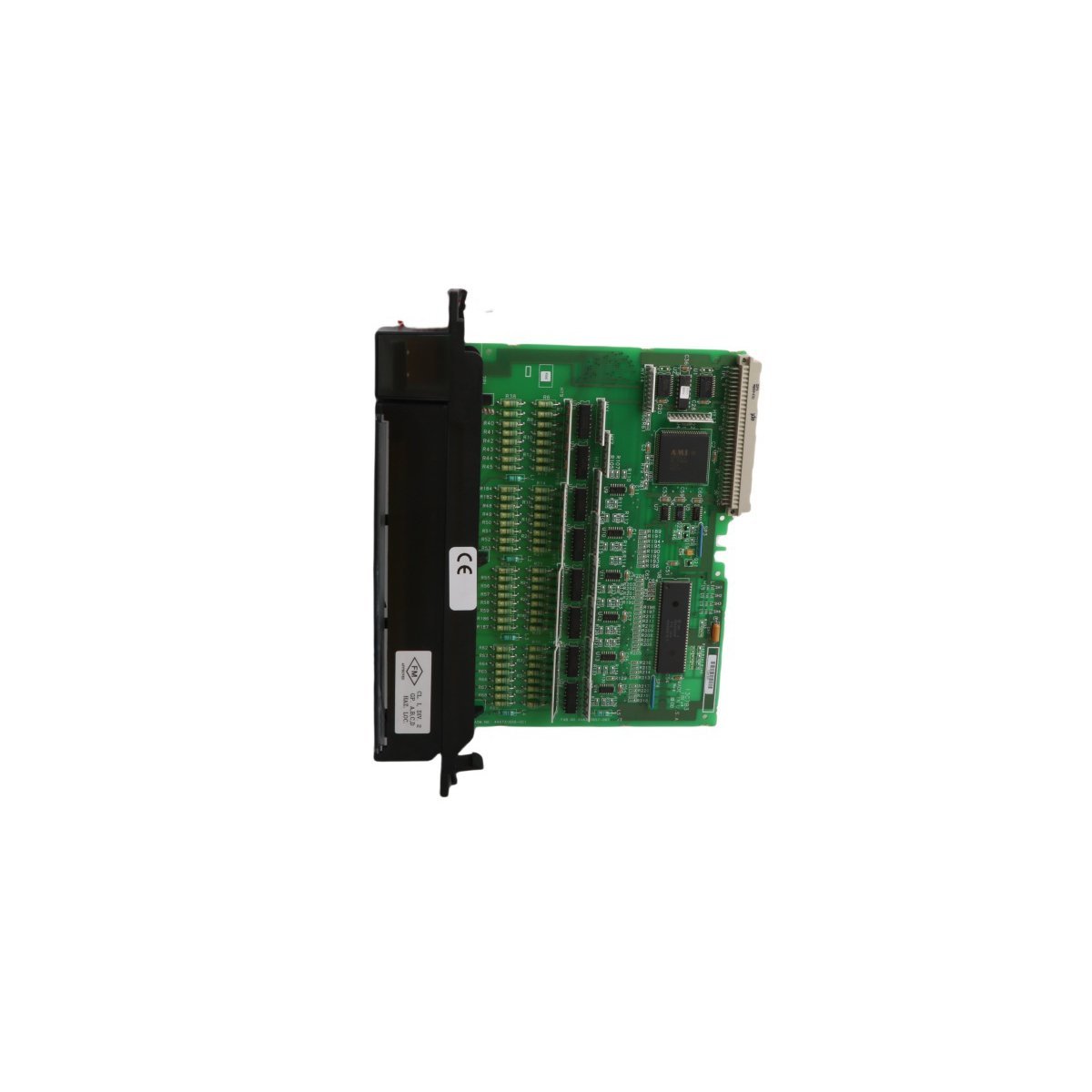

The GE Fanuc IC697MDL653 is a high-density 32-channel digital input module designed for Series 90-70 PLC systems, supporting 24 VDC discrete signals. This module provides four isolated groups of eight inputs, offering flexible compatibility with both sinking and sourcing field devices.

High-Density Discrete Signal Processing

The GE Fanuc IC697MDL653 serves as a robust interface for capturing discrete signals from industrial field devices such as limit switches, pushbuttons, and proximity sensors. By providing 32 distinct input channels, this module allows for high-density I/O configurations within a single Series 90-70 rack slot. The design organizes these channels into four isolated groups, with each group containing eight inputs. This grouping strategy enhances system resilience by preventing electrical faults in one bank from affecting the operation of others. Furthermore, the module supports both positive and negative logic (sinking or sourcing) wiring, giving engineers maximum flexibility during system integration.

Precise Control and Optimized Filtering

Performance and reliability define the IC697MDL653, as it operates at a nominal 24 VDC with a typical input current of 10 mA per channel. To combat electrical noise and signal bounce common in industrial environments, the module features software-configurable input filter delays. Users can select between a 1 ms or 10 ms delay to ensure the PLC CPU receives clean, debounced data. The module maintains strict electrical thresholds, recognizing an “on-state” between 13.5 and 30 VDC, while ensuring an “off-state” for any signal falling below 5 VDC. These precise parameters guarantee accurate state detection even in complex electrical landscapes.

Enhanced System Isolation and Monitoring

The IC697MDL653 incorporates superior electrical protection to safeguard the PLC backplane and sensitive logic circuits. It provides up to 1500 VDC of isolation between the field-side inputs and the internal backplane, alongside 500 VDC of isolation between the individual input groups. To streamline commissioning and troubleshooting, the front panel includes individual status LEDs that provide immediate visual confirmation of input activity. Because the module utilizes software-based configuration through the programming software, technicians can set up the hardware without manipulating physical jumpers or DIP switches, reducing the risk of manual configuration errors.

Key Technical Characteristics

• 32-Point High Density: Maximizes I/O capacity while occupying only one slot in the Series 90-70 rack.
• Four Isolated Groups: Features 8 channels per group to isolate different power sources or signal types.
• Universal Logic Compatibility: Works seamlessly with both positive and negative logic field wiring.
• Configurable Input Filters: Offers selectable 1 ms or 10 ms response times to eliminate signal noise.
• Robust Electrical Isolation: Protects the PLC core with 1500 VDC backplane isolation.
• Real-Time Diagnostics: Includes dedicated LED indicators for each input point to simplify maintenance.
