Description

Brief Product Description

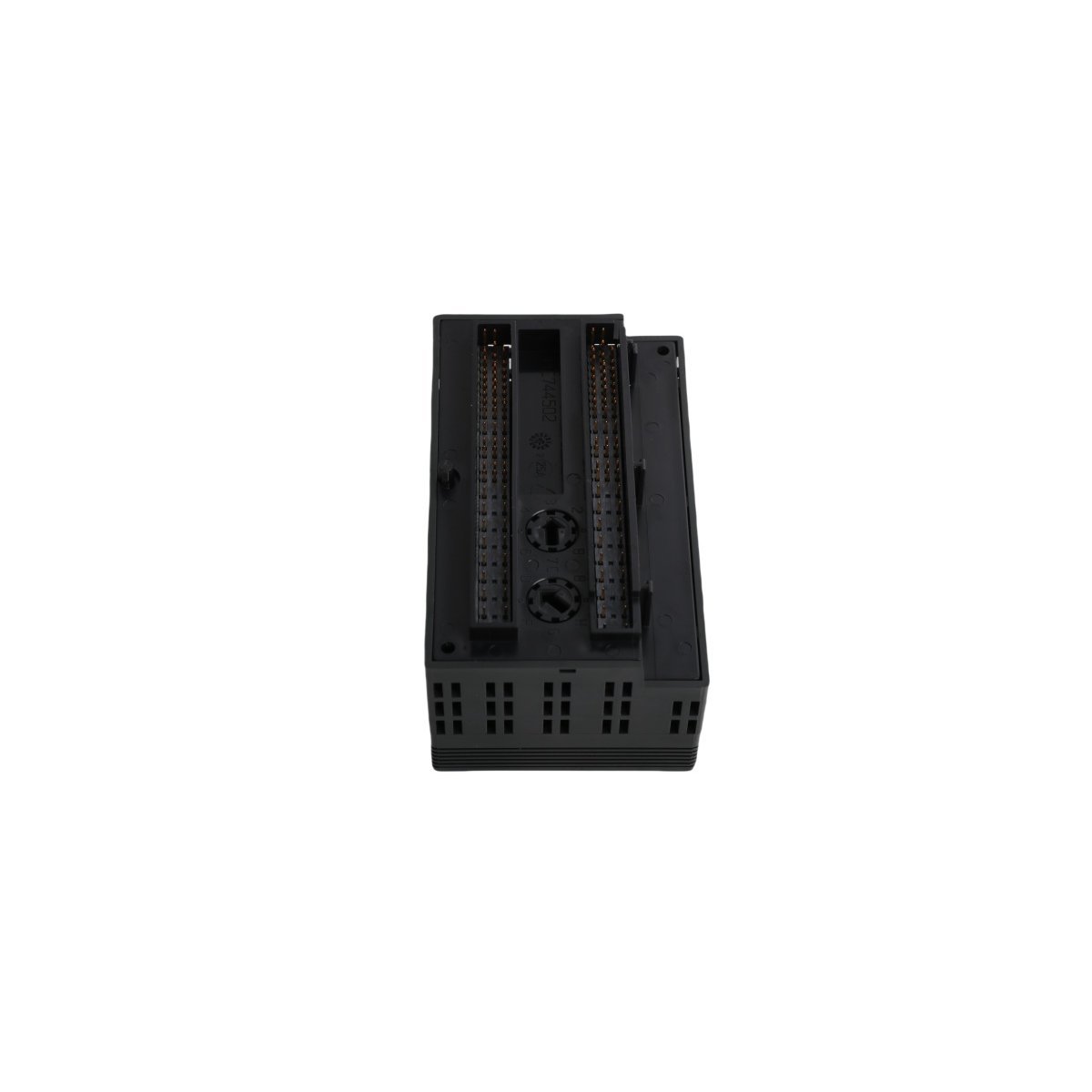

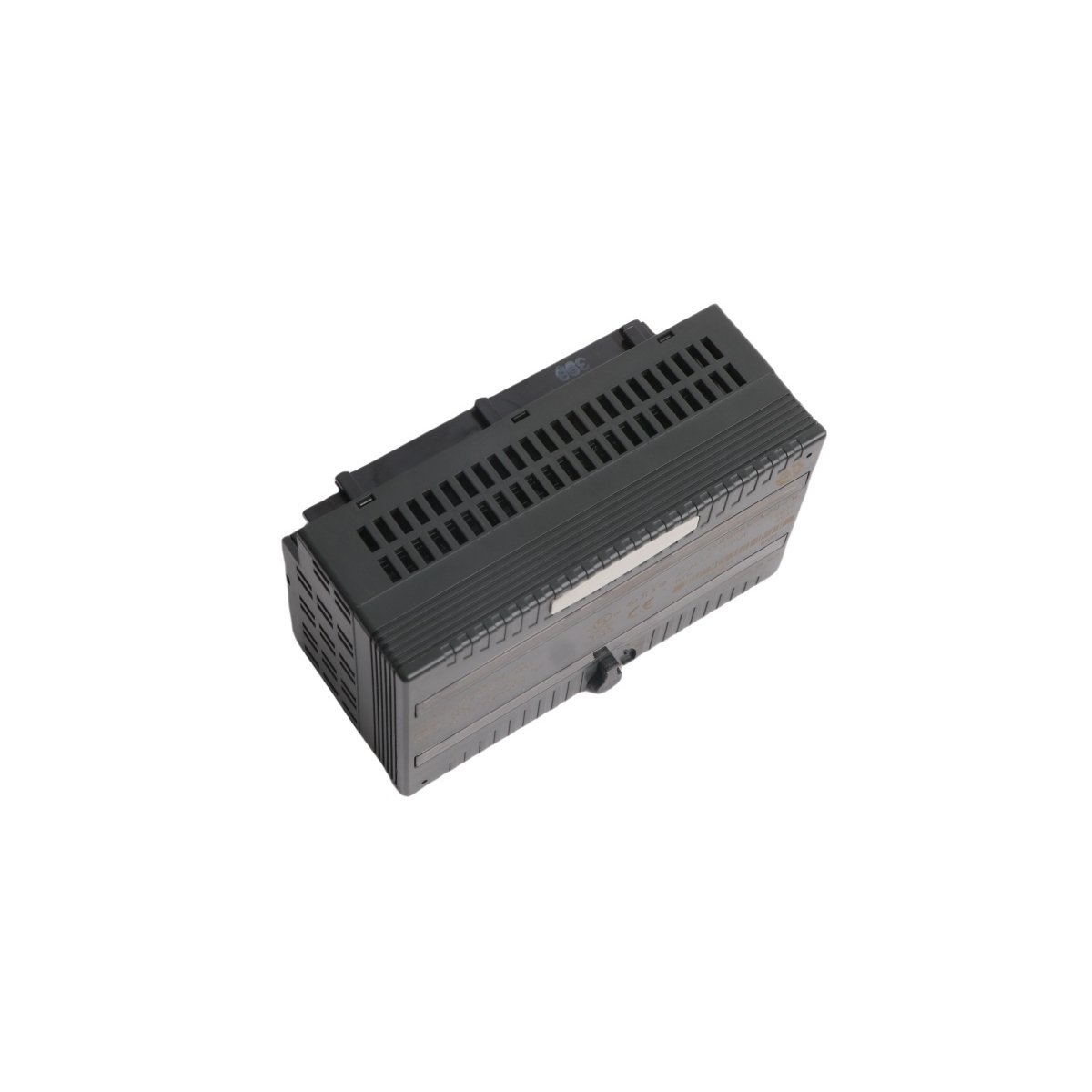

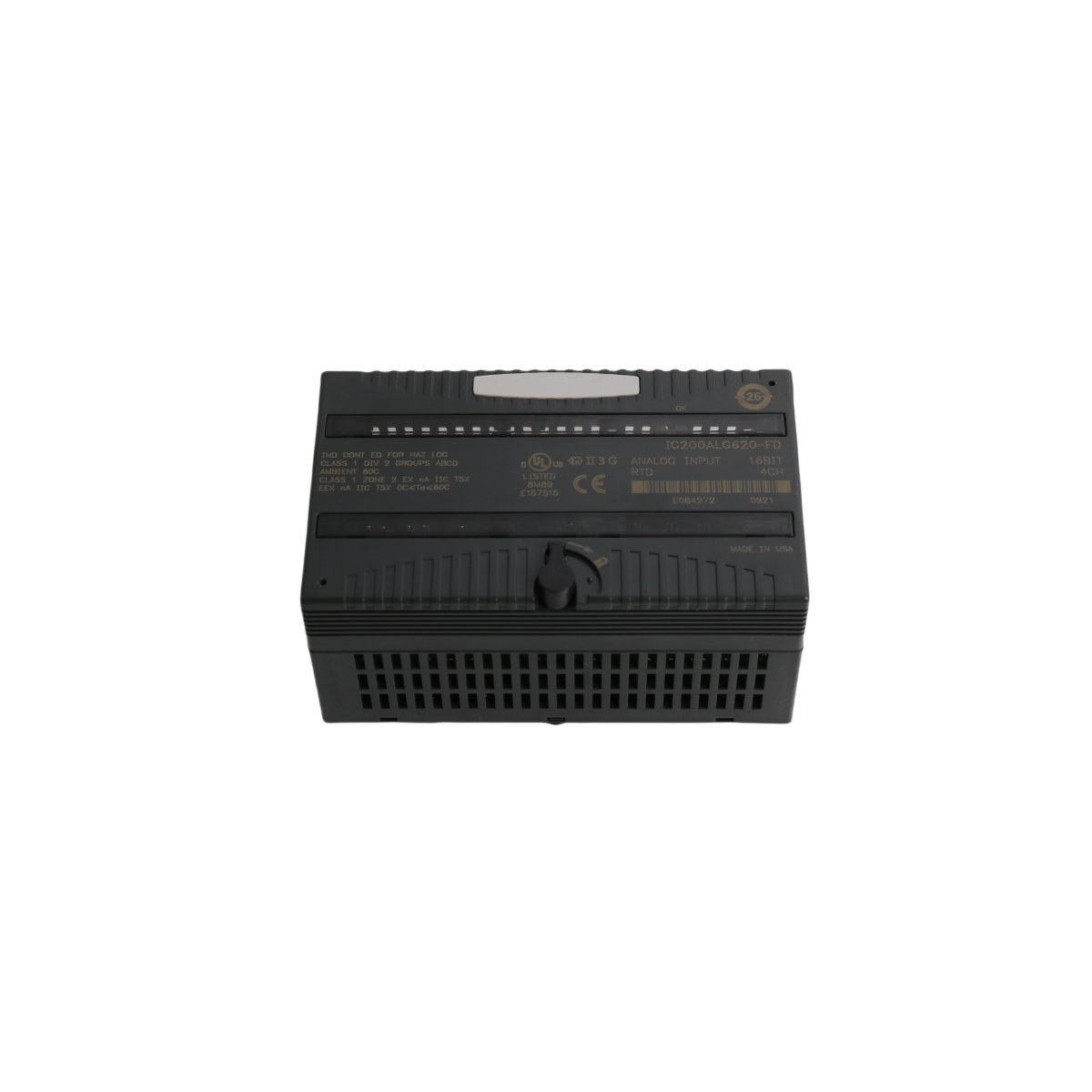

The GE Fanuc IC200ALG620 is a high-precision VersaMax analog input module that provides four dedicated channels for Resistance Temperature Detector (RTD) sensors. Utilizing 16-bit resolution, this module converts temperature signals into digital data for accurate thermal monitoring and process control.

High-Precision Thermal Acquisition

The GE Fanuc IC200ALG620 functions as a specialized interface for Resistance Temperature Detectors within the VersaMax I/O family. By employing an independent 16-bit Analog-to-Digital Converter (ADC) for each of its four channels, the module ensures exceptional signal integrity and high-resolution data acquisition. This hardware supports a diverse array of sensor types, including Platinum, Nickel, Copper, and Nickel/Iron elements. Furthermore, the module accommodates both 2-wire, 3-wire, and 4-wire sensor configurations, allowing engineers to compensate for lead wire resistance and maintain a measurement accuracy of ±0.15% at 25°C.

Intelligent Diagnostics and Fault Reporting

Reliability remains a cornerstone of the IC200ALG620 design through its integrated diagnostic engine. The module actively monitors field wiring and sensor health, providing immediate notification to the host controller if it detects an open RTD, a short circuit, or out-of-range values. To simplify local troubleshooting, the module features a green “OK” LED to indicate healthy internal operation and an amber “Fault” LED to signal wiring or sensor errors. These proactive reporting features significantly reduce maintenance downtime by pinpointing the exact nature of the failure within the automation loop.

Robust Industrial Integration

The IC200ALG620 prioritizes system protection by incorporating rigorous electrical isolation. It provides 250 VAC isolation between user inputs and logic circuits, alongside a 1500 VAC rating from input to frame ground. These safety barriers protect the VersaMax backplane from high-voltage transients often found in industrial settings. Despite its advanced capabilities, the module maintains a compact footprint and efficient power consumption, drawing only 125 mA from the 5V bus. Because the module is hot-pluggable when used with the appropriate VersaMax carrier, technicians can perform hardware swaps without disrupting the entire PLC system.

Key Technical Characteristics

• 16-Bit High Resolution: Delivers granular temperature data for precise industrial process regulation.
• Multi-Sensor Compatibility: Supports Pt100, Ni120, Cu10, and other common RTD types out of the box.
• Advanced Wiring Support: Integrates 3-wire and 4-wire lead resistance compensation for improved accuracy.
• Rapid Update Rates: Processes channels at 210ms (60Hz) or 230ms (50Hz) to track rapid temperature shifts.
• Comprehensive Protection: Features 1500V AC isolation to guard against electrical interference.
• Software Configuration: Eliminates the need for manual hardware jumpers by allowing all settings to be handled via the PLC software.
