Product Description

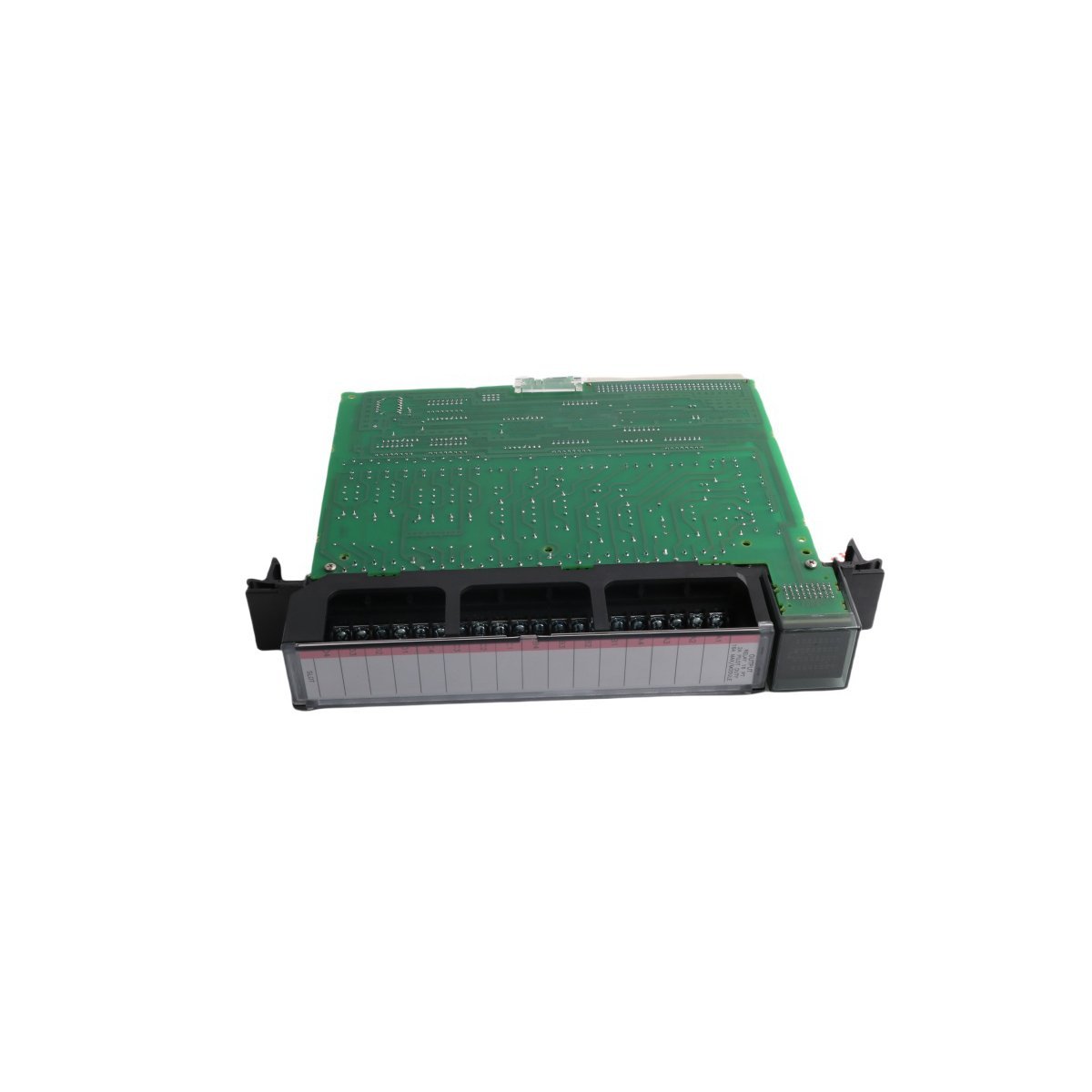

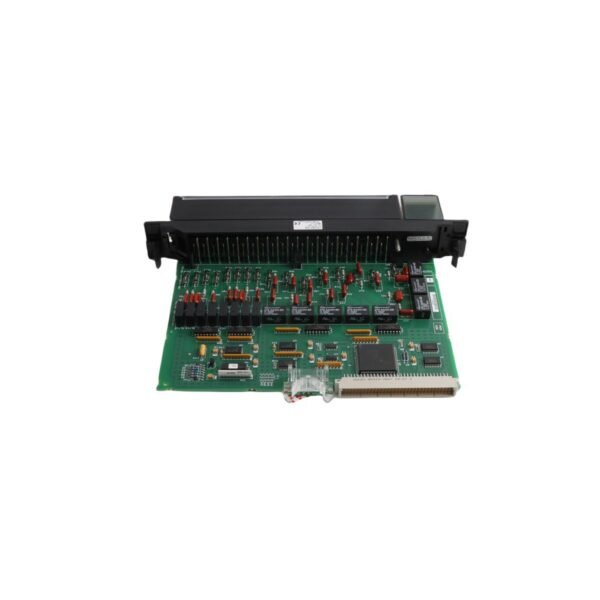

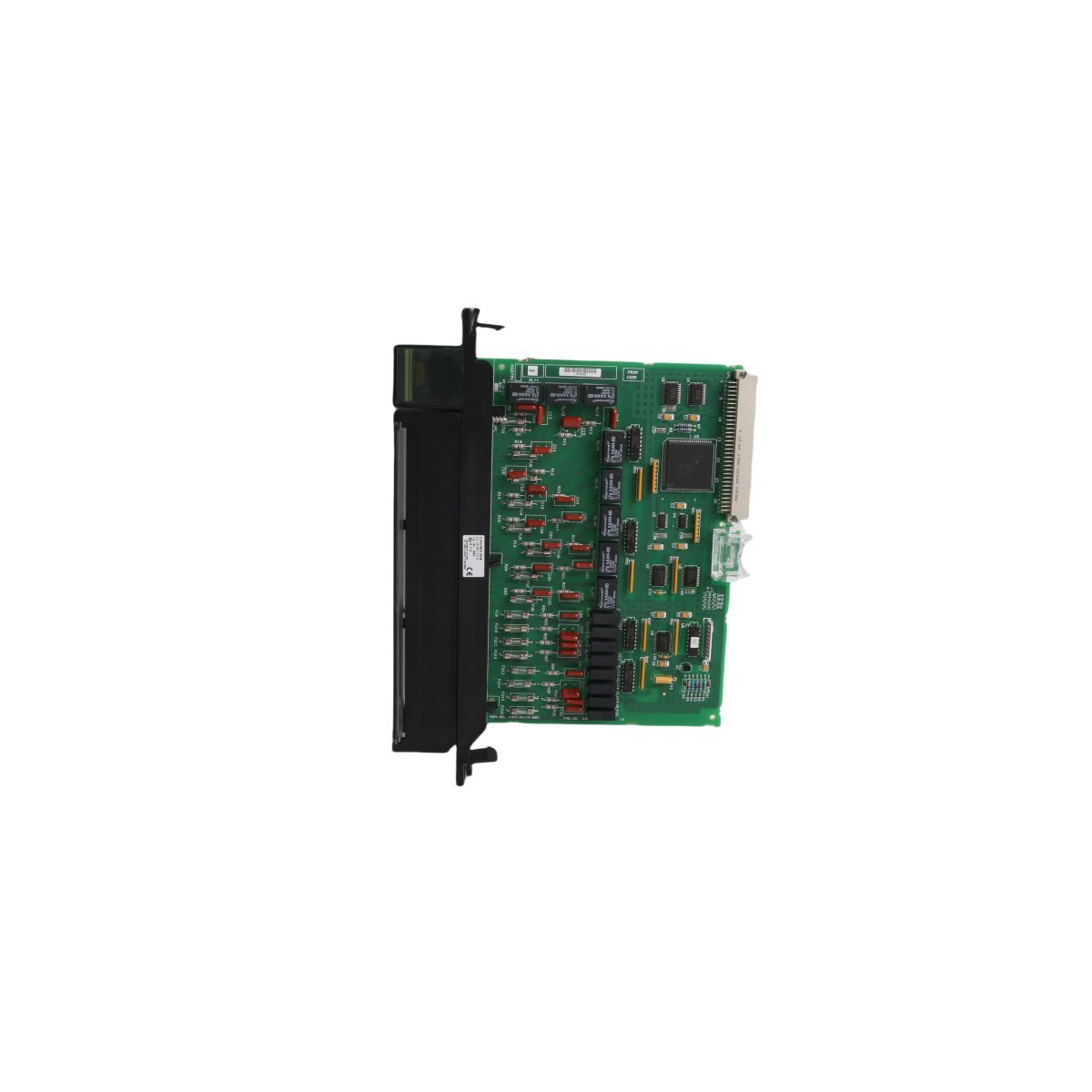

The GE Fanuc IC697MDL940 is a high-reliability discrete relay output module engineered for the Series 90-70 PLC platform. It provides a versatile interface between the controller and various field-side loads, supporting a wide range of AC and DC operating voltages.

Contact Configuration and Power Handling

This module features 16 independent output channels organized to provide maximum flexibility for system designers. The architecture includes 8 Form C (normally open/normally closed) contact outputs and 8 Form A (normally open) contact outputs. To ensure safe operation, the module groups these channels into sets of four. The silver alloy contacts offer superior conductivity and durability, managing loads up to 2.0 Amps for both 240 VAC and 30 VDC applications. Furthermore, the module handles high-voltage DC loads up to 150 VDC at 0.2 Amps on the Form A contacts, making it suitable for specialized industrial power circuits.

Circuit Protection and Longevity

Engineers designed the IC697MDL940 for longevity in demanding environments. Each output channel incorporates a dedicated 3-amp fuse to prevent overcurrent damage, alongside a snubber circuit (47-ohm resistor and 0.015 µF capacitor) that suppresses electrical noise and contact arcing. Consequently, the module boasts a mechanical life expectancy of 20 million cycles. For inductive loads, the module maintains a switching frequency of 20 cycles per minute while offering 1500V isolation to protect the PLC backplane from field disturbances.

Technical Characteristics

• Mixed Output Types: 8 Form C and 8 Form A contacts for diverse wiring requirements.
• Broad Voltage Support: Operates across 120/240 VAC and 5/24/125 VDC ranges.
• Rapid Response: Achieves a maximum switching response time of 10 milliseconds.
• Robust Isolation: Features 1500V group-to-backplane isolation for enhanced safety.
• High Capacity: Supports a maximum of 480 VA for AC loads and up to 60W for DC loads.
