Description

Brief Product Description

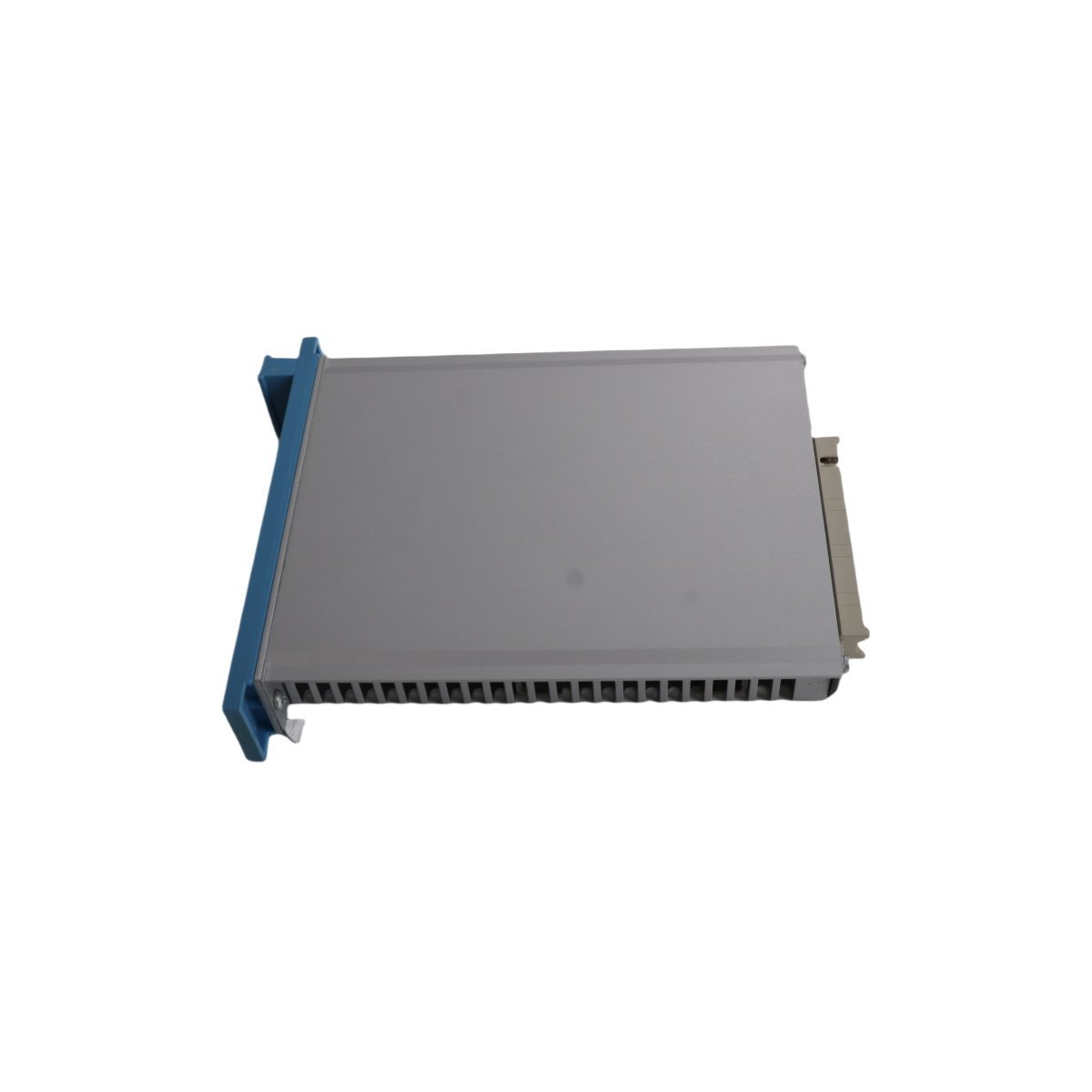

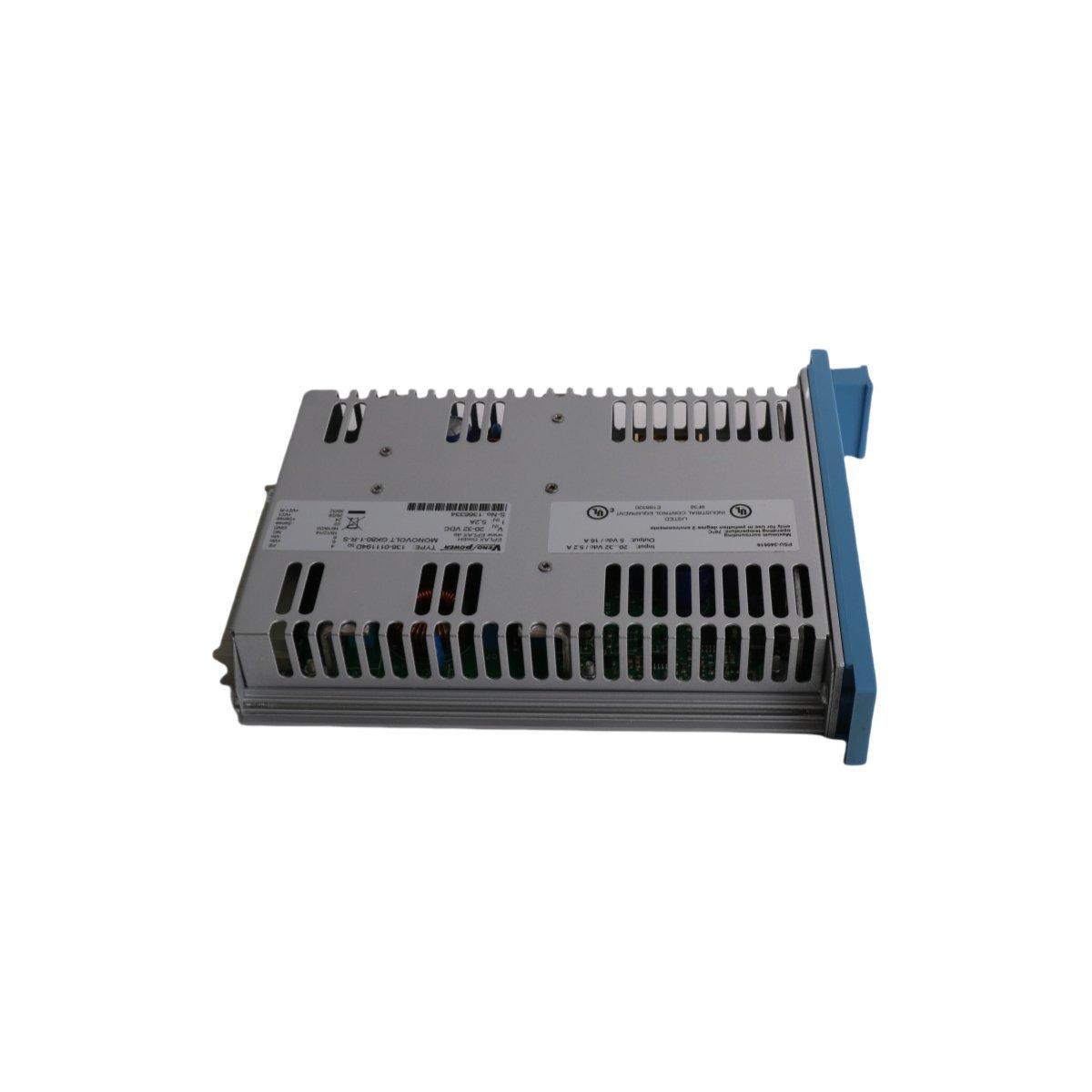

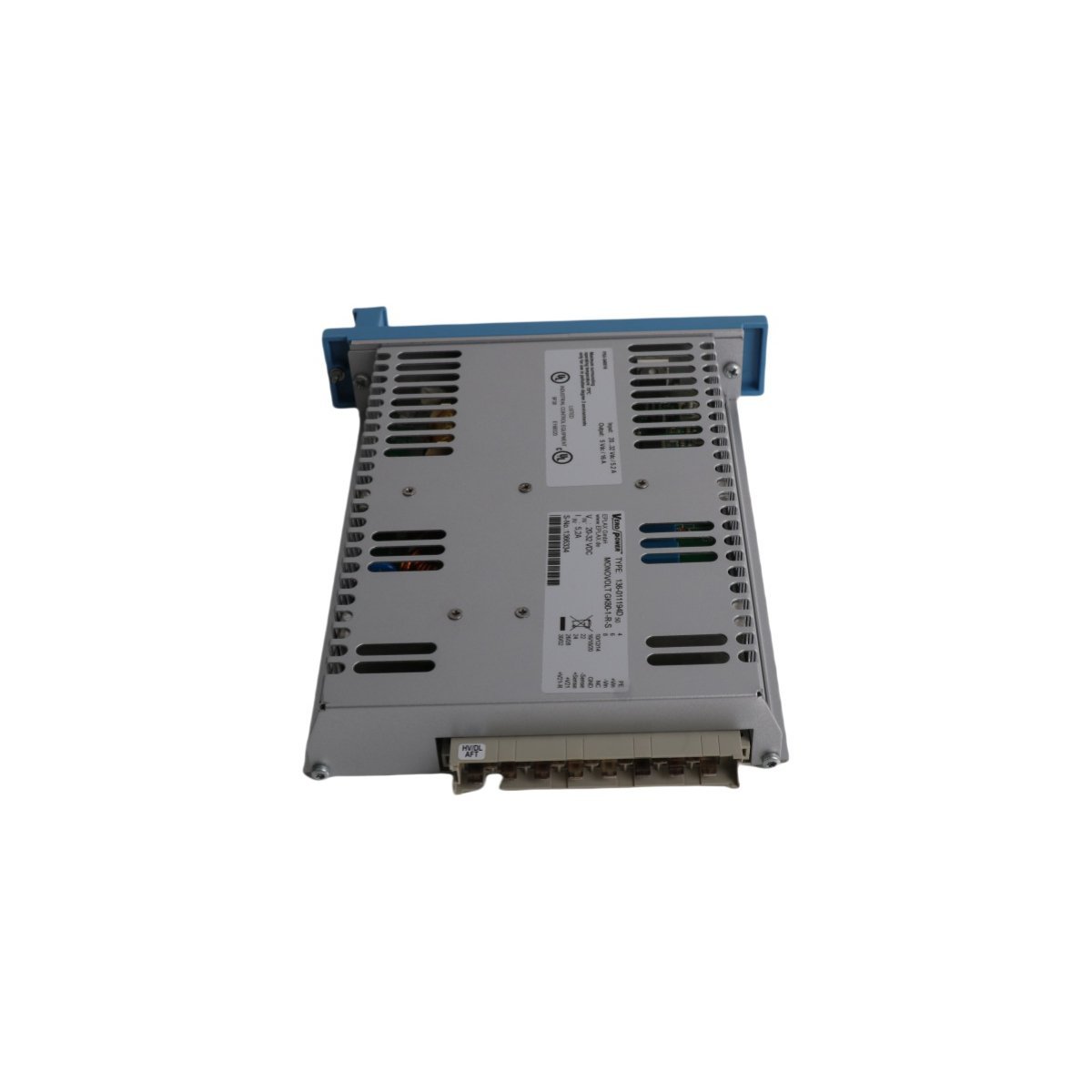

The Honeywell FC-PSU-240516 is a high-availability 24VDC power supply unit engineered for Experion PKS and Safety Manager architectures. It provides stabilized, low-ripple power to critical control hardware in hazardous and demanding industrial environments.

Technical Purpose and System Reliability

The Honeywell FC-PSU-240516 serves as a foundational energy source for sophisticated Distributed Control Systems (DCS) and Safety Instrumented Systems (SIS). By converting primary input voltage into a regulated 24VDC output, this unit ensures that high-performance processors and I/O modules operate within precise electrical tolerances. Because industrial uptime is non-negotiable, Honeywell utilizes advanced switching technology that achieves approximately 92% efficiency. This high efficiency reduces internal heat generation, which significantly extends the operational lifespan of both the power supply and the surrounding cabinet components.

Resilient Design for Harsh Operations

Honeywell constructed the FC-PSU-240516 with a ruggedized metal chassis to withstand the mechanical and environmental stresses of heavy industry. The unit maintains full functionality across an impressive temperature range of -40°C to +70°C, making it suitable for unconditioned field enclosures in extreme climates. Furthermore, the hardware features a Mean Time Between Failures (MTBF) exceeding 500,000 hours. This exceptional reliability makes the module a preferred choice for mission-critical sectors such as offshore oil platforms, chemical processing, and large-scale power generation.

Safety Integration and Protection

The FC-PSU-240516 integrates seamlessly into Fail-Safe and redundant power distribution schemes. Internal protection circuitry actively monitors for overvoltage, short circuits, and current overloads, instantly isolating faults to prevent damage to downstream PLC or DCS hardware. Additionally, the unit produces minimal ripple voltage (typically less than 1%), which protects sensitive analog signals from electronic noise interference. Its compact DIN-rail mounting profile allows for rapid installation and maximizes available space within high-density control panels.

Key Technical Characteristics

• Voltage Regulation: Delivers a stable 24VDC output with minimal deviation for precise control logic.
• Environmental Protection: Operates reliably in extreme temperatures and high-vibration settings.
• Energy Efficiency: Advanced switching design minimizes power loss and thermal emissions.
• Safety Certification: Designed for use in safety-related systems requiring high integrity.
• Mounting Flexibility: Features a standardized DIN-rail interface for quick cabinet integration.

Technical Specifications
