Description

Brief Product Description

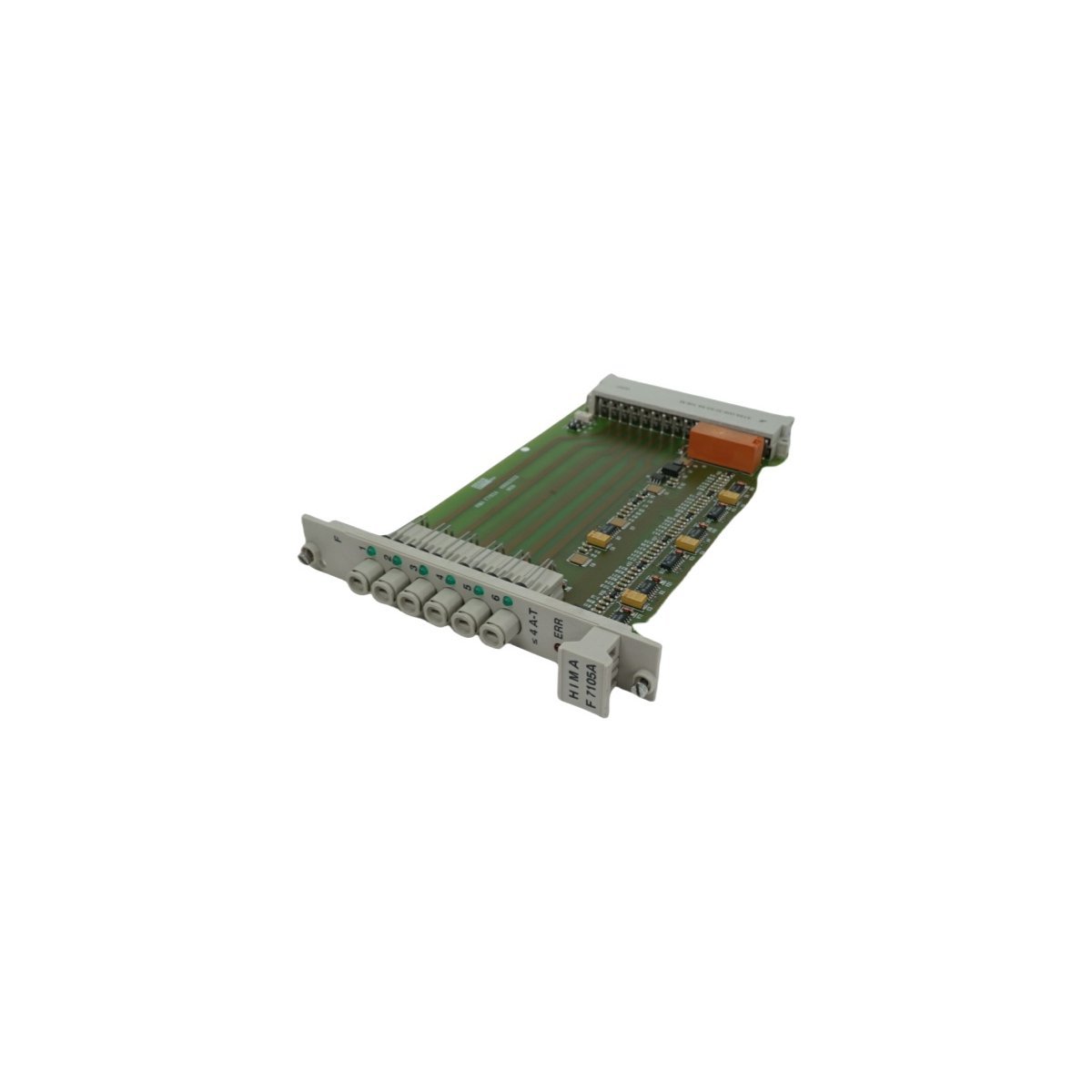

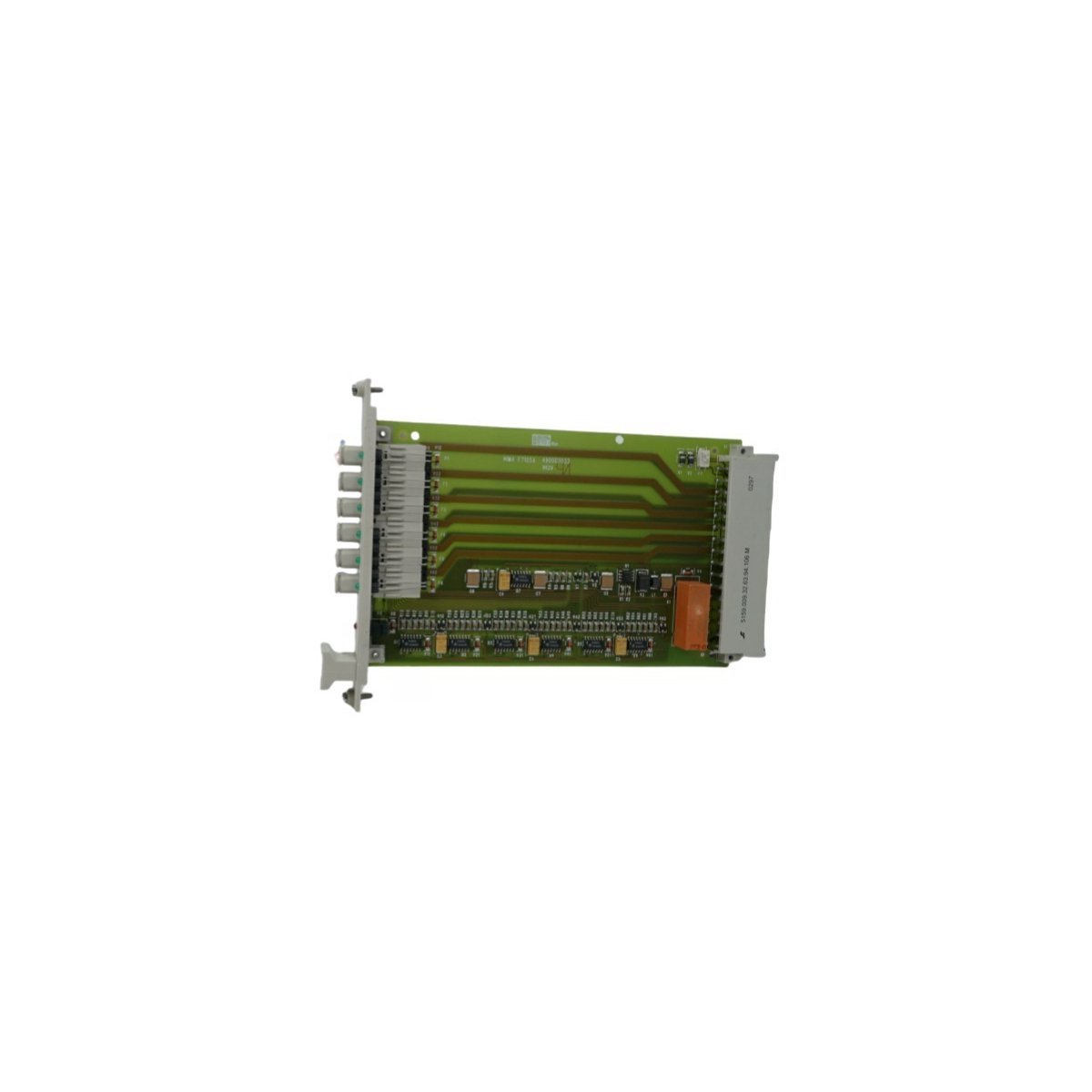

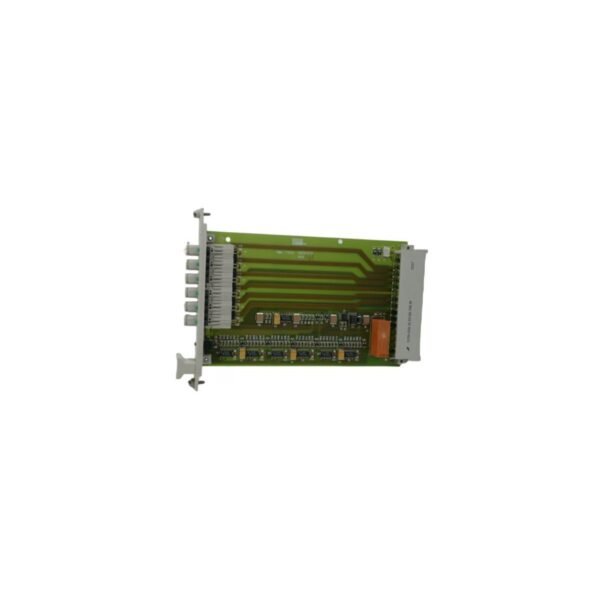

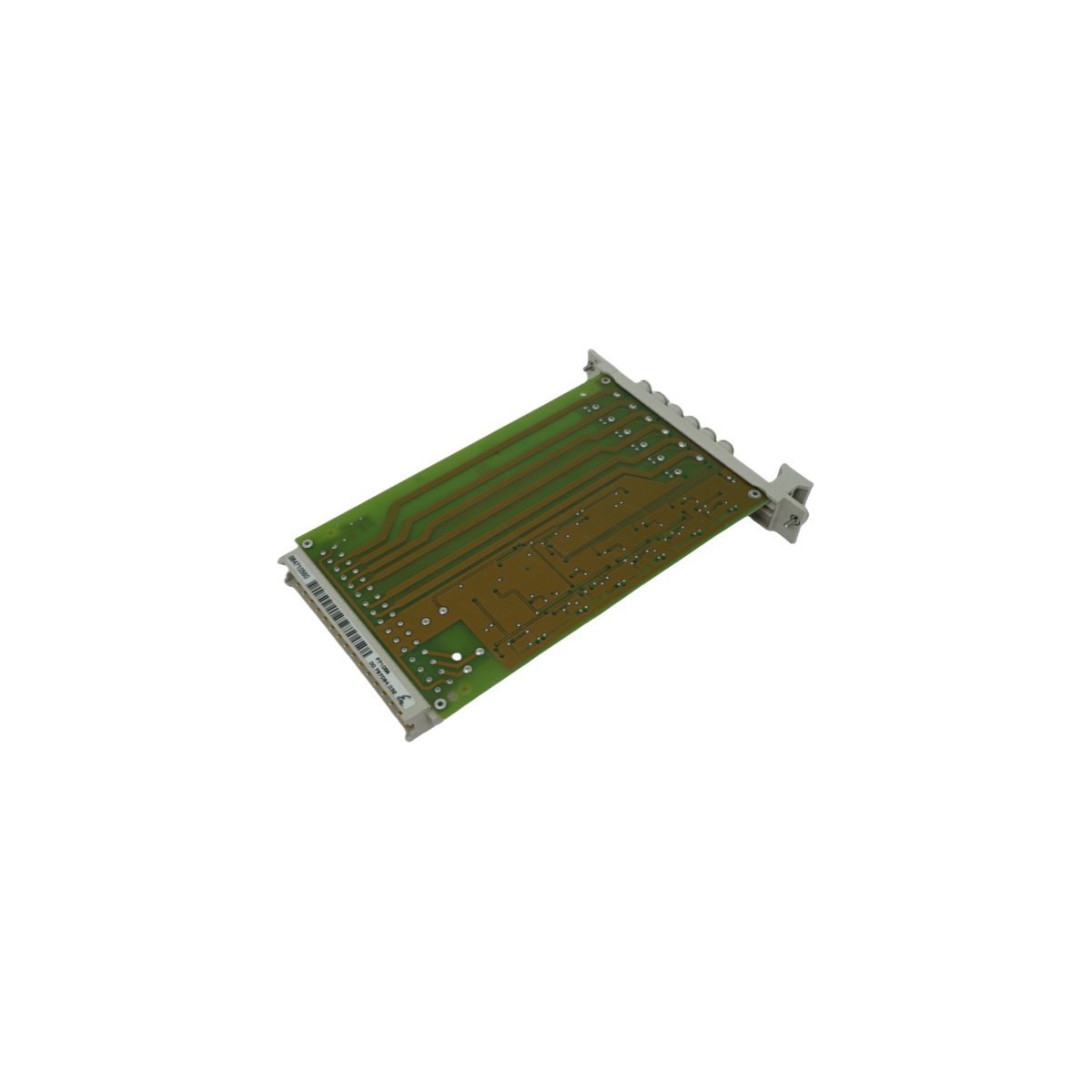

The HIMA F7105A is a high-precision analog input module designed for safety-critical H41q and H51q systems, enabling stable data acquisition across diverse industrial sensor networks. This module ensures accurate monitoring of process variables with integrated diagnostic capabilities and a rugged German-engineered design.

Advanced Signal Processing for Safety Operations

The HIMA F7105A facilitates the conversion of field-level analog signals into safety-critical data for industrial automation systems. By supporting high-resolution sampling, this module allows operators to monitor critical process variables with exceptional accuracy. The hardware architecture specifically supports the H41q and H51q system ranges, ensuring that analog data remains consistent even during high-traffic processing tasks. Furthermore, the F7105A features integrated power stabilization that maintains operational integrity across a broad thermal range, spanning from -20°C to +70°C.

Reliable Communication and Industrial Interface

Connectivity serves as a cornerstone of the F7105A module’s design. It utilizes the MODBUS RTU protocol to provide a standardized communication bridge between the safety controller and external field devices. This integration ensures a seamless flow of data across the plant’s distributed control system (DCS). Additionally, the module features high-performance relay contacts rated at 3A @ 24VDC, which provide dependable switching for associated actuators or alarm circuits. This combination of input sensitivity and output reliability makes the F7105A a versatile choice for complex safety instrumented functions (SIF).

Compact and Ruggedized Architecture

Engineers designed the F7105A to maximize cabinet efficiency without sacrificing technical performance. Its lightweight and compact form factor allows for high-density installation in environments where space remains at a premium. Despite its small size, the module adheres to the highest durability standards, utilizing premium materials to resist the electrical noise and vibration inherent in heavy manufacturing sectors. Because HIMA manufactures the F7105A in Germany, it meets all relevant international safety standards, providing long-term reliability for legacy and modern safety infrastructures alike.

Key Technical Characteristics

• Precision Analog Monitoring: High-resolution inputs ensure exact data acquisition from a variety of industrial sensors.
• Safety-Certified Performance: Purpose-built for high-integrity safety systems requiring SIL-compliant components.
• Standardized Protocols: Supports MODBUS RTU for simplified integration with diverse automation hardware.
• Robust Switching Capacity: Includes integrated relay outputs capable of handling 3A at 24VDC.
• Extreme Thermal Tolerance: Validated for continuous operation in temperatures ranging from -20°C to +70°C.
• Optimized Footprint: Space-saving dimensions allow for efficient installation in standard control racks.

Technical Specifications
