Description

Technical Overview

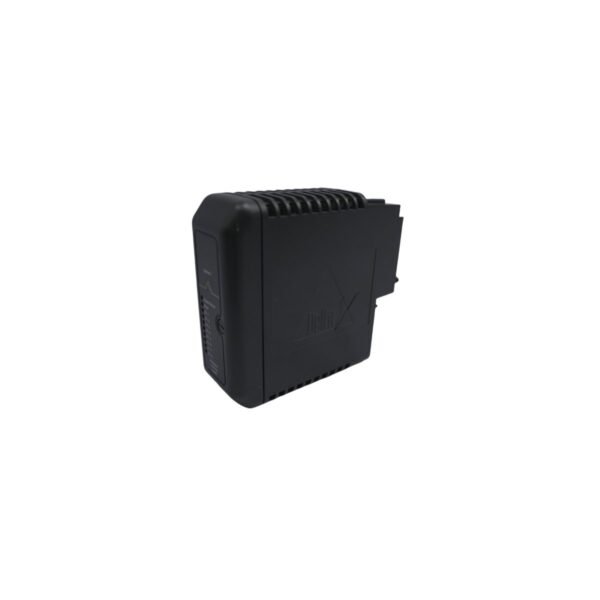

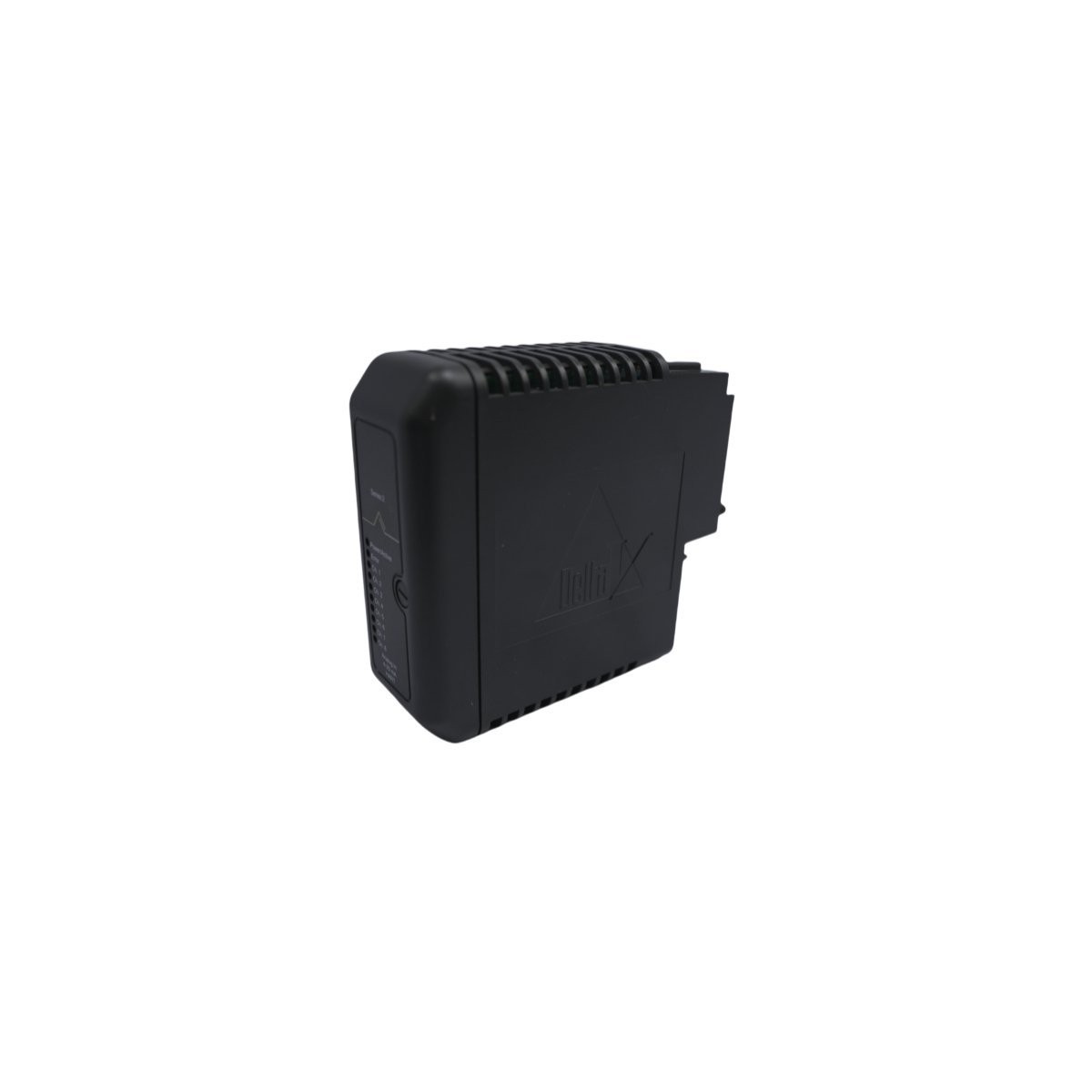

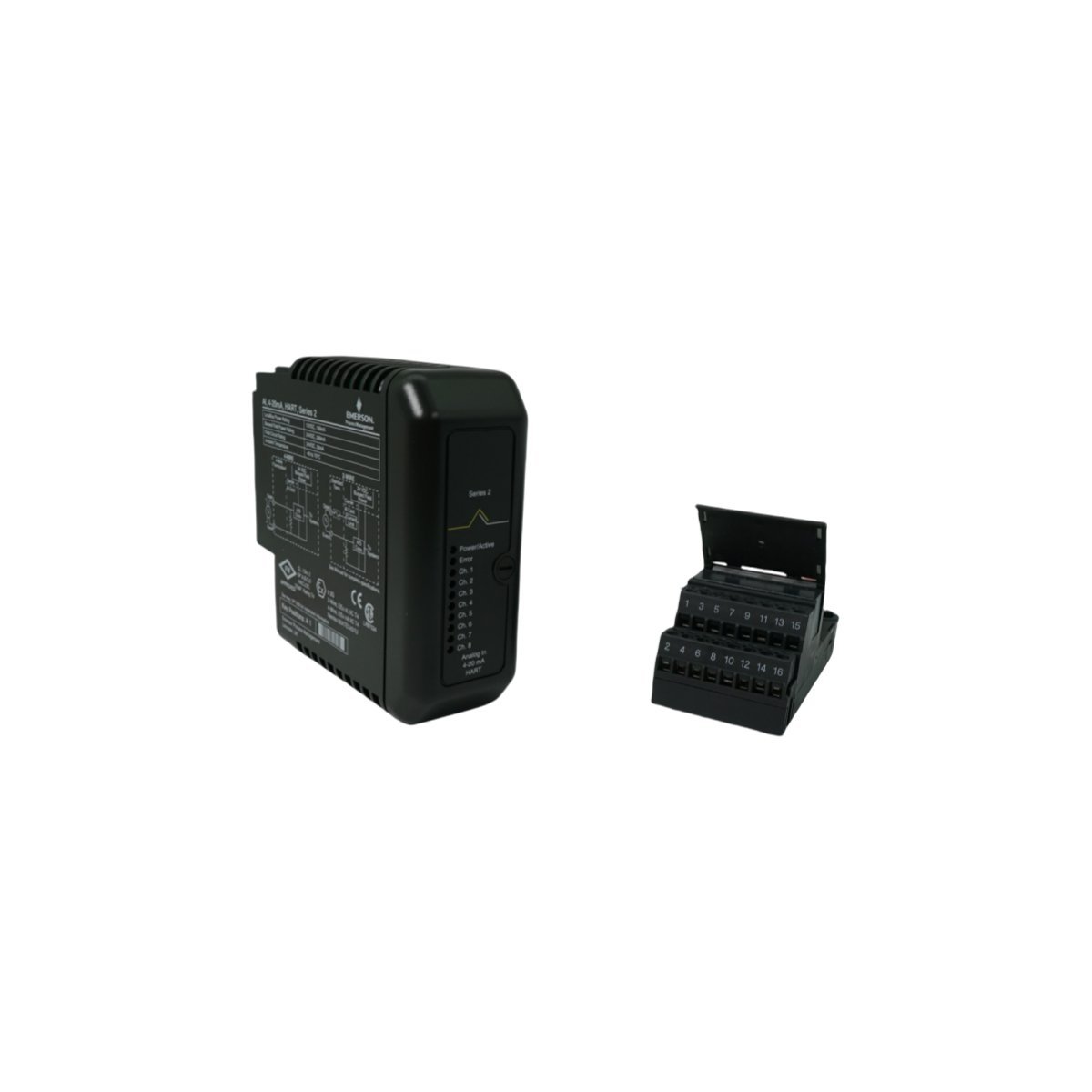

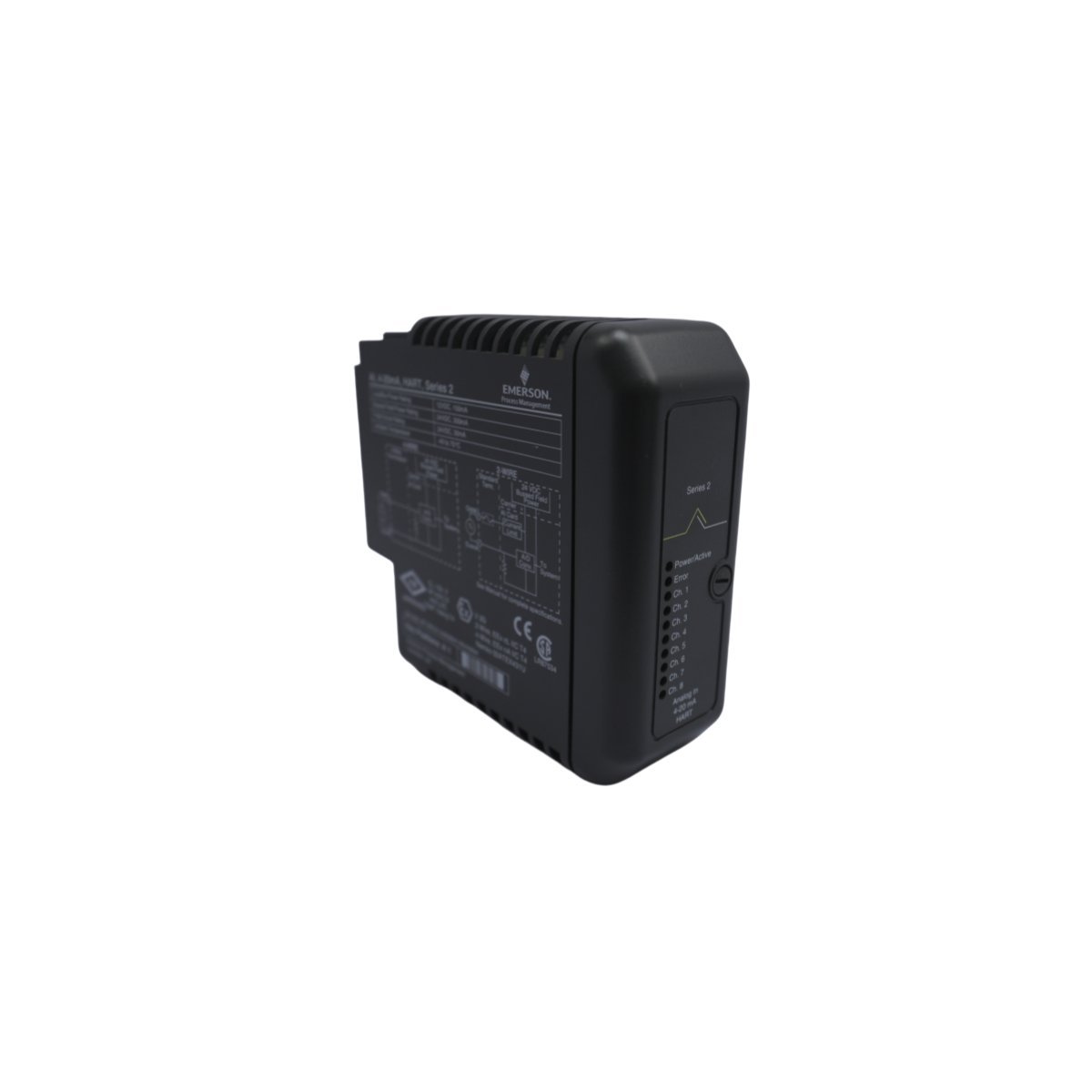

Emerson engineered the KJ3222X1-BA1 (Part Number 12P2532X122) to provide high-precision data acquisition within the DeltaV™ M-series Distributed Control System (DCS). This Analog Input 2 HART module acts as a sophisticated interface between field-mounted HART-capable transmitters and the centralized control environment. By supporting the Highway Addressable Remote Transducer (HART) protocol, the module enables the digital overlay of diagnostic and calibration data onto the standard 4-20mA analog signal. Consequently, maintenance teams can monitor instrument health and process variables in real time without requiring additional field wiring.

Performance and Reliability

• Manufacturer: Emerson Process Management
• System Range: DeltaV™ M-series I/O Subsystem
• Model Number: KJ3222X1-BA1
• Order Number: 12P2532X122
• Module Type: Analog Input with HART protocol support
• Input Voltage: 24 VDC Nominal
• Isolation Protection: Integrated electrical isolation for voltage surge defense
• Physical Mass: 0.3 kg
• Form Factor: 4.3 cm x 12.5 cm x 10.5 cm
• International Standards: HS Code 8537101190

Operational Characteristics

The KJ3222X1-BA1 prioritizes rapid signal processing to ensure that the DCS receives accurate process data with minimal latency. Because Emerson designed this module for high-density configurations, it effectively maximizes cabinet space while maintaining efficient thermal management. Furthermore, the built-in electrical isolation safeguards the controller backplane from field-side voltage fluctuations, which significantly enhances overall system stability and prevents hardware damage.

Transitioning into the installation phase, the module utilizes a “plug-and-play” architecture that integrates seamlessly with existing DeltaV carriers. This streamlined design reduces configuration hours and simplifies hardware commissioning. Moreover, the card’s rugged construction allows it to function reliably in volatile environments where temperatures range from -20°C to +70°C, ensuring consistent performance in remote industrial locations.

Industry Applications

Technicians and systems integrators primarily deploy the 12P2532X122 module in critical infrastructure sectors where precision is non-negotiable. Key industries include:

• Chemical Processing: Monitoring flow and pressure sensors in volatile reaction loops.
• Oil and Gas: Acquiring data from HART transmitters across extraction and refining sites.
• Power Generation: Ensuring steady-state monitoring of turbine and cooling systems.
• Water Treatment: Managing diagnostic data from distributed analytical instruments.
