Description

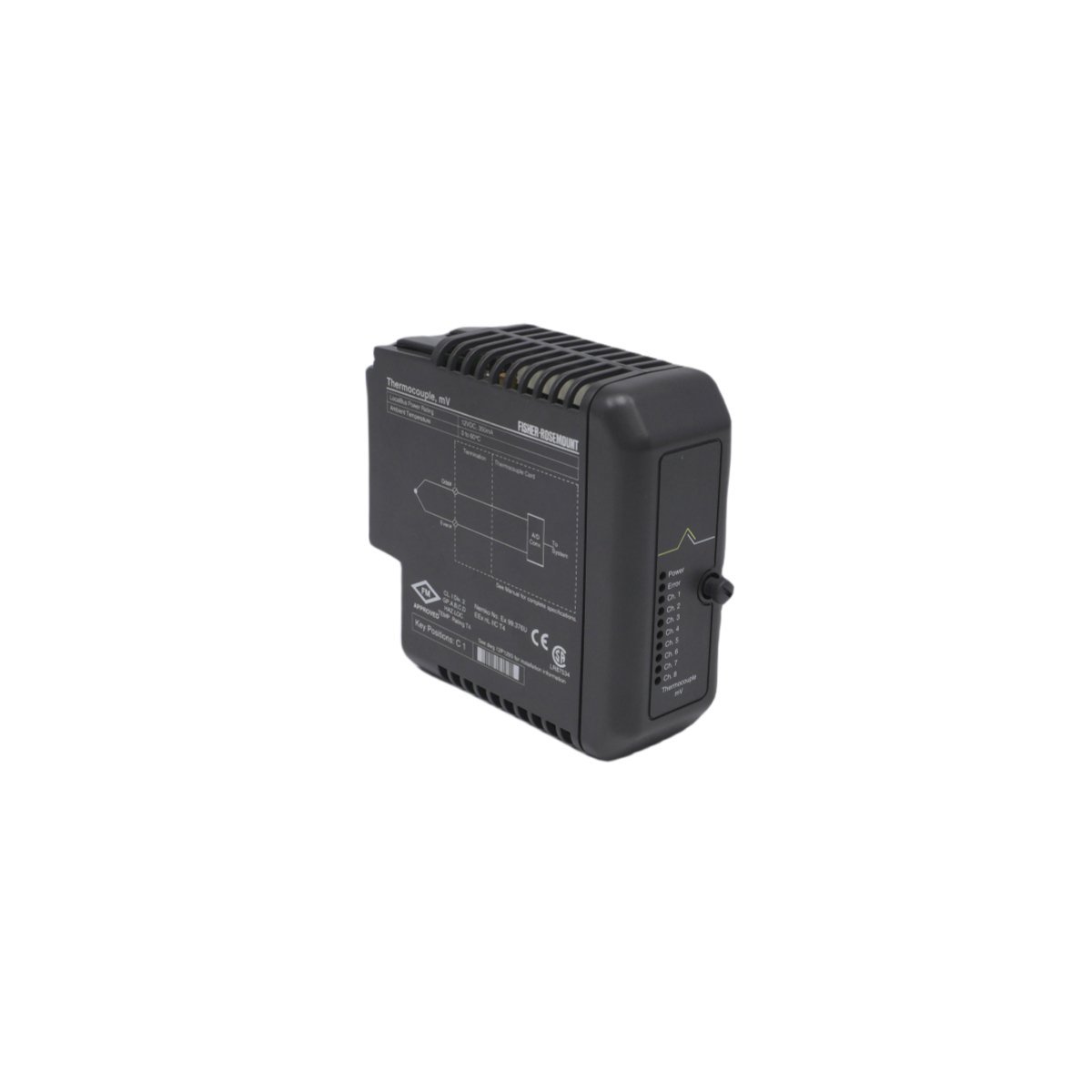

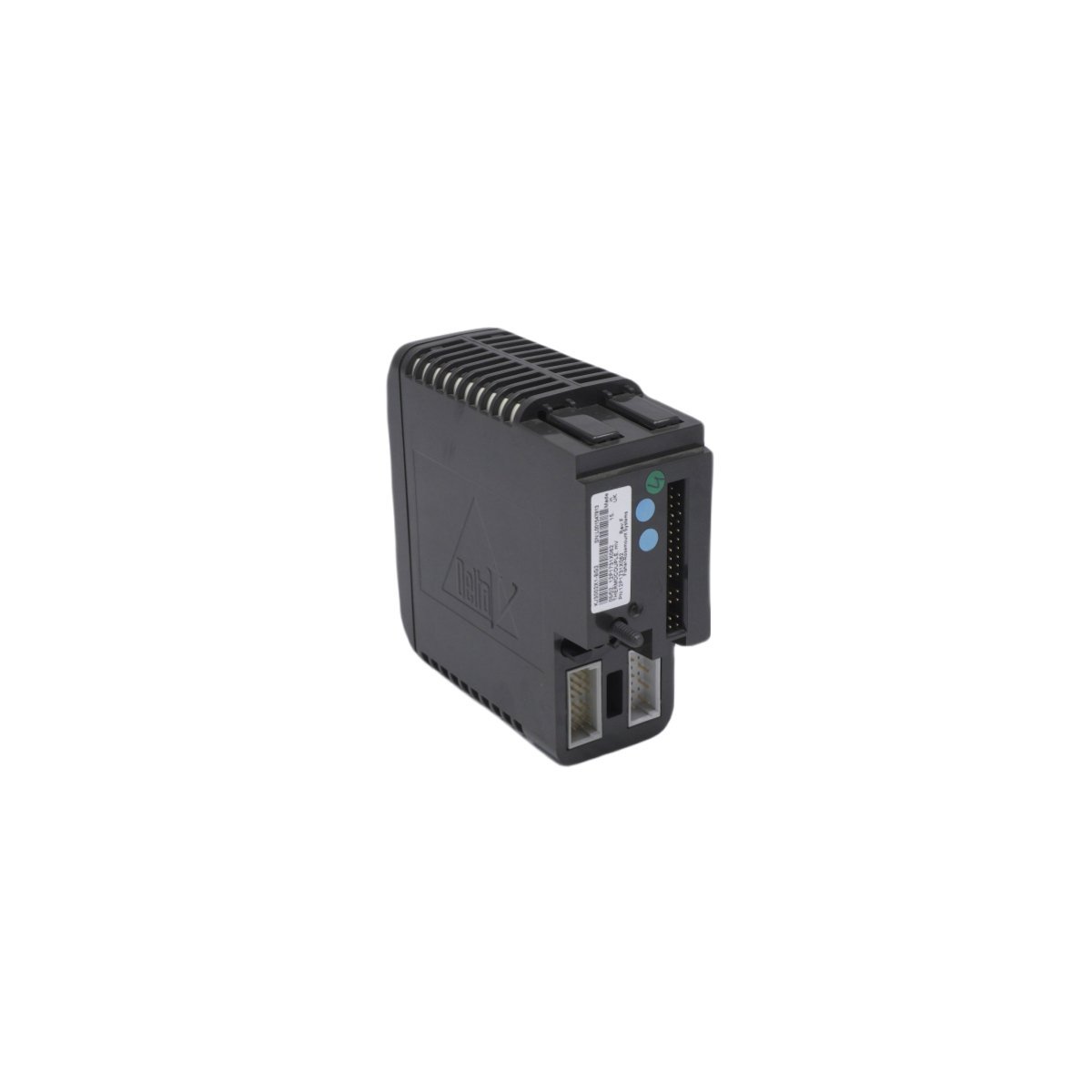

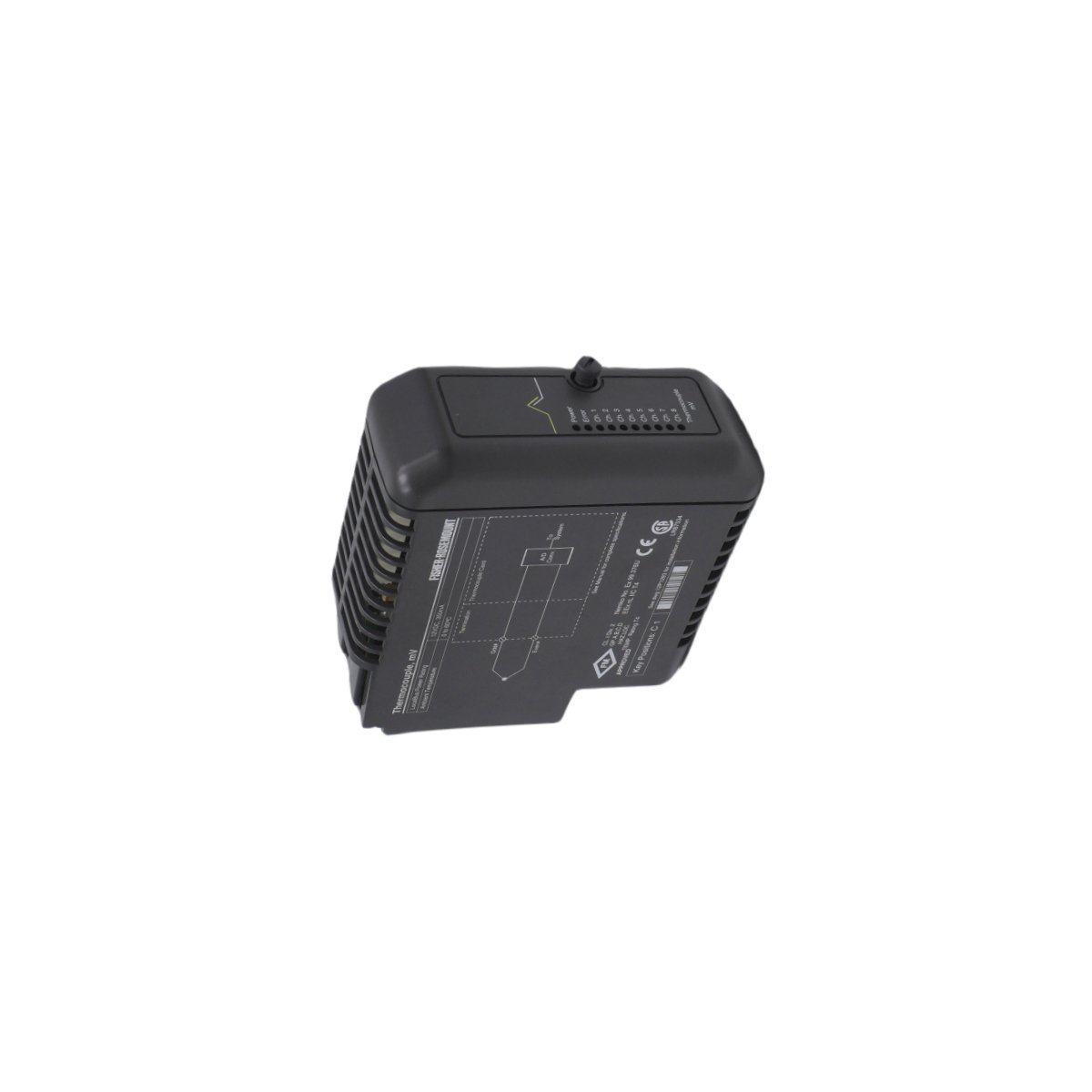

The Emerson KJ3002X1-BG2, also identified by part numbers 12P1731X032 and VE4003S5B1, serves as a specialized analog input card for the DeltaV M-series I/O subsystem. This 8-channel module specifically handles low-level signals from thermocouples and millivolt sensors. It converts these precision analog signals into digital data for the DeltaV distributed control system. The hardware utilizes high-resolution conversion technology to maintain signal integrity in demanding process environments.

Core Functionality and Applications

This module provides the interface between field sensors and the central control logic. It supports various thermocouple types and provides cold junction compensation. Engineers typically deploy this card in industries requiring strict thermal regulation, such as chemical processing and power generation. The card transmits real-time temperature data to the controller to ensure process stability and safety.

Key Features and Specifications

Industrial Reliability and Design

Emerson designed this module for continuous operation in high-interference areas. The card features advanced filtering to remove electrical noise from sensor readings. Its modular footprint allows for hot-swapping during active system maintenance. This design reduces system downtime and simplifies hardware upgrades within the DeltaV environment. The robust construction meets the standards required for hazardous industrial locations.
