Description

Product Overview

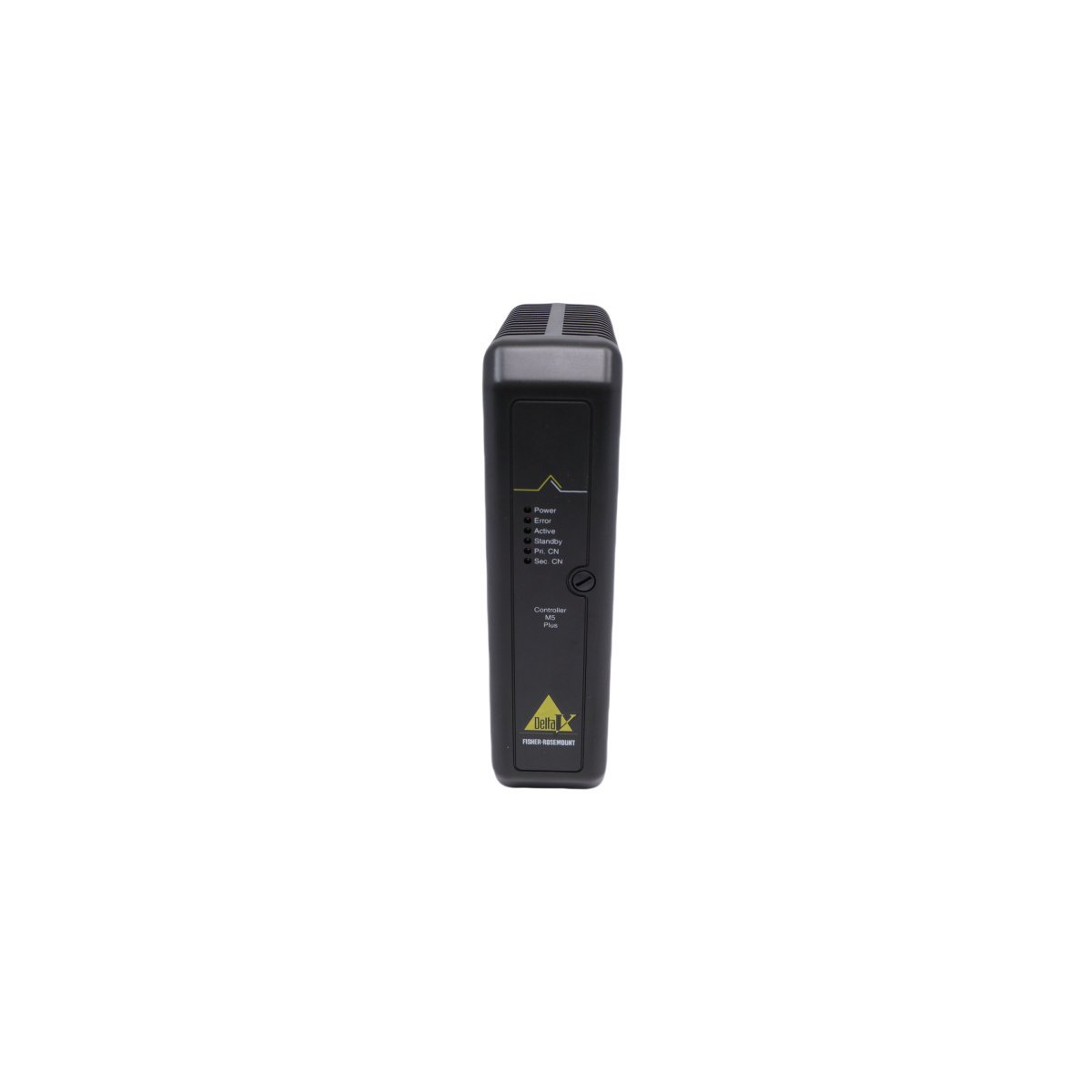

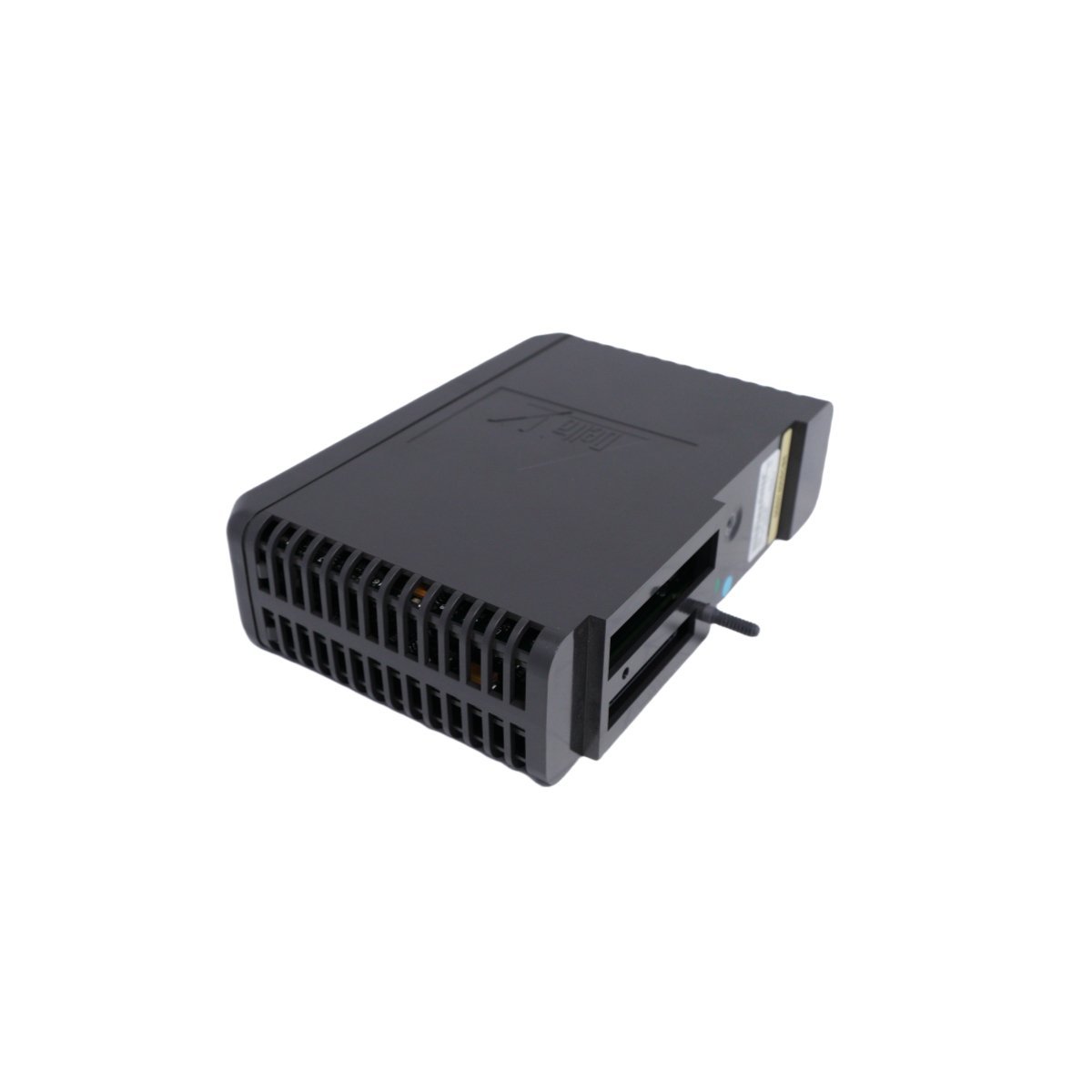

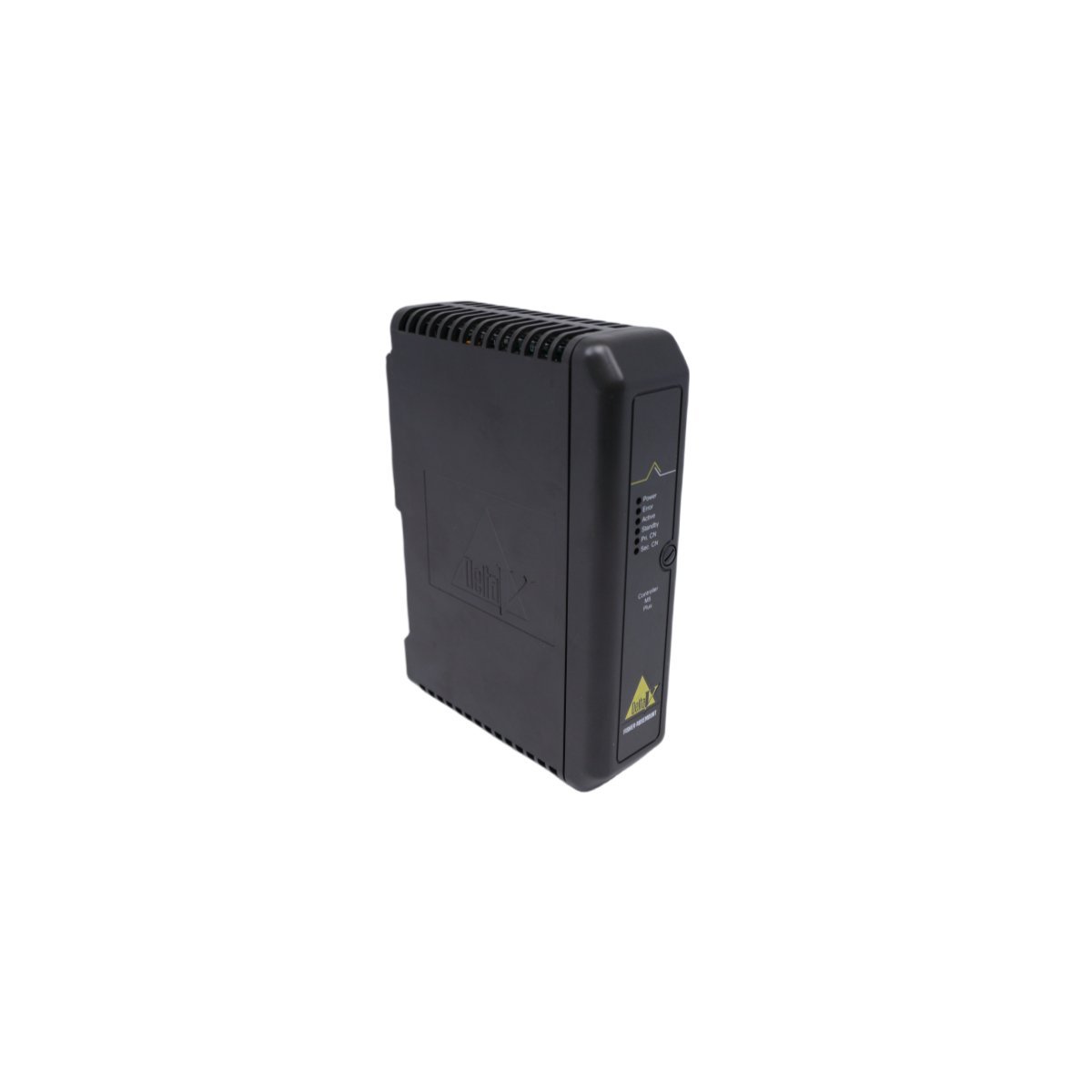

The Emerson KJ2002X1-CA1 12P1509X102 is a high-performance M5+ Controller designed specifically for the DeltaV SIS™ process safety system. This module executes critical safety logic to protect industrial assets and personnel by providing reliable, redundant control in Safety Instrumented System (SIS) applications.

Critical Safety Logic Execution

The KJ2002X1-CA1 M5+ module serves as the computational heart of the DeltaV SIS architecture. This controller specifically manages safety-critical loops, ensuring that process industries—such as petrochemical and gas processing—maintain a state of operational security. By executing logic independently from the basic process control system (BPCS), the module prevents hazardous events even if the primary control layer fails. Furthermore, the M5+ architecture supports complex safety instrumented functions (SIF) with high-speed processing, allowing the system to initiate emergency shutdowns or isolation procedures within strict safety time requirements.

Scalable Redundancy and Fault Tolerance

Emerson engineered the 12P1509X102 with a focus on maximum availability and system uptime. The module supports flexible redundancy configurations, which allow a secondary controller to take over operations instantaneously without disrupting the safety function. This transition occurs seamlessly, ensuring that the protected process remains online and secure. Additionally, the integrated DeltaV SIS environment simplifies the management of these redundant pairs, providing a unified hardware and software platform that reduces the likelihood of human error during configuration or maintenance activities.

Proactive Health Monitoring and Diagnostics

To ensure long-term reliability, the KJ2002X1-CA1 features comprehensive self-diagnostic capabilities that continuously verify the integrity of the internal hardware and memory. These advanced algorithms detect potential failures or signal discrepancies before they impact the safety of the plant. Consequently, maintenance teams can shift from reactive repairs to proactive upkeep, utilizing the real-time health data provided by the controller. This continuous monitoring, combined with the module’s robust hardware design, ensures that the system meets the stringent SIL (Safety Integrity Level) requirements necessary for modern industrial compliance.

Technical Specifications
