Description

Product Overview

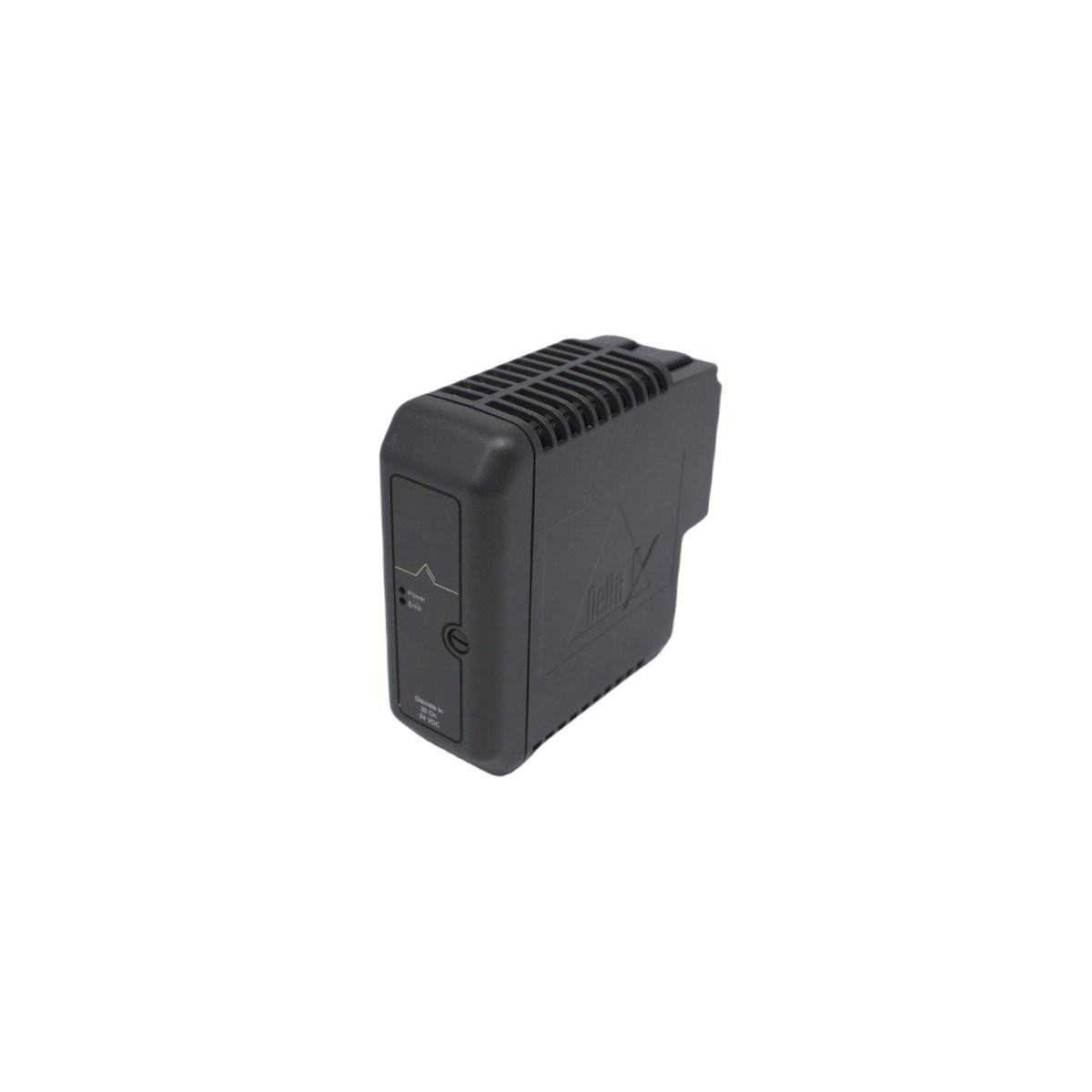

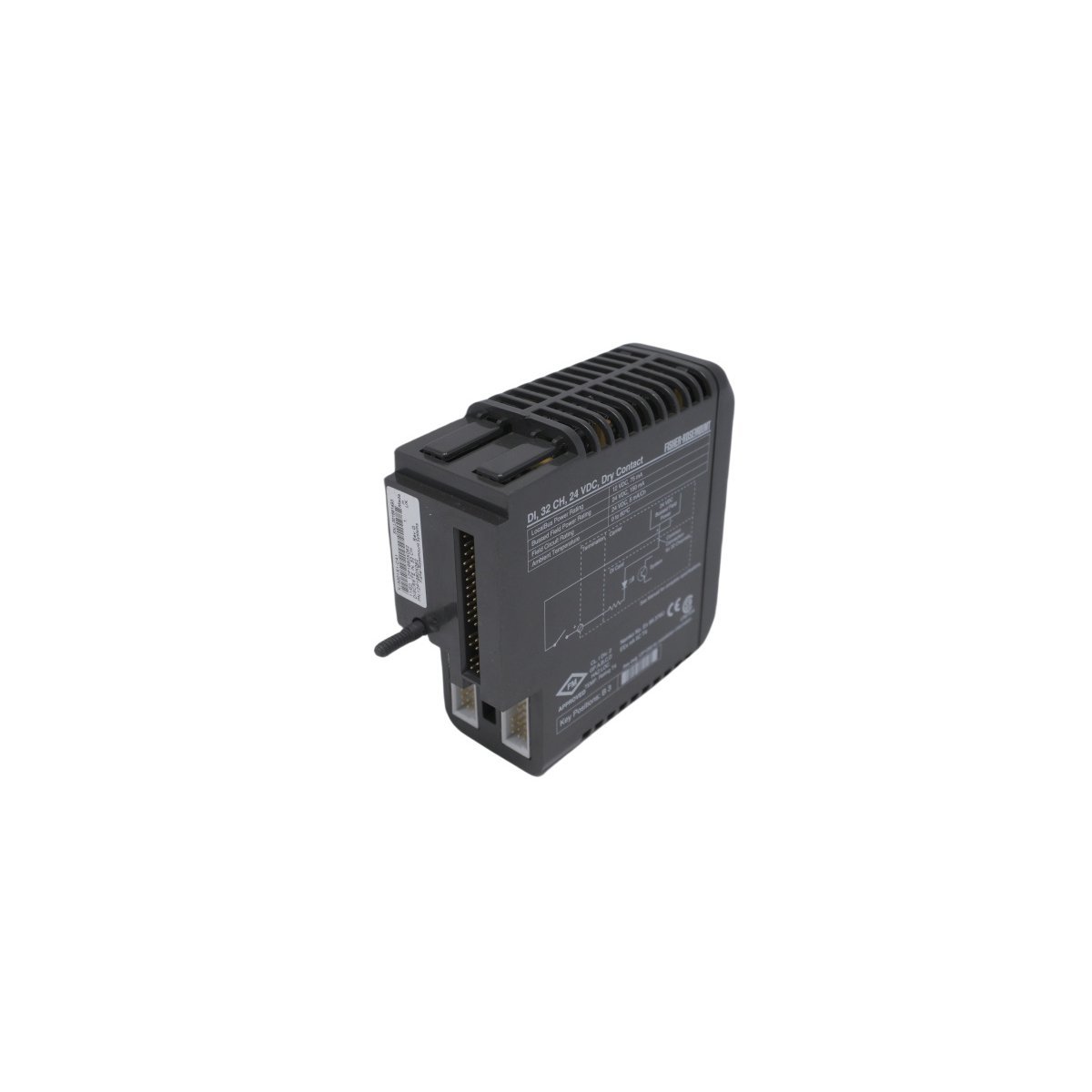

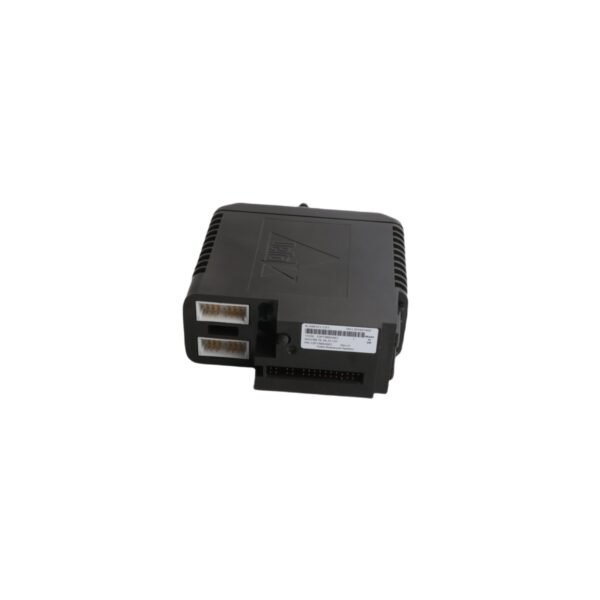

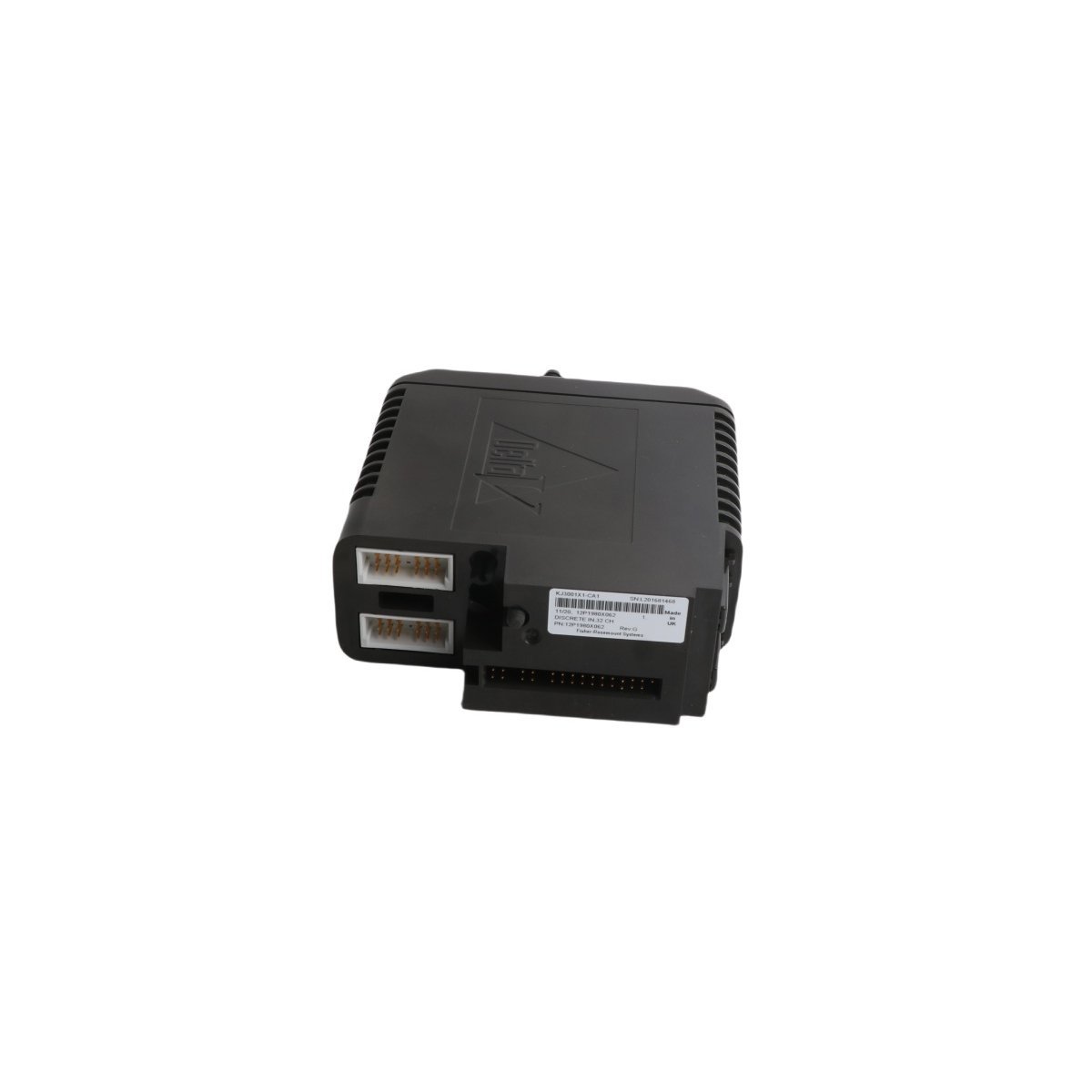

The Emerson KJ3001X1-CA1 12P1980X062 is a high-integrity dry contact input card engineered for the DeltaV SIS™ process safety system. It serves as a critical interface for safety-instrumented functions by monitoring the state of isolated field switches and sensors without requiring external wetting voltage.

Enhanced Safety Logic Integration

The KJ3001X1-CA1 provides the essential link between field-level safety devices and the DeltaV SIS logic solver. Because this module specializes in dry contact sensing, it effectively monitors “open” or “closed” states from pressure switches, limit switches, and emergency stop buttons.¹ This architecture simplifies the safety loop by eliminating the need for complex external power distribution for sensing circuits. Furthermore, the card integrates seamlessly with the DeltaV Explorer environment, allowing engineers to configure safety logic parameters and diagnostics with high precision. By utilizing this dedicated hardware, facilities ensure that their Safety Instrumented Systems (SIS) remain compliant with rigorous international safety standards.

Reliable Data Acquisition for Process Protection

Reliability remains the core focus of the 12P1980X062 design, particularly for environments where data integrity is non-negotiable. The module continuously scans input states and transmits real-time status updates to the system controllers, enabling immediate response to process excursions. Transitioning from manual monitoring to this automated digital input solution reduces the risk of human error and increases the speed of safety interventions. Additionally, the card features robust isolation properties that prevent electrical faults in the field from propagating back to the sensitive control network. This defensive design ensures that the safety system remains operational even under adverse electrical conditions.

Industrial Durability and Maintenance

Emerson constructed the KJ3001X1-CA1 to withstand the rigorous demands of industrial control rooms and remote instrument enclosures. Its compact form factor optimizes rail space while its modular nature supports hot-swapping, allowing maintenance personnel to replace cards without interrupting the safety bus. While this specific part number reached its official discontinuation phase in 2018, it remains a critical spare for maintaining existing DeltaV installations in the oil, gas, and power sectors. The unit’s proven track record in the field demonstrates its longevity and resistance to the typical wear and tear of continuous-duty industrial automation.

Technical Specifications
