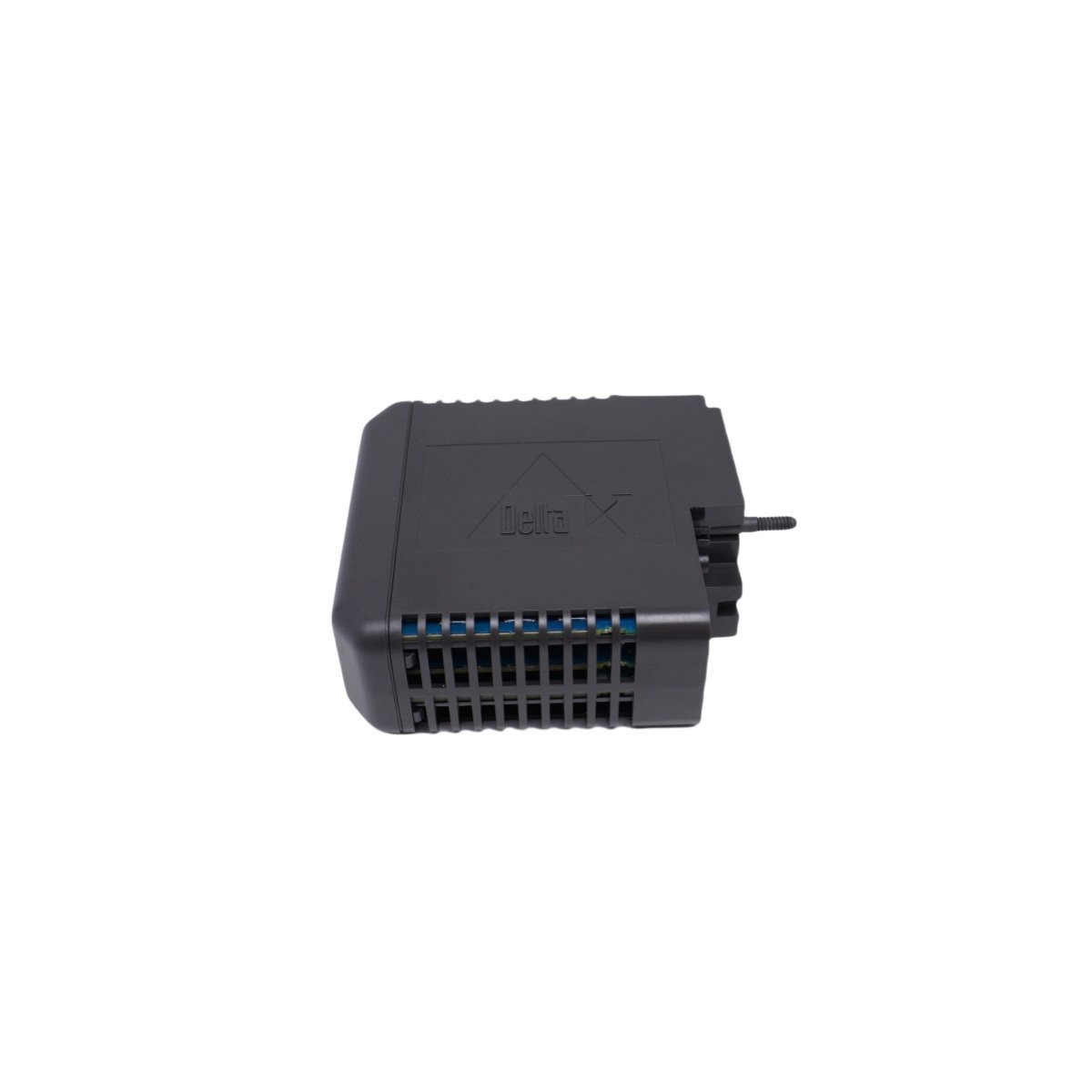

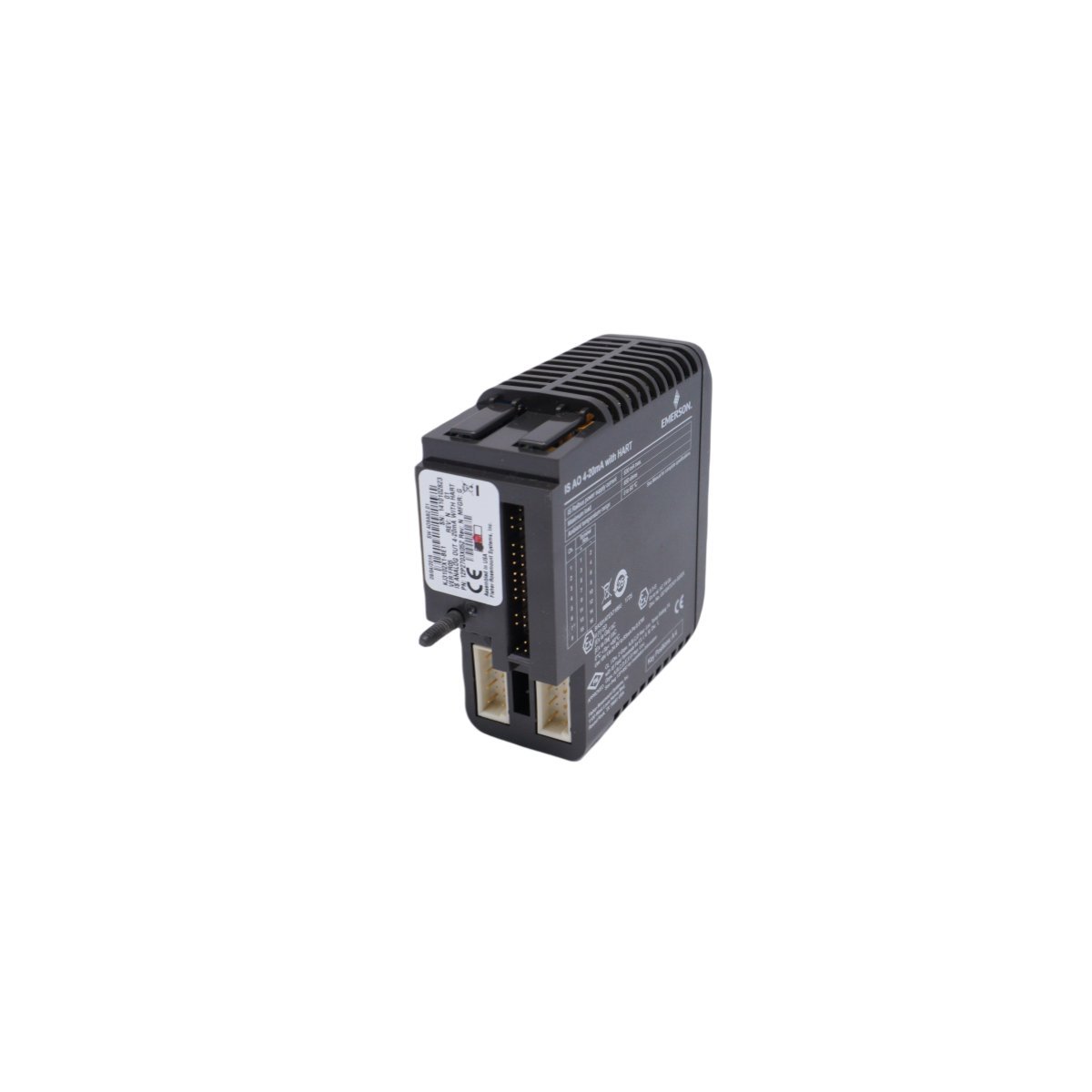

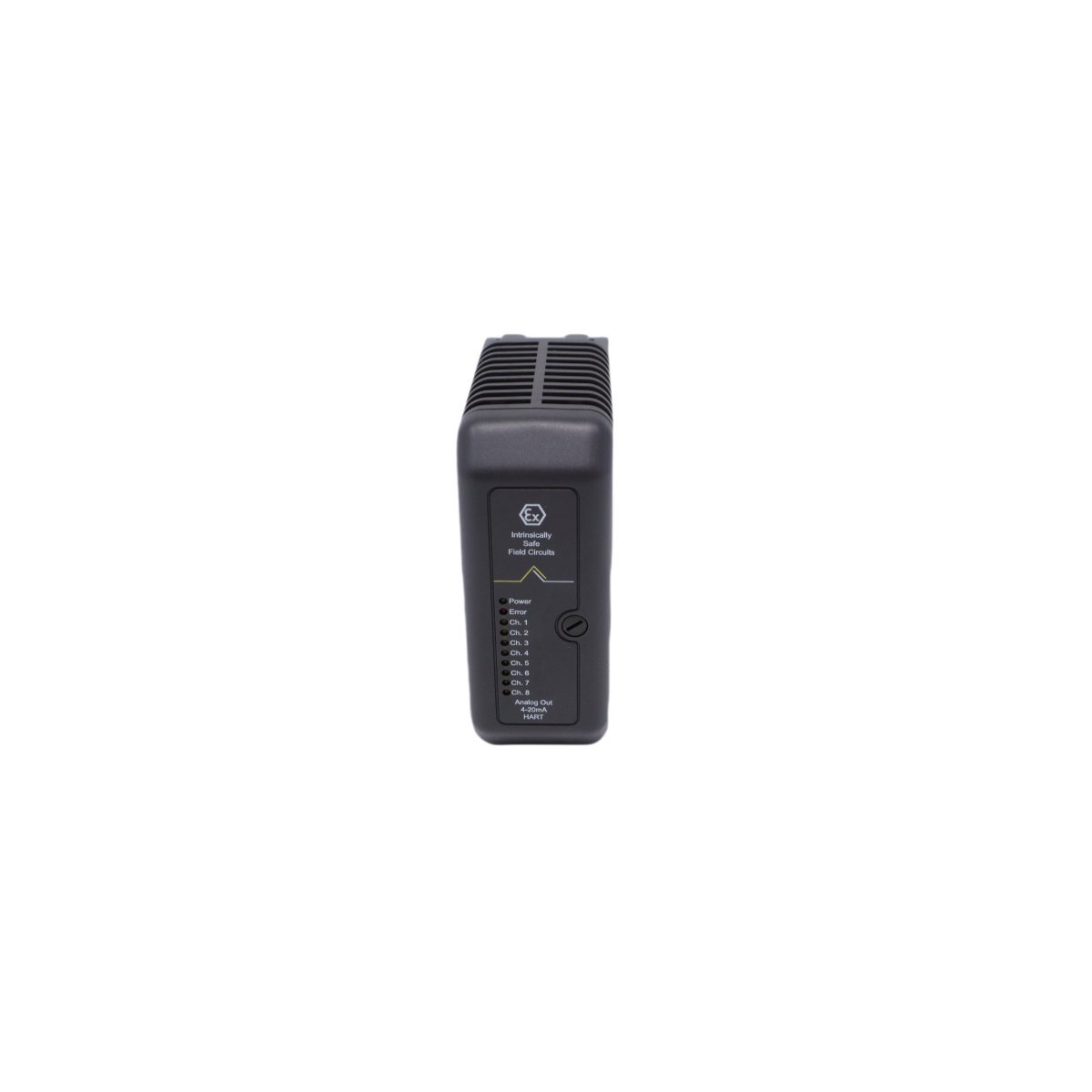

The Emerson KJ3102X1-BE1 12P2703X052 is a specialized 8-channel analog output module designed for the DeltaV™ distributed control system. It provides precise 4-20mA signal generation with integrated HART protocol support to drive field actuators and valves in critical process environments.

Precision Control and HART Integration

The KJ3102X1-BE1 functions as a vital interface between the DeltaV digital controller and field-level final control elements. By supporting the HART (Highway Addressable Remote Transducer) protocol, this module enables bi-directional communication with intelligent field devices. Consequently, operators can access advanced diagnostic data and device configuration parameters directly through the control system without interrupting the 4-20mA analog signal. This dual-layered communication ensures that control loops remain tight while providing deep visibility into instrument health.

High-Availability System Architecture

Emerson engineered the KJ3102X1-BE1 for mission-critical reliability within the M-series and S-series I/O subsystems. The module architecture inherently supports redundant configurations, which allows for automatic failover to a secondary card should the primary unit encounter a fault. This redundancy significantly reduces the risk of process trips in volatile industries such as chemical manufacturing and oil and gas refining. Furthermore, the card features “hot-swappable” capabilities, meaning maintenance teams can replace modules while the system is powered and operational, effectively eliminating scheduled downtime for hardware refreshes.

Industrial Durability and Signal Integrity

To maintain stable operation in electrically noisy industrial settings, the 12P2703X052 utilizes advanced filtering and anti-interference circuitry. The module effectively isolates field-side electronics from the system bus, protecting the broader DCS architecture from external electrical surges. Because the unit is designed for long-term deployment, it maintains its calibration accuracy across a wide range of ambient temperatures. This stability ensures that the process control model delivers consistent, repeatable performance, which is essential for maintaining production quality and safety standards.

Technical Specifications
