Brief Product Description

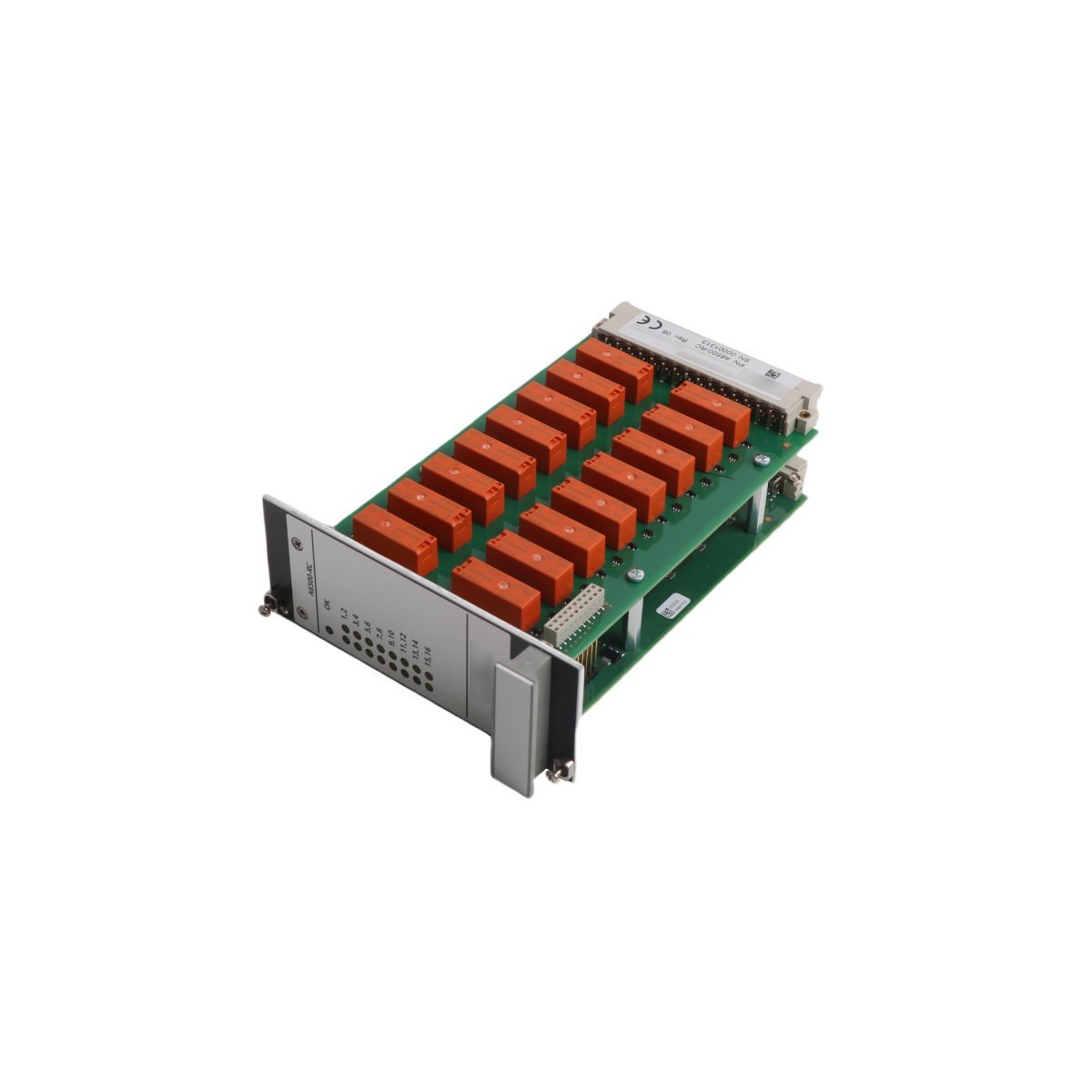

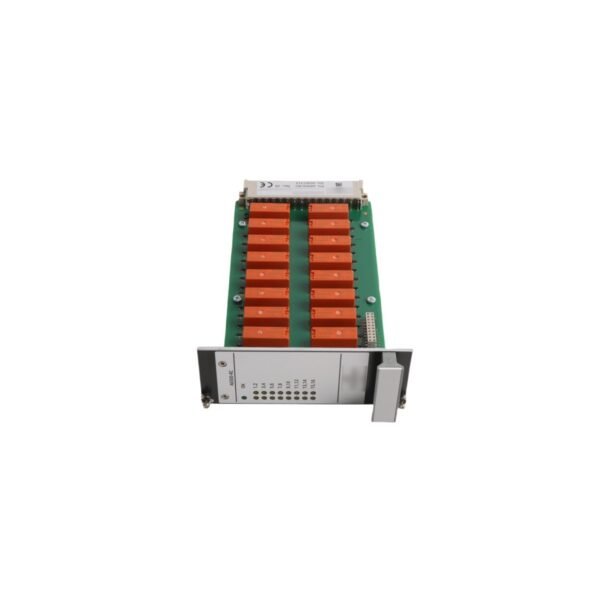

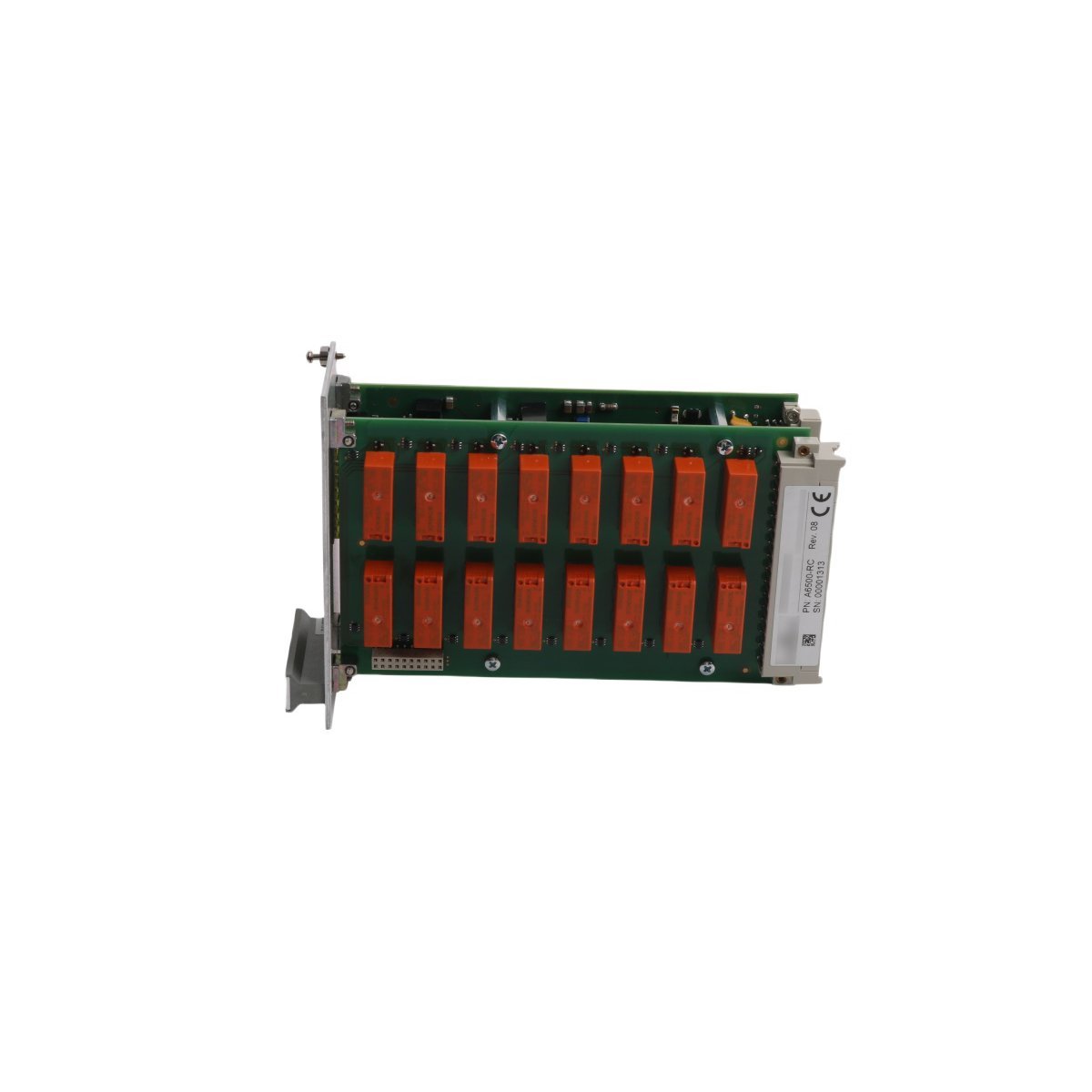

The Emerson A6500-RC is a high-reliability system relay card designed for the AMS 6500 ATG machinery protection platform.¹ It provides programmable relay outputs to initiate critical alarms and emergency machine shutdowns based on real-time health monitoring data.²

Product Description

Machinery Protection and Automated Alarm Logic

The Emerson A6500-RC functions as the primary switching interface for the AMS 6500 ATG protection system. This card translates complex monitoring data—such as vibration, thrust, and temperature—into physical relay actions. By providing a direct hardware link to external signaling devices and emergency trip circuits, the module ensures that critical machinery stays within safe mechanical limits. It effectively bridges the gap between digital monitoring logic and the physical safety hardware required to protect high-value assets like turbines and large compressors.

Advanced Configuration and Rapid Response

Engineers utilize the A6500-RC to execute sophisticated voting logic and alarm management. Because the card supports fully customizable output settings, users can define precise conditions for “Alert” and “Danger” status levels. This flexibility allows for a tailored response to various mechanical threats, preventing unnecessary shutdowns while ensuring immediate action when true faults occur. Furthermore, the card operates with low latency, providing the rapid-fire response times necessary for high-speed rotating equipment where every millisecond counts toward preventing catastrophic failure.

Industrial Reliability and Software Integration

The Emerson A6500-RC System Relay Card integrates natively with the AMS software suite, allowing maintenance teams to monitor relay states and configure parameters remotely. This seamless communication simplifies the commissioning process and enhances long-term oversight of the machinery protection rack. To withstand the rigors of heavy industrial environments, Emerson built the A6500-RC with robust electrical isolation and resistance to electromagnetic interference. These features ensure that the protective safeguards remain operational despite the high electrical noise typically found in power plants and chemical processing facilities.
