Product Overview

The General Electric DS200FCSAG2ACB is a specialized Gate Distribution and Status Card designed for the Speedtronic Mark V and EX2100 control series. This interface module performs critical electric current measurement and facilitates high-speed signal distribution between interconnected circuit boards.

Current Sensing and Signal Distribution Logic

The DS200FCSAG2ACB serves as a primary hub for current monitoring within GE’s legacy turbine control ecosystems. It efficiently bridges the communication gap between power-level components and logic-level processors by sensing current flow and converting it into actionable data. Because the board supports both Triple Modular Redundant (TMR) and Simplex architectures, it offers versatile deployment options for high-availability power generation assets. This flexibility ensures that the control system maintains synchronization across redundant channels, thereby preventing single-point failures in critical turbine operations.

Physical Architecture and Durability Features

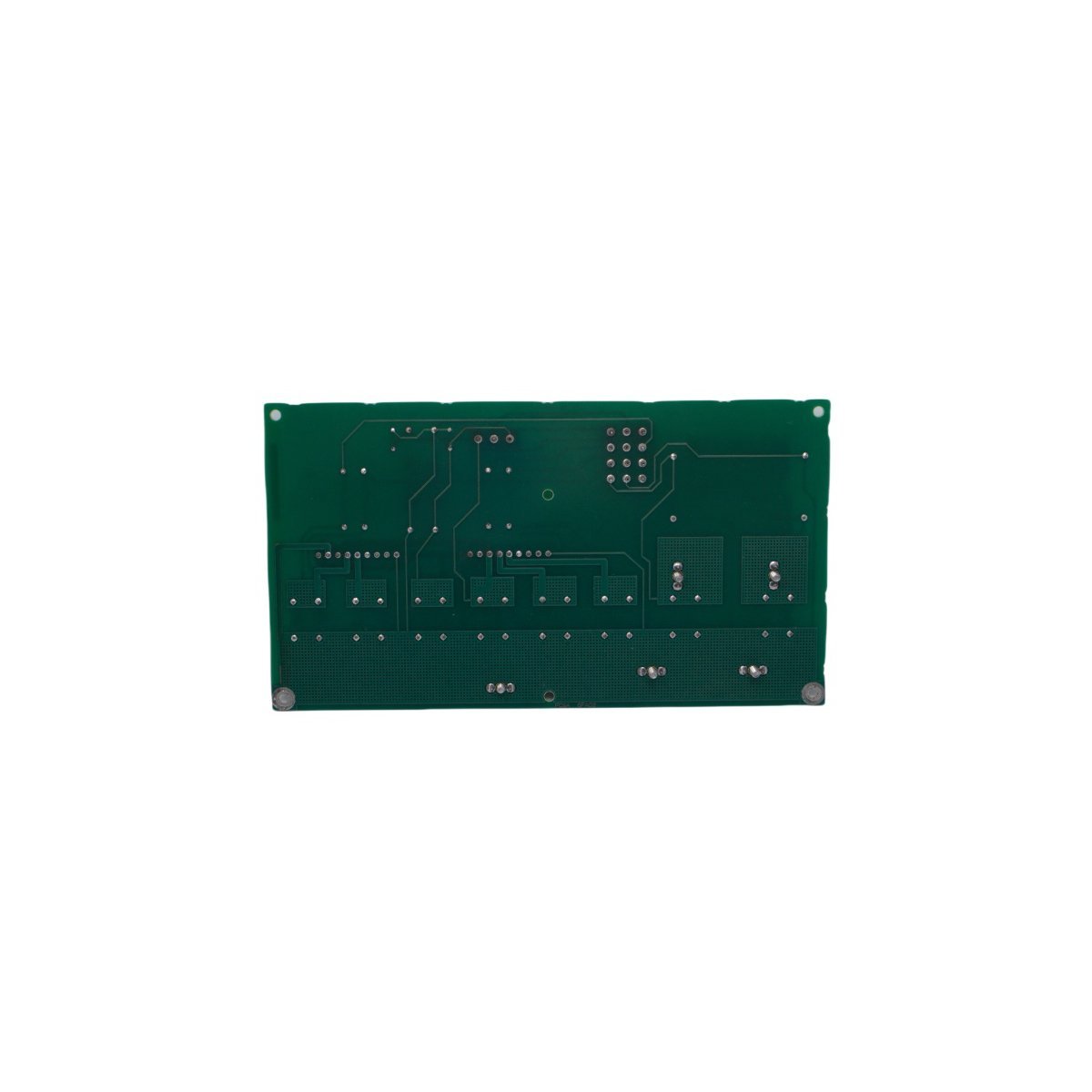

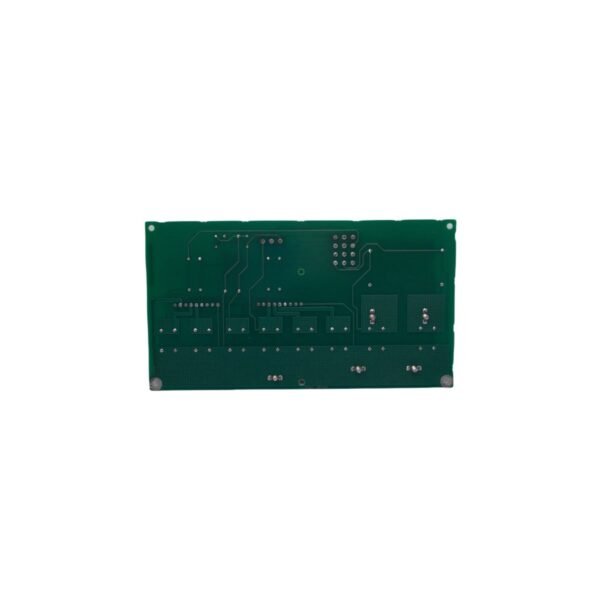

Engineers designed this compact printed circuit board with industrial-grade resilience in mind. The board features four precision-drilled mounting holes, including two conductively ringed corners specifically for system grounding. To simplify installation and prevent wiring errors, alphanumeric identifiers and alignment notches line the PCB edges. Furthermore, the assembly includes a specialized protective coating that shields the delicate surface-mount components from humidity, dust, and corrosive industrial gases. These structural enhancements contribute to the long-term stability of the Speedtronic system, even in demanding turbine enclosure environments.

Integrated Component Specifications

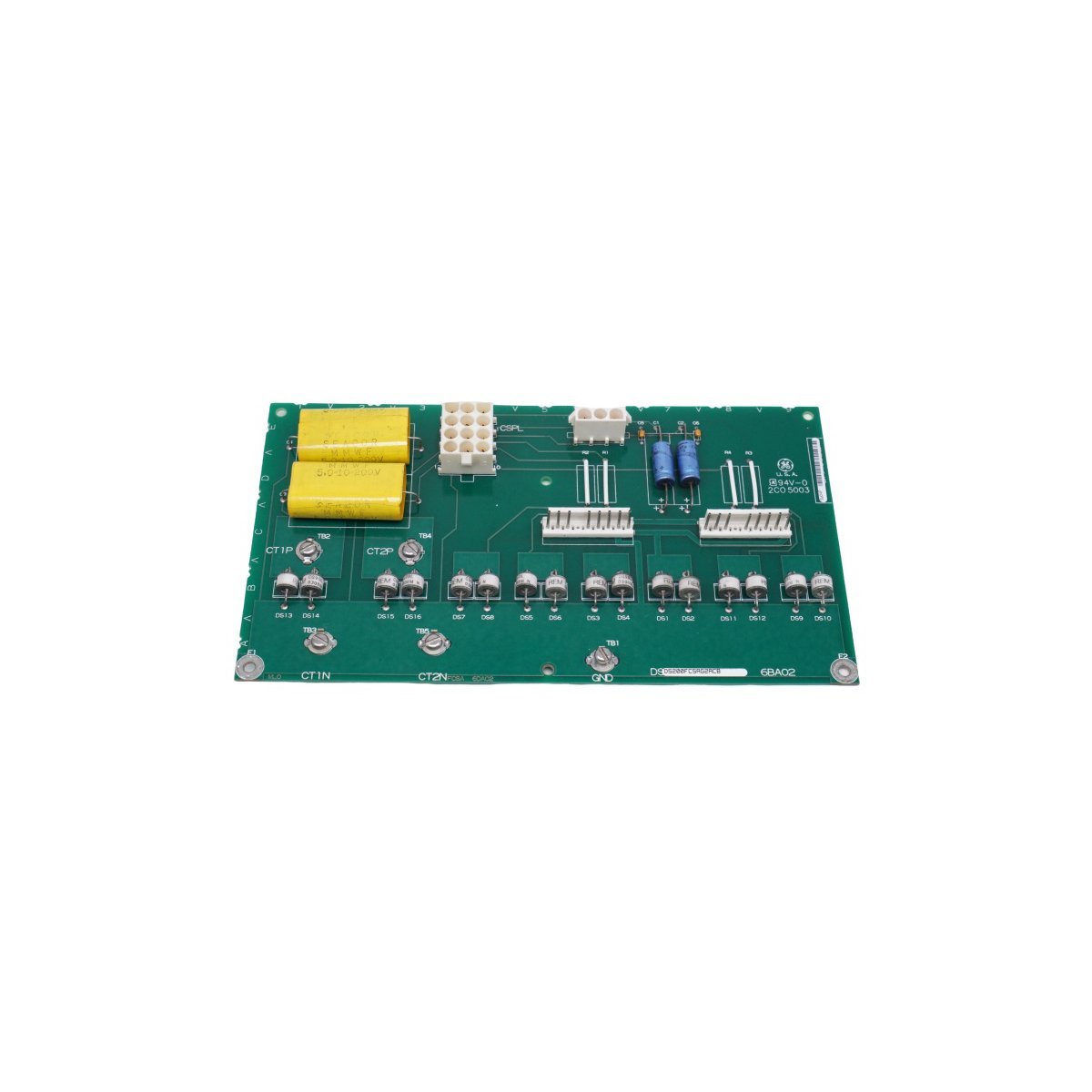

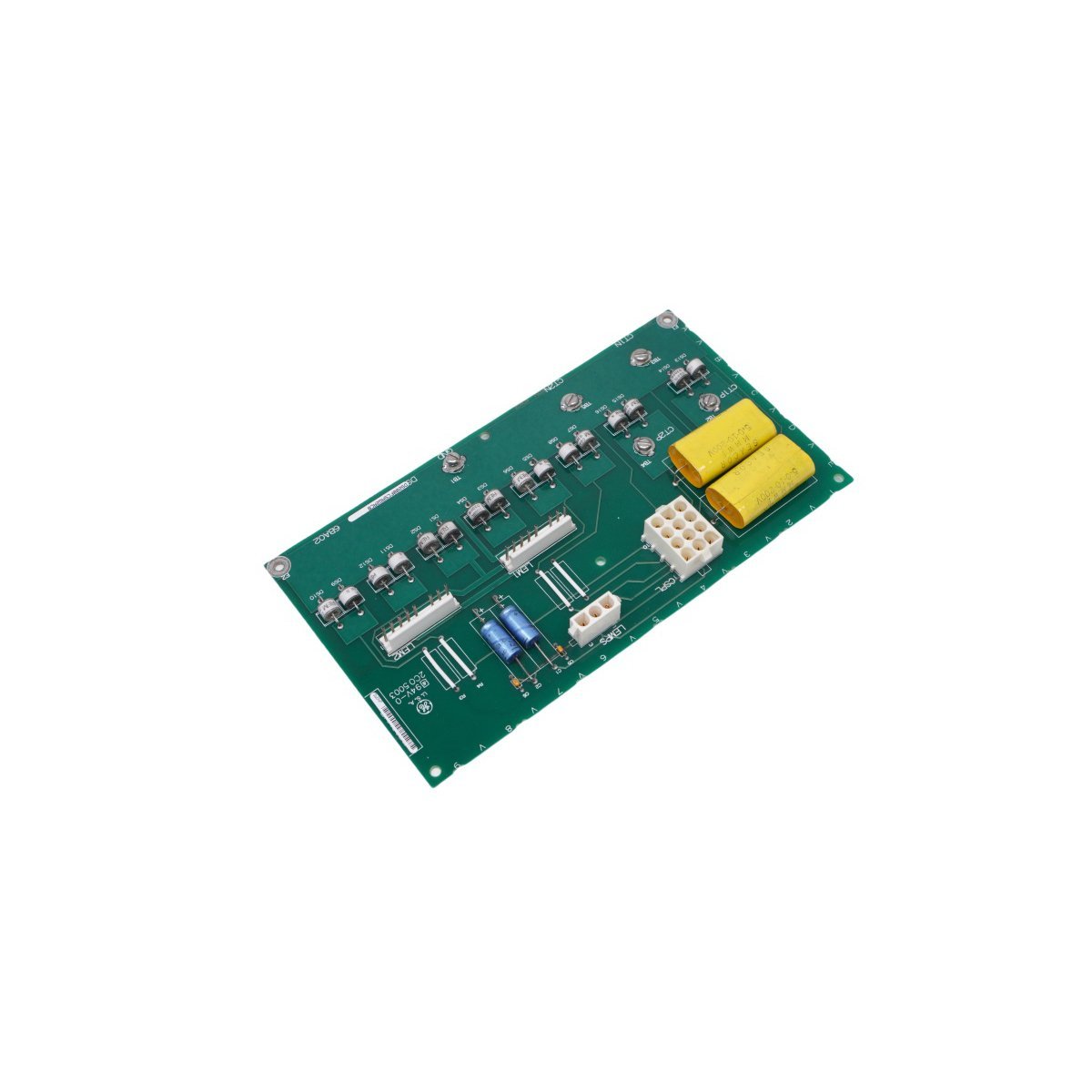

The DS200FCSAG2ACB architecture incorporates a robust array of electrical components to handle signal filtering and rectification. The board features a sophisticated diode network consisting of sixteen diodes arranged in eight distinct pairs. Additionally, the assembly utilizes a combination of two electrolytic and two polyvinyl capacitors to stabilize voltage levels across the interface. Connectivity is managed through high-retention Mate-N-Lok connectors and dual-pin header blocks, which ensure vibration-resistant links to the rest of the Mark V rack. These high-quality components allow the board to maintain precise sensing tolerances throughout its operational lifecycle.
