Description

Brief Product Description

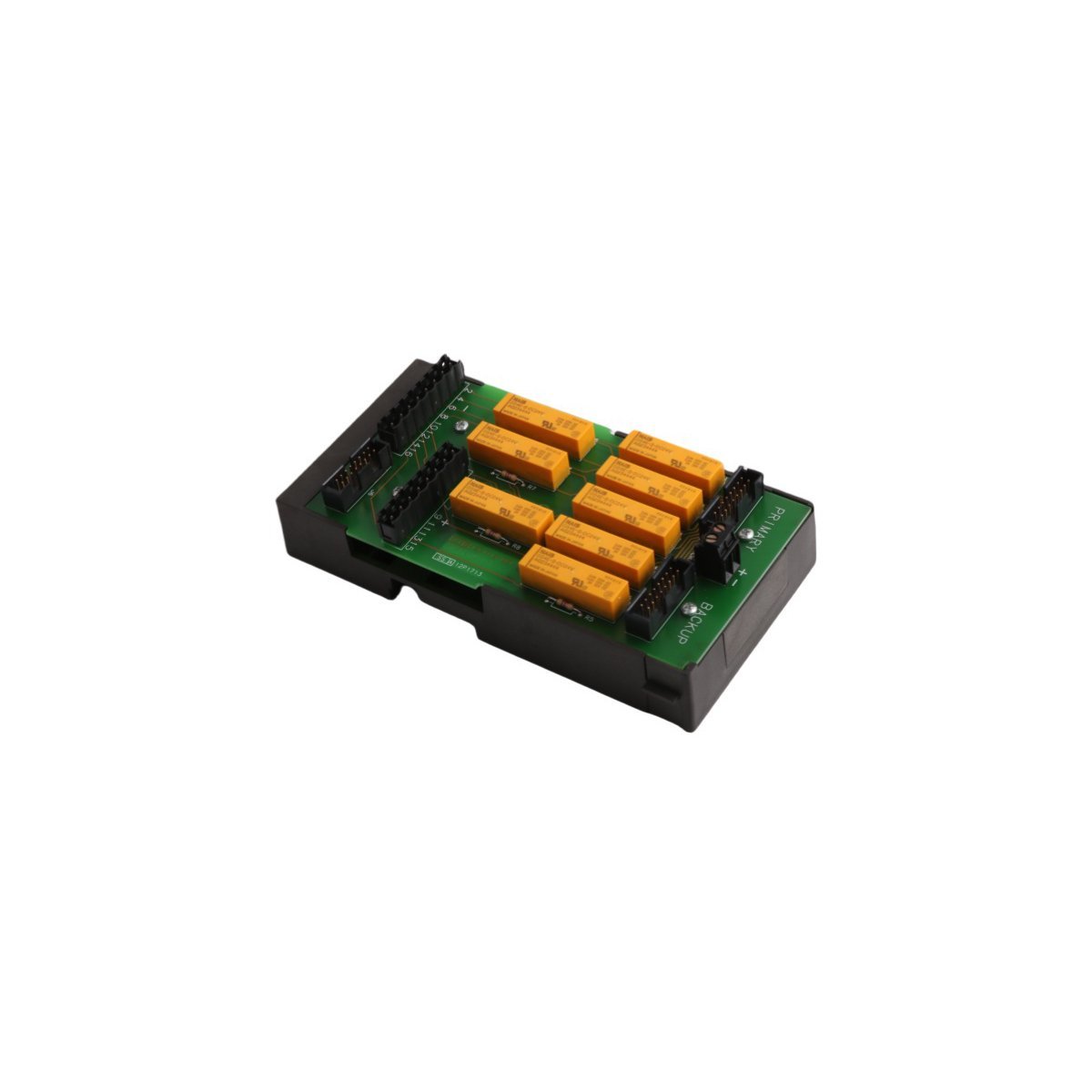

The Emerson KJ4001X1-JA1 (12P1832X022) is a high-reliability redundant terminal block designed for the DeltaV M-series I/O subsystem. It provides secure field wiring termination and essential signal redundancy to maintain continuous process control in mission-critical industrial environments.

Product Description

High-Availability Redundant Architecture

The Emerson KJ4001X1-JA1 functions as a specialized termination point within the Fisher-Rosemount DeltaV M-series ecosystem. This Redundant SLS (Safety Logic Solver) Terminal Block ensures that critical I/O signals remain uninterrupted by providing a dual-path wiring interface. By facilitating redundant hardware configurations, the module protects the control loop against single points of failure. This architecture is particularly vital for chemical processing and power generation industries where unplanned downtime results in significant safety risks and financial losses.

Extreme Environmental Resilience

Engineers developed the 12P1832X022 assembly to thrive in the most demanding field conditions. The module maintains peak performance across an expansive temperature gradient from -40°C to +70°C. Furthermore, its ruggedized housing protects internal circuitry from the corrosive atmospheres and mechanical vibrations often found in heavy manufacturing sectors. This environmental hardiness ensures that the DeltaV system maintains high signal integrity and accurate data transmission regardless of the surrounding industrial climate.

Optimized Power Distribution and Integration

The KJ4001X1-JA1 module manages power distribution with precision, supporting a 12 VDC supply rated up to 8 A. This high amperage capacity allows the block to remain stable even during significant voltage transients, preventing logic resets or signal dropouts. Additionally, the compact form factor allows for high-density mounting within standard DeltaV control cabinets. Because the unit is fully compatible with the M-series I/O subsystem, maintenance teams can execute rapid installations and replacements, thereby streamlining the lifecycle management of the distributed control system (DCS).

Technical Specifications
