Description

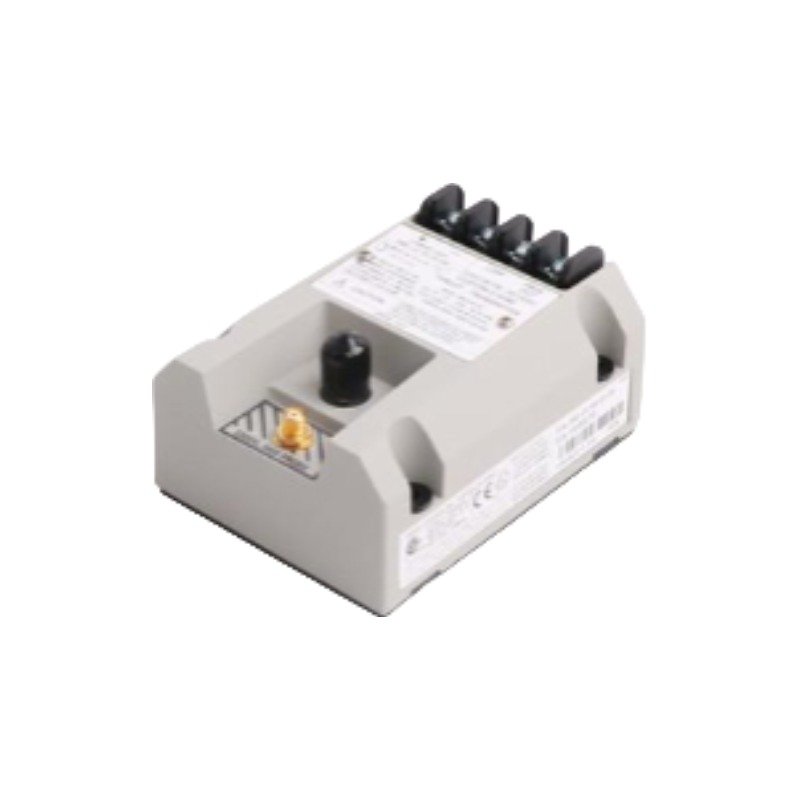

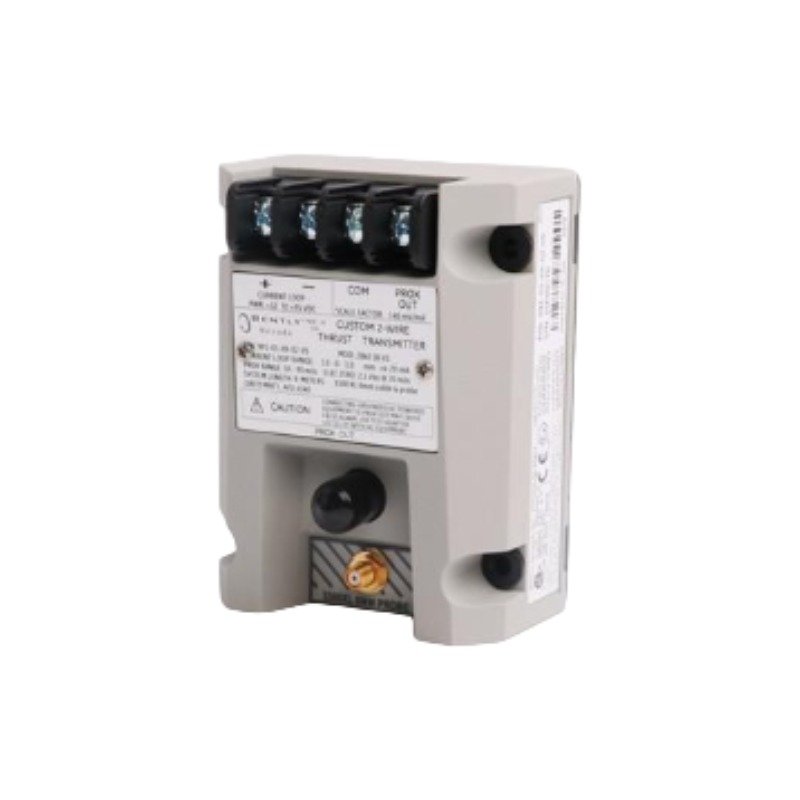

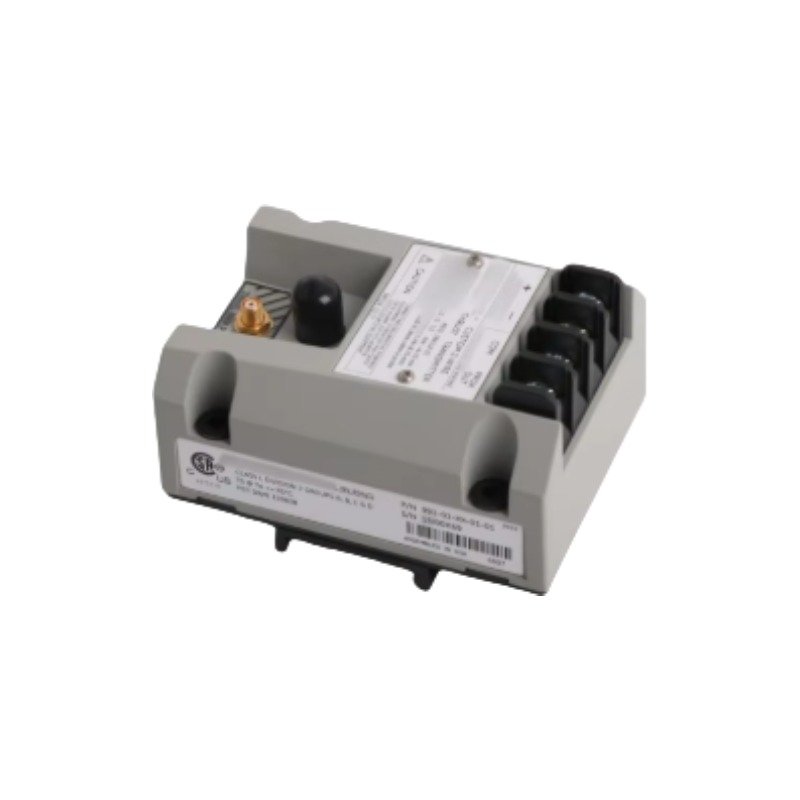

Configured for non-contacting axial position and thrust displacement measurements in machinery monitoring networks, the Bently Nevada 991-01-xx-01-00 (991 Thrust Transmitter) provides direct physical/electrical execution. Specifically, the transmitter conditions high-frequency radio frequency (RF) signals from an eddy-current probe system and subsequently converts the physical gap variations into a linear 4-20 mA DC current loop. Consequently, this design executes the direct delivery of critical thrust metrics to distributed control systems (DCS) or programmable logic controllers (PLC) without requiring an intermediate monitoring rack.

Hardware Specifications

Eddy-Current Probe Scaling and Transducer Dynamics

The Bently Nevada 991-01-xx-01-00 utilizes precise eddy-current probe scaling to monitor axial shaft movement and analyze rotor dynamics under varying load conditions. During commissioning, engineers perform gap voltage validation (-10 VDC targets) within the calibrated linear range, thereby verifying proper sensor alignment relative to the thrust collar target. Furthermore, the internal electronics deploy integrated cross-talk suppression circuitry; as a result, the hardware minimizes electrical interference even when multiple sensor lines run through parallel wire conduits.

Frequently Asked Questions

Q: What does the “mod 284318-01” designation indicate for this specific transmitter model?

A: The “mod 284318-01” denotes a manufacturer modification that adapts the standard calibration or structural parameters of the device to interface with specialized target materials or specific factory testing constraints.

Q: Why does the transmitter include a continuous BNC connector on the housing?

A: The BNC connector provides a dynamic voltage output proportional to the unfiltered sensor signal. Therefore, technicians can connect vibration analyzers and data collectors directly for diagnostics without interrupting the primary 4-20 mA control loop.

Field Installation Guidelines

• Shielding and Grounding: First, terminate the coaxial extension cable shield directly at the designated transmitter terminal. Afterwards, ground the field-side 4-20 mA instrumentation cable shield at a single point, typically at the control room I/O cabinet ground bus, to prevent ground loop noise.
• Conduit and Routing Rules: Always route probe cables and transmitter output loops inside dedicated, grounded metal conduits. In addition, avoid running signal wiring in the same tray or conduit as high-voltage power distribution lines or variable speed drive (VFD) motor cables.
• Mechanical Mounting: Install the transmitter housing on a standard 35 mm DIN rail or, alternatively, bolt it directly to a flat panel inside a protected enclosure. If installing in outdoor or corrosive process environments, select an enclosure rating of IP54 or higher.
