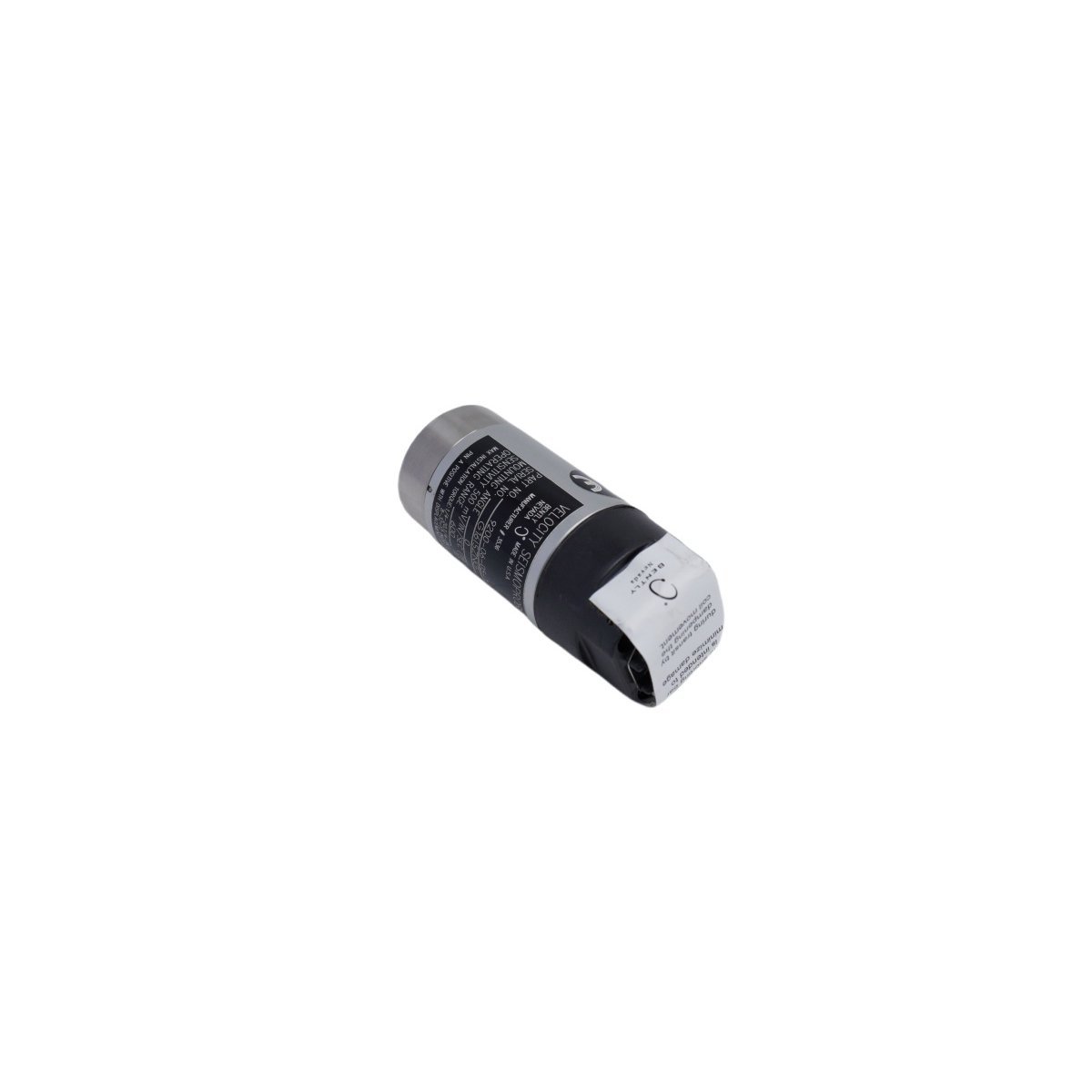

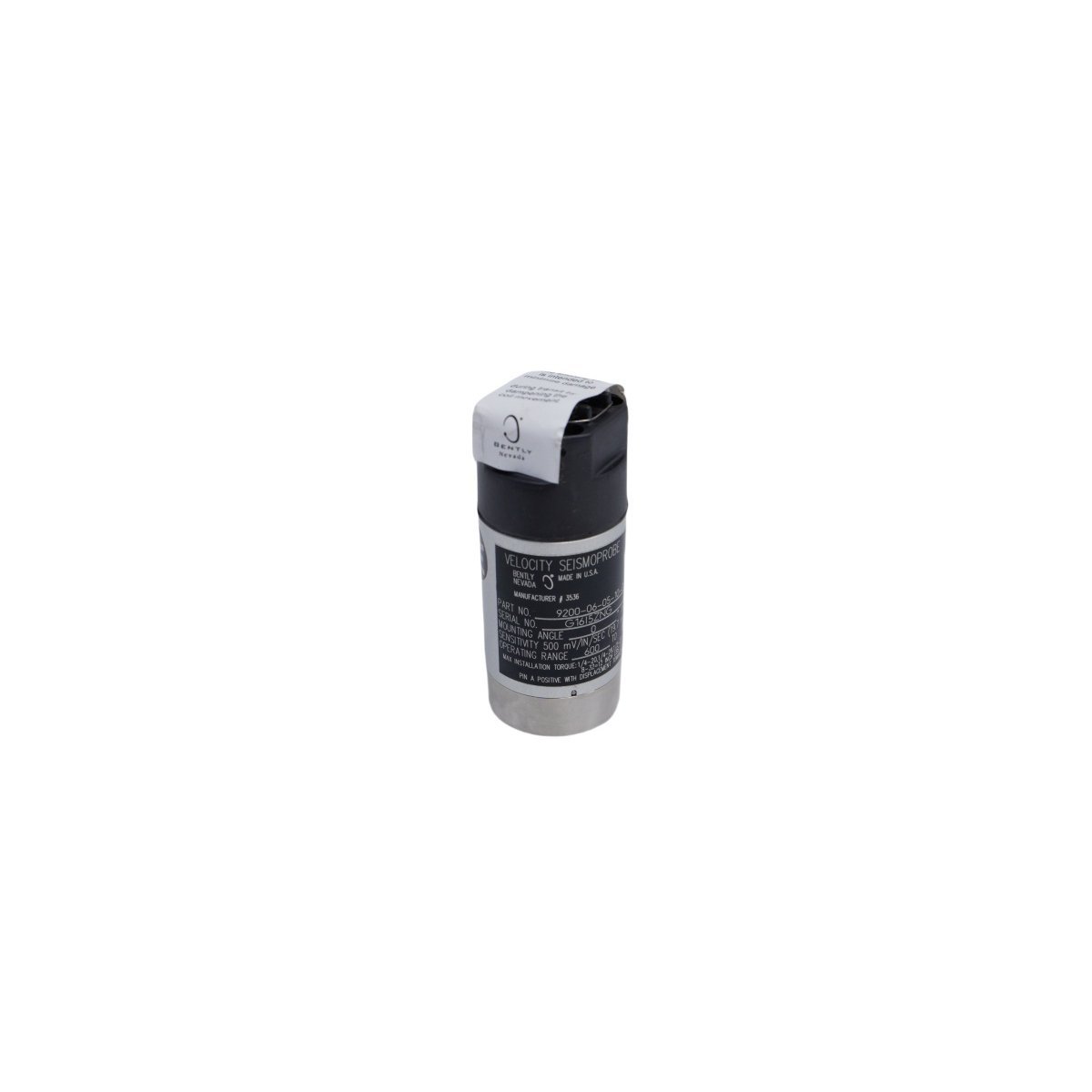

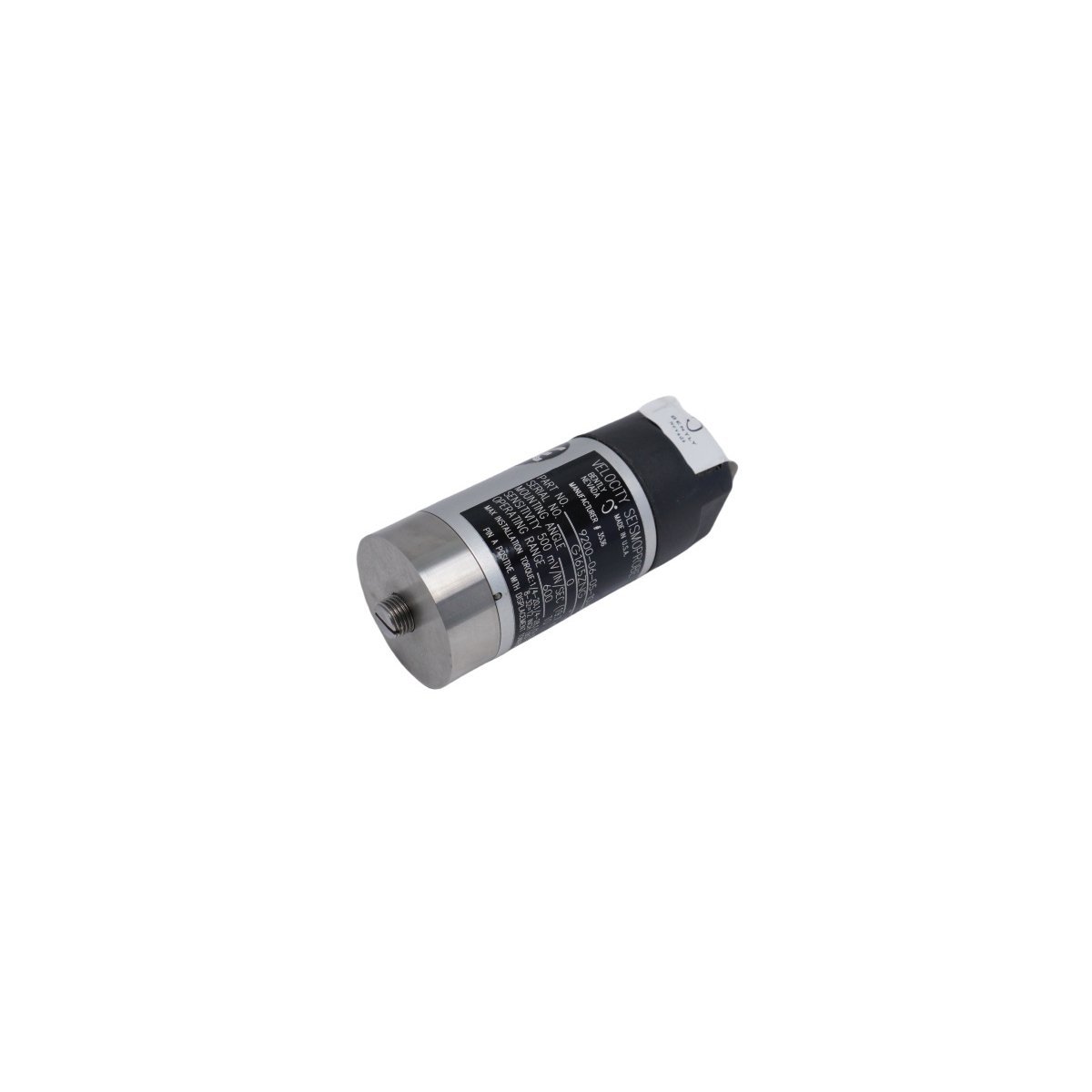

Bently Nevada 9200-06-05-10-00 Velocity Seismoprobe Transducer

The Bently Nevada 9200-06-05-10-00 is a high-reliability velocity seismoprobe designed for non-contacting vibration measurement on industrial machinery. This two-wire transducer utilizes moving-coil technology to generate a voltage signal directly proportional to the absolute vibration velocity of the machine housing. Engineers primarily deploy the 9200 series for low-to-medium frequency monitoring on large rotating equipment such as steam turbines, gas compressors, and large pumps. Unlike piezo-velocity sensors, this electromechanical design requires no external power source, simplifying the wiring architecture in complex industrial environments. The 9200-06-05-10-00 effectively filters out high-frequency noise and impacts that often interfere with integrated accelerometers, providing a stable and accurate baseline for condition monitoring.

Core Functional Advantages and Design

This Seismoprobe features a rugged, anodized aluminum housing that withstands the corrosive atmospheres common in petrochemical and power generation facilities. The 9200-06-05-10-00 model excels in applications where impact excitation is prevalent, as its mechanical damping prevents the signal saturation often seen in electronic sensors. Its self-generating design produces a low-impedance output, allowing for long cable runs back to the monitoring rack without significant signal degradation. By providing real-time data on machinery casing vibration, this transducer supports predictive maintenance programs and helps operators identify mechanical imbalances or bearing wear before they lead to costly unplanned downtime.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 9200-06-05-10-00
• Transducer Type: Velocity Seismoprobe (Moving-coil)
• Sensitivity: 20.1 mV/mm/s (511 mV/in/s) ±5%
• Frequency Response: 10 Hz to 1,000 Hz (600 to 60,000 cpm) ±3.0 dB
• Operating Orientation: 0° ±100° (Omnidirectional variants available)
• Housing Material: Anodized Aluminum
• Connection: Two-wire, self-generating (No external power required)
• Operating Temperature: -29 °C to +121 °C (-20 °F to +250 °F)
• Hazardous Area Approvals: CSA, ATEX, and IECEx compatible
• Weight: 0.42 kg (0.93 lbs)
• Dimensions: 10.2 cm x 4.0 cm x 4.0 cm

Industrial Applications and Performance

Operators in the oil and gas, mining, and utility sectors specify the Bently Nevada 9200-06-05-10-00 for critical asset protection. It performs exceptionally well on hydroelectric turbines and cooling tower fans where low-frequency vibration monitoring is essential for structural integrity. The sensor’s immunity to cross-axis vibration ensures that the output signal reflects only the intended measurement vector, increasing the reliability of safety trip logics.

Frequently Asked Questions

Does the 9200-06-05-10-00 require a Proximitor sensor?

No, this seismoprobe is a self-generating electromechanical device. It connects directly to a velocity monitor card without the need for a separate driver or Proximitor.

Can I mount this transducer in any direction?

The -06-05-10-00 configuration specifies a particular mounting orientation. You must install the probe within the angle range defined in its datasheet to ensure the internal moving coil operates with maximum accuracy.

What are the benefits of a velocity probe over an accelerometer?

Velocity probes like the 9200 series provide a direct measurement of the energy associated with machine vibration. They are less prone to “noise” from high-frequency sources like gear mesh or cavitation, making them superior for assessing the health of large machine casings.

How does the self-generating feature simplify installation?

This reduces the number of conductors required in your field wiring.
