Description

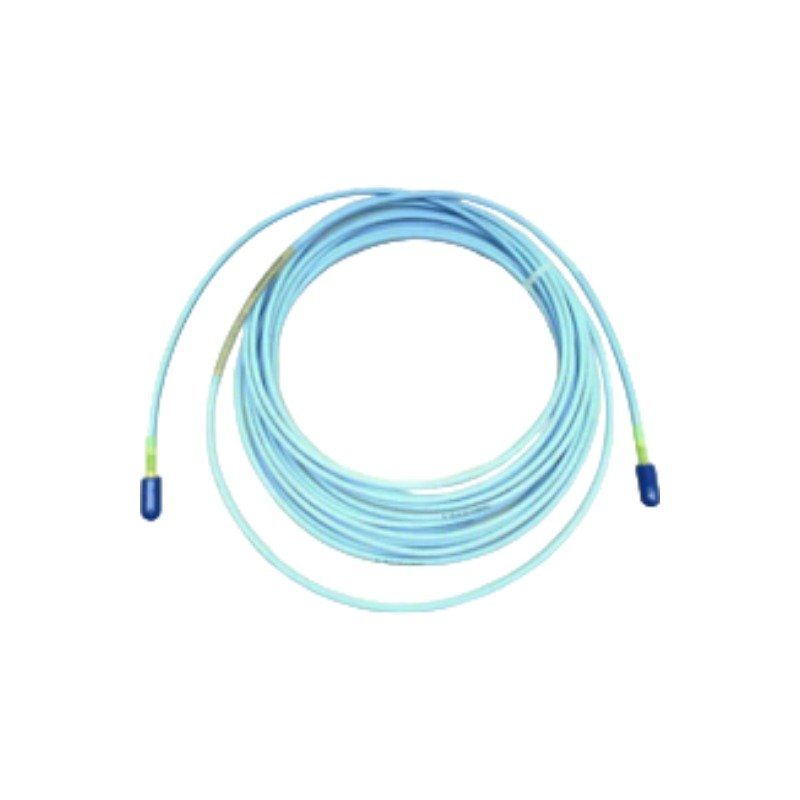

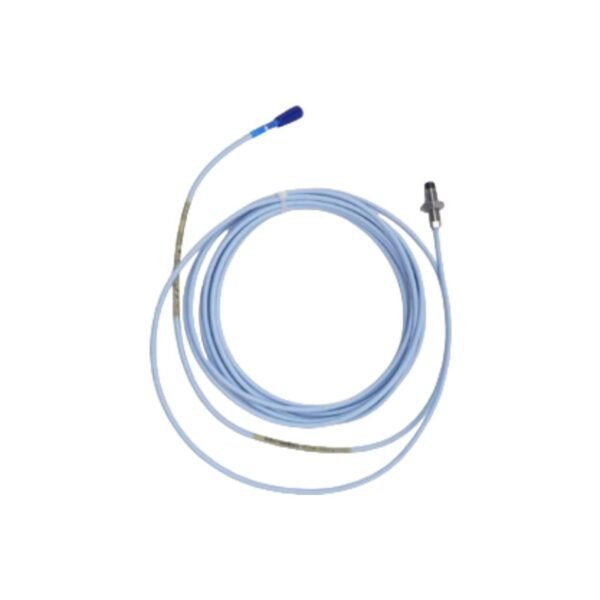

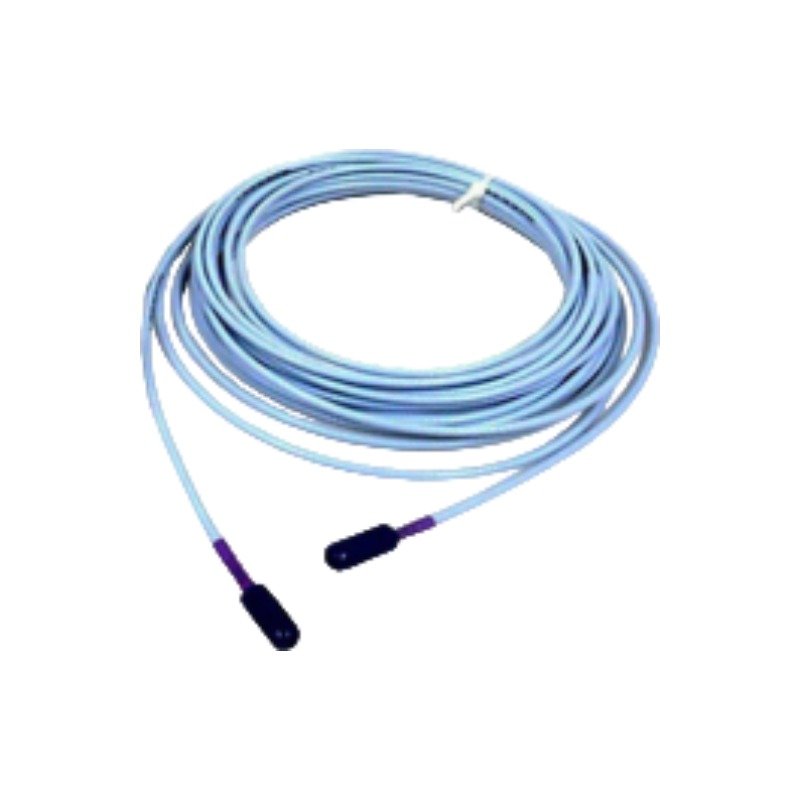

The Bently Nevada 87900-02, also cataloged as the 87900-02 Automation Control Components, operates as a dedicated hardware component for extending probe reach within Bently Nevada Proximitor sensor networks. The coaxial extension interface links proximity probes directly to remote signal conditioning units, transmitting raw high-frequency electrical displacement variations across extended paths without degrading the transducer signal integrity.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The internal conductor topology directly propagates analog parameters to analyze dynamic rotor dynamics and track critical thrust or radial bearing deviations. Specifically, the electrical parameters of the cable assembly match the designated eddy-current probe scaling specifications, ensuring that physical distance tracking maintains tight calibration curves. The hardware layers integrate mechanical shielding matrices to reinforce cross-talk suppression benchmarks; consequently, this design prevents high-frequency electromagnetic interference from generating measurement offsets during gap voltage validation (-10 VDC targets) routines.

Frequently Asked Questions

Q: Does the 87900-02 extension cable tolerate live connection or physical hot-swapping while the linked Proximitor system remains fully energized?

A: No. Technicians must completely power down the system rack or disconnect the Proximitor driver module before swapping out the 87900-02 extension cable. Connecting or separating the coaxial terminals under live voltage introduces inductive spikes, which subsequently disrupt the gap voltage validation parameters.

Q: How does the physical layout of the 87900-02 extension cable affect the master eddy-current probe scaling metrics?

A: The length and capacitive matching profile of the 87900-02 cable directly affect the calibration curve. Engineers must explicitly match the total physical cable length to the specific Proximitor driver configuration, thereby preventing attenuation errors from shifting the target 100 mV/mil output response.

Field Installation Guidelines

• Route the 87900-02 cable assembly through dedicated, grounded steel conduits to optimize cross-talk suppression features and isolate the sensor pathway from parallel high-voltage power lines.
• Observe the standard minimum bend radius guidelines during routing maneuvers; accordingly, this practice prevents internal dielectric cracking and ensures stable gap voltage validation performance.
• Thread the coaxial connectors tightly until they seat completely, then apply self-fusing insulation tape to keep moisture out and prevent grounding shifts at the intermediate connection points.
